12 Volt Encyclopedia · Volume VII · Article 7
How Can Competition Amplifiers Operate Below One Ohm?
Dropping load impedance asks the amplifier to deliver more current for the same output voltage. Low-impedance stability therefore comes from current capacity, heat control and protection—not from a magical setting.
Ohm’s-law consequence
At 40 volts RMS, a 1-ohm resistor demands 40 amperes and 1,600 watts. At 0.5 ohm, the same voltage demands 80 amperes and 3,200 watts. Internal and vehicle current rise dramatically.

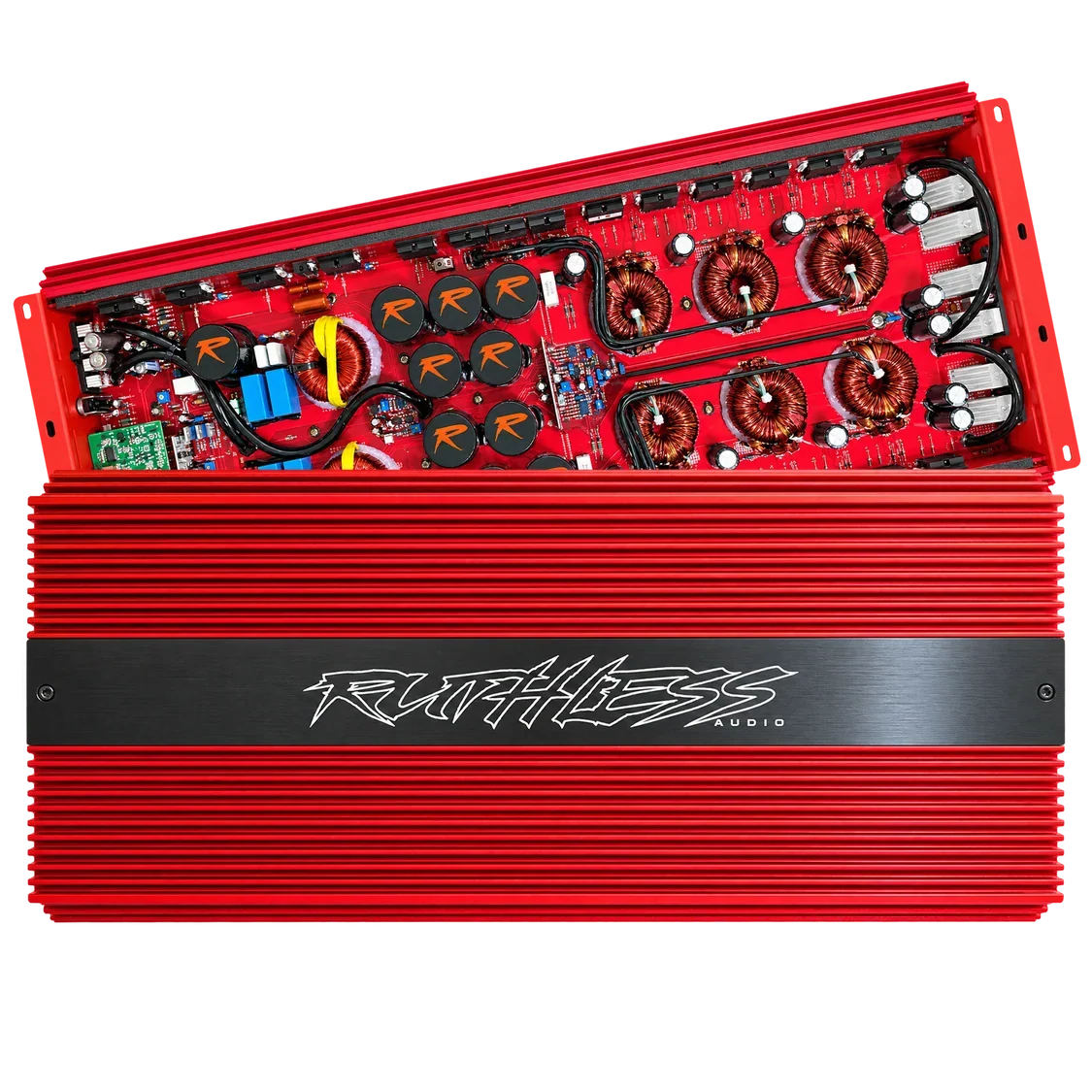

Device banks
Multiple output transistors share current. They must be matched, driven evenly and mounted so one device does not overheat and fail first.
Heavy internal conductors
Bus bars, thick copper, large terminals and low-resistance connections carry current that ordinary boards cannot handle safely. Transformer and rectifier sections must also supply it.
Cooling and protection
Temperature, current, voltage and short-circuit monitoring prevent catastrophic failure. Protection is not proof that every abuse is safe; extreme faults can happen faster than a circuit reacts.
Nominal versus real impedance
A “one-ohm” subwoofer system changes impedance with frequency. Enclosure resonance often creates large rises, reducing current at some frequencies. Voice-coil heating also raises resistance. The amplifier sees a moving target.
Why ratings differ
Some amplifiers are designed for 0.5-ohm daily use; others permit it only at controlled voltage or competition duration. Wiring one below its stated load can overheat outputs and power supply.
Installation reality
Sub-one-ohm use requires verified final wiring, excellent electrical support, short heavy conductors, secure grounds and controlled gain. A capable amplifier cannot rescue an incapable installation.
Installation and testing checklist
| Checkpoint | What to verify |
|---|---|
| Compatibility | Source output type, receiving input type and allowable voltage range match. |
| Routing | Signal wiring is protected, secured and separated from likely interference sources. |
| Termination | Connectors fit firmly without excessive force; no cable weight hangs from a jack. |
| Signal | Every channel is identified, clean and unclipped at the intended source level. |
| Final test | Polarity, channel assignment, noise floor and operation are verified with the vehicle running. |
Frequently asked questions
Does impedance rise make low wiring safe?
Not automatically; the minimum and phase behavior still matter.
Can every Korean-style amp run at half ohm?
No.
Why does current explode below one ohm?
Current is voltage divided by impedance.
Is lower impedance always more power?
Only until voltage, current, thermal or protection limits intervene.
Can a multimeter measure playing impedance?
A DC resistance reading cannot describe the full AC impedance curve.
