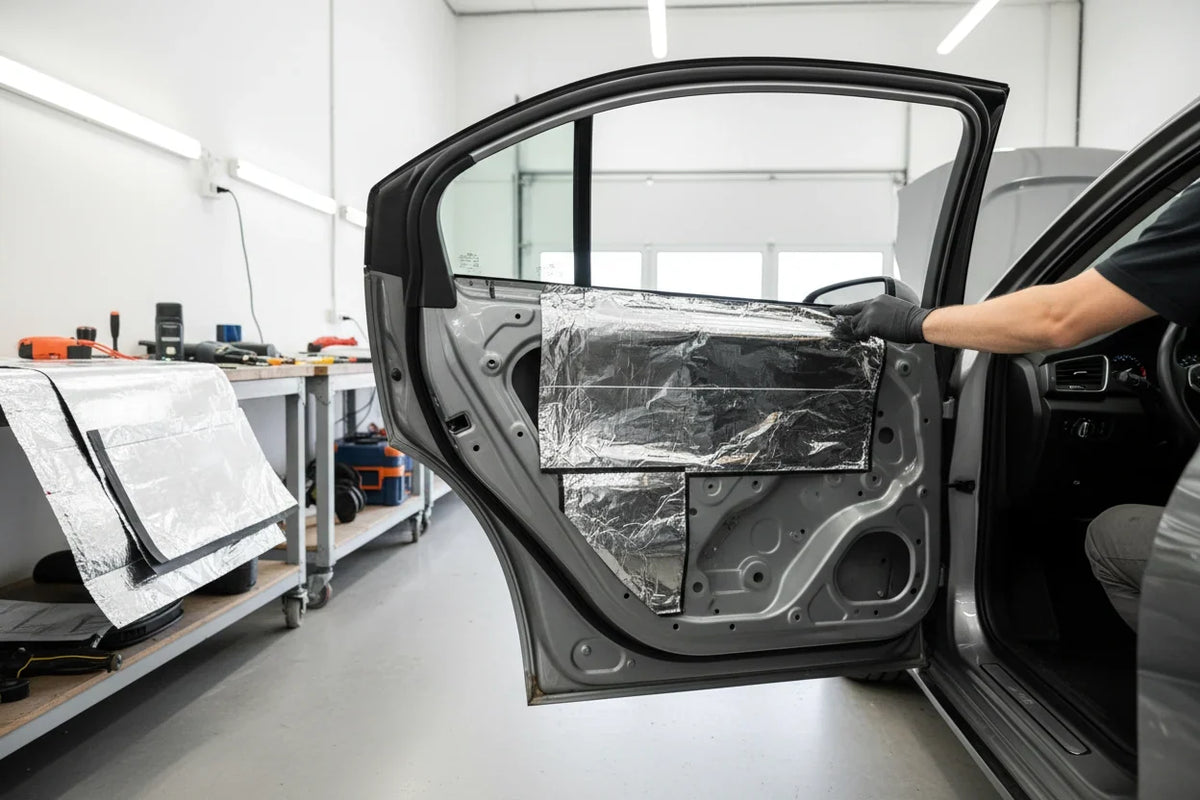

How to Sound-Deaden a Car Door Correctly: Inner Skin, Outer Skin and Door Panel
A door is a wet, moving, serviceable assembly containing glass, locks, cables, crash structure and a loudspeaker. Effective treatment improves the acoustic baffle without turning the door into an unserviceable moisture trap.
Map the door before adding material
Remove trim with correct tools, photograph clips and wiring, lower and raise the window, and mark regulator travel, crash beams, drain paths and fasteners. Disconnect the battery when manufacturer procedures require it and respect side airbags. Do not cover labels or service hardware needed to repair the vehicle.
Treating the outer skin
The exterior sheet behind the speaker is often a broad resonant panel. Apply CLD to clean accessible spans and roll it firmly into contours without bridging. An appropriate water-resistant absorber directly behind the speaker can reduce early rear-wave reflection. Keep products away from drainage paths, latch rods and the descending glass.
Treating the inner skin
The inner metal carries the speaker and trim. Damping reduces its resonance; sealing large service holes can improve front-to-rear wave separation. Covers must be rigid, airtight enough for acoustics, removable for service and shaped to clear mechanisms. Thin mat stretched across a large hole is a membrane, not a rigid baffle.
The vapor barrier still matters
Factory membranes prevent water entering past the window belt from reaching trim and electronics. If removed, reproduce the moisture path using suitable sealed material and butyl-type adhesive. Never assume a treated door stays dry. Water must reach the factory drains without soaking the speaker adapter.
Treating the trim panel
Door cards have broad molded sections, pockets, grilles, harnesses and clips that can buzz. Small CLD patches may calm broad plastic areas; closed-cell foam or felt isolates contact points. Secure loose wiring with serviceable mounts. Do not build so much thickness that clips remain partially engaged or airbags are obstructed.
Speaker mount first
A rigid waterproof baffle, proper fasteners and a gasket often provide more midbass improvement than another square foot of mat. The adapter must not flex, leak or interfere with glass. Seal the speaker to the baffle and couple its front output to the grille with an appropriately compressed ring.
Coverage without excess
Treat the panels that move and the paths that leak. Full decorative coverage is not proof of acoustic success and adds weight. Conversely, one postcard-size patch cannot control an enormous unsupported skin in a high-output build. Begin strategically, test, and add where measurement or vibration identifies a need.
Reassembly and verification
Before reinstalling trim, operate the window, locks, mirror, handle and speaker at low level. Verify drains and connector locks. After assembly, sweep the speaker, press suspected areas lightly and compare response to the untreated side at matched settings. Fix new contact noises before final tuning.
Quick Reference
| Door layer | Treatment goal | Do not obstruct |
|---|---|---|
| Outer skin | Reduce resonance; manage rear reflection | Glass and drains |
| Inner skin | Rigid speaker baffle and wave separation | Regulator/service holes |
| Moisture membrane | Protect trim and electronics | Water route to drains |
| Door card | Stop buzzes and couple grille | Airbags, clips, handles |
Frequently Asked Questions
Should both door skins be treated?
Often yes, because they perform different structural and acoustic roles.
Can I cover every access hole?
Only with removable rigid covers that preserve service and mechanism clearance.
Should drains be sealed for better bass?
Never. Doors must drain water.
How much mat is enough?
Enough to control the specific panel; coverage depends on geometry and output.
Do I need to treat the plastic door card?
If it resonates or contacts other parts, targeted damping and decoupling can help.
Final Word
A quieter, more accurate vehicle is built by controlling energy one path at a time. Stabilize the mounting structure, separate the speaker’s front and rear waves, treat resonant panels and contact points, then verify the result before final system tuning.
