THE 12 VOLT ENCYCLOPEDIA · VOLUME XI
Touchscreens, Floating Displays and Single-DIN Slide-Out Radios Explained
A large display can be attached to a conventional double-DIN chassis, a shallow single-DIN body or a motorized mechanism. Screen size and chassis size are separate measurements, which is why modern receivers can place an oversized interface in dashboards that could never accept an oversized metal case.
DIN describes the chassis opening
Single-DIN and double-DIN describe standardized face-height families, not depth, screen size or plug compatibility. A vehicle may have a large factory display but a shallow or unusual cavity. Dash kits and integration electronics remain necessary because the opening is only one part of fitment.
Motorized slide-out displays
A slide-out receiver packages a screen inside a single-DIN chassis, then extends and pivots it for use. This brought video and navigation to vehicles with small openings. The tradeoffs are moving parts, limited screen size, clearance during deployment and the possibility of blocking controls or striking a shifter.
Double-DIN touchscreens
A conventional double-DIN display sits flush and rigidly within the dash. It often looks integrated and places controls near the original opening. The available face area limits screen size, but physical buttons and knobs can coexist. Chassis depth, ventilation and harness space must still be checked.

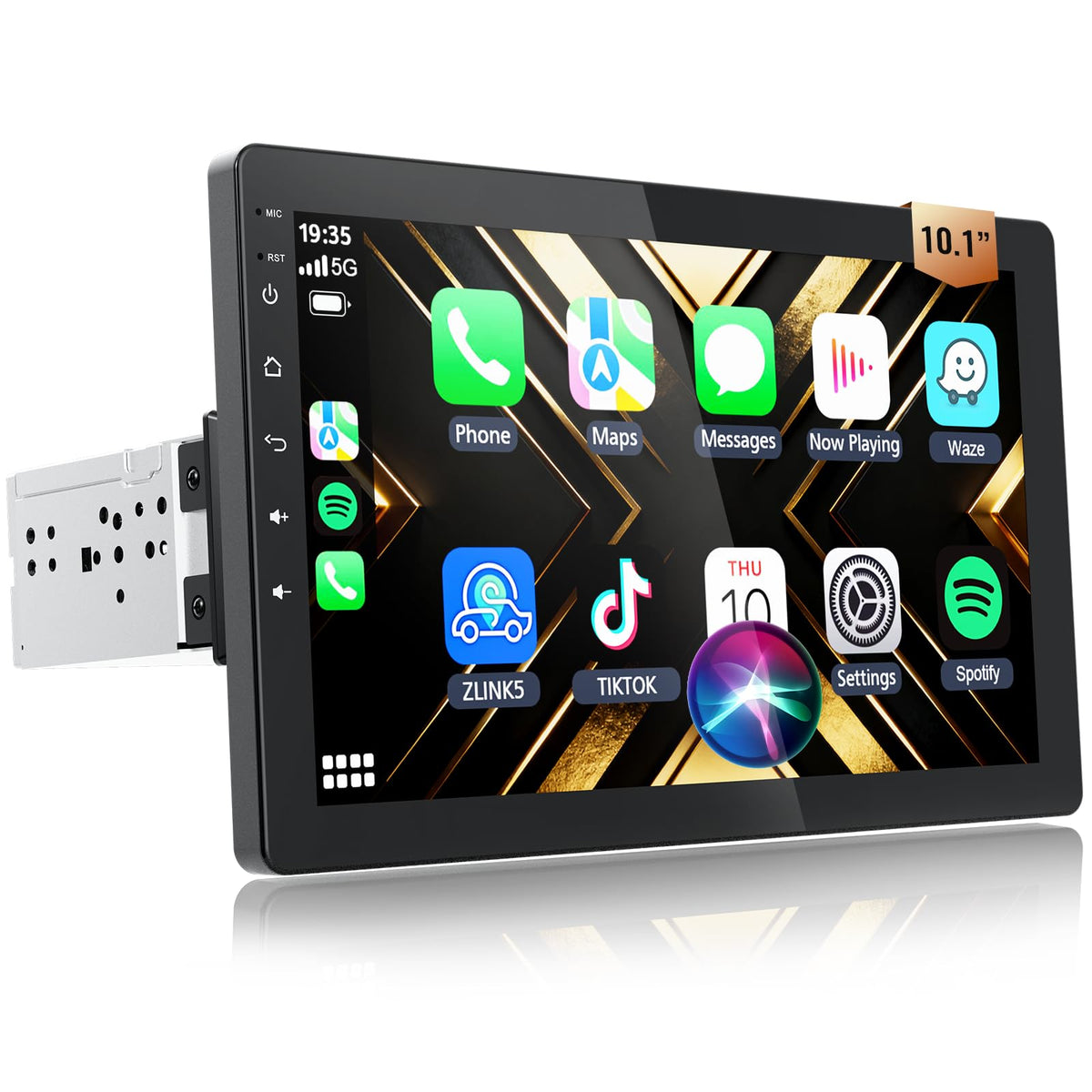

Floating tablet-style receivers
A floating screen mounts in front of a smaller chassis using an adjustable bracket. It can rise above or extend beyond the dash opening, producing a modern large-screen interface without cutting the entire dashboard. Position adjustments may include height, depth, tilt and lateral offset.
Shallow and modular chassis
Removing the disc mechanism and separating screen from electronics allows shallow bodies that fit tight dashboards. Shallow does not mean wire space is unlimited: integration modules, camera adapters, USB extensions and RCA cables still need strain-free routing and ventilation.
Clearance is three-dimensional
Measure vents, climate controls, hazard buttons, shifter travel, steering wheel, gauge visibility and passenger-airbag zones. Test the screen through tilt and removal motions. A screen that technically bolts in can still be irritating or unsafe if it blocks defrost controls or reflects sunlight directly at the driver.
User-interface quality
Large icons and split-screen information can reduce menu steps, while a poorly organized large display merely enlarges confusion. Consider startup time, touch response, nighttime dimming, glare, physical volume controls and how often core functions require looking away from the road.
Mechanical integrity
A large screen creates leverage on its bracket. Tighten hardware to specification, route cables so they do not push the mount and verify the display does not oscillate over rough roads. Theft deterrence, removable faces and screen serviceability also differ among designs.
Quick Reference
| Format | Screen arrangement | Primary consideration |
|---|---|---|
| Single-DIN | Small face or non-screen | Limited display area |
| Motorized single-DIN | Retracts into chassis | Moving clearance |
| Double-DIN | Flush integrated screen | Dash opening and depth |
| Floating display | Large screen ahead of dash | Control/vent obstruction |
| Shallow modular | Compact electronics body | External modules and cable space |
Frequently Asked Questions
Can a large screen fit a single-DIN vehicle?
Often, using a floating or motorized design, but clearance and dash-kit compatibility must be verified.
Is double-DIN always deeper?
No. Modern double-DIN receivers may be shallow without a disc mechanism.
Do floating screens block vents?
They can; measure and adjust the position before committing.
Are slide-out radios obsolete?
They remain useful where a single-DIN opening must support a retractable screen.
Is a larger screen safer?
Only if the interface and placement reduce distraction rather than increase it.
Final Word
The modern head unit is a source selector, computer interface, audio processor and vehicle control point. Choose and configure it as a complete system component—not merely a screen—and it can make every downstream amplifier and speaker easier to use correctly.
