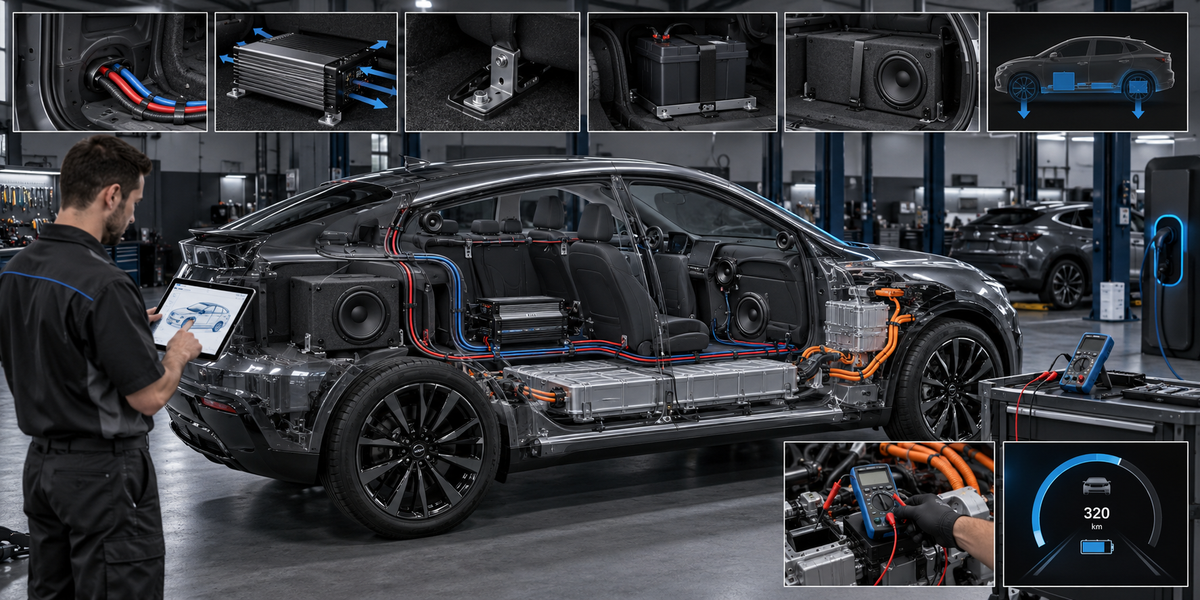

Planning a Complete EV Car-Audio Installation: Range, Heat, Weight and Safety
An EV installation begins with vehicle identification, not trim removal. The system must fit the low-voltage power budget, preserve safety audio, avoid high-voltage structures and allow the vehicle to sleep, charge and update normally.
Identify the exact vehicle
Record VIN, build date, model, trim, factory audio, low-voltage battery type and service campaigns. Obtain current service and emergency-response information. Photograph warning labels and approved distribution before designing the system.
Define the customer goal
A factory-sounding speaker upgrade, moderate subwoofer and competition demo build have radically different power and space demands. Establish listening time, stationary use, cargo loss, range concern and warranty expectations. Some goals may not suit the platform.
Build the low-voltage budget
Verify converter capability, measure vehicle demand and leave safety margin. Estimate amplifier input from RMS output, voltage and efficiency. Decide whether limits, smaller amplification or a controlled auxiliary system are required before buying equipment.
Map signal integration
Determine whether usable analog channels exist, whether factory signals are equalized or band-limited and whether ANC or synthetic sounds are present. Count DSP inputs and outputs. Preserve center channels, chimes and safety audio intentionally.
Choose mounting locations
Keep amplifiers and batteries away from water, crash zones, HVAC paths and service access. Provide cooling. Confirm added enclosure weight and tie-down capacity. Do not attach to traction-pack covers or block battery cooling.
Route every cable on paper
Use service diagrams to mark high-voltage wiring, airbags, seat sensors, coolant lines and pack boundaries. Plan fused low-voltage positive, monitored return, signal and remote paths with strain relief and abrasion protection. Avoid drilling whenever safe factory routes exist.
Understand range impact
Audio energy ultimately comes from the traction battery through conversion losses. A system averaging 500 watts for two hours uses roughly 1 kWh before additional losses—a small but real portion of range. Added weight and stationary climate use contribute too. Advertised amplifier peak is not continuous consumption.
Commission and document
Test voltage, current, converter behavior, sleep, charging, climate preconditioning, every alert, calls, cameras, pedestrian sound and audio at safe output. Scan for faults when appropriate. Provide the customer with operating limits and an installation map for future service.
Quick Reference
| Planning stage | Required proof | Stop condition |
|---|---|---|
| Vehicle ID | VIN/build/trim/service data | Architecture unknown |
| Power | Verified LV range and budget | Converter capacity unavailable |
| Signal | Measured channels/functions | Safety audio path unclear |
| Mounting | Safe cooling/structure | Pack or crash zone conflict |
| Routing | HV/airbag/coolant map | Unverified drilling path |
| Delivery | Sleep/charge/safety tests pass | Faults or abnormal draw |
Frequently Asked Questions
Will audio dramatically reduce EV range?
Moderate dynamic listening usually has limited impact, while sustained high power and climate use consume more.
Can the enclosure bolt through the floor?
Only in a manufacturer-verified safe structural area; the pack often lies below.
Should I disconnect the traction battery for audio work?
Not as a generic step; plan low-voltage work that does not require HV service.
What must be tested besides music?
Charging, sleep, alerts, pedestrian sound, calls, cameras and vehicle faults.
What if converter capacity is unavailable?
Do not guess at a high-power design; reduce scope or obtain qualified data.
Final Word
EV audio integration is low-voltage systems engineering performed beside a high-voltage vehicle. Exact service information, a conservative current budget and complete safety-function testing matter more than assumptions carried over from conventional cars.
