Voltage Drop in Car Audio: Wire Resistance, Grounding & the Big 3 Upgrade
A system can have a healthy alternator and still starve the amplifier through bad wire, weak crimps or a poor ground. Voltage-drop testing finds the loss while it is happening—and Ohm’s Law explains why tiny resistance becomes a major problem at high current.
The Big Picture
A system can have a healthy alternator and still starve the amplifier through bad wire, weak crimps or a poor ground. Voltage-drop testing finds the loss while it is happening—and Ohm’s Law explains why tiny resistance becomes a major problem at high current.
What Voltage Drop Looks Like
Dimming lights, amplifier protect mode, weak bass, hot fuse holders and large voltage differences between battery and amplifier are classic signs. The meaningful measurement is taken under load—not with the system silent.
Measure directly across the suspected segment while current is flowing. The meter then displays the voltage being consumed by unwanted resistance in that cable or connection.
Wire Length, Gauge and Material
Longer wire has more resistance; larger cross-sectional area has less. OFC carries more current for a given gauge than aluminum-based CCA and is generally preferred for demanding systems.
Gauge labels alone are not enough. Strand count, actual conductor area, material, run length, insulation temperature rating and installation environment all matter.
Grounding Done Correctly
The amplifier ground should be short, appropriately sized and connected to structurally sound metal prepared to bare, clean contact. Thin sheet metal, factory seam sealer and painted surfaces can create a poor path.
A ground can show continuity with the system off and still collapse under high current. Perform a voltage-drop test from amplifier ground terminal to battery negative or a verified reference while the system is loaded.

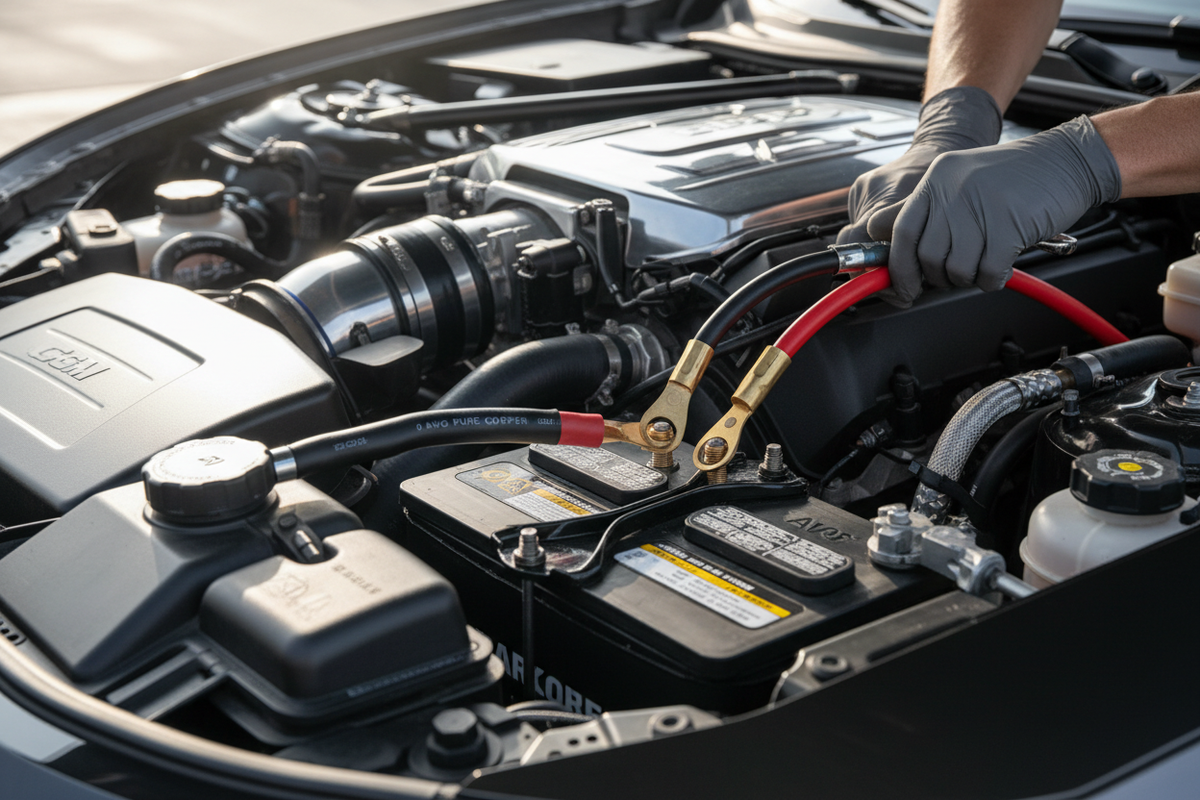

The Big 3 Upgrade
The Big 3 supplements the alternator positive to battery positive, battery negative to chassis, and engine block to chassis paths. It does not replace factory wiring unless the vehicle-specific design explicitly permits that change.
Modern vehicles may use current sensors and controlled charging strategies. Route upgrades correctly through required sensing points and never bypass factory protection or monitoring without vehicle-specific knowledge.
Worked Car-Audio Examples
Bad connection heat
A connection dropping 0.8 volt at 120 amps has 0.0067 ohm effective resistance. Heat is 120² × 0.0067 ≈ 96 watts—at one connection.
Cable delivery
Battery measures 14.2 volts under load and amplifier measures 12.9 volts. Total path drop is 1.3 volts. Split-test the positive and ground sides to locate the loss.
Quick-reference concepts
| Concept | What to remember |
|---|---|
| Conductor | Material and cross-section determine resistance. |
| Connection | Every lug, fuse and joint can add resistance. |
| Current | More flow creates more voltage drop and heat. |
| Ground Path | The return path is as important as the positive cable. |
Common Mistakes That Cost Performance—or Equipment
- Testing only with the system off
- Grounding over paint
- Choosing cable by jacket diameter
- Ignoring fuse-holder resistance
- Bypassing vehicle current sensors during a Big 3 upgrade
Frequently Asked Questions
What is acceptable voltage drop?
Lower is better, and acceptable limits depend on the circuit and manufacturer. Large drops that alter amplifier operation require correction.
Can a bad ground cause clipping?
Low supply voltage can reduce amplifier headroom and contribute to earlier clipping or protection.
Is CCA the same as OFC?
No. CCA contains an aluminum core and has higher resistance than comparable true copper conductor area.
Does the Big 3 add alternator output?
No. It reduces restriction in major paths; it does not increase the alternator’s rated generating capacity.
Where should the main fuse go?
Close to the battery positive source, sized to protect the cable—not merely the amplifier.
Why does a ground read zero ohms but still fail?
A basic meter uses tiny current. High-current voltage-drop testing exposes resistance that becomes significant under load.
Can I use the seat-belt bolt as ground?
Do not assume it is suitable. Safety hardware and layered body construction may provide a poor path, and restraint fasteners should not be compromised.
