How to Set Amplifier Gain Correctly Using a Multimeter, Oscilloscope or Distortion Detector

Gain is input-sensitivity matching—not a volume knob and not a horsepower dial. Set it correctly and the system reaches clean output predictably; set it blindly and clipping can destroy speakers even when every wattage rating looks right.

The Big Picture

Gain is input-sensitivity matching—not a volume knob and not a horsepower dial. Set it correctly and the system reaches clean output predictably; set it blindly and clipping can destroy speakers even when every wattage rating looks right.

Source LimitHighest clean volume from the radio.
Target VoltageCalculated from desired power and load.
ClippingWaveform flattening when clean output is exhausted.
OverlapDeliberate tuning margin matched to the system.
SSource Limit
Highest clean volume from the radio.
TTarget Voltage
Calculated from desired power and load.
CClipping
Waveform flattening when clean output is exhausted.
OOverlap
Deliberate tuning margin matched to the system.
The four core ideas to keep in view throughout this guide.
Target V = √(P × R)
P = V² ÷ R
0 dB tone = no recording overlap
−5 or −10 dB tone = controlled overlap
12 Volt Outlet rule: Never design from one headline number. Confirm the operating condition, units, load, limits and measurement method before applying any formula to real equipment.

What Gain Actually Controls

Gain adjusts how much input voltage is required for the amplifier to reach full output. A high-voltage RCA signal needs less gain; a lower-voltage signal needs more. Knob position has no universal relationship to watts.

The correct setting begins with the source unit. If the radio is already clipping, lowering amplifier gain cannot repair the damaged waveform.

The Multimeter Method

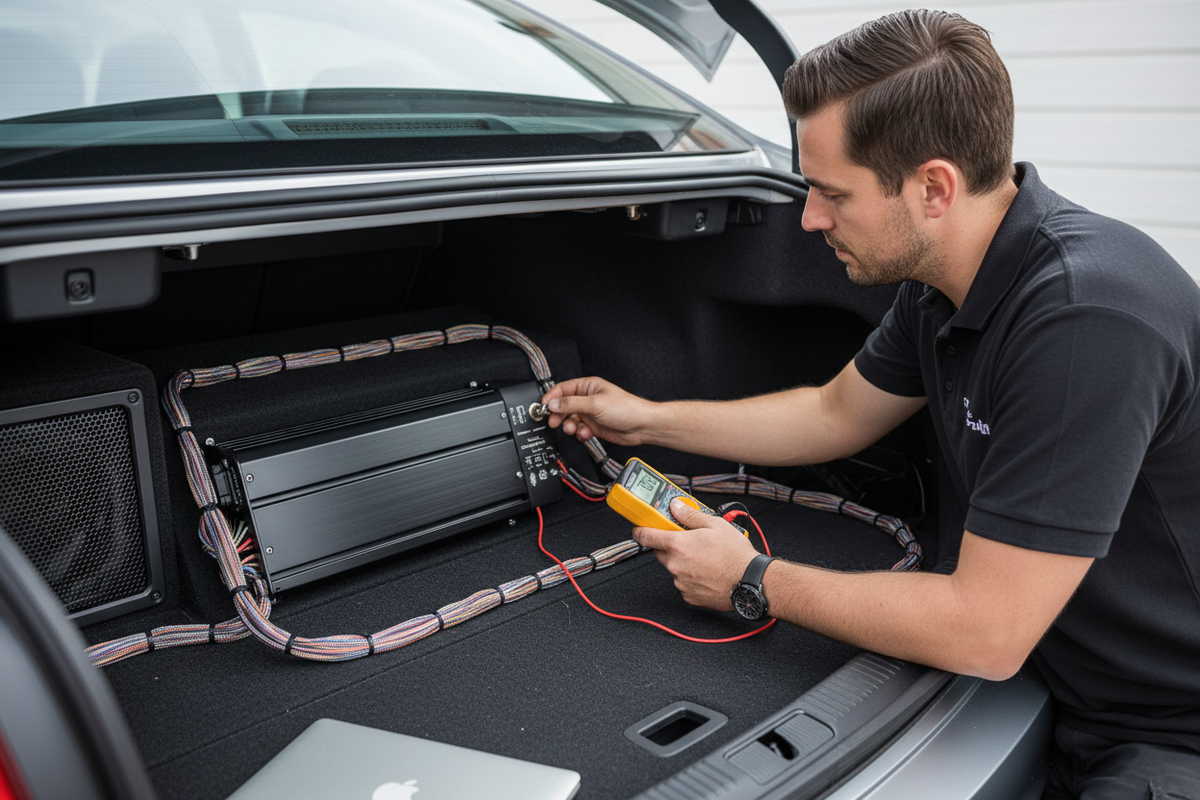

A digital multimeter can set a calculated AC output voltage. Disable EQ boosts, disconnect speakers when appropriate, play a known sine-wave test tone, and raise gain until the target is reached.

This method is accessible but cannot display waveform shape. The amplifier may clip before the number, so the calculated target is a ceiling—not an order to force the amplifier higher.

Oscilloscope and Distortion Detection

An oscilloscope shows the waveform and makes clipping visible as the sine wave flattens. A distortion detector identifies the onset of a defined distortion condition without requiring interpretation of a display.

Determine the source’s clean maximum first, then set each amplifier channel. Recheck after DSP, crossover or EQ changes because signal processing can change level.

Test Tones and Overlap

Music is not a continuous full-scale sine wave. A negative-dB test tone can build controlled overlap so musical peaks reach useful output, but too much overlap sacrifices headroom and protection.

Use conservative overlap for delicate tweeters and daily systems. High-pass and low-pass tones should be chosen within the channel’s operating range, and bass boost should normally remain off during baseline setup.

Worked Car-Audio Examples

Worked car-audio example

Four-channel amplifier

For 75 watts RMS into 4 ohms: √(75 × 4) = 17.32 volts AC per channel. Stop earlier if clean output ends first.

Worked car-audio example

Mono amplifier

For 1,500 watts RMS into 1 ohm: √(1,500 × 1) = 38.73 volts AC. Confirm supply voltage and unclipped output under the chosen method.

Gain-voltage targets at 4 ohmsCalculated with V = √(P × R).14.14 V50 W17.32 V75 W20 V100 W24.49 V150 WCalculated with V = √(P × R).

Quick-reference concepts

Concept What to remember
Source Limit Highest clean volume from the radio.
Target Voltage Calculated from desired power and load.
Clipping Waveform flattening when clean output is exhausted.
Overlap Deliberate tuning margin matched to the system.
Flatten source settingsFind clean radio volumeCalculate target voltageSet gain and verify clippingA repeatable process beats guessing and protects the equipment.

Common Mistakes That Cost Performance—or Equipment

  1. Turning gain up to make a weak system louder
  2. Using a random streaming test tone
  3. Leaving bass boost or EQ enabled
  4. Ignoring source-unit clipping
  5. Forcing the calculated voltage after clipping begins
Safety first: Disconnect battery negative before changing wiring, fuse positive conductors close to stored-energy sources, follow vehicle and equipment instructions, and use a qualified installer when the work exceeds your experience.

Frequently Asked Questions

Is amplifier gain a volume control?

No. It matches input sensitivity to the source signal.

What test tone should I use?

Use a clean, known-level tone within the channel’s passband. Common choices are around 40 Hz for subwoofer channels and 1 kHz for full-range channels.

Can I set gain by ear?

You can make a rough adjustment, but measurement is more repeatable and safer.

Should speakers be disconnected?

For a basic meter method they are commonly disconnected. Follow the amplifier and tool manufacturer’s procedure.

What does a clipped waveform look like?

The rounded peaks flatten because the amplifier has run out of clean voltage swing.

Does changing EQ require resetting gain?

Boosts can consume headroom and cause earlier clipping, so significant processing changes should be rechecked.

Why is my calculated voltage unreachable?

Supply voltage, amplifier capability, load, frequency or the power rating may differ from the assumed condition. Never force the number into clipping.

Build the System the Math Supports

Use real specifications, correct wiring and verified measurements. 12 Volt Outlet has the amplifiers, speakers, subwoofers, wiring and installation hardware to turn the plan into a reliable system.

Shop AmplifiersShop SubwoofersShop Wiring

Leave a comment
