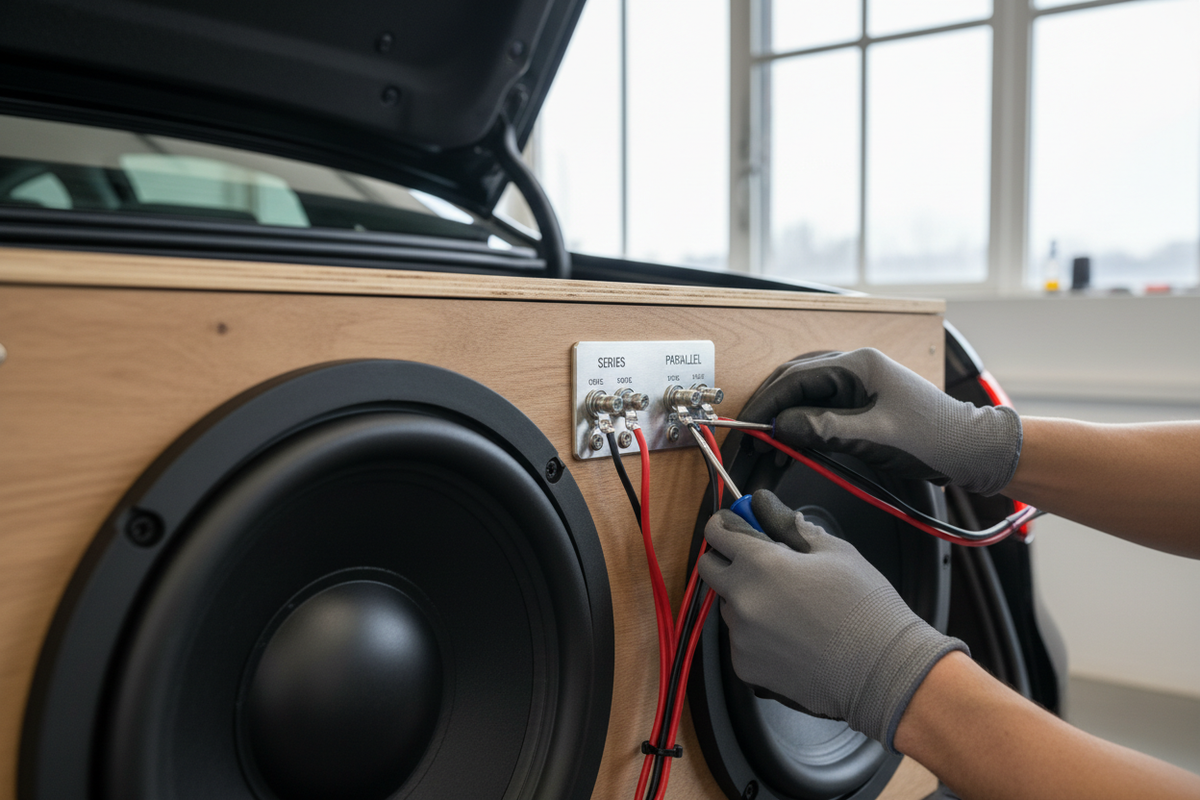

Series vs. Parallel Speaker Wiring: How to Calculate the Final Ohm Load
The voice coils you buy determine the loads you can build. Learn the math before you connect the wire and you can prevent protect mode, overheating and expensive amplifier damage.
The Big Picture
The voice coils you buy determine the loads you can build. Learn the math before you connect the wire and you can prevent protect mode, overheating and expensive amplifier damage.
Why Final Impedance Comes First
An amplifier’s power and minimum stable load are specified at its output terminals. It does not care how many baskets are in the enclosure; it responds to the combined electrical load created by every connected voice coil.
Calculate that final nominal load before choosing the amplifier. A collection of dual-voice-coil subwoofers may offer several valid configurations, but not every desired impedance is mathematically available.
Series Wiring
Series wiring sends current through one load and then the next. Add the impedances. Two 4-ohm coils in series equal 8 ohms. Four 2-ohm coils in series equal 8 ohms.
Series raises impedance, normally reducing amplifier output. It can be useful when the alternative parallel load would fall below the amplifier’s safe rating.
Parallel Wiring
Parallel wiring connects all positives together and all negatives together. Two equal 4-ohm loads in parallel equal 2 ohms; four equal 4-ohm loads equal 1 ohm.
Parallel lowers impedance and increases current demand. The resulting load must never be below the amplifier’s published minimum for that channel configuration.
Series-Parallel Systems
With multiple dual-voice-coil subwoofers, series-parallel wiring balances groups. The key rule is symmetry: every coil should receive the same signal and comparable power.
Do not leave one coil disconnected, wire different coils of the same driver to different amplifier channels, or mix unlike subwoofers simply to chase a target impedance.
Worked Car-Audio Examples
One dual-4-ohm subwoofer
Parallel coils: 4 ÷ 2 = 2 ohms. Series coils: 4 + 4 = 8 ohms. Those are the normal final-load choices.
Two dual-2-ohm subwoofers
All four coils in parallel equal 0.5 ohm. Series each driver to 4 ohms, then parallel the two drivers: 4 ÷ 2 = 2 ohms. A 1-ohm final load is not one of the balanced options.
Quick-reference concepts
| Concept | What to remember |
|---|---|
| Series | Loads add; current follows one path. |
| Parallel | Reciprocals add; current has multiple paths. |
| Voice Coils | Each coil retains its own rated impedance. |
| Final Load | The combined nominal impedance at the amplifier. |
Common Mistakes That Cost Performance—or Equipment
- Assuming two 4-ohm subs automatically make 4 ohms
- Confusing each coil rating with final load
- Running below minimum amplifier impedance
- Leaving one voice coil unused
- Mixing different subwoofer models or impedances
Frequently Asked Questions
Do ohms add in series?
Yes. Add every load in the series path.
Do ohms divide in parallel?
For identical loads, divide one load by the number of loads. For unequal loads, use the reciprocal formula.
Can a dual-4-ohm subwoofer be wired to 4 ohms?
Not by itself using both coils normally. Its common options are 2 ohms parallel or 8 ohms series.
What happens if the final load is too low?
The amplifier may overheat, distort, enter protection, blow fuses or fail.
Can I wire speakers of different impedances together?
The math permits it, but power will not divide evenly and the acoustic result may be unpredictable. Matched drivers are preferred.
Does box wiring change subwoofer impedance?
The enclosure does not change the nominal coil configuration, although real impedance varies with frequency and enclosure behavior.
Should I meter the finished wiring?
Yes. A DC resistance reading somewhat below nominal can verify continuity and catch major wiring errors before amplifier connection.
