Car Audio RCA Cables and Connectors Explained: Coaxial, Twisted-Pair and Tiffany-Style Designs
An RCA plug is only the visible end of a complete interconnect system. The geometry inside the cable, the receiving circuit and the mechanical construction of the equipment’s jack all affect reliability. Expensive appearance alone proves very little; the design must match the electrical environment and survive years of vibration.
Conventional coaxial construction
A coaxial RCA normally places the signal conductor at the center, surrounds it with insulation and encloses that with a foil or braided shield that also serves as the return. The geometry provides predictable shielding. Quality depends on coverage, termination, flexibility and strain relief—not simply cable diameter.
Twisted-pair RCA construction
A twisted-pair interconnect uses two insulated conductors twisted together, often with a separate overall shield. Twisting exposes both conductors to similar interference. When connected to an amplifier with a differential input, unwanted voltage common to both conductors can be rejected while the difference carrying the music is amplified.
Balanced, differential and unbalanced are not identical words
The RCA connector itself does not guarantee a balanced circuit. Some car-audio products use differential RCA inputs even though the connector has only center and shell contacts. Noise performance depends on the source output, cable wiring and receiver topology together. A cable cannot create common-mode rejection that the input stage does not provide.
Foil, braid and drain wires
Foil provides excellent high-frequency coverage but can fatigue if repeatedly flexed. A copper braid is durable and offers low resistance, though its coverage varies. Some cables combine both. A drain wire simplifies termination of a foil shield. The shield’s purpose is noise control and reference continuity, not carrying loudspeaker current.
Connector fit and strain relief
A reliable plug should make firm contact without requiring destructive force. Oversized split collars that grip like a vise can damage lightweight equipment jacks. Proper strain relief prevents cable movement from being transferred directly to the solder joint. Route and secure heavy interconnects so they do not hang from the input panel.

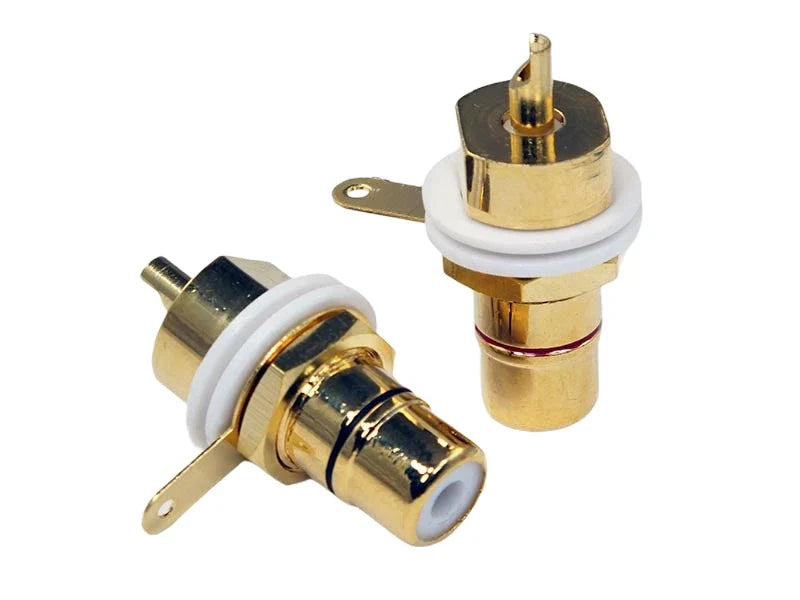

Tiffany-style and panel-locking RCA jacks
Tiffany-style is commonly used in car audio to describe substantial, individually insulated RCA terminals with robust contact hardware and chassis or panel support. A panel-locking jack transfers insertion, removal and cable-load forces into the amplifier or DSP chassis instead of asking a small circuit-board solder joint to carry all of them. This is primarily a mechanical durability advantage. It does not automatically lower distortion or improve sound merely because the metal looks premium.
PCB-mounted versus chassis-supported inputs
A simple PCB jack can be entirely reliable when the board, enclosure and cable loads are engineered correctly. Chassis-supported jacks become especially valuable with frequent service, tight plugs, heavy cables or high-vibration installations. Look for mechanical support, adequate spacing, insulation and serviceability rather than a fashionable label.
Safe connection practices
Power the system down before inserting or removing interconnects. Hold the plug body rather than pulling the cable. Support the equipment panel with one hand if access is awkward. Twist only if the connector was designed for it. Never pry a tight plug sideways; that is how board pads, shields and center contacts are damaged.
Selecting the right architecture
For an ordinary source and unbalanced input, a well-shielded coaxial cable is a rational choice. For equipment designed around differential inputs, a correctly terminated twisted pair is often preferred. In either case, good routing, intact connectors and proper gain structure usually matter more than extravagant cosmetic construction.
Installation and testing checklist
| Checkpoint | What to verify |
|---|---|
| Compatibility | Source output type, receiving input type and allowable voltage range match. |
| Routing | Signal wiring is protected, secured and separated from likely interference sources. |
| Termination | Connectors fit firmly without excessive force; no cable weight hangs from a jack. |
| Signal | Every channel is identified, clean and unclipped at the intended source level. |
| Final test | Polarity, channel assignment, noise floor and operation are verified with the vehicle running. |
Frequently asked questions
Do Tiffany-style RCA jacks sound better?
Not by definition. Their clearest advantage is mechanical strength and isolation; audio performance depends on the full circuit.
Is twisted pair always better than coaxial?
No. It is most beneficial when the connected equipment uses an appropriate differential interface.
Does gold plating increase signal voltage?
No. Thin gold plating can resist corrosion, but it does not amplify the signal.
Why do some RCA plugs fit dangerously tight?
Aggressive outer collars and dimensional variation can create excessive retention force.
Can a heavy RCA cable break an amplifier input?
Yes. Unsupported weight and vibration can crack solder joints or damage board-mounted jacks over time.
What does panel locking accomplish?
It anchors the connector mechanically to the chassis so plug forces are not concentrated on the circuit board.
