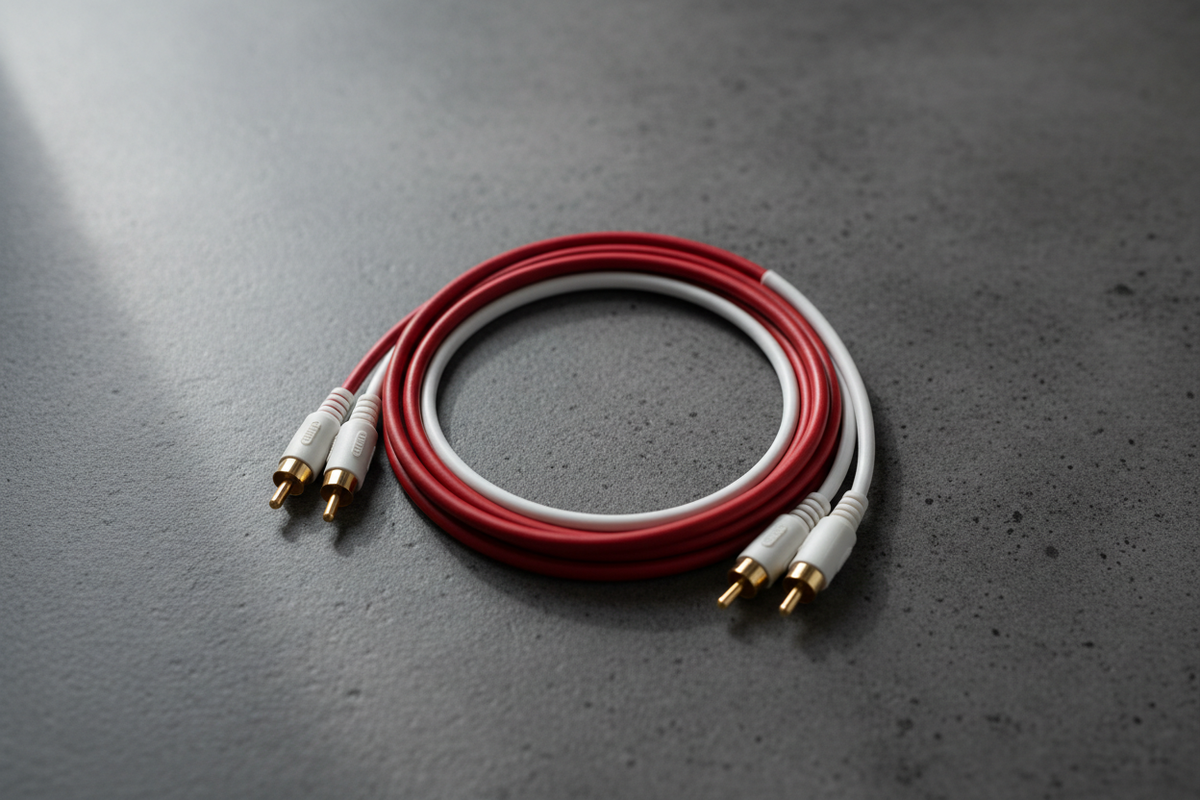

RCA Voltage vs. Speaker-Level Signal: What’s the Difference?
RCA and speaker-level connections can carry the same music while operating in very different electrical neighborhoods. An RCA is designed to deliver information into a high-impedance input. A speaker output is designed to deliver meaningful power into a low-impedance load. Confusing the two can create distortion, noise or equipment damage.
Low-level RCA signal
A head unit’s preamp output commonly produces roughly a fraction of a volt to several volts RMS at high output, depending on the design and test signal. Because the amplifier input impedance is usually thousands of ohms, very little current is required. The RCA transfers the waveform; the downstream amplifier supplies the muscle.
Speaker-level signal
A powered radio or factory amplifier may produce several volts to tens of volts across a speaker load. Current is much higher because the load may be two or four ohms. Voltage changes with volume and program material, and modern factory outputs may include equalization, filtering, load detection or bridged operation.
Voltage, current and power
Power into a resistive test load follows P = V²/R. A 20-volt RMS output across 4 ohms represents 100 watts. A 4-volt RCA feeding a 20,000-ohm input transfers only 0.0008 watt. Similar-looking voltage numbers therefore do not mean the connections do the same job.
Why impedance matters
Line outputs expect a light load. Paralleling too many amplifier inputs lowers the combined impedance and asks the source to supply more current. Speaker outputs expect a much heavier load, but a modern bridged output may not tolerate either conductor being tied to chassis ground.
Using high-level amplifier inputs
An amplifier with a properly designed high-level input attenuates the stronger signal, presents a safe load to the factory source and may accept balanced or bridged outputs. This can be cleaner and safer than an improvised adapter. Always verify the input-voltage range and the factory system’s channel behavior.
Line-output converters
A line-output converter reduces speaker-level voltage to a range suitable for an RCA input. Better units preserve frequency response, accept high input voltage, maintain loading needed by monitored factory radios, and may restore bass or generate a remote turn-on output. A passive converter cannot correct every factory equalization or summing problem.
Measurement example
Suppose a factory channel measures 12 volts RMS at the loudest clean test level and the aftermarket amplifier accepts no more than 6 volts on its RCA input. Direct connection is inappropriate. A compatible high-level input or converter must reduce and interface the signal without grounding either factory output conductor.
Installation and testing checklist
| Checkpoint | What to verify |
|---|---|
| Compatibility | Source output type, receiving input type and allowable voltage range match. |
| Routing | Signal wiring is protected, secured and separated from likely interference sources. |
| Termination | Connectors fit firmly without excessive force; no cable weight hangs from a jack. |
| Signal | Every channel is identified, clean and unclipped at the intended source level. |
| Final test | Polarity, channel assignment, noise floor and operation are verified with the vehicle running. |
Frequently asked questions
Is a 5-volt RCA more powerful than a 2-volt RCA?
It provides more signal voltage and can improve gain structure, but it still supplies almost no speaker-driving power.
Can speaker output go directly into RCA inputs?
Only when the receiving device explicitly supports that voltage or a suitable converter is used.
Is speaker-level integration always noisier?
No. A well-designed high-level input can perform extremely well and may reject vehicle noise effectively.
Can speaker negative be grounded?
Do not assume so. Many modern radios and amplifiers use bridged outputs in which neither conductor is chassis ground.
What should I measure?
Maximum clean RMS voltage, channel frequency content, DC offset behavior and whether the source expects a load.
