12 Volt Encyclopedia · Volume IV · Article 1
How Audio Signals Travel Through a Car Audio System
Music does not move through a car audio system as a row of notes. It moves as a continuously changing electrical pattern. That pattern begins as encoded information, becomes a low-level analog signal, is processed and amplified, and finally becomes cone motion and air pressure. Understanding that complete trip makes system design, gain setting and troubleshooting dramatically easier.
Sound begins as motion
Sound is alternating air pressure. A microphone converts that motion into a changing electrical signal whose shape follows the original pressure changes. Digital recordings store measurements of that waveform, while analog sources preserve it as continuously varying voltage. During playback, a digital-to-analog converter reconstructs the analog waveform. The voltage rises above and falls below its reference point, which is why an audio signal is properly described as AC even though the vehicle supplying the equipment uses DC.
The complete car-audio signal path
A typical path is source media → decoder/DAC → preamplifier → RCA cable → DSP or amplifier input → gain/input stage → crossover and processing → power-amplifier output → speaker wire → voice coil → cone → air. Factory systems may substitute speaker-level wiring or a digital network for part of that chain, but the destination is the same: an amplifier must create enough alternating voltage and current to move a loudspeaker accurately.
Frequency and amplitude ride together
The number of waveform cycles per second is frequency, measured in hertz. Slow oscillations represent bass; rapid oscillations represent treble. The waveform’s amplitude represents instantaneous level. Real music is not one sine wave—it is a complex sum of frequencies and amplitudes changing every moment. The cable does not sort those ingredients. It transports their combined voltage pattern.
What an amplifier actually does
An amplifier does not invent a larger version of the music by turning DC into a simple household-style sine wave. Its power supply creates internal voltage rails from the vehicle’s DC supply, and its output devices use those rails to reproduce a higher-voltage, higher-current version of the input waveform. Ideally, the output has the same shape as the input, only powerful enough to drive the intended speaker load.
Reference, return and differential inputs

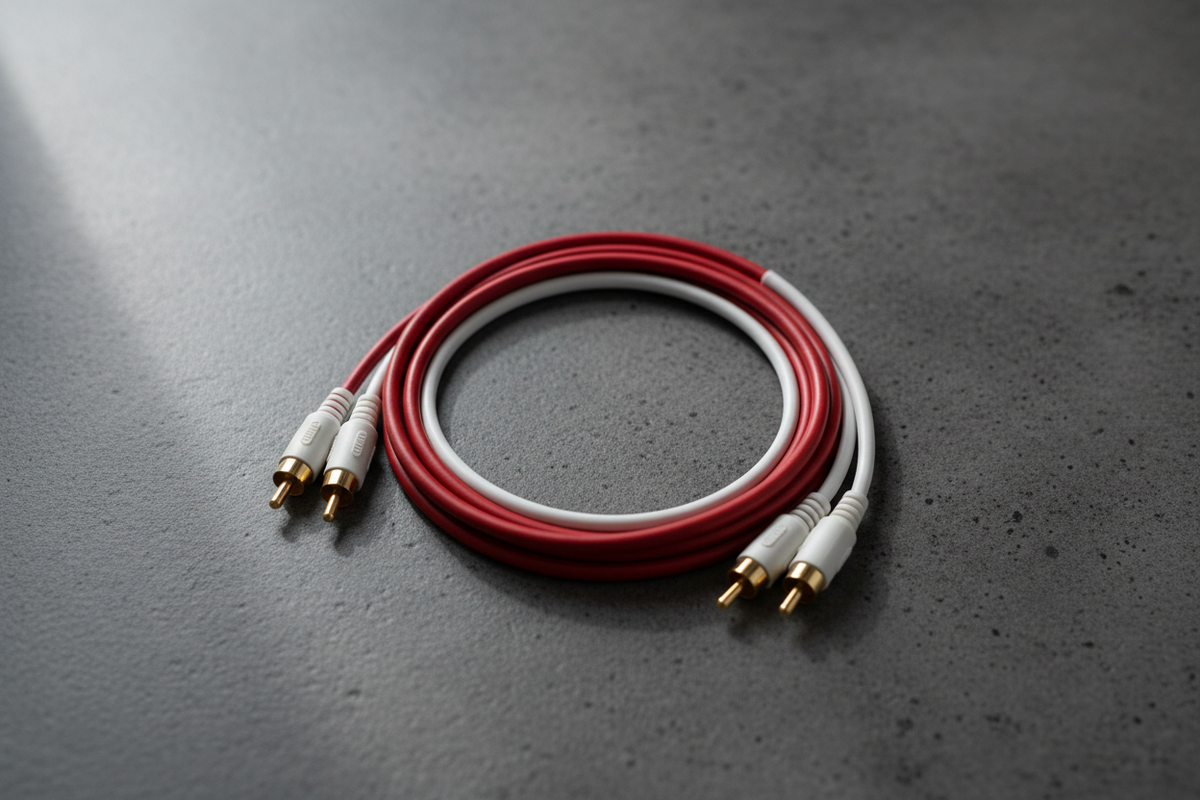

A conventional unbalanced RCA signal is measured between its center conductor and outer shield/return. A differential input instead responds primarily to the voltage difference between two input paths and rejects voltage appearing equally on both. That common-mode rejection can be valuable in a noisy vehicle. Neither arrangement makes the audio signal independent of a reference; it simply changes how the receiving circuit measures it.
Where signal quality can be lost
The common failure points are clipping at the source, excessive gain, poor grounding, induced noise, damaged shields, loose connectors, incorrect summing, overloaded outputs and speakers wired out of polarity. Cable resistance is rarely the dominant issue for a healthy line-level connection, but connector integrity, shielding and routing can be decisive in a vehicle.
A practical tracing example
If the left front speaker is silent, begin upstream. Confirm the speaker and its wiring, swap amplifier output channels if safe, swap RCA channels at the amplifier, then move toward the processor and source. When the failure changes sides after an RCA swap, the problem is upstream of the amplifier output. Signal-path thinking prevents random part replacement.
Installation and testing checklist
| Checkpoint | What to verify |
|---|---|
| Compatibility | Source output type, receiving input type and allowable voltage range match. |
| Routing | Signal wiring is protected, secured and separated from likely interference sources. |
| Termination | Connectors fit firmly without excessive force; no cable weight hangs from a jack. |
| Signal | Every channel is identified, clean and unclipped at the intended source level. |
| Final test | Polarity, channel assignment, noise floor and operation are verified with the vehicle running. |
Frequently asked questions
Is music AC or DC?
The changing audio waveform is AC relative to its reference. The equipment is powered by the vehicle’s DC electrical system.
Do RCA cables carry power?
They carry a small signal and negligible power. They are not intended to operate speakers.
Can audio be digital inside the system?
Yes. Many sources and DSPs process digital data internally, but a conventional amplifier output to a speaker is an analog alternating waveform.
Does an amplifier create AC from DC?
In practical terms, it uses energy from the DC supply to generate an amplified alternating output that follows the input audio waveform.
Why trace from the speaker backward?
It separates output, amplifier, interconnect and source faults in a controlled order.
