What Happens When You Split an RCA Signal? Y-Adapters, Multiple Amplifiers and Signal Loss
Yes, an RCA signal can be split—but ten passive branches are not automatically equivalent to one. Every connected input becomes part of the source’s electrical load. Whether voltage actually falls depends on the source output impedance, the combined input impedance, cable capacitance and the way grounds are interconnected.
The parallel-load rule
For equal amplifier input impedances, the combined impedance is one input divided by the number of inputs. Ten 20,000-ohm inputs in parallel appear as 2,000 ohms. Two appear as 10,000 ohms. The source must drive that lower load while maintaining low distortion and full frequency response.
Voltage-divider effect
If a source has output impedance Rs and the combined load is RL, delivered voltage is Vs × RL/(Rs + RL). A 100-ohm source feeding ten parallel 20,000-ohm inputs sees 2,000 ohms and delivers about 95.2% of its open-circuit voltage, roughly a 0.42 dB reduction. That may seem small, but not every source or input has those values, and cable capacitance, grounding and distortion remain concerns.
Why one Y-adapter often works
Two modern amplifier inputs commonly present a load high enough for a competent head unit. The voltage change may be negligible. This is not permission to build unlimited passive branches; verify equipment specifications and listen or measure for distortion, frequency-response changes and noise.
What makes a ten-way split risky
The combined resistance can approach the source’s minimum load, while ten cables add capacitance and ten chassis create more ground paths. A marginal output stage may lose voltage, roll off high frequencies, increase distortion or become unstable. Troubleshooting also becomes much harder.

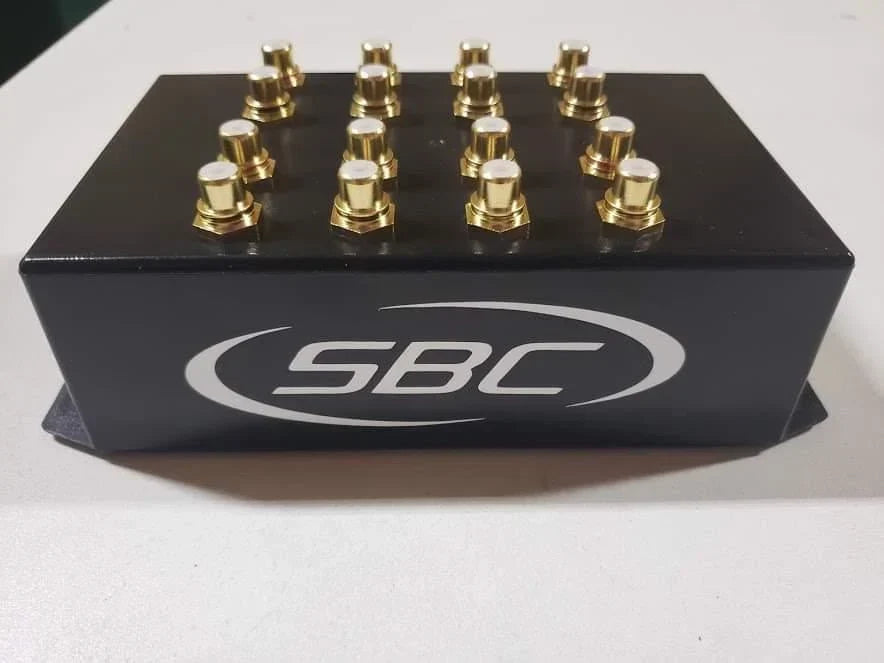

Active distribution solutions
A line driver, DSP or distribution amplifier buffers the source with a high-impedance input and provides multiple low-impedance outputs. Each branch is isolated more effectively, level can be managed intentionally and the source sees one predictable load. Choose equipment with sufficient clean output voltage, channel count and grounding design.
Mono, stereo and summing cautions
A Y-adapter used to feed one source channel to two inputs is splitting. A reverse Y used to tie left and right outputs together is summing—and can force two active outputs to fight each other. Proper summing uses resistors or an active circuit. Never assume a reversible-looking adapter performs both jobs safely.
A decision guide
One source feeding two high-impedance inputs may be reasonable. Multiple amplifiers with loop-through outputs can be connected according to their manuals. Large systems deserve an active processor or distribution stage. Measure maximum clean voltage at the source and at the final branch before final gain setting.
Ten-way example
If each of ten amplifiers has a 10,000-ohm input, the source sees only 1,000 ohms. With a 300-ohm source impedance, voltage falls to about 76.9%—a 2.28 dB reduction—before cable and grounding effects. That is a meaningful loss and a clear case for active distribution.
Installation and testing checklist
| Checkpoint | What to verify |
|---|---|
| Compatibility | Source output type, receiving input type and allowable voltage range match. |
| Routing | Signal wiring is protected, secured and separated from likely interference sources. |
| Termination | Connectors fit firmly without excessive force; no cable weight hangs from a jack. |
| Signal | Every channel is identified, clean and unclipped at the intended source level. |
| Final test | Polarity, channel assignment, noise floor and operation are verified with the vehicle running. |
Frequently asked questions
Does every split cut voltage in half?
No. It depends on output impedance and the combined input impedance, not simply the number of plugs.
Will one Y-adapter reduce sound quality?
Often not measurably with compatible equipment, but specifications and system noise still matter.
Can I reverse a Y-cable to combine left and right?
Not safely in general. Active outputs need proper summing isolation.
What is the best way to feed ten amplifiers?
Use an appropriately designed active DSP, line driver or distribution amplifier.
Do loop-through RCAs avoid loading?
Some are buffered and some are simply parallel. The product documentation must identify the design.
Should gains be reset after changing splits?
Yes. Recheck maximum clean signal and set gain structure again after changing the load or distribution architecture.
