RCA Noise, Ground Loops and Signal Interference: A Complete Troubleshooting Guide
Noise troubleshooting becomes fast when the system is divided into power, signal and output sections. It becomes expensive when parts are replaced at random. The sound’s behavior—whether it follows engine speed, volume, input selection or cable movement—provides the first diagnostic clues.
Identify the noise before touching wiring
Alternator-related whine usually changes pitch with engine speed. Hiss often tracks gain structure. Clicking may follow turn signals, modules or switching loads. A constant hum or buzz can indicate a reference problem. Pops during power transitions point toward sequencing, DC changes or unstable connections.
Determine whether noise follows volume
If the noise changes with source volume, it probably enters at or before the source-controlled stage. If it remains constant while music volume changes, investigate downstream gain, processor outputs, amplifier inputs and grounding. This is a clue, not an absolute verdict.
Isolate the amplifier
With power off, disconnect the amplifier’s RCA inputs and install proper shorting plugs if the manufacturer permits. Power up carefully. Noise that remains is likely related to the amplifier, power/ground path or speaker wiring. Noise that disappears came through the input path or its reference.
Check grounds under load
A ground can pass continuity testing and still fail at operating current. Measure voltage drop from the amplifier ground terminal to battery negative while the system plays. Inspect paint removal, terminal pressure, conductor size, corrosion and shared mounting hardware. Do not use RCA shields to compensate for a bad power ground.
Test interconnect routing and shields
Substitute a known-good RCA routed temporarily through open air. If the noise disappears, inspect the installed cable’s route, shield continuity and connectors. Avoid laying the test cable across pedals, belts or moving parts. A damaged source-unit shield may require professional repair; adding improvised ground wires can create new failure paths.

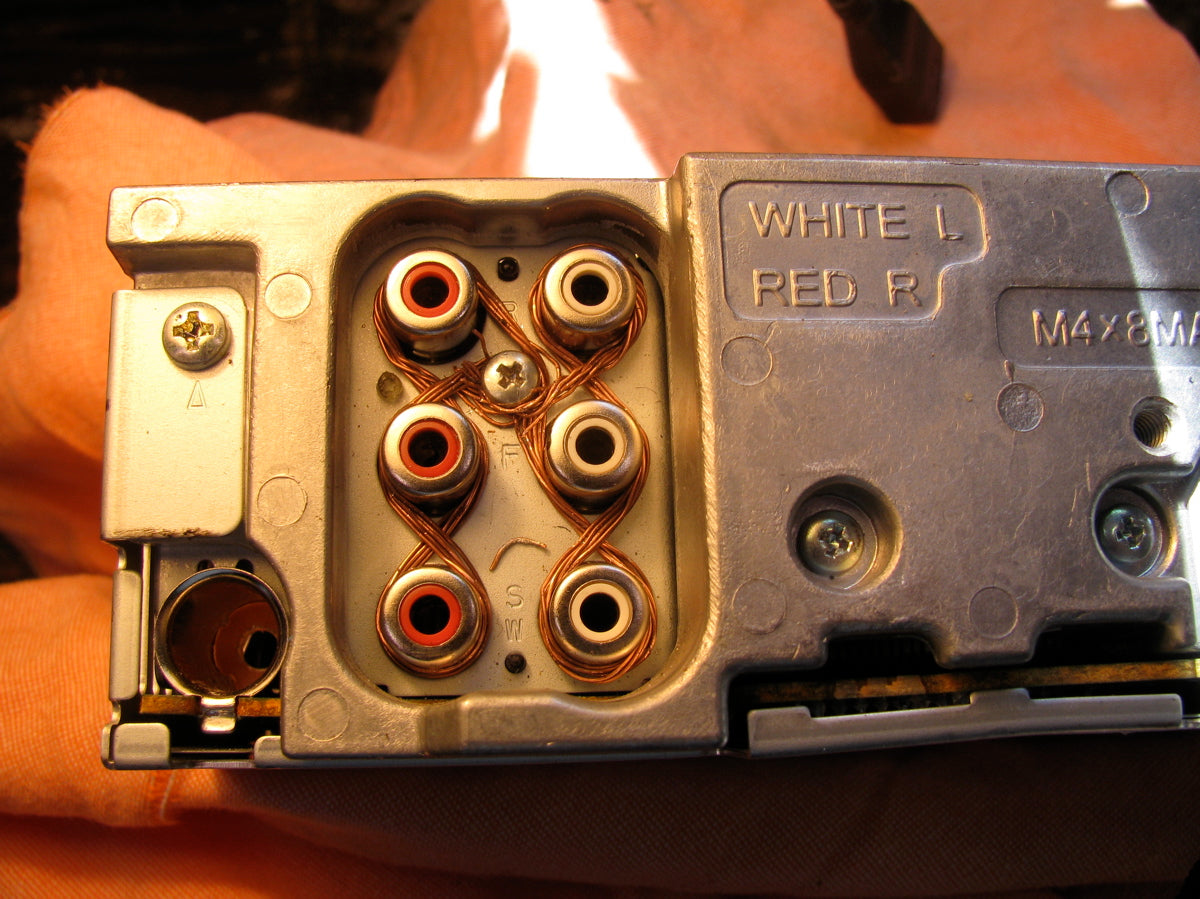

Inspect jacks and Tiffany-style panel connections
Move each plug gently while the system is at low level. Intermittent channels, crackling or noise changes may indicate a worn plug, loose shell, cracked PCB solder joint or damaged jack. Tiffany-style or panel-locking jacks reduce circuit-board stress, but they can still loosen, corrode or suffer internal connection failure. Their strength is not immunity.
Gain structure and hiss
High amplifier gain amplifies both wanted signal and upstream noise. Establish the source’s clean maximum, use adequate RCA output voltage and set amplifier sensitivity to the target output. Do not attempt to cure hiss by adding filters before verifying gain structure.
Ground-loop isolators: last resort, not first diagnosis
Transformer isolators can interrupt a troublesome reference path, but they may alter frequency response, level or distortion depending on quality and impedances. Correct grounding, equipment faults and interface compatibility first. Use isolation only when the architecture truly requires it and performance has been verified.
Symptom map
Whine with RPM: charging/reference/routing. Hiss independent of RPM: gain or noisy electronics. One channel crackles when moved: cable or jack. Pop at turn-on: sequencing or transient. Noise only with one source: source/interface. Noise only after connecting a second amplifier: new loading or ground path.
Installation and testing checklist
| Checkpoint | What to verify |
|---|---|
| Compatibility | Source output type, receiving input type and allowable voltage range match. |
| Routing | Signal wiring is protected, secured and separated from likely interference sources. |
| Termination | Connectors fit firmly without excessive force; no cable weight hangs from a jack. |
| Signal | Every channel is identified, clean and unclipped at the intended source level. |
| Final test | Polarity, channel assignment, noise floor and operation are verified with the vehicle running. |
Frequently asked questions
Will routing RCA cables opposite the power cable always cure noise?
No, but separation reduces coupling risk and is good practice.
Can a loose RCA jack cause alternator whine?
Yes. A compromised return or shield connection can make the input vulnerable to vehicle-related voltage differences.
Should I ground the RCA shield to the chassis?
Not as a blanket fix. Diagnose the failed path and follow the equipment manufacturer’s repair guidance.
Why does noise appear only when a second amplifier is connected?
The added input changes loading and adds another ground/reference path.
Are Tiffany-style jacks noise-proof?
No. Their panel support improves mechanical durability; noise performance still depends on contacts and circuit design.
What measurement matters for grounds?
Voltage drop under realistic load is more revealing than unloaded resistance alone.
