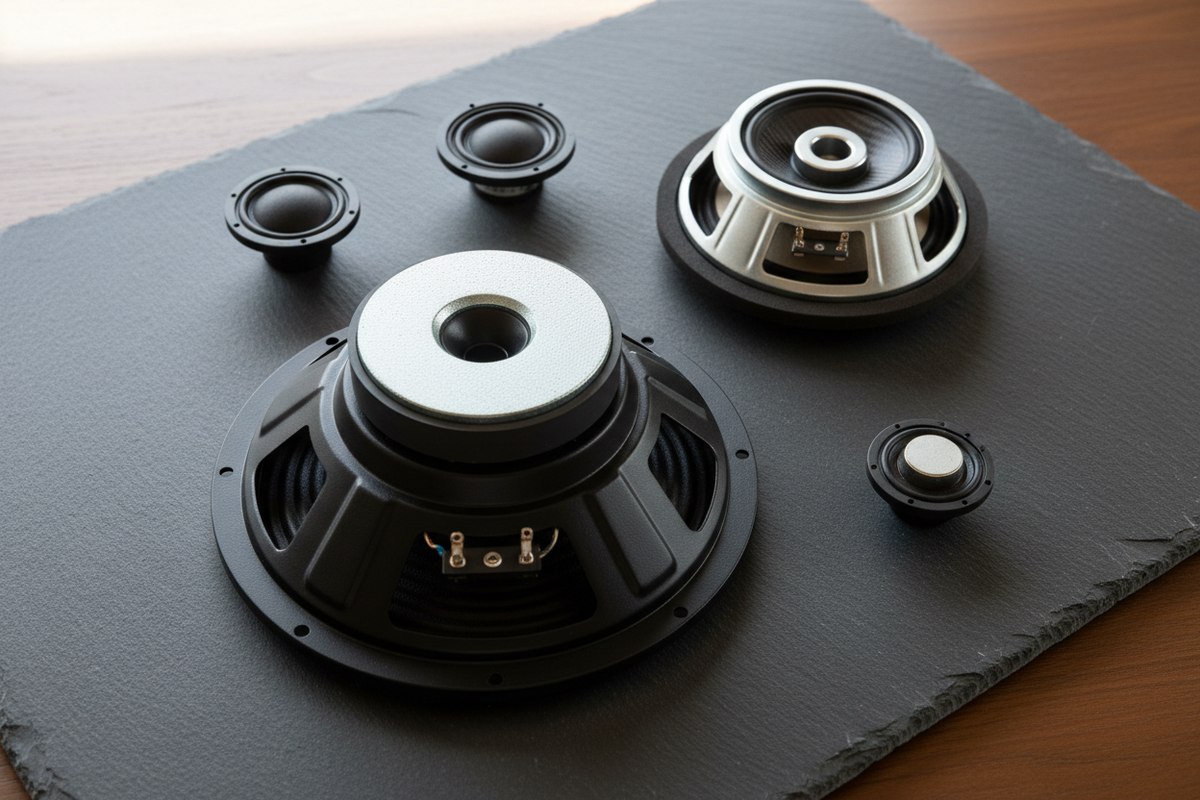

Which Speakers Play Which Frequencies? Subwoofers, Midbass Drivers, Midranges and Tweeters
A published frequency response tells you where a driver produced measurable output under stated conditions. It does not prove that the driver can play every listed frequency loudly, cleanly or with useful dispersion inside a vehicle.
Subwoofers
Subwoofers are optimized for low-frequency displacement. Common in-car operating ranges extend from the enclosure’s safe low limit to roughly 60–100 Hz. Above that, localization, cone behavior and rear placement can become obvious.
Woofers and midbass drivers
Door woofers commonly handle roughly 60–80 Hz through several hundred hertz, depending on size, mounting, excursion and crossover design. Their success below 100 Hz depends heavily on door sealing, rigidity and available cone travel.
Dedicated midranges
Midranges may cover a few hundred hertz to several kilohertz. Small cone and dome midranges trade deep excursion for controlled vocal-band performance. The lower crossover must protect them; the upper crossover should account for breakup and narrowing dispersion.
Wideband drivers
A wideband driver can cover much of the vocal and treble region from one acoustic location, simplifying path-length relationships. It may still need protection from bass and may beam at high frequencies as the cone becomes large relative to wavelength.
Tweeters and super tweeters
Tweeters reproduce upper frequencies with low moving mass. Their safe lower limit depends on resonance, diaphragm, waveguide, crossover slope and power. Super tweeters emphasize the highest octaves and output, but poor integration can produce excessive brightness.
Coaxial and component systems
Coaxials place multiple radiators together for packaging and approximate point-source behavior. Components allow optimized placement and active control. Neither format guarantees better sound; installation and tuning determine the result.
Directivity changes with frequency
As wavelength becomes short relative to the radiating surface, output narrows. A driver may measure strong directly on-axis yet provide poor seat-to-seat coverage. Crossover selection should consider dispersion matching, not only power handling.
Choosing usable range
Use manufacturer data, distortion and response measurements, intended output, enclosure or baffle behavior and crossover slope. Leave safety margin rather than selecting the most extreme printed endpoints.
Installation and testing checklist
| Checkpoint | What to verify |
|---|---|
| Compatibility | Source output type, receiving input type and allowable voltage range match. |
| Routing | Signal wiring is protected, secured and separated from likely interference sources. |
| Termination | Connectors fit firmly without excessive force; no cable weight hangs from a jack. |
| Signal | Every channel is identified, clean and unclipped at the intended source level. |
| Final test | Polarity, channel assignment, noise floor and operation are verified with the vehicle running. |
Frequently asked questions
Can a 6.5-inch speaker play sub-bass?
Some produce low bass at modest level, but excursion and door acoustics usually limit true sub-bass output.
How low can a tweeter play?
Only as low as its design, crossover slope and output requirement safely permit.
Do larger speakers always play lower?
Not always. Motor, suspension, resonance, enclosure and excursion are also decisive.
What is speaker breakup?
A region where the diaphragm no longer moves as one rigid piston, often creating peaks and distortion.
Should crossovers match advertised frequency limits?
No. Usable high-output range is normally narrower than a broad response specification.
