Signal Clipping Explained: Source Clipping, Amplifier Clipping and Induced Clipping
Clipping is not a substance sent by an amplifier. It is waveform distortion that occurs when a stage is asked to produce voltage beyond its available clean range. Because a system contains multiple stages, clipping can begin long before the final amplifier output.
What a clipped waveform is
A clean sine wave rises and falls smoothly. When a circuit reaches a voltage limit, the peaks flatten or deform. The result contains additional harmonics and no longer represents the requested waveform accurately.
Source clipping
A radio, phone adapter or DAC can clip at its output when volume or internal processing exceeds available headroom. Turning down the amplifier gain cannot repair a waveform that is already clipped. Determine the source’s maximum clean setting first.
Processor-stage clipping
A DSP input can overload, its internal processing can run out of headroom, or its output can clip. Input sensitivity, summing, EQ boost and output level all matter. Input and output clip indicators refer to different limits.
Amplifier output clipping
An amplifier clips when requested output exceeds its available rail voltage, current capability or power-supply condition. Load impedance, charging voltage, temperature and frequency influence the boundary.
Induced clipping through settings
Excess gain does not create power; it makes the amplifier reach its limit with less source voltage. Bass boost and positive EQ can demand multiples of the original power. A 6 dB voltage boost doubles voltage and, into the same resistance, theoretically requires four times the power.
Voltage-drop-related clipping
A system tuned clean at healthy charging voltage may clip earlier when supply voltage collapses under load. Inspect power wiring, grounds, charging capacity and battery condition rather than retuning around an electrical failure.
Why speakers fail
Clipping can increase average heating and add high-frequency energy, but any signal—clean or clipped—can damage a driver if thermal or mechanical limits are exceeded. The correct lesson is clean gain structure plus appropriate power, crossovers and restraint.
Finding the first clipped stage

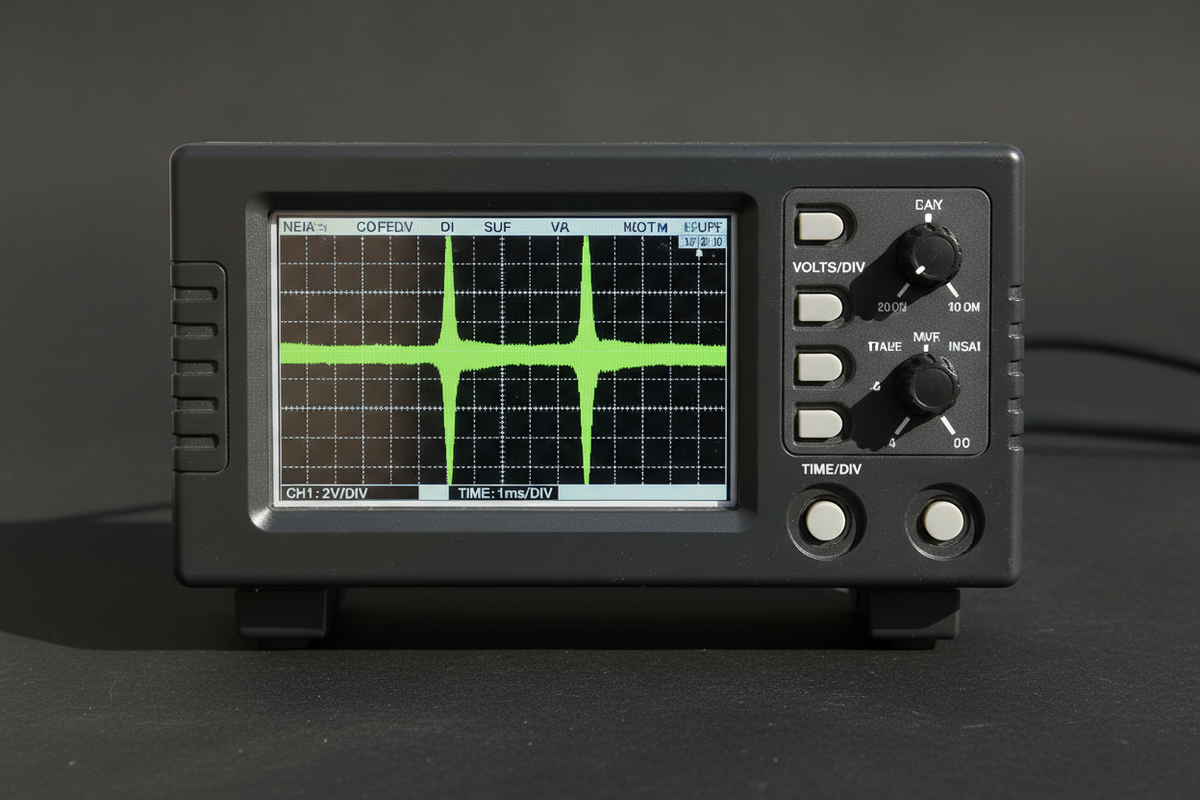

Work from source to output with appropriate test media and measurement tools. Establish the clean maximum of each upstream stage before adjusting the next. A distortion detector or oscilloscope must be connected and interpreted for the stage being tested.
Installation and testing checklist
| Checkpoint | What to verify |
|---|---|
| Compatibility | Source output type, receiving input type and allowable voltage range match. |
| Routing | Signal wiring is protected, secured and separated from likely interference sources. |
| Termination | Connectors fit firmly without excessive force; no cable weight hangs from a jack. |
| Signal | Every channel is identified, clean and unclipped at the intended source level. |
| Final test | Polarity, channel assignment, noise floor and operation are verified with the vehicle running. |
Frequently asked questions
Is clipping DC?
A clipped waveform can contain more low-frequency and average energy, but describing it simply as DC is misleading.
Can an underpowered amplifier damage speakers?
Yes if it is driven into sustained clipping or the user exceeds speaker limits.
Does lowering gain eliminate source clipping?
No. It only changes downstream sensitivity.
Can EQ cause clipping before the master volume is high?
Yes. Boost consumes headroom inside processors and at their outputs.
Does a clip light identify every upstream problem?
No. It generally monitors a particular stage and cannot prove the incoming signal is clean.
