THE 12 VOLT ENCYCLOPEDIA · VOLUME XII
Smart Charging, Battery Sensors and Start-Stop Vehicles: Powering Aftermarket Audio Without OEM Faults
Charging voltage in a modern vehicle may intentionally move from the low 12s to the mid 15s depending on temperature, deceleration, battery condition and fuel-economy strategy. Treating every low reading as a failed alternator—or bypassing the current sensor—can create more problems than it solves.
The charging system is controlled
An engine computer or energy module can command alternator output rather than allowing one fixed regulator target. It estimates battery state, prioritizes efficiency and responds to loads. Voltage may fall during acceleration and rise during deceleration. The normal range is vehicle-specific.
Battery-current sensing
A sensor around or within the negative cable measures current entering and leaving the battery. Together with voltage, temperature and time, the vehicle estimates state of charge and battery health. If amplifier current returns directly to the battery terminal while bypassing the sensor, the calculation becomes inaccurate.
Correct accessory grounding
Added loads generally need to connect so their current passes through the monitoring point in the intended direction. That often means using a designated chassis or downstream ground rather than attaching behind the sensor, but the exact vehicle diagram governs. Never relocate or bypass the sensor casually.
Start-stop events
When the engine stops at a light, alternator output disappears and system voltage falls to battery level. Restart creates a transient and other loads may be shed. An amplifier can mute, pop or reboot if its operating threshold or remote signal is not managed. Interfaces and regulated power products may be needed in sensitive builds.
Regenerative and decoupled charging
Some vehicles increase alternator load during deceleration, while hybrids and EVs use DC-to-DC converters from a high-voltage traction system to support the 12-volt bus. Alternator-size rules do not apply to a vehicle without an alternator. The converter’s continuous capability and thermal strategy become the limit.
Auxiliary batteries
A second battery can support short bursts and stabilize local wiring, but it adds charging demand and must be compatible with system voltage and chemistry strategy. Parallel batteries of different condition or chemistry require engineering. A battery does not create energy; the charging system must replace what the audio system removes.

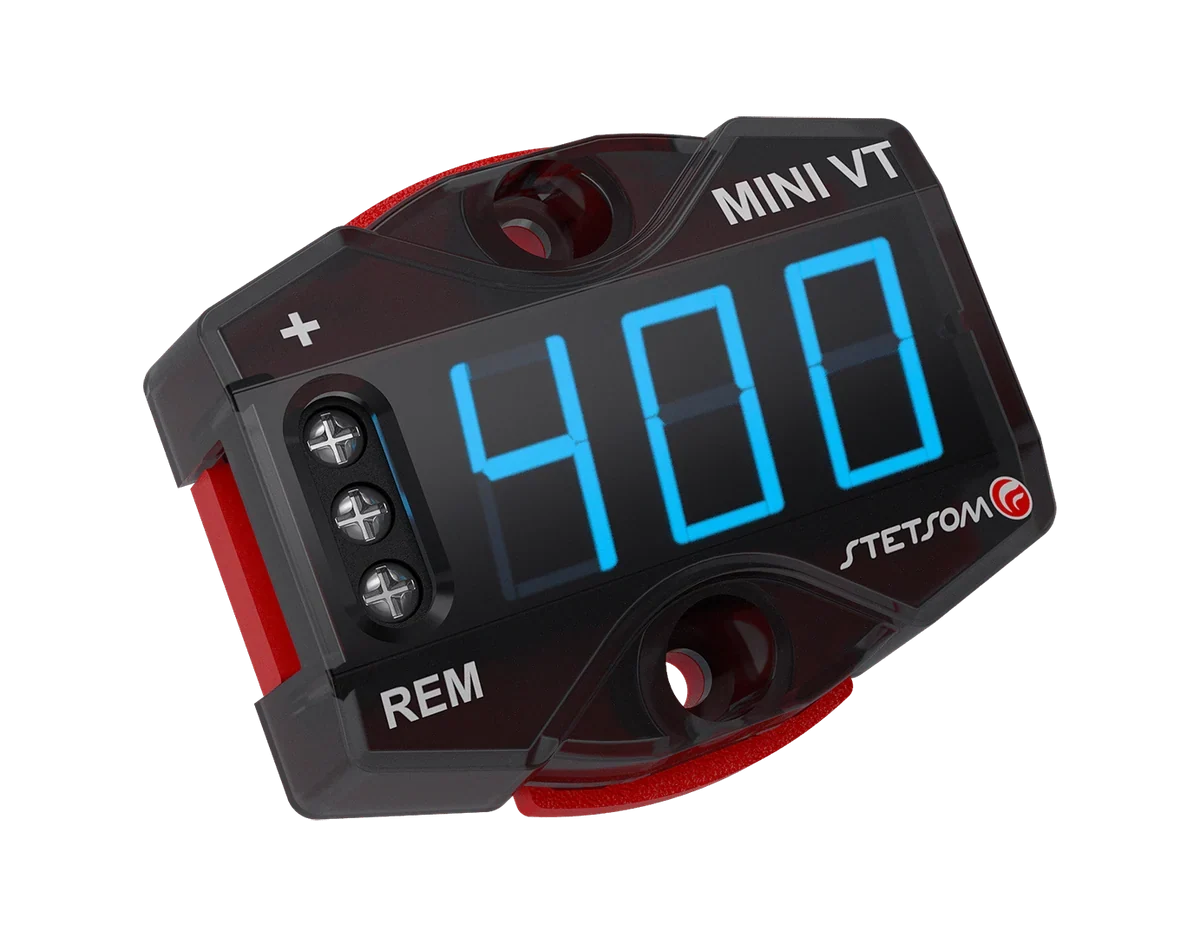

Voltage meters and data
The dashboard display may be filtered, rounded or delayed. Measure at the battery and amplifier with a fast instrument while logging current where possible. Compare commanded versus actual charging data with a scan tool on advanced diagnoses. A steady 14.4-volt expectation is outdated.
Design from an energy budget
Estimate amplifier input current from output power, efficiency and operating voltage, then compare with available charging and reserve capacity after vehicle loads. Preserve low-voltage protection and customer starting reliability. If the platform cannot supply the target continuously, reduce the target or engineer additional approved capacity.
Diagnostic Reference
| Condition | Expected change | Integration concern |
|---|---|---|
| Engine stopped | Battery-only voltage | Amplifier reserve |
| Restart event | Short dip/transient | Pop, mute or reboot |
| Smart low-charge phase | Voltage intentionally reduced | Reduced amp headroom |
| Deceleration charging | Voltage/current rise | Equipment maximum voltage |
| Sensor bypassed | Energy estimate becomes wrong | Faults and battery management |
Frequently Asked Questions
Is 12.5 volts with the engine running always bad?
No. Smart charging may intentionally reduce voltage under some conditions.
Can I attach amplifier ground directly to battery negative?
Not if that bypasses the vehicle’s current sensor; verify the topology.
Why does the amplifier reboot at stoplights?
Start-stop voltage changes or accessory logic may cross its operating threshold.
Do EVs have alternators?
Typically the 12-volt system is supported by a DC-to-DC converter from the traction battery.
Will a second battery fix insufficient charging?
It adds reserve, but the energy still must be replenished.
Final Word
Modern OEM integration is a systems-engineering job. The correct solution preserves the vehicle’s intended functions while providing a clean, predictable signal and power path for the aftermarket system. Application notes begin the diagnosis; measurements and complete functional testing finish it.
