Retaining Chimes, Cameras, Steering Controls and Safety Audio During an OEM Upgrade
Modern audio systems reproduce information the driver needs, not only entertainment. Door chimes, parking sensors, emergency calls and navigation prompts may share speakers and amplifiers with music. A successful upgrade documents and verifies every one of those paths.
Where chimes originate
A warning tone may be generated inside the radio, instrument cluster, body module, amplifier or integration interface. Some are analog audio; others are commands that tell a module to synthesize sound. Removing the wrong component can eliminate the tone or route it at an unsafe level through the new amplifier.
Parking and driver-assistance cues
Sensor tones may change location and repetition as an obstacle approaches. Summing channels to mono can destroy that spatial information. Lane-departure and blind-spot alerts may use specific speakers. Preserve channel routing and test every direction.
Camera retention
A factory camera can use composite video, differential video, digital data or unusual voltage. The vehicle may supply dynamic guidelines, multiple views and camera selection through data. A physical adapter alone cannot recreate processing that lived in the factory display.

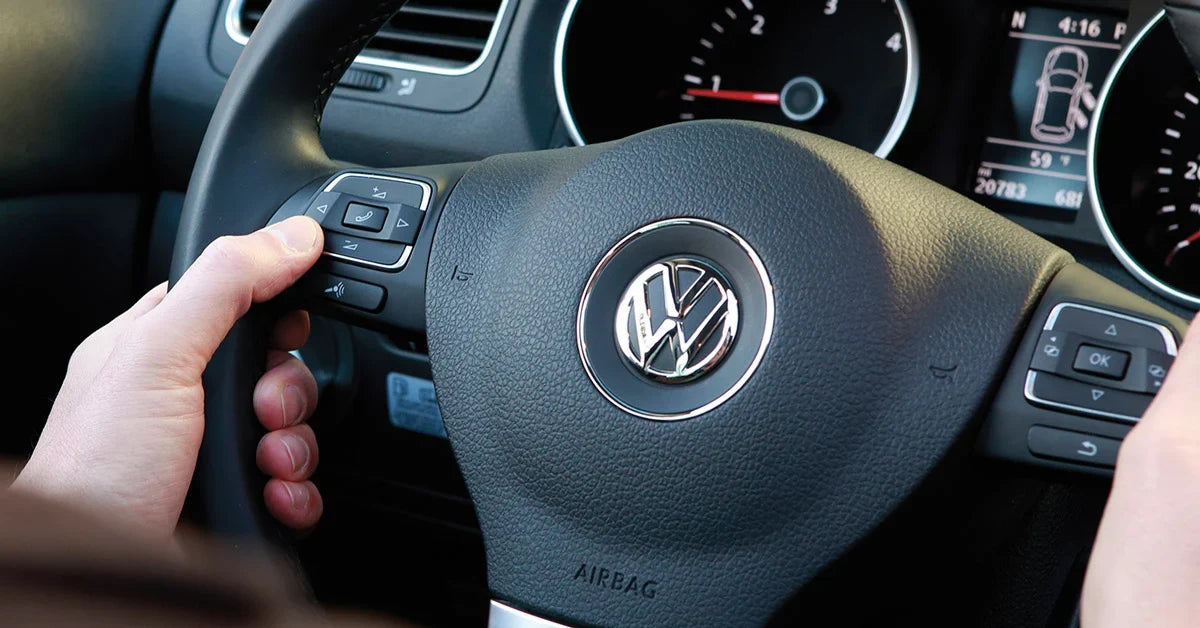

Steering-wheel controls
Buttons may be resistive, network messages or a mixture. An interface translates them into commands the new receiver understands and often allows custom assignment. Long-press and voice buttons need testing, not just volume up and down.
Hands-free and emergency audio
The factory microphone may be incompatible with an aftermarket receiver, while the telematics module may depend on the factory amplifier and speakers. Emergency calling is a critical feature. Determine whether it has a backup speaker or shares the main audio path before bypassing anything.
Fader and zone behavior
Retaining a factory amplifier through a two-channel input can eliminate electronic fade even though all speakers play. Rear-seat entertainment or passenger zones may depend on separate source channels. Explain limitations before the installation rather than after the customer discovers them.
Interface setup and firmware
Vehicle-specific modules often require configuration for exact radio brand, trim and retained features. Firmware updates may fix compatibility, but an update is not a substitute for correct wiring. Save configuration and document module location for future service.
The delivery test
Use a written checklist: every source, chime, turn signal, parking direction, camera view, microphone, voice assistant, emergency function, steering button, USB port, fade and sleep cycle. Adjust regenerated chime level before connecting high-power amplifiers. Then confirm the vehicle shuts down without parasitic draw.
Diagnostic Reference
| Feature | Possible source | Required verification |
|---|---|---|
| Door/seat-belt chime | Radio, cluster or interface | Level and timing |
| Parking sensors | Module + routed speakers | Directional accuracy |
| Factory camera | Camera/display/data module | All views and guidelines |
| Steering controls | Resistive or data bus | Short/long presses |
| Emergency call | Telematics + mic/speaker path | Operational retention |
| Vehicle sleep | Network modules | No excess key-off draw |
Frequently Asked Questions
Why are chimes suddenly extremely loud?
A factory-level tone may be passing through a higher-gain aftermarket path.
Can the original microphone always be retained?
No. Bias voltage, impedance, connectors and module routing may differ.
Why did fader disappear?
The retained amplifier may receive only a two-channel fixed input.
Will a camera RCA adapter retain guidelines?
Not necessarily; guidelines may be generated by the factory display or module.
What is the most important final test?
All safety, communication and shutdown functions—not music alone.
Final Word
Modern OEM integration is a systems-engineering job. The correct solution preserves the vehicle’s intended functions while providing a clean, predictable signal and power path for the aftermarket system. Application notes begin the diagnosis; measurements and complete functional testing finish it.
