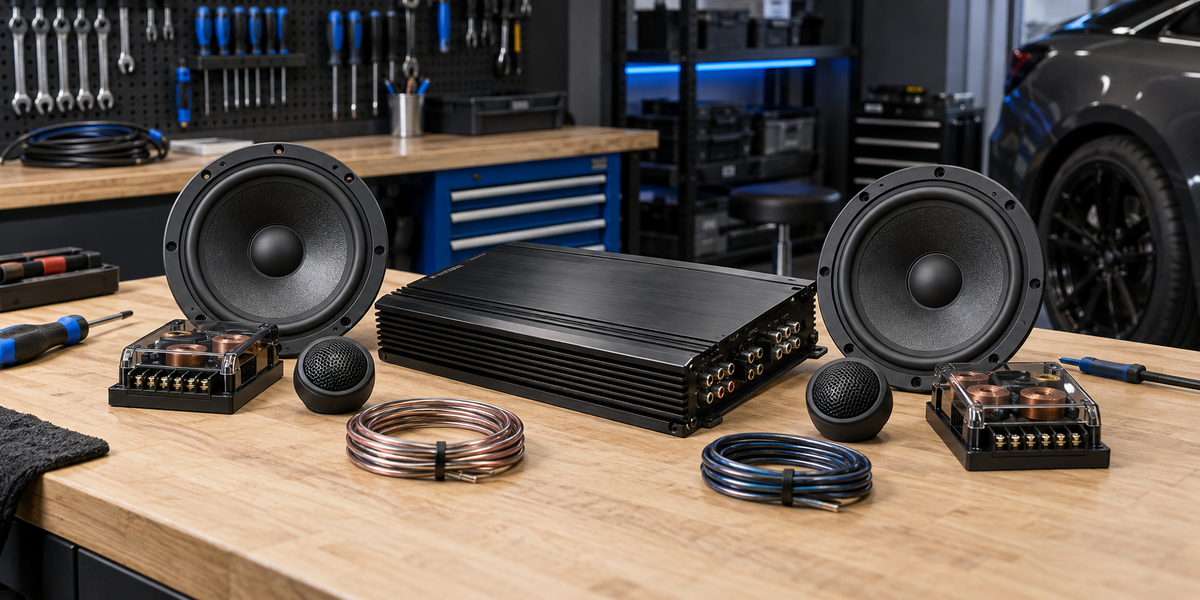

Building a Balanced Front Stage: Tweeters, Midranges, Midbass and Subwoofers
A system is balanced when every frequency region can reach the intended listening level without one driver screaming, another struggling and a third leaving a hole. Wattage labels do not show that balance; acoustic output and usable bandwidth do.
Cover the spectrum
Subwoofers handle the lowest bass, midbass drivers produce punch, midranges carry vocals and tweeters reproduce upper detail. Their ranges must overlap enough for crossovers to blend them. If a door woofer stops cleanly at 1.5 kHz and the tweeter cannot play below 3 kHz, the missing octave becomes a design problem.
Sensitivity matching
Sensitivity tells how much acoustic output a driver creates from a standard input. A 100 dB super tweeter may need far less power than an 87 dB door woofer. DSP can reduce the tweeter, but the system’s maximum balanced level remains limited by the quieter band.
Cone area and displacement
Midbass impact requires moving air. Small midranges cannot replace large door woofers simply by adding watts; they run out of excursion. Likewise, an enormous subwoofer section can overwhelm the front stage above crossover, making bass sound disconnected and rear-heavy.
Directivity
Directivity is how narrowly a speaker spreads sound. As frequency rises relative to cone size, output narrows. A large midbass asked to play high may beam toward the opposite footwell. Choose crossover points where adjacent drivers have compatible coverage, not only overlapping response.
Placement and aiming
Tweeter angle changes high-frequency level strongly, while subwoofer orientation affects cabin coupling more than direct localization at low frequency. Midrange location sets much of the stage height. Equipment must physically work in available locations without obstructing airbags or driver view.
Amplifier allocation
Give each band enough clean power for its sensitivity and job. A tweeter may need only a fraction of midbass power. Identical amplifier channels can still work because DSP level and gain reduce the tweeter channel, but noise and minimum gain range must remain acceptable.
Mechanical installation
A powerful midbass in a leaking, flexible door will underperform a smaller driver on a rigid sealed baffle. Foam coupling, damping and rear-wave treatment affect the equipment match. Installation is part of the acoustic component, not a separate decoration.
Design from the weakest band
Estimate the clean output of each band at the seat. If the midbass reaches its limit first, adding tweeters or subwoofer power cannot create balanced loudness. Upgrade cone area, installation or bandwidth where the bottleneck actually exists.
Quick Reference
| Band | Primary job | Common mismatch |
|---|---|---|
| Subwoofer | Deep bass/pressure | Overpowers front midbass |
| Midbass | Punch and lower body | Weak door installation |
| Midrange | Vocals/instrument identity | Cannot reach adjacent crossover |
| Tweeter | Detail and air | Too efficient or crossed too low |
| DSP/amps | Level and timing control | Too few channels/headroom |
Frequently Asked Questions
Should all drivers have the same sensitivity?
Not exactly, but large differences waste capability or expose noise.
Can DSP make a quiet driver louder indefinitely?
No. Excursion, heat and amplifier limits remain.
Why does the sub sound separate from the music?
Level, crossover, delay or weak front midbass may prevent integration.
Are larger midranges always better?
No. They offer output but narrow dispersion sooner.
What limits maximum balanced volume?
The band that reaches distortion, excursion or thermal limits first.
Final Word
Correct equipment pairing is not matching the largest printed numbers. It is building a chain in which every source, processor, amplifier, driver, enclosure, wire and electrical component can perform its assigned job safely and cleanly.
