How to Design a Complete Car-Audio System Before Buying Anything
The expensive way to build car audio is to buy exciting products one at a time and solve compatibility afterward. The reliable way begins with a system map: what the listener wants, what the vehicle permits and what every component must provide to the next.
Define the result
Write the priority in plain language: factory-looking clarity, strong daily bass, two-seat sound quality, outdoor output or competition peak. Set budget, cargo-space loss and acceptable electrical modification. A system cannot optimize every goal equally.
Map the vehicle
Record source architecture, factory amplifier, speaker sizes, mounting depth, charging system, battery sensor, available enclosure space and safety systems. Decide whether the radio can be replaced or must be integrated. Vehicle constraints eliminate incompatible equipment before money is spent.
Choose the acoustic layout
Select front-stage bands, rear-fill purpose and subwoofer location. Establish approximate crossover ranges and required output. Then choose drivers whose bandwidth, sensitivity and installation suit those jobs. Do not select amplifiers before knowing channel and impedance needs.
Choose processing
Count every independent input and output. Determine whether factory signals require summing or de-equalization. Plan volume control, remote turn-on, presets and tuning access. A DSP should have spare capability for realistic expansion, but unused marketing channels add no sound.
Choose amplification
Match each driver band at its actual impedance, including bridged restrictions. For subwoofers, choose voice coils and wiring together with monoblock stability. Consider controlled headroom and impedance rise without violating thermal, mechanical or electrical limits.
Design the enclosure
Use driver parameters, net space, bandwidth and output to choose sealed, ported or specialty alignment. Include port and brace displacement, vehicle loading and safe filtering. Confirm the finished enclosure can physically enter the vehicle before finalizing dimensions.
Build the electrical budget
Estimate input current from amplifier output, efficiency and voltage. Subtract vehicle demand from charging capability and plan battery reserve, wire gauge, fusing, distribution and grounds. If supply cannot support the plan, reduce power or upgrade safely before installation.
Finish on paper

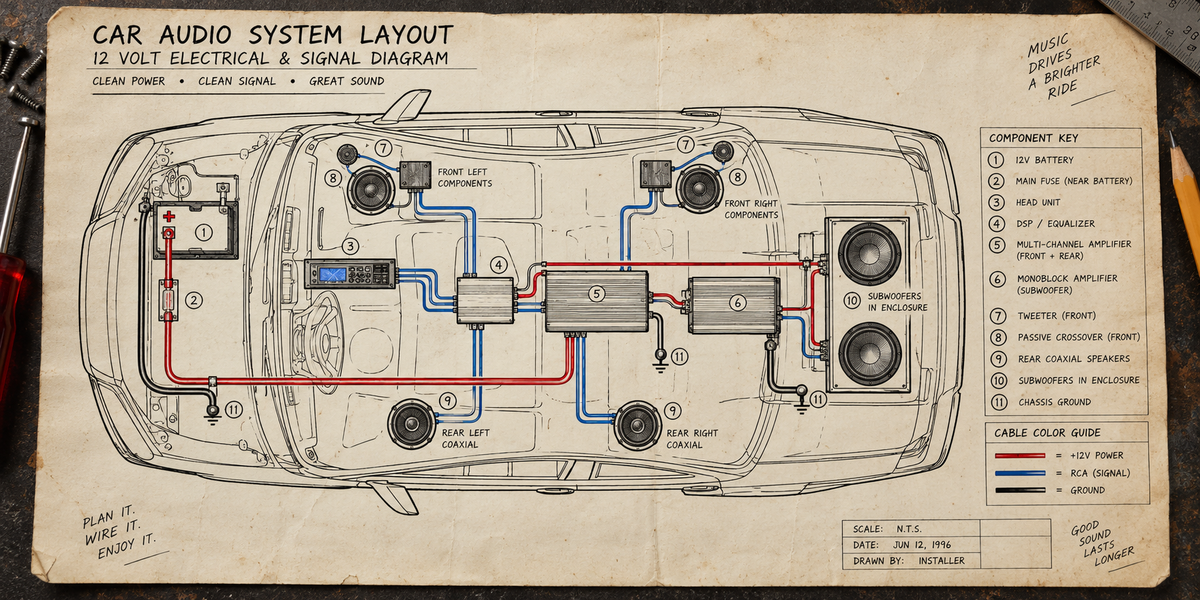

Draw every signal cable, power cable, fuse, ground, remote wire, processor input, amplifier channel, speaker coil and crossover. Create gain and tuning targets. The drawing should expose missing channels, impossible impedances and connector needs while returns are still easy.
Quick Reference
| System goal | Priority spending | Avoid |
|---|---|---|
| Factory-style clarity | Integration, front speakers, installation | Oversized rear speakers |
| Daily bass | Sub/enclosure, monoblock, electrical | Ignoring midbass |
| Active sound quality | DSP, installation, tuning | Too few channels |
| High output | Electrical, structure, cone area | Marketing max ratings |
| Expandable system | Infrastructure and planned headroom | Random unused hardware |
Frequently Asked Questions
What should be selected first?
The goal and vehicle architecture, followed by acoustic layout—not the biggest amplifier.
Should I leave room for upgrades?
Yes, when the extra DSP channels, wiring and electrical capacity are realistically useful.
Can budget equipment be well matched?
Absolutely. Compatibility and installation often outperform expensive mismatched parts.
When is the system design finished?
When signal, power, channels, loads, enclosure, protection and tuning all connect on paper.
What is the most common buying mistake?
Choosing products individually without calculating how they work together.
Final Word
Correct equipment pairing is not matching the largest printed numbers. It is building a chain in which every source, processor, amplifier, driver, enclosure, wire and electrical component can perform its assigned job safely and cleanly.
