12-, 16- and 48-Volt EV Accessory Systems: Choosing Compatible Audio Equipment

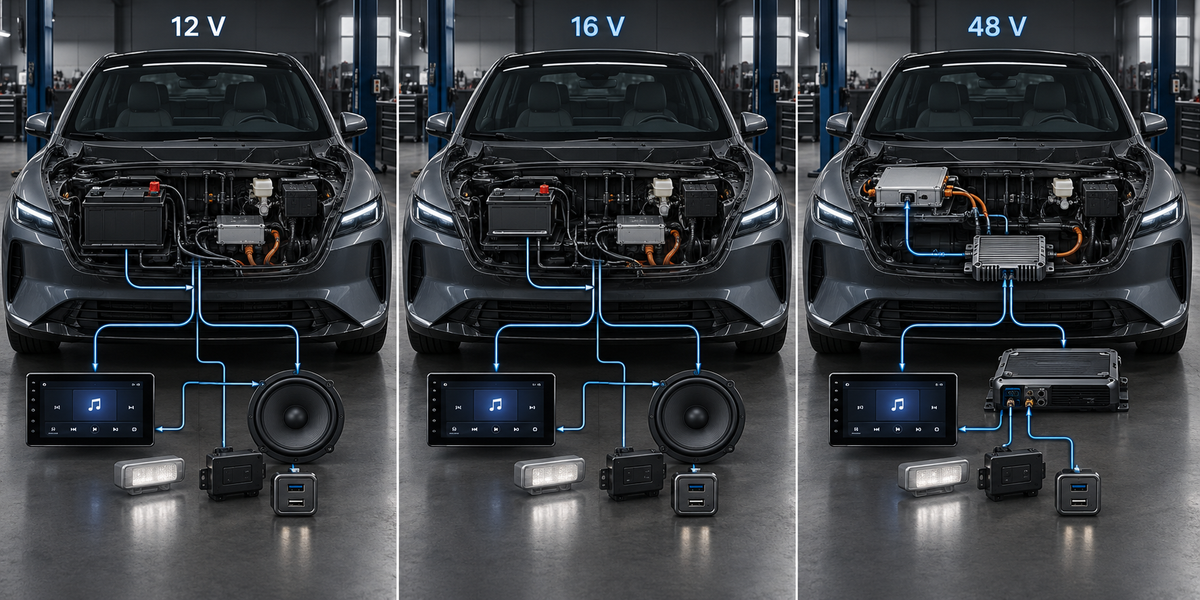

“Low voltage” does not always mean conventional 12 volts. Some EVs use low-voltage lithium systems whose normal range is higher, and emerging platforms use 48-volt accessory buses. Equipment compatibility is determined by its complete allowed input range—not by the word automotive.
Nominal versus operating voltage
Nominal means the name of the voltage family, not one exact reading. A conventional 12-volt vehicle may charge above 14 volts. An approximately 16-volt lithium system can operate above the safe maximum of equipment designed around 14.4 volts. Measure and consult specifications.
Conventional 12-volt family
Many EVs retain familiar 12-volt lead-acid, AGM or lithium accessory systems. Installation still differs because a DC-to-DC converter replaces the alternator and battery monitoring may be strict. Do not assume familiar voltage means unlimited current or conventional grounding.
Approximately 16-volt systems
Some newer platforms use a higher low-voltage lithium architecture. Certain audio amplifiers accept a wide input range; others enter overvoltage protection or fail. Every amplifier, DSP, relay, light and interface must be checked for continuous and transient maximum voltage.
48-volt accessory buses
A 48-volt platform substantially reduces current for the same power but is incompatible with ordinary 12-volt equipment unless the vehicle supplies an approved lower-voltage branch or a properly engineered converter is added. Never attach 12-volt amplifiers directly to 48 volts.
Step-down conversion
A regulated converter changes one DC voltage into another. It must support the amplifier’s peak and continuous current, remain stable with dynamic loads, provide appropriate isolation/ground behavior and survive the vehicle’s transients. A small accessory converter cannot power a large monoblock merely because its output reads 13.8 volts unloaded.
Relays and remote accessories
Relay coils, cameras, processors and lighting can also be voltage-specific. A 12-volt relay on 16 or 48 volts can overheat. Use components rated for the actual bus or power their controls from an approved regulated output.
Model-year changes
A manufacturer may change battery chemistry or bus voltage during a model run. Build date, VIN information and service documentation matter. Online advice for the same model name may describe a different electrical generation.
Verify under every state
Record bus voltage asleep, awake, ready-to-drive, charging and during climate preconditioning. Confirm equipment maximum ratings include those values. The installation is compatible only if it survives the entire operating envelope.
Quick Reference
| Bus family | Direct 12-V equipment? | Required action |
|---|---|---|
| Conventional 12 V | Often, within ratings | Verify converter current and monitoring |
| ~16 V lithium | Sometimes | Confirm full input-voltage range |
| 48 V | Generally no | Use approved lower-voltage branch/converter |
| Unknown | Never assume | Measure and consult service data |
Frequently Asked Questions
Can normal 12-volt audio run on 16 volts?
Only if every component is explicitly rated for the actual maximum voltage.
Can a resistor reduce 48 volts for an amplifier?
No. Dynamic high-current loads require engineered regulated conversion.
Does 48 volts mean more available audio power?
Not automatically; converter and approved branch limits still apply.
Why check relays and DSPs too?
Every connected component experiences the bus voltage.
Can two model years differ?
Yes. Verify the exact VIN/build architecture.
Final Word
EV audio integration is low-voltage systems engineering performed beside a high-voltage vehicle. Exact service information, a conservative current budget and complete safety-function testing matter more than assumptions carried over from conventional cars.
