EV High-Voltage Safety for Car-Audio Installers: Orange Cables and No-Go Zones
The safest EV installation is one planned so the audio technician never performs high-voltage work. Orange cables and traction components are not merely “stronger power wires.” Contact can cause fatal shock, arc flash, fire or delayed injury.
Recognize high-voltage markers

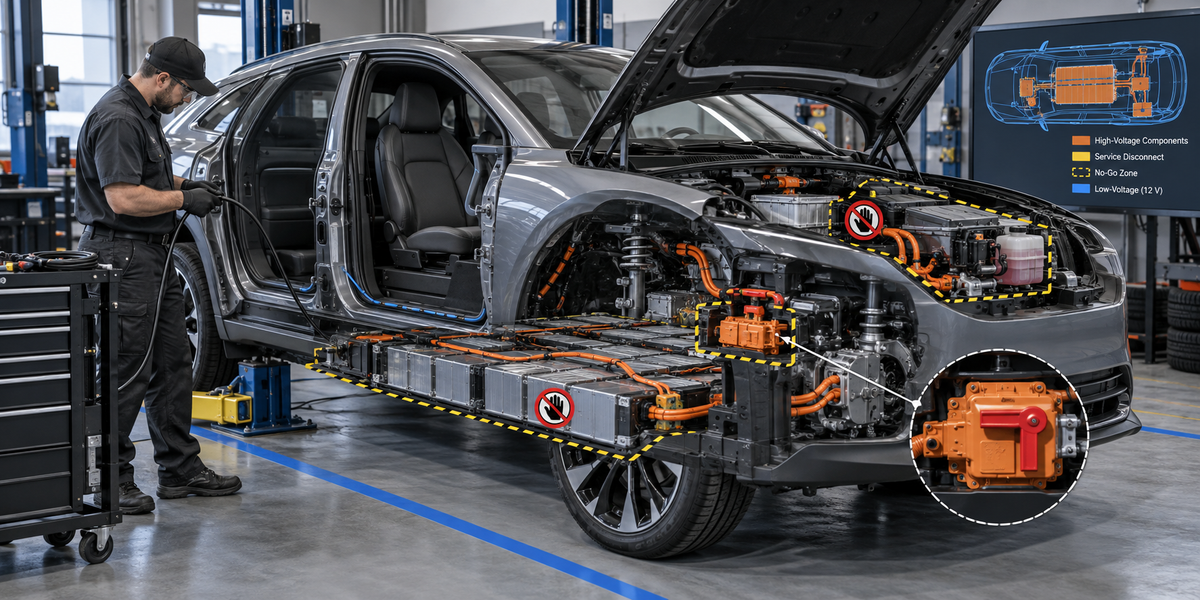

Orange cable and orange connectors commonly identify high-voltage circuits. Warning labels, shielded enclosures and marked junction boxes reinforce the boundary. Color is helpful, but absence of visible orange does not prove an area is safe; components can be hidden behind trim or under the floor.
Do not probe or tap
A normal multimeter, test light or piercing probe may lack the voltage category and protection required for traction circuits. Never use audio diagnostic tools on high-voltage wiring. Do not move, tie-wrap to, splice, extend or ground anything to orange components.
Service disconnects are not hobby switches
A manual service disconnect is intended for trained procedures. Removing it can expose terminals, set faults and leave stored energy elsewhere. It does not automatically prove zero voltage. Routine audio work should not require operating the disconnect unless the manufacturer procedure and qualified personnel demand it.
Stored energy
Inverters and chargers contain capacitors—components that store electrical charge. They may remain hazardous after power is disconnected. Manufacturer waiting periods and a verified absence-of-voltage process exist for a reason. A stopwatch alone is not verification.
Drilling and fasteners
The traction battery often occupies the floor. Before drilling, use service information, physical inspection and approved routing zones. A screw that barely penetrates the cabin floor can damage the pack, coolant passages or high-voltage harness. Adhesive mounting is not automatically safe if it blocks service or thermal paths.
Damaged vehicles
Do not work around a crashed, flooded, burned, hissing, unusually hot or warning-laden EV as though it is a normal audio bay job. Battery damage can develop over time. Isolate the vehicle and involve appropriate emergency or manufacturer-qualified resources.
Personal protective equipment
High-voltage gloves, meters and insulated tools require ratings, inspection and training. Owning them does not confer qualification. For normal audio integration, the better control is staying entirely on the verified low-voltage side.
Stop-work conditions
Stop when routing cannot avoid high-voltage components, service information is unavailable, the vehicle shows electrical faults, or the requested power point is not approved. A profitable installation never justifies guessing around lethal energy.
Quick Reference
| Task | Low-voltage installer | HV-qualified personnel |
|---|---|---|
| Approved accessory fuse point | Yes, with service data | Usually not needed |
| Orange cable testing | No | Yes, under procedure |
| Traction pack opening | No | Specialized service only |
| Audio cable routing | Yes, in verified zones | Consult if crossing HV area |
| Crash/flood damage | Stop work | Emergency/qualified response |
Frequently Asked Questions
Are all orange wires dangerous?
Treat them as high voltage and do not disturb them.
Does disconnecting the 12-volt battery make HV safe?
Not necessarily; traction energy and stored charge can remain.
Can I drill through an EV floor after looking underneath?
Only after exact service information confirms a safe approved zone.
Should installers pull the service disconnect?
Not as a generic step; it belongs to qualified manufacturer procedures.
What if the vehicle was recently flooded?
Stop work and use emergency/manufacturer guidance.
Final Word
EV audio integration is low-voltage systems engineering performed beside a high-voltage vehicle. Exact service information, a conservative current budget and complete safety-function testing matter more than assumptions carried over from conventional cars.
