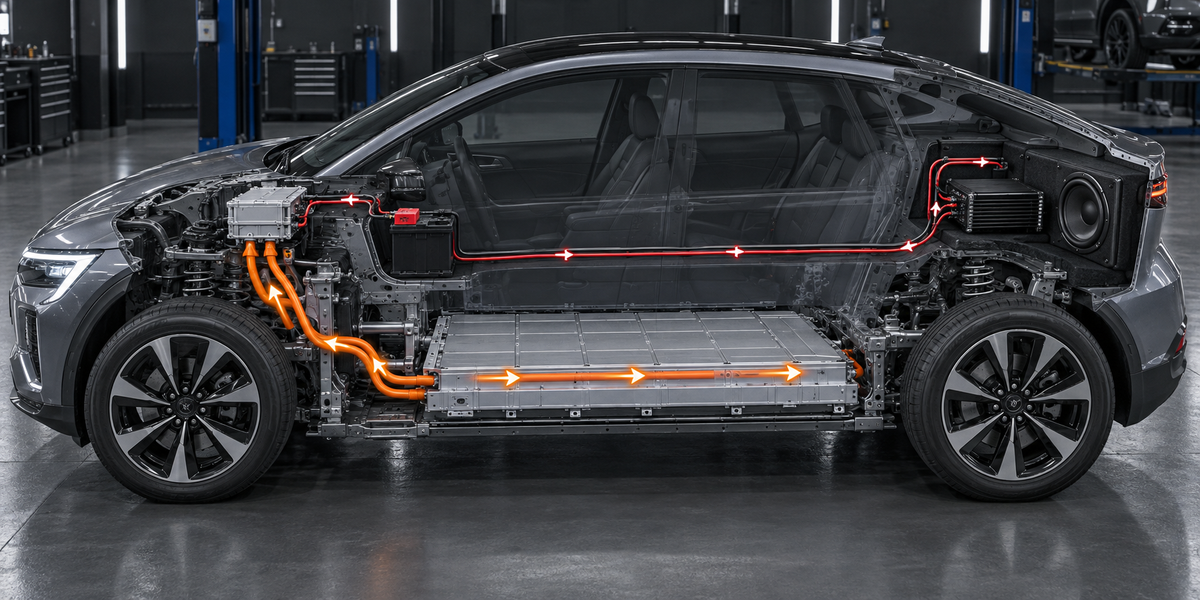

How an EV Electrical System Works: Traction Battery, Low-Voltage Battery and DC-to-DC Converter
An electric vehicle carries enormous stored energy, but aftermarket audio does not connect directly to it. Audio equipment belongs on the approved low-voltage accessory system—the smaller electrical system that powers computers, lights, locks, displays and conventional electronics.
Two electrical worlds
The traction system is the high-voltage side that moves the vehicle. Depending on platform, it may operate at hundreds of volts. The accessory system is the lower-voltage side used by ordinary electronics. The two are electrically managed and isolated through designed equipment; they are not interchangeable battery terminals.
The traction battery
The large underbody pack stores energy for propulsion and climate operation. Its enclosure, cooling system, contactors and monitoring electronics are safety-critical. A car-audio installer must not open the pack, pierce its structure, tap its conductors or treat it like an oversized 12-volt battery.
Contactors in plain English
Contactors are heavy-duty electrically controlled switches that connect the traction pack to the vehicle when conditions are safe. Vehicle “off” may open them, but capacitors and other parts can remain charged. Only trained high-voltage personnel using manufacturer procedures verify a safe state.
The DC-to-DC converter
A DC-to-DC converter performs the charging role an alternator performs in a combustion vehicle. It takes high-voltage energy and converts it to the vehicle’s low-voltage range. Its current capacity and software strategy determine how much low-voltage accessory power is available.
Why a low-voltage battery remains
The small battery can wake computers, close high-voltage contactors, support safety systems and stabilize the accessory bus. If it is weak, the EV can appear completely dead even with a full traction battery. Chemistry and nominal voltage vary by platform.
Where audio obtains power
Use only manufacturer-approved low-voltage distribution, battery or accessory connection points. The main audio fuse protects the new positive cable and belongs close to the approved source. Ground must follow the monitored return architecture and approved body locations.
Sleep and wake behavior
An EV can wake to charge, condition its battery, communicate with an app or update software. The low-voltage bus may change state when nobody is inside. Audio equipment must shut down reliably without preventing sleep or waking repeatedly.
The core rule
If identifying the power point requires touching orange wiring, opening high-voltage equipment or guessing around the battery pack, stop. The job has crossed from low-voltage accessory installation into high-voltage service.
Quick Reference
| Component | Plain-English job | Audio relevance |
|---|---|---|
| Traction battery | Stores propulsion energy | Never tap directly |
| Contactors | Connect/disconnect HV pack | Not an audio control |
| DC-to-DC converter | Creates low-voltage power | Replaces alternator role |
| Low-voltage battery | Wakes/stabilizes vehicle | Approved system only |
| Inverter | Drives electric motor | High-voltage no-go |
| Accessory distribution | Feeds low-voltage loads | Potential approved source |
Frequently Asked Questions
Can I power an amplifier from the traction battery?
No. Use only approved low-voltage accessory points.
Does an EV have an alternator?
Usually no; a DC-to-DC converter supports the accessory bus.
Why can a charged EV have a dead dashboard?
The low-voltage battery may be discharged or faulty.
Is vehicle off the same as electrically safe?
No. High-voltage components can remain energized or charged.
Can audio use the low-voltage battery normally?
Yes when voltage, current budget, monitoring and connection points are compatible.
Final Word
EV audio integration is low-voltage systems engineering performed beside a high-voltage vehicle. Exact service information, a conservative current budget and complete safety-function testing matter more than assumptions carried over from conventional cars.
