THE 12 VOLT ENCYCLOPEDIA · VOLUME XV
Can You Add an Auxiliary Battery to an EV Car-Audio System?
Adding a battery does not grant permission to draw unlimited energy from an EV. It adds storage and fault current. The auxiliary bank, charging method, low-voltage bus and vehicle converter must be designed as one controlled system.
Chemistry must match charging
AGM, flooded lead-acid, lithium iron phosphate and other lithium chemistries require different voltage limits and charging behavior. Directly paralleling unlike batteries can cause uncontrolled equalization current, chronic undercharge, overcharge or damage.
A BMS is not a charger
A battery-management system protects lithium cells against unsafe voltage, current and temperature. It does not automatically make the pack compatible with the vehicle. A charger or converter must still supply the correct profile and limit input demand.
Current-limited charging

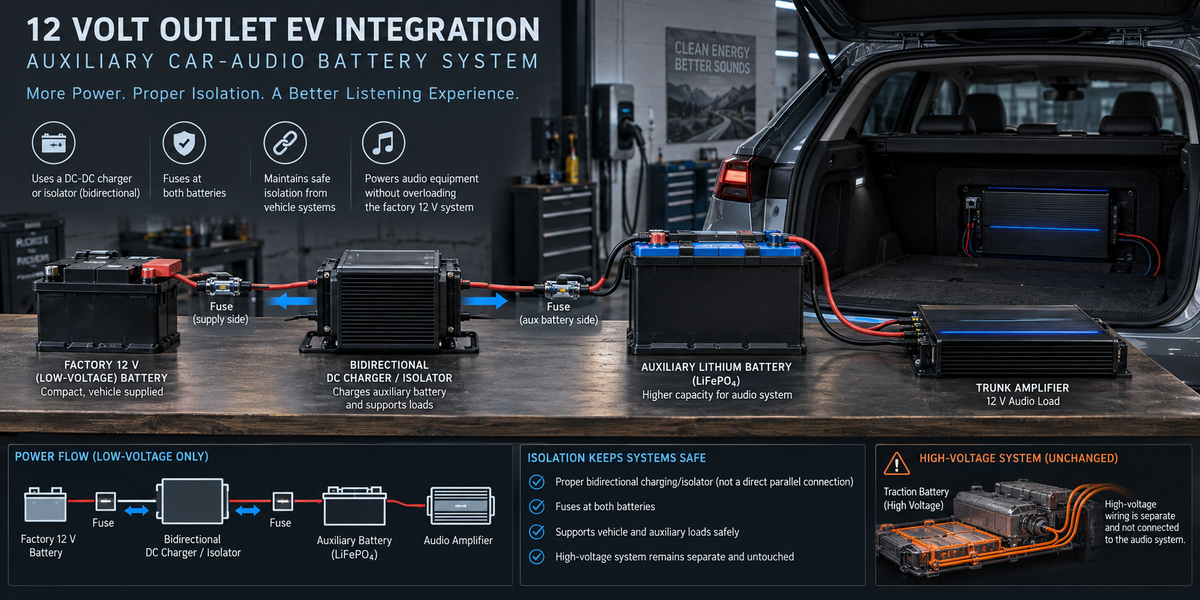

A dedicated low-voltage DC-to-DC charger can isolate battery chemistries and cap how much current the vehicle supplies to the auxiliary bank. It must accept the EV bus’s full voltage range and coordinate with sleep behavior. The limit protects the vehicle converter from a deeply discharged bank demanding everything at once.
Fault-current protection
A charged battery can deliver enormous short-circuit current. Fuse each positive connection near each energy source, including both ends when a cable connects separated batteries capable of feeding the fault. Use proper enclosures, venting and mechanical restraint.
Voltage architecture
A conventional 12-volt bank cannot be paralleled with a roughly 16-volt or 48-volt bus. Conversion is mandatory. Even two “12-volt” lithium systems may have incompatible charge ceilings. Nominal names are not enough.
Isolation and shutdown
The auxiliary system must stop charging and shut audio down without keeping the vehicle awake. A contactor, charger enable line or interface may control isolation. Test parked, charging, ready-to-drive and software-wake states.
Weight and crash safety
Battery mass and mounting affect payload and crash behavior. Do not place a bank in a crumple zone, over an unapproved floor area or where terminals can contact cargo. Manufacturer and battery-maker mounting requirements take priority.
When not to add one
If converter capacity is unknown, no compatible current-limited charger exists or the customer expects continuous power beyond the platform budget, decline the design. A smaller amplifier with controlled output is safer than an unsupported battery experiment.
Quick Reference
| Method | Advantage | Primary risk |
|---|---|---|
| Direct parallel identical compatible bank | Simple/low loss | Converter surge and monitoring |
| Current-limited DC-DC charger | Controls demand/chemistry | Complexity and efficiency loss |
| Unregulated step-down | Not suitable for charging | Voltage/current instability |
| Portable isolated power station | Independent for limited uses | Ground/signal integration |
| Random mixed batteries | None | Damage/fire—avoid |
Frequently Asked Questions
Can I parallel AGM and lithium?
Not without an engineered compatible charging strategy.
Does a lithium BMS make it plug-and-play?
No. It protects cells but does not ensure vehicle compatibility.
Why fuse both ends of a battery cable?
Either battery can feed a short in the connecting cable.
Will an auxiliary battery increase range loss?
Energy used and added weight must ultimately come from the traction system.
Can I connect a 12-V bank to 16 or 48 V?
Not directly; use properly rated conversion and control.
Final Word
EV audio integration is low-voltage systems engineering performed beside a high-voltage vehicle. Exact service information, a conservative current budget and complete safety-function testing matter more than assumptions carried over from conventional cars.
