Power Wire, Grounding, Battery Sensors and Remote Turn-On in EVs

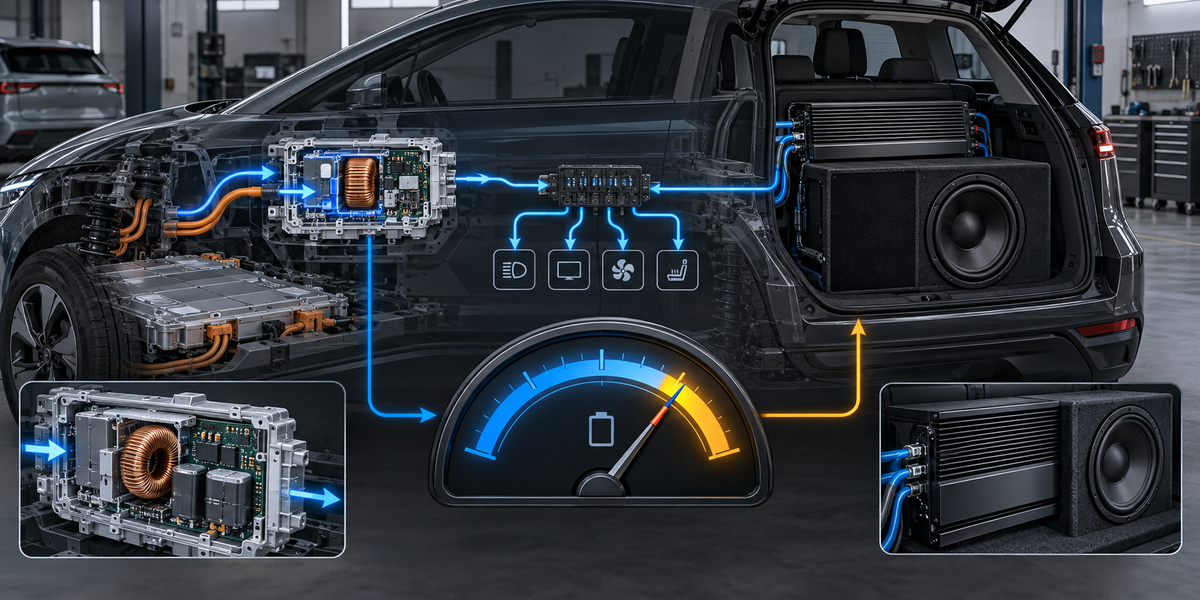

An EV amplifier still needs positive power, a return path and a turn-on command. What changes is how closely the vehicle monitors those paths and how often it wakes without a driver. A connection can play perfectly yet create battery-management errors or prevent sleep.
Use approved power distribution
Find the manufacturer-designated accessory point, low-voltage battery post or fused distribution location. Some battery terminals are not intended for added lugs. The new cable requires a fuse close to its approved source and protection through every panel crossing.
Respect current sensors
A low-voltage battery sensor measures current so the vehicle can estimate state of charge. Connecting amplifier ground or auxiliary charging on the wrong side can bypass measurement. The vehicle then sees energy disappear without explanation and may set warnings or manage charging poorly.
Ground architecture
Use approved body studs or return points with verified loaded voltage drop. Aluminum, bonded structures and mixed metals require compatible terminals and corrosion control. A front-to-rear copper return may help only when service information permits and it enters the monitored system correctly.
Remote turn-on sources
A conventional accessory wire may not exist behind the display. The factory amplifier may wake by data message. Use a vehicle-specific interface, verified switched output or processor signal detection. Never probe network wires until one “looks switched.”
Wake events
Charging, mobile-app access, climate preconditioning and software activity can wake modules. Signal-sensing processors may interpret those events as music and keep amplifiers awake. Test the complete key-off cycle for hours, not only the first minute.
Relay and sequencer design
If a remote output cannot drive several devices, use a fused relay or sequencer. Confirm coil voltage matches the bus. A 12-volt relay may be inappropriate on a higher-voltage low-voltage system. Sequencing also prevents pops when processors and amplifiers stabilize at different times.
Loaded voltage-drop testing
Measure at the amplifier during playback and compare with the approved source. Separate positive and return loss. The absence of alternator cranking does not make poor connections harmless; high audio current still creates heat and voltage loss.
Final sleep test
Lock the vehicle in its normal parked state, keep keys and phones away, allow the documented sleep period and measure low-voltage draw without waking it. Repeat while connected to a charger if that changes behavior. Confirm remote outputs fall and stay off.
Quick Reference
| Connection | Correct question | Failure if wrong |
|---|---|---|
| Positive source | Is this an approved accessory point? | Fault/fire/unmonitored load |
| Ground | Does current pass intended sensor? | Energy-management error |
| Remote | Does it sleep through all wake events? | Parasitic drain |
| Relay | Is coil rated for bus voltage? | Overheat/failure |
| Cable route | Clear of HV, airbags and heat? | Safety hazard |
Frequently Asked Questions
Can I ground directly to battery negative?
Only if that connection preserves the vehicle’s current-sensor design.
Where is switched accessory power?
It may be data-controlled; use service information or a compatible interface.
Can the amp wake while parked?
Yes, if vehicle wake events trigger signal sensing or remote logic.
Do EVs need a main audio fuse?
Yes. The low-voltage battery/converter can deliver dangerous fault current.
Is chassis ground always acceptable?
Only at an approved point with proven return behavior.
Final Word
EV audio integration is low-voltage systems engineering performed beside a high-voltage vehicle. Exact service information, a conservative current budget and complete safety-function testing matter more than assumptions carried over from conventional cars.
