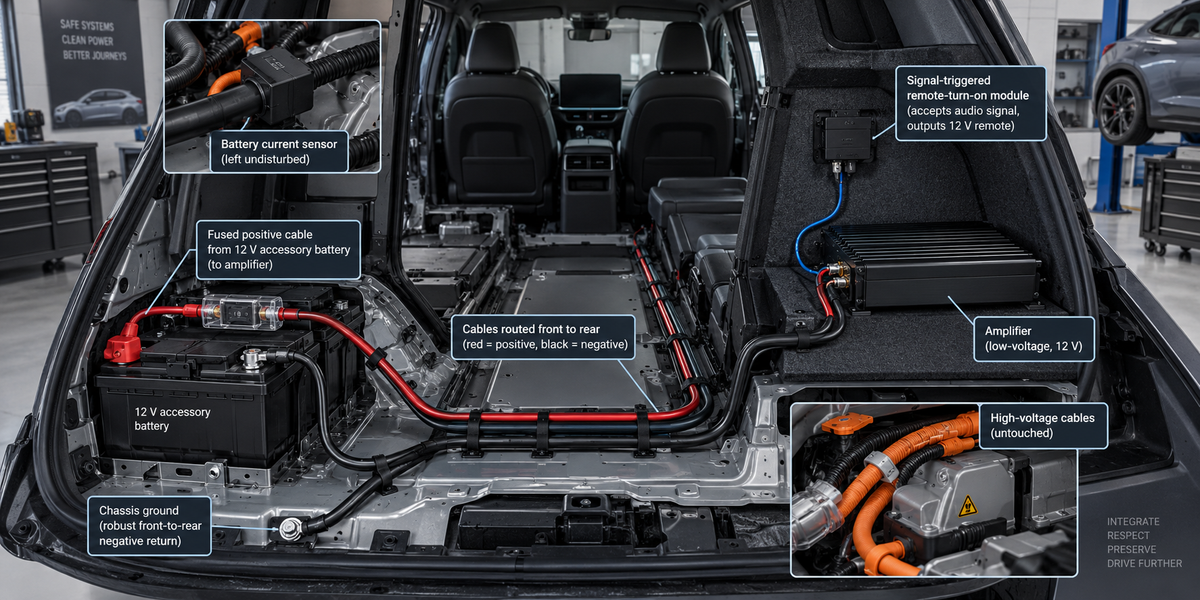

How Much Car Audio Power Can an EV Support? DC-to-DC Converter Capacity
A 100-kWh traction battery stores an enormous amount of energy, but it does not deliver that energy directly to a 12-volt amplifier. The immediate gatekeeper is the DC-to-DC converter and the amount of its low-voltage output not already required by the vehicle.
Energy and power are different
Kilowatt-hours measure stored energy—how much work can be supplied over time. Kilowatts and amperes describe the rate of power delivery. A large fuel tank does not guarantee a large fuel line; likewise, a huge traction pack does not guarantee unlimited low-voltage current.
Find verified converter capability
Converter ratings may be continuous, peak, temperature-dependent or software-limited. Use service information and measurement. Do not infer capacity from a fuse alone; that fuse may protect several loads or represent fault current rather than safe continuous accessory use.
Subtract vehicle demand
Computers, pumps, lighting, steering, brakes, fans, wipers, seats and climate-related low-voltage equipment consume converter output. Battery heating or cooling can change demand. Measure in the operating states the customer will use, not only parked with climate off.
Estimate amplifier input
Divide planned RMS output by low-voltage bus voltage and estimated amplifier efficiency. A 1,500-watt Class D system at 13.8 volts and 80 percent efficiency could request about 136 amperes at full continuous output. Dynamic music usually averages less, while sine-wave demos approach the calculation.
Thermal derating
Derating means equipment is allowed to produce less as temperature rises. The converter and amplifier both generate heat. Repeated stationary demonstrations in hot weather can create a different limit than short musical peaks while driving.
The low-voltage battery buffers peaks
The accessory battery can deliver brief current above converter output, reducing short-term sag. That deficit must later be repaid. Repeatedly drawing more than the converter restores lowers battery state and can trigger warnings or leave the vehicle unable to close its contactors.
Use a safety margin
Do not allocate every published ampere. Leave capacity for changing vehicle loads, conversion losses, aging and measurement uncertainty. If the plan exceeds the conservative budget, reduce amplifier limits or engineer an approved auxiliary-energy system.
Measure after installation
Log voltage and current with climate, lights and audio operating. Verify charging, sleep and fault-free operation. A system that survives one bass note but slowly discharges the low-voltage battery is not compatible.
Quick Reference
| Input | Meaning | Do not confuse with |
|---|---|---|
| Traction kWh | Stored driving energy | Low-voltage current capacity |
| Converter amperes | Low-voltage delivery rate | Fuse rating alone |
| Vehicle demand | Existing LV consumption | Audio-only load |
| Amplifier RMS | Potential continuous audio output | Typical music average |
| Safety reserve | Unallocated capacity | Wasted power |
EV Low-Voltage Audio Budget Estimator
This planning tool estimates amplifier input current and compares it with the converter current the installer believes is safely available after vehicle loads. Manufacturer limits and measured behavior override the estimate.
Enter verified values and calculate.
Manual formula: amplifier current ≈ output watts ÷ (voltage × efficiency). Conservative audio budget ≈ (converter capacity − vehicle demand) × (1 − reserve fraction). Music average may be lower, but continuous demo use, heat and battery conditioning can raise real demand.
Frequently Asked Questions
Does a larger traction battery support a larger amp?
Not necessarily; the low-voltage converter is the immediate limit.
Can the low-voltage battery supply extra current?
Briefly, but the converter must replenish it.
Are amplifier fuse totals actual draw?
No. They are protective ceilings, not normal music consumption.
Why reserve converter capacity?
Vehicle loads and thermal limits change.
Can I measure converter output with a clamp?
Yes on approved low-voltage conductors with suitable tools, but service specifications still matter.
Final Word
EV audio integration is low-voltage systems engineering performed beside a high-voltage vehicle. Exact service information, a conservative current budget and complete safety-function testing matter more than assumptions carried over from conventional cars.
