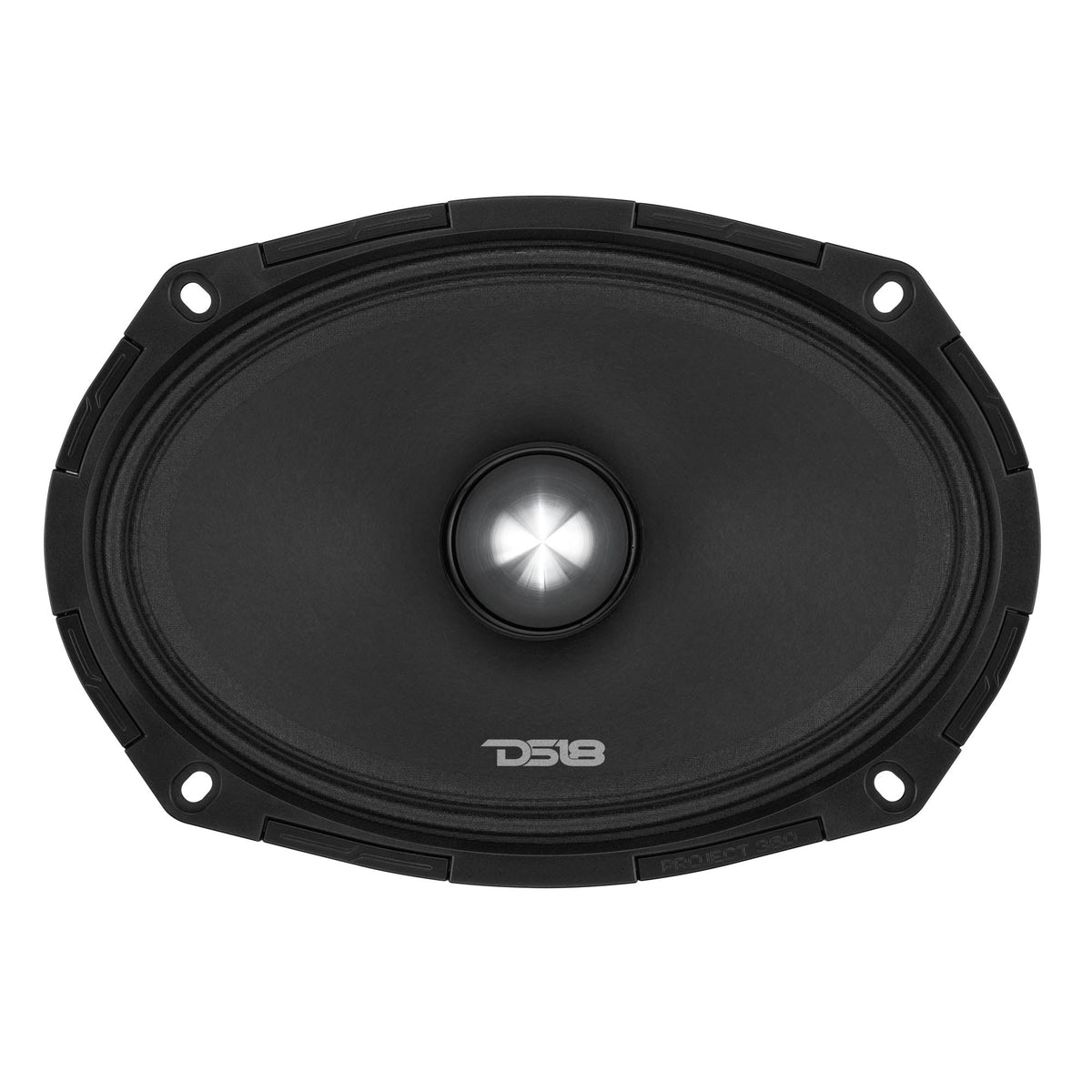

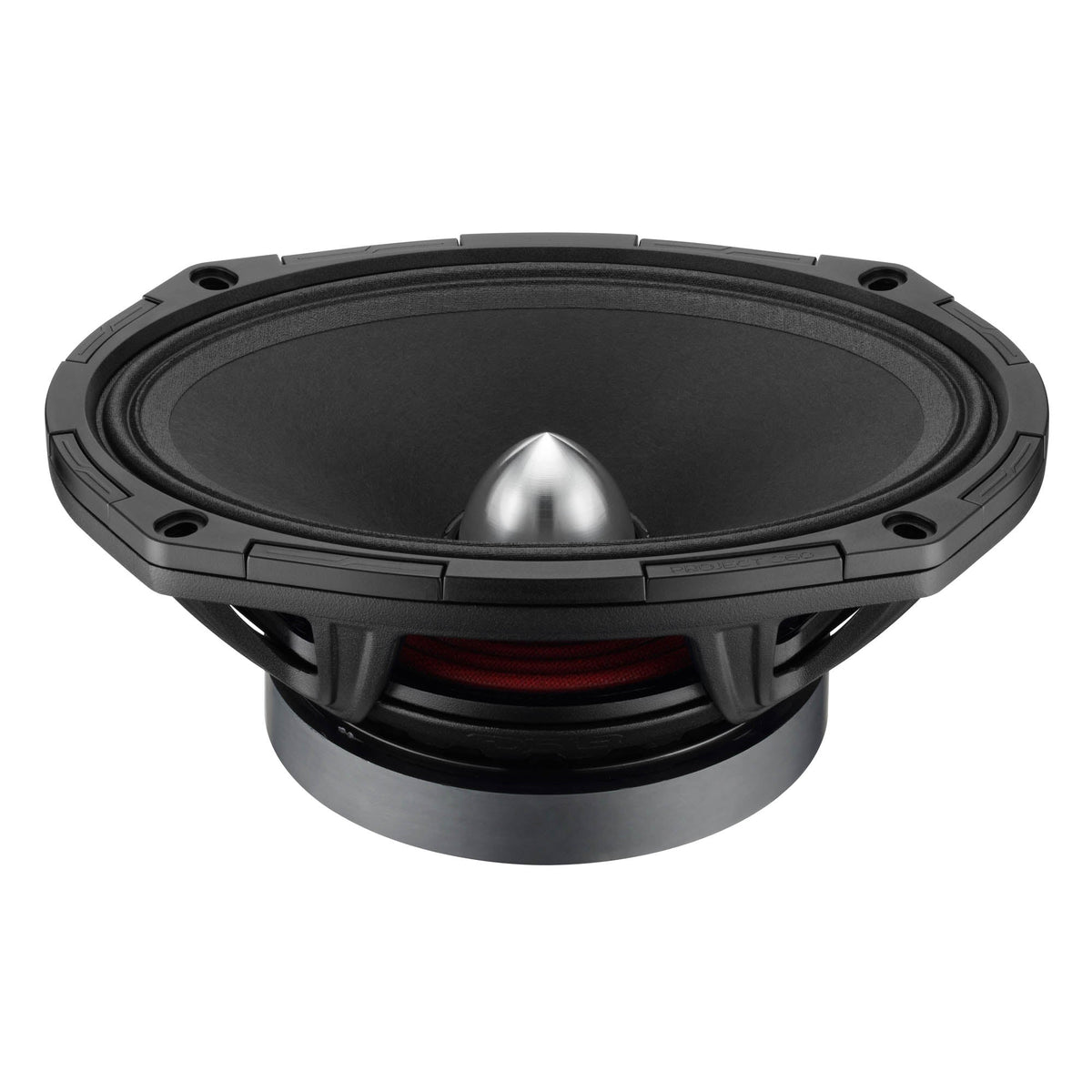

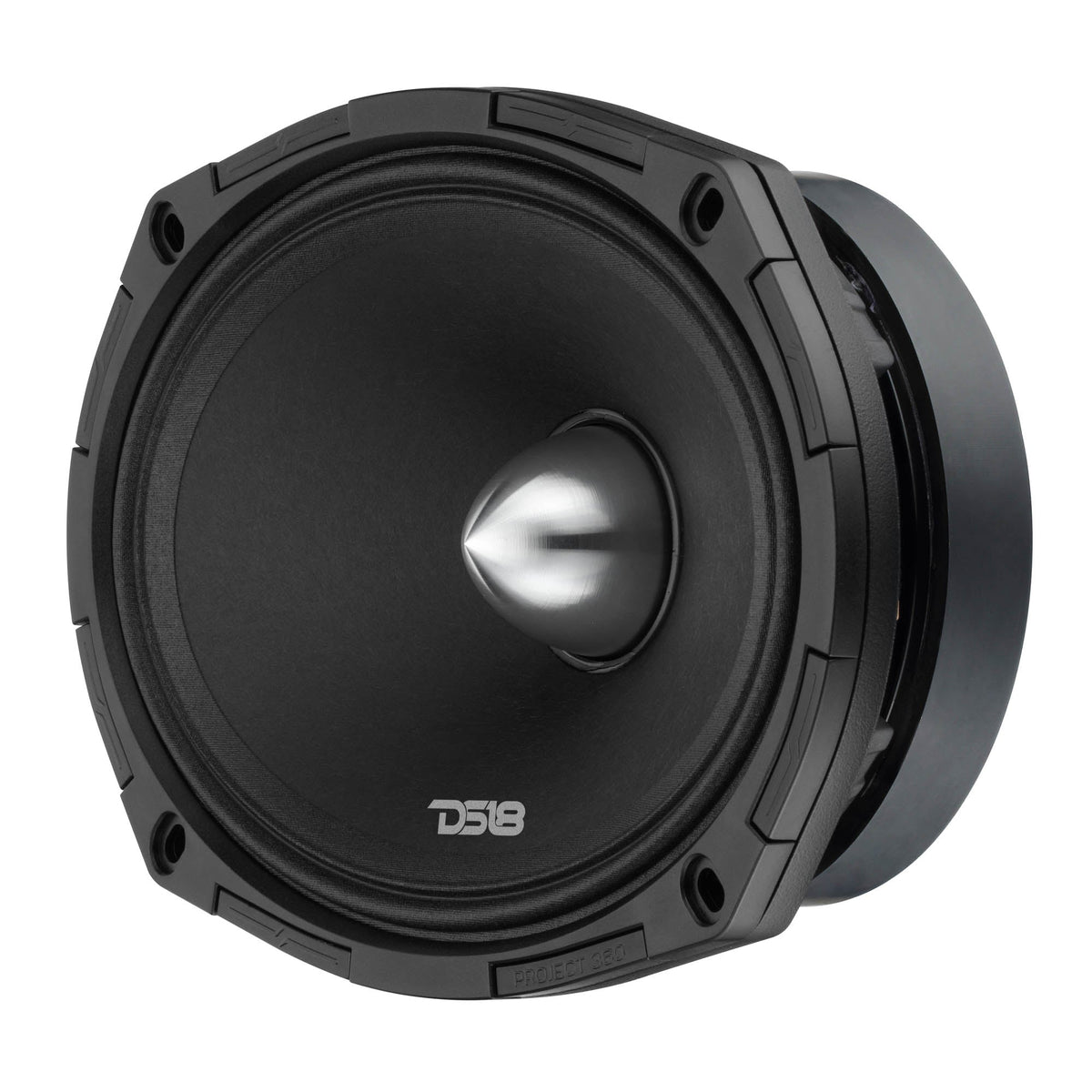

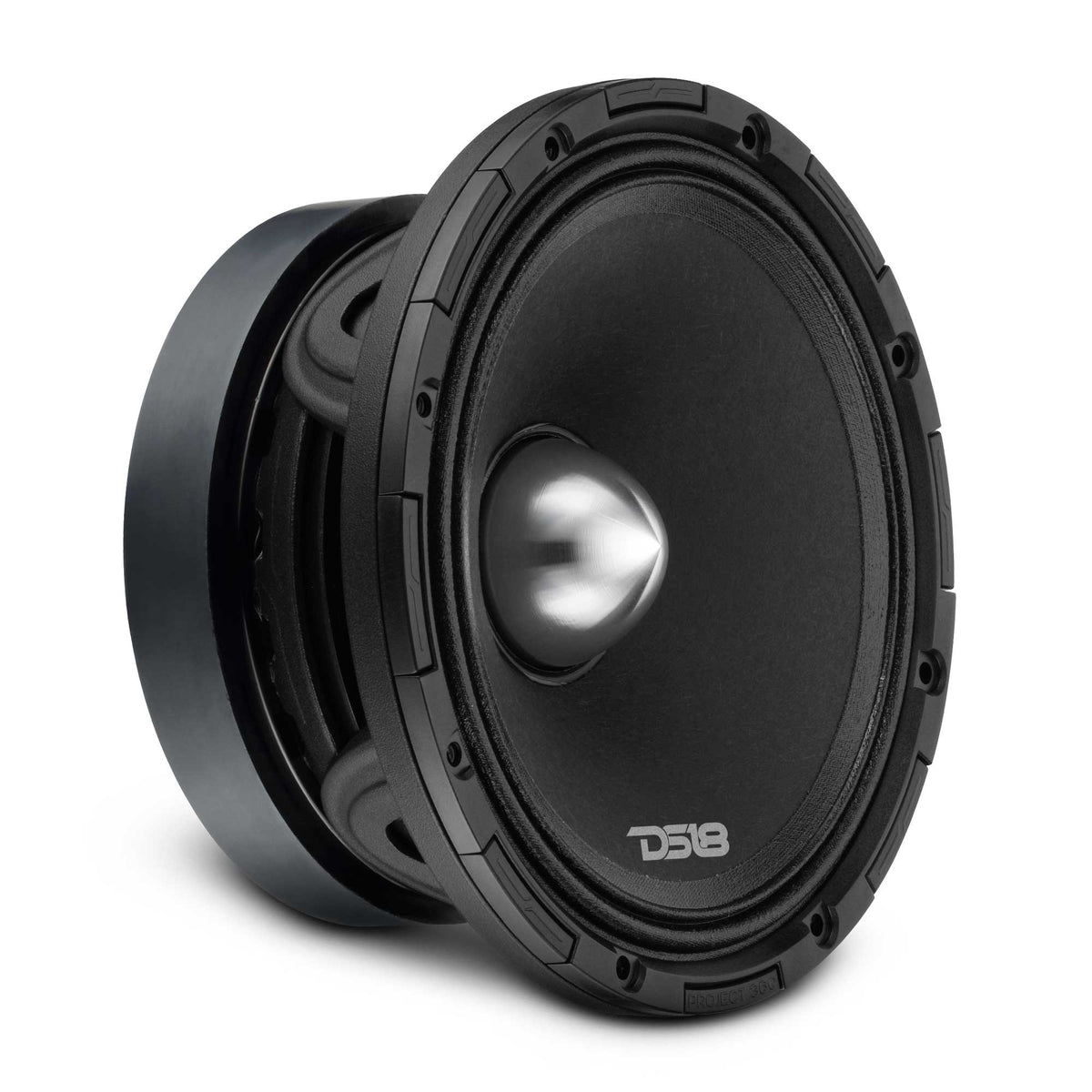

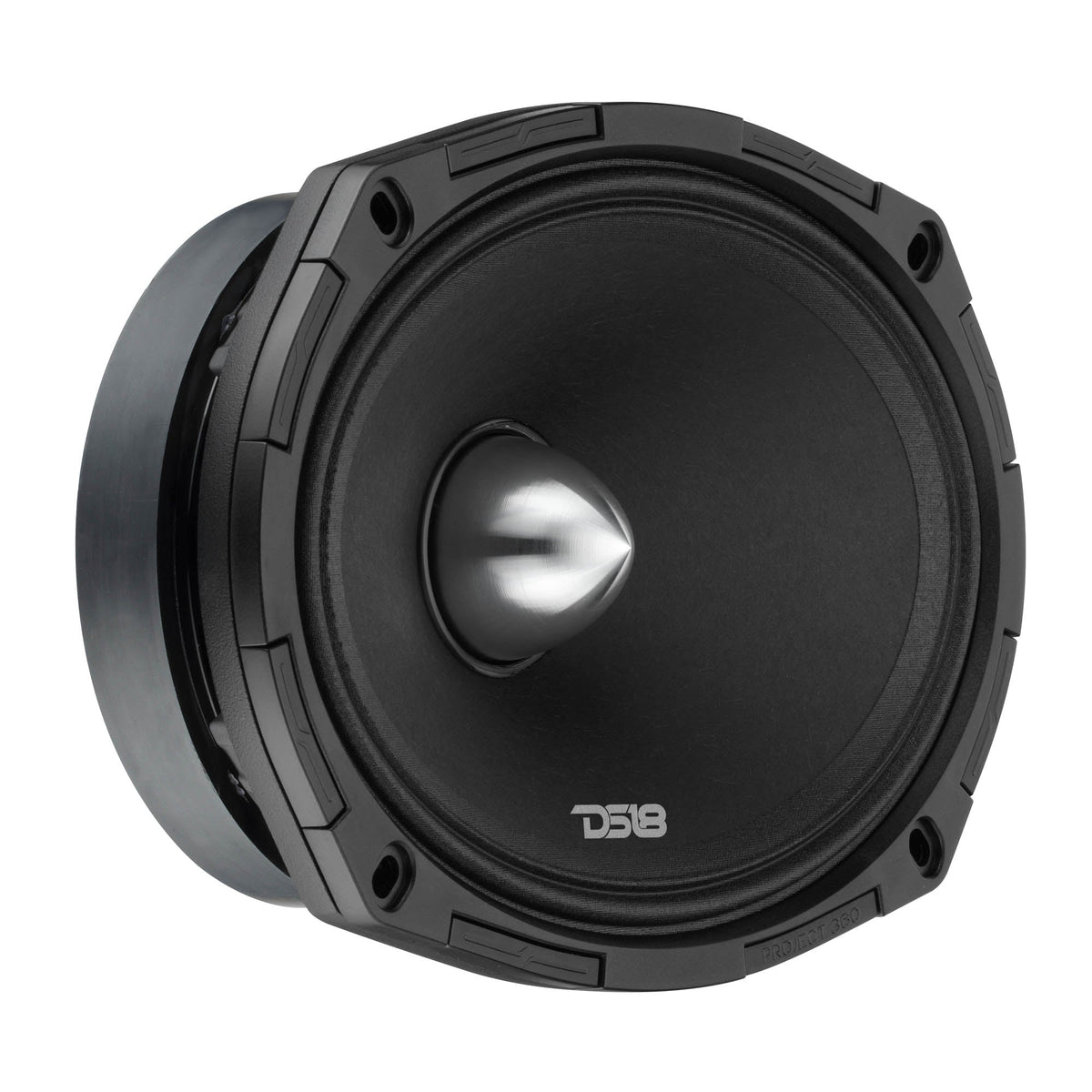

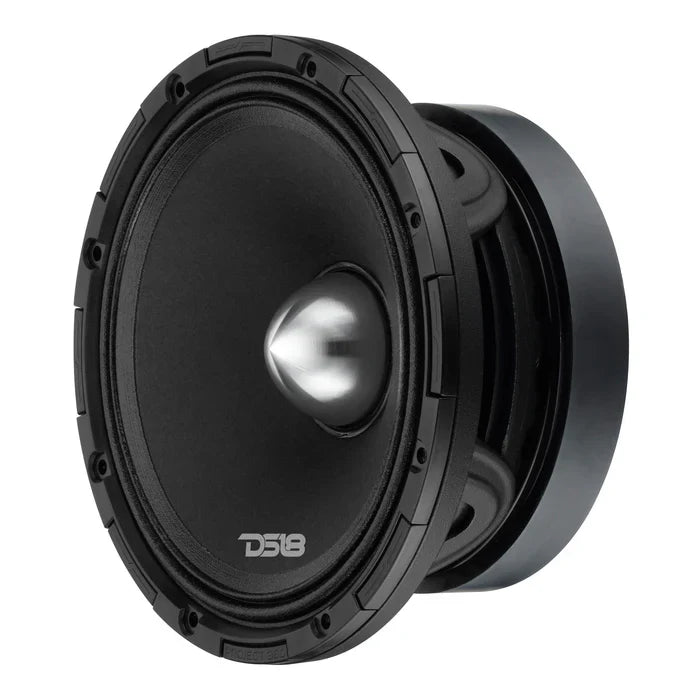

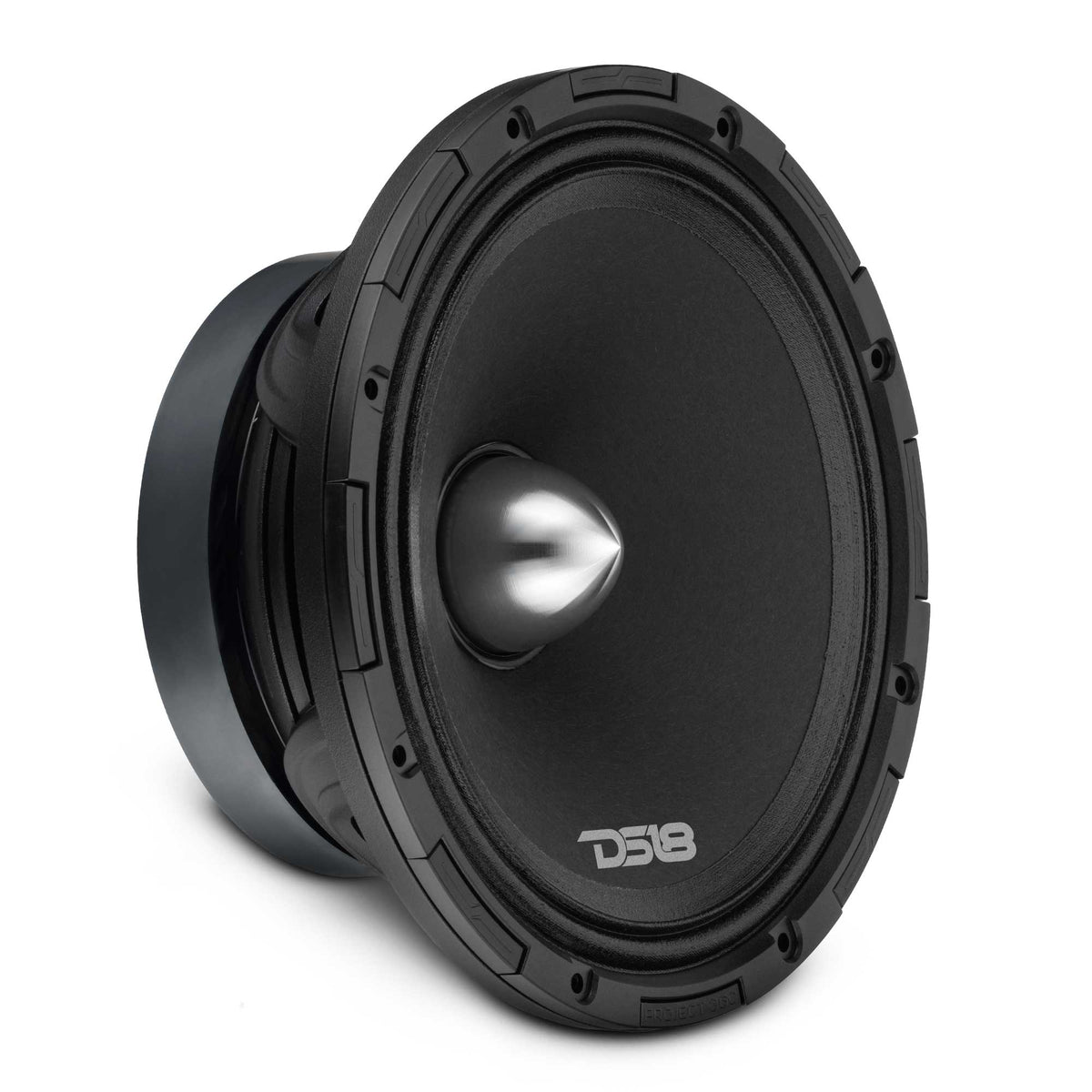

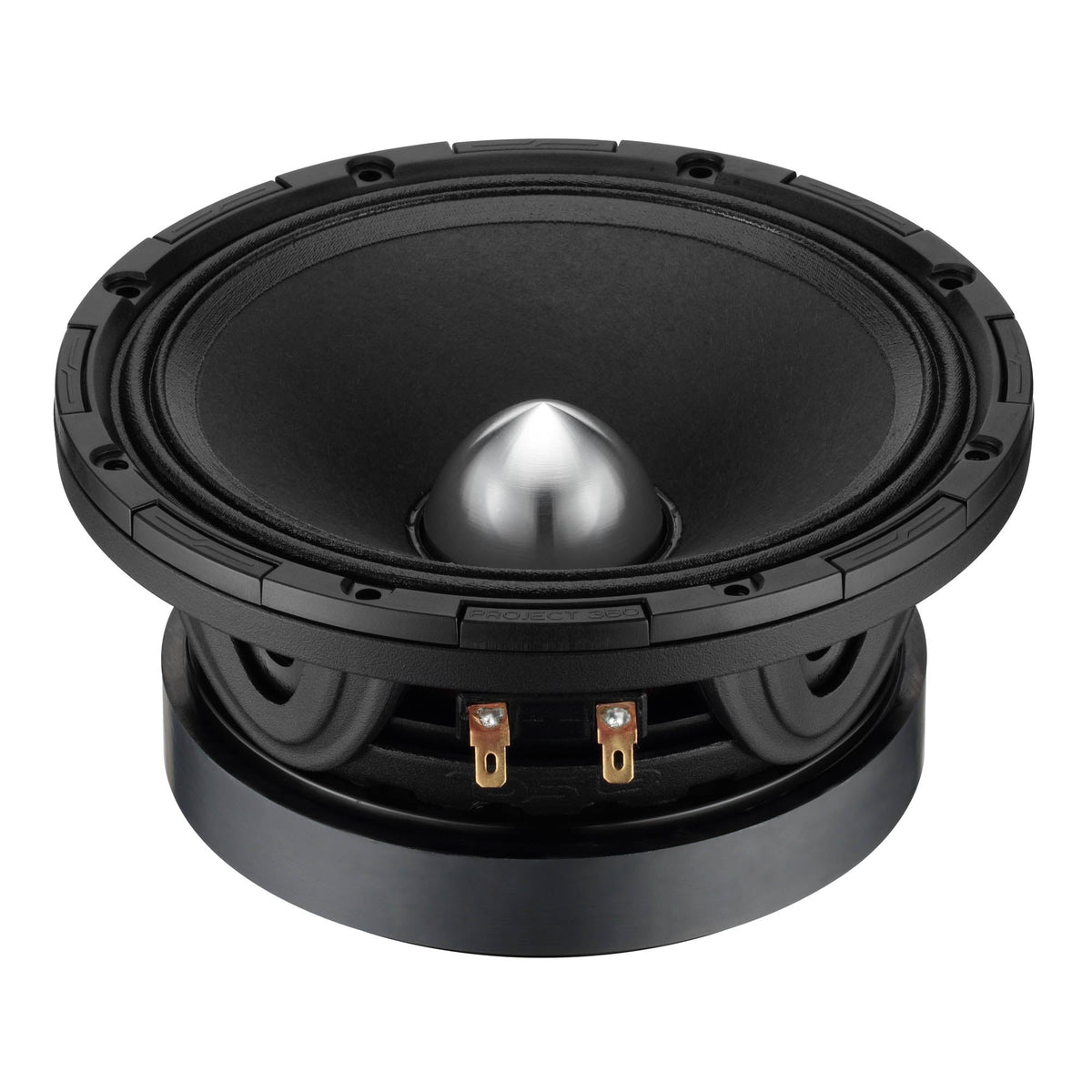

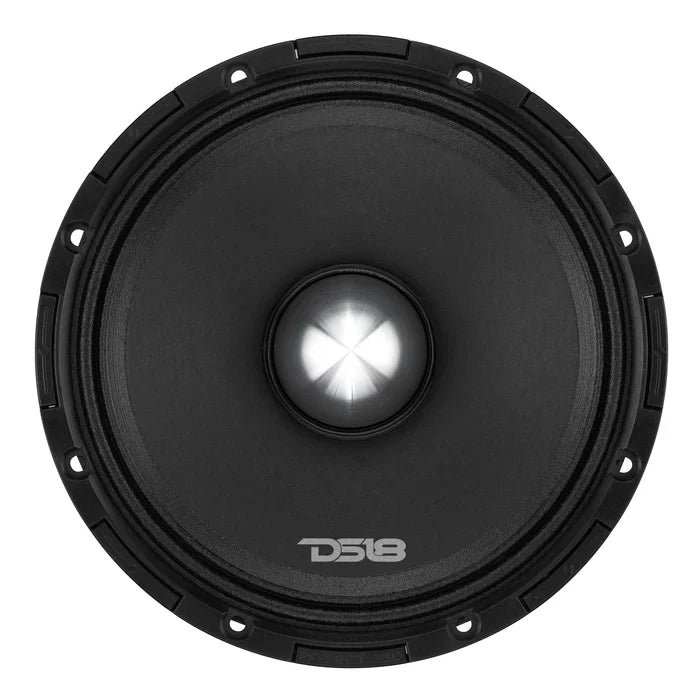

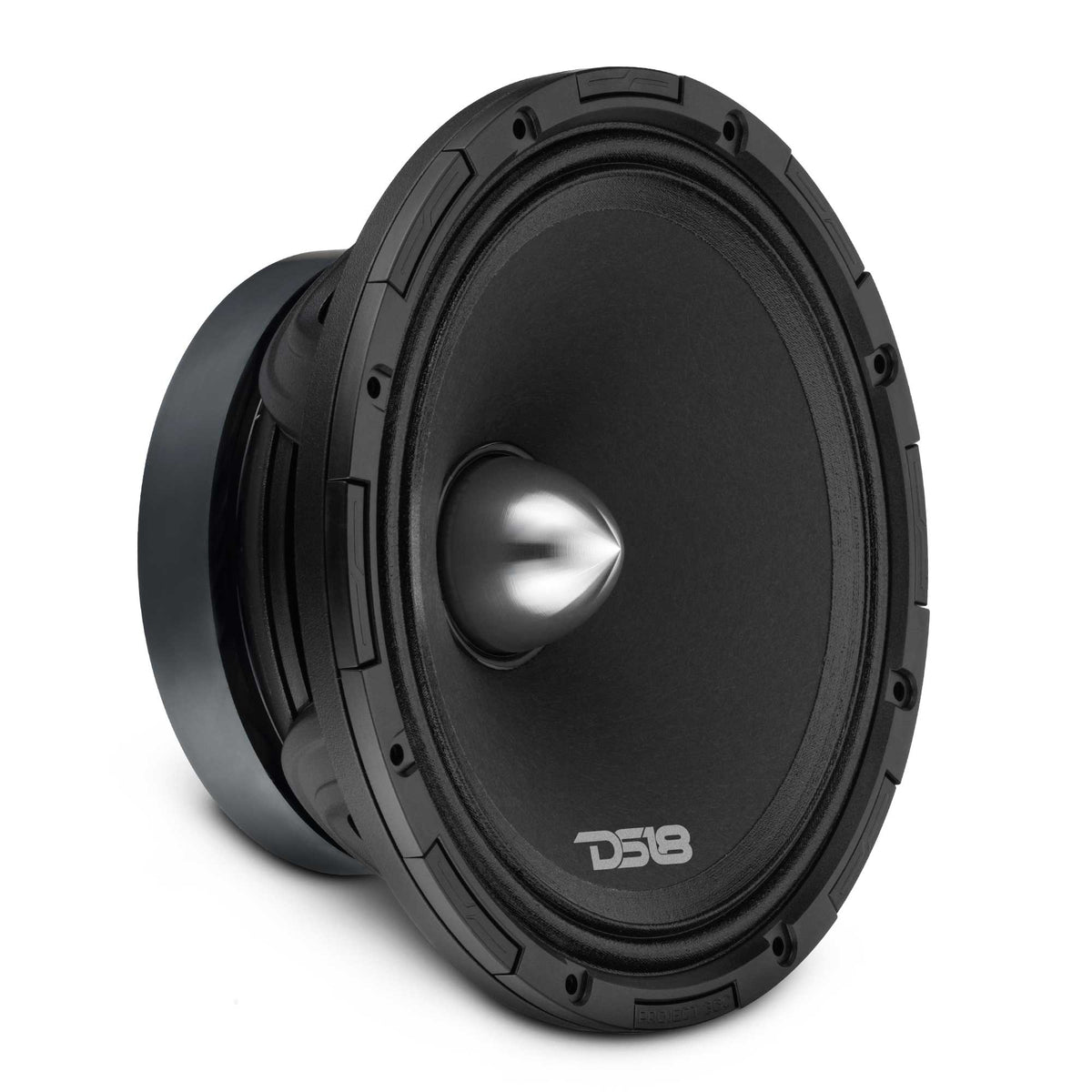

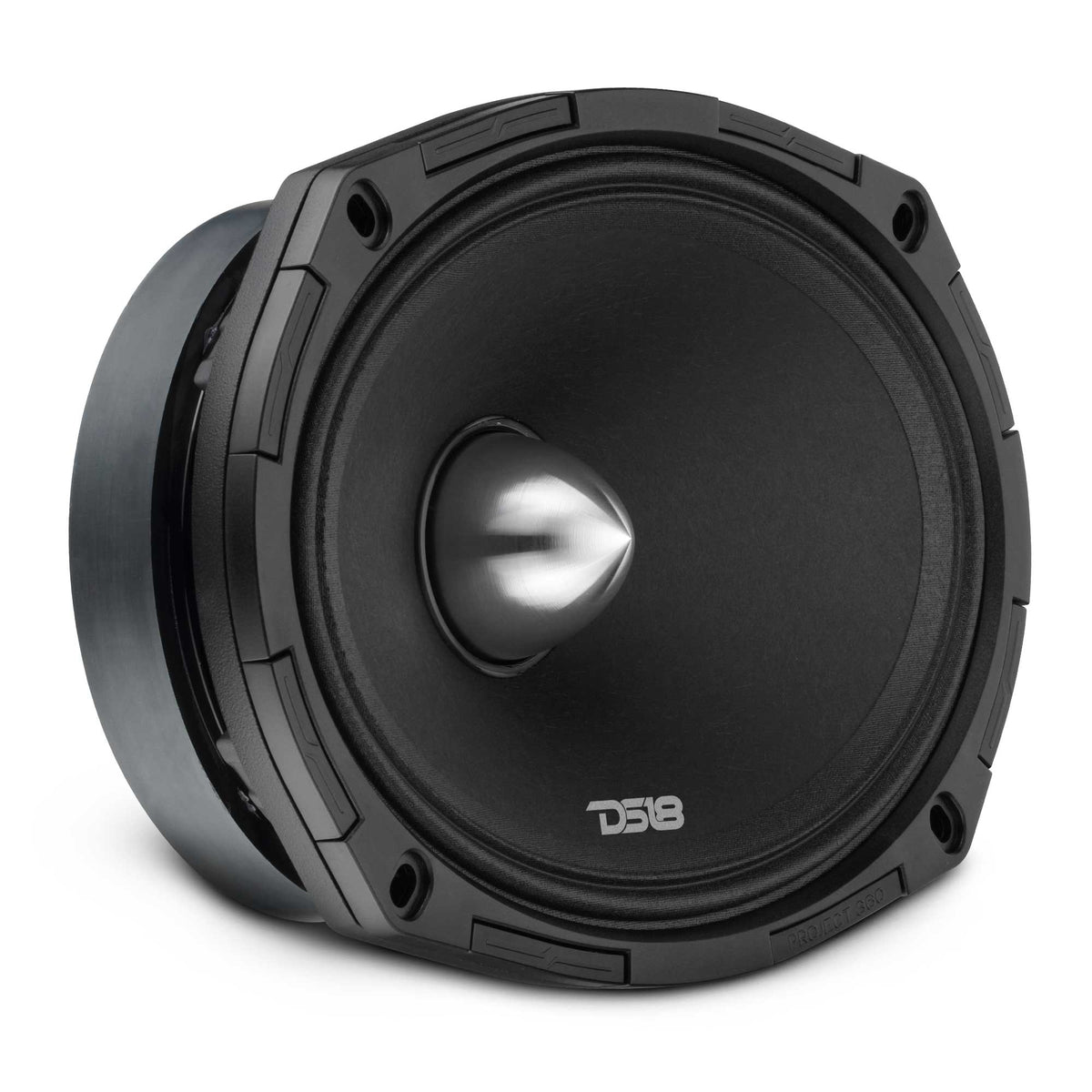

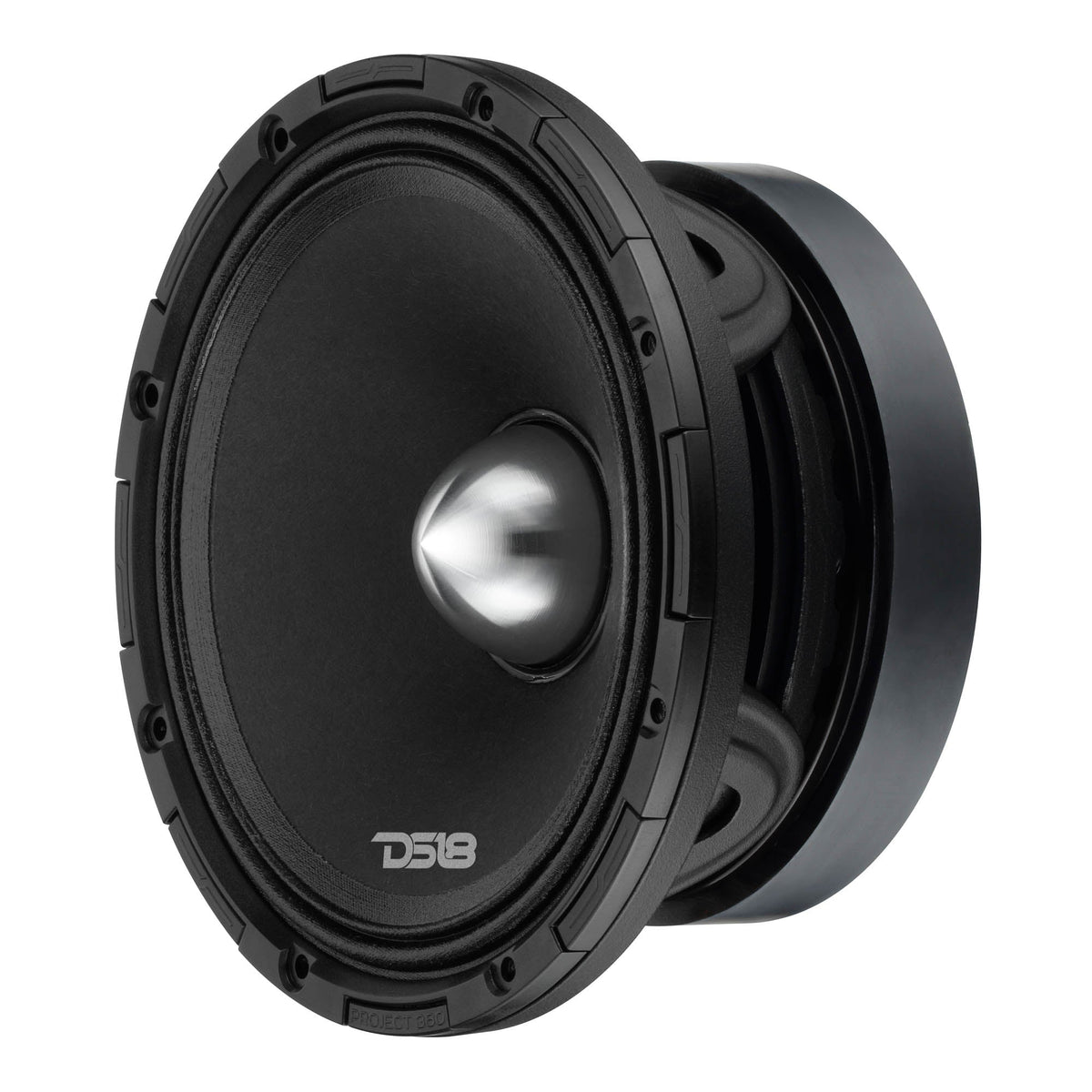

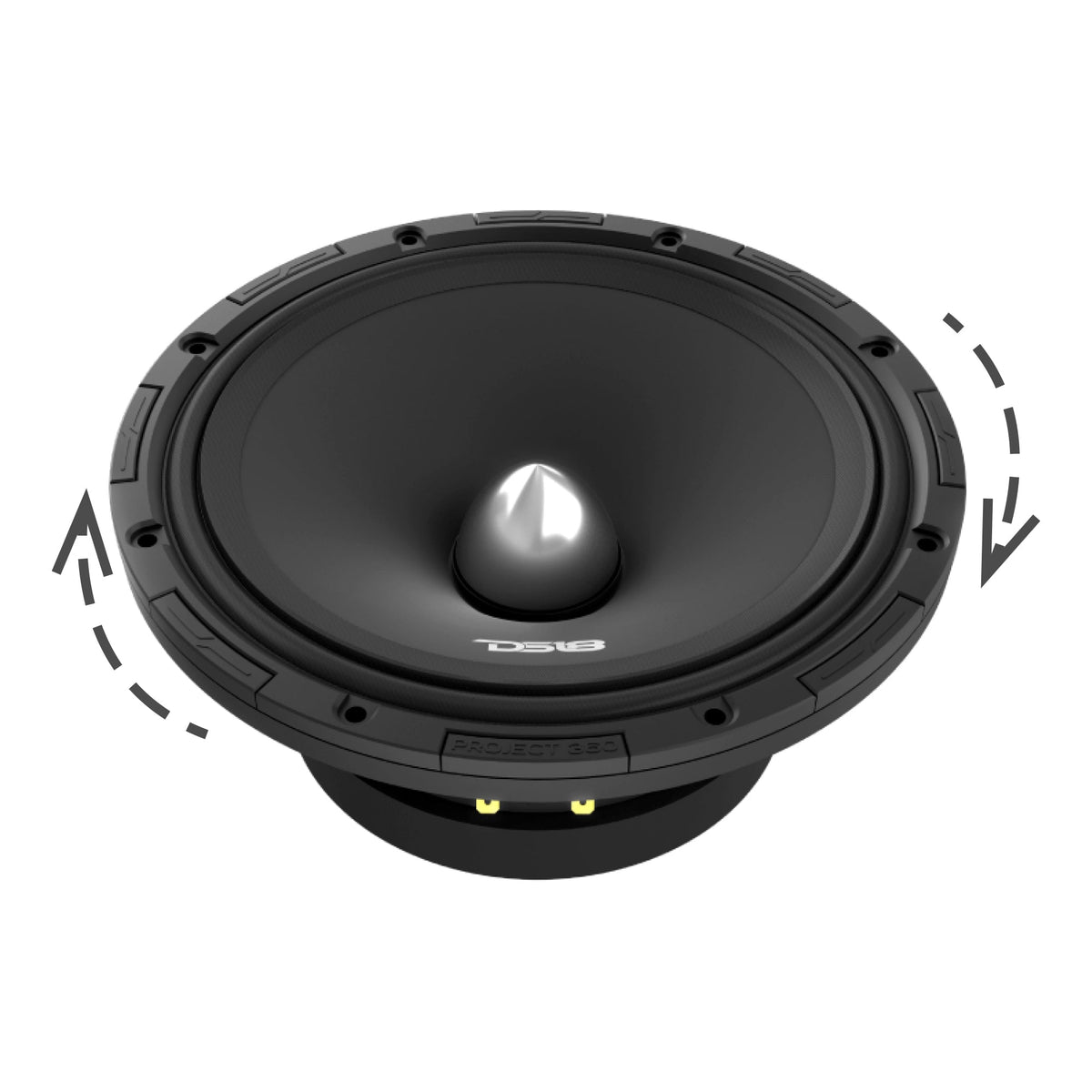

PROJECT360 High-Sensitivity Mid-High Loudspeaker with Bullet Rotating Recone Design For Quick Repair
PROJECT360 High-Sensitivity Mid-High Loudspeaker with Bullet Rotating Recone Design For Quick Repair - 6.5" / 4-Ohm is backordered and will ship as soon as it is back in stock.
PROJECT360 High-Sensitivity Mid-High Loudspeaker with Bullet Rotating Recone Design For Quick Repair - 6.5" / 4-Ohm is backordered and will ship as soon as it is back in stock.
Description
Description
Manufacturer specifications shown for the default configuration
- SPECIFICATIONS
- Nominal Diameter: 6.5" / 152mm
- Nominal Impedance: 4 Ohms
- RMS Power Handling: 300 W
- MAX Power Handling: 600 W
- Sensitivity (1w/1m): 98 dB
- Frequency Response: 100Hz – 17kHz
- Recommended High-Pass Crossover: 140 Hz
- Sold as: Single Unit
- Grill Included: No
- Demodulating Rings: Yes
- Improved Heat Dissipation: Yes
- Cone Shape: Curvilinear
- Speaker Terminals: Spade
- Easy Recone Design: Yes
- MOTOR
- Voice Coil Diameter: 1.75" / 44.5mm
- Voice Coil Former Material: Kapton
- Winding Material: CCAW
- Cone Material: Paper
- Dust Cap Material: Paper
- Surround Material: Cloth
- Spider Diameter: 4" / 102mm
- Leads Connection Type: Round Crossed
- Basket Material: Aluminum
- Basket Color / Finish: Black
- Magnet Material: Ferrite
- Magnet Weight: 48 oz
- Bullet Material: CNC Aluminum
- Bullet Color: Silver
- THIELE & SMALL PARAMETERS
- Equivalent Volume: 1.32L / 0.046ft3
- Excursion (one way): 0.3 mm
- Free Air Resonance: 189 Hz
- Mechanical Factor: 5.915
- Electrical Factor: 0.637
- Total Factor: 0.575
- Moving Mass: 13.305g
- Mechanical Compliance: 0.034 mm/N
- BL Factor: 9.495
- Voice Coil Inductance: 0.040 mH
- Cone Area: 176.71 cm2
- DC Resistance: 2.9 Ohms

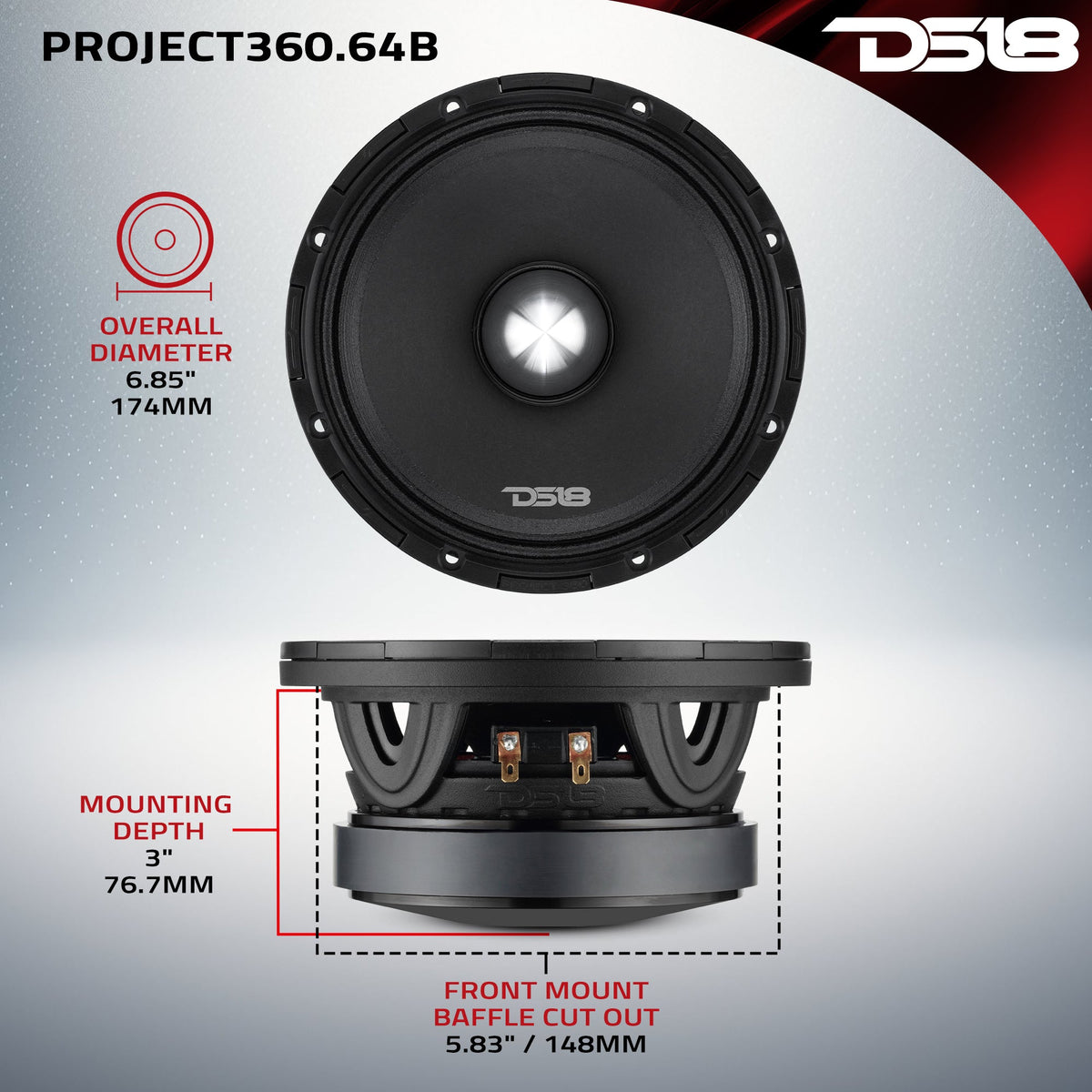

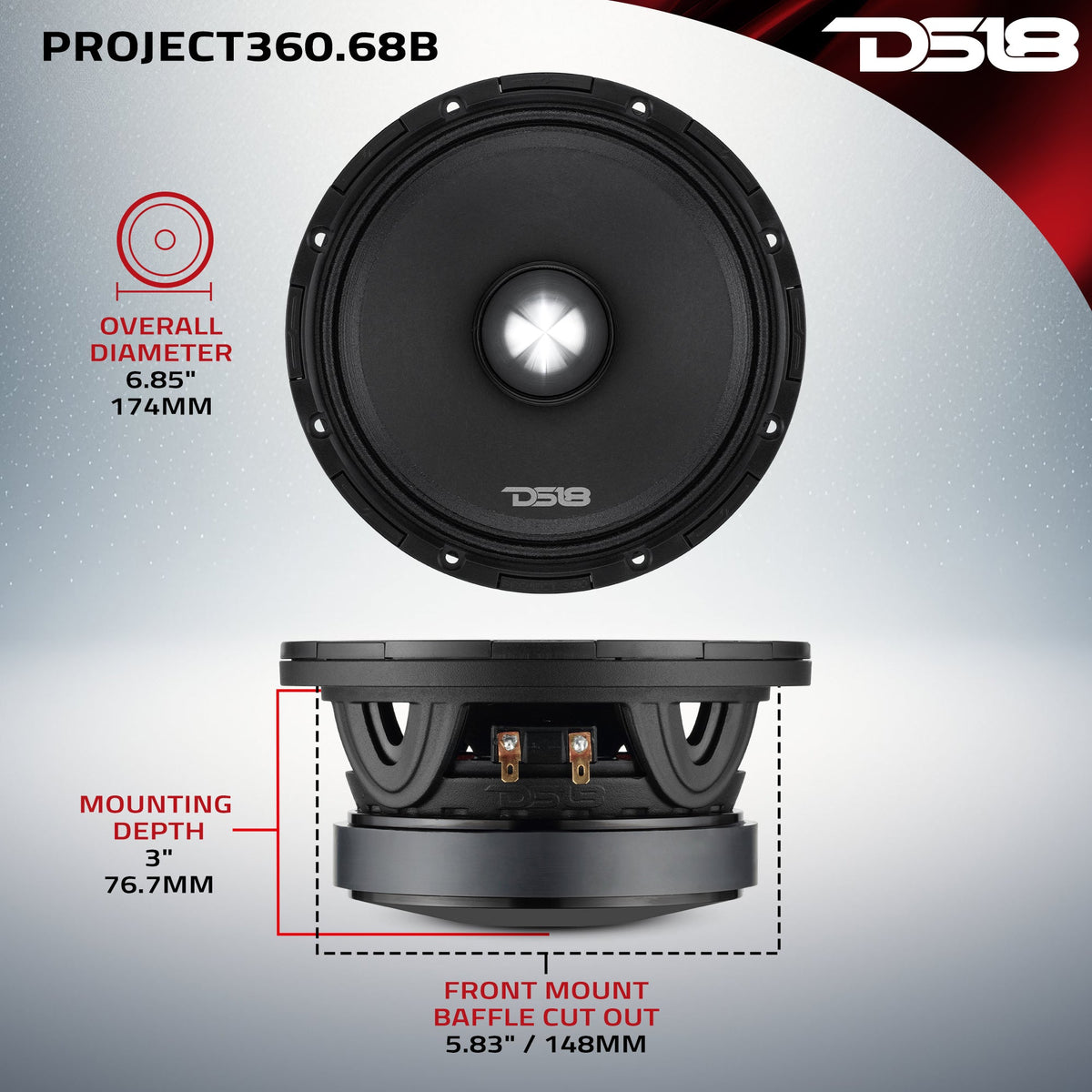

- MEASUREMENT
- Overall Diameter: 6.85" / 174mm
- Overall Depth: 3.57" / 90.6mm
- Front Mount Baffle Cutout: 5.83" / 148mm
- Mounting Depth: 3" / 76.7mm
- Motor Diameter: 5.5" / 140mm

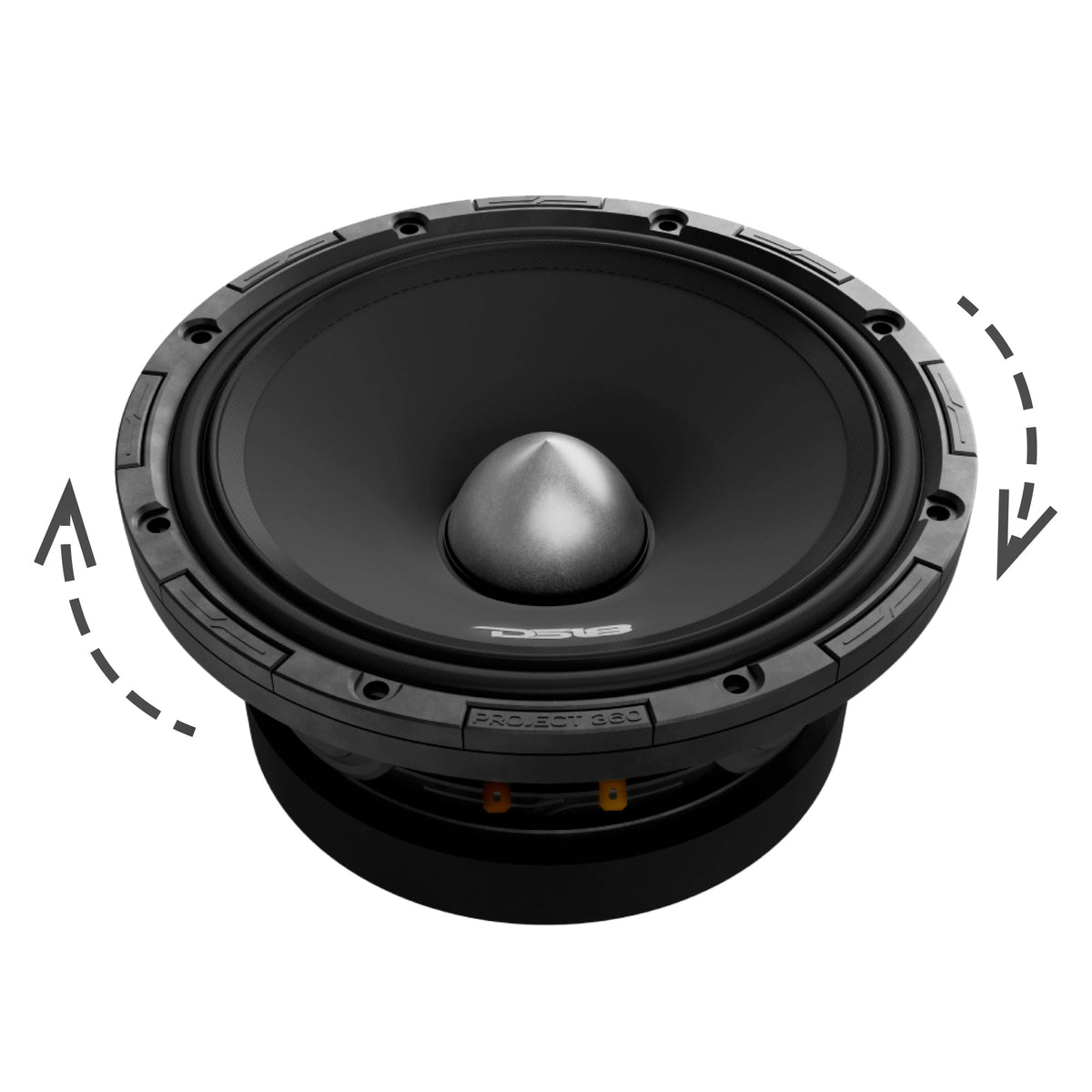

R O T A T I N G R E C O N E D E S I G N
| PROJECT360 | PROJECT360.N | PROJECT360.B | PROJECT360.BN |
|---|---|---|---|
|
|
|
|
| Speaker TypeMid-High | Speaker TypeMid-High | Speaker TypeMid-High | Speaker TypeMid-High |
| Speaker DesignDust Cap | Speaker DesignDust Cap |
Speaker DesignSilver Bullet
|
Speaker DesignBlack Bullet
|
| Sizes6.5", 6X9", 8" | Sizes6.5", 6X9", 8" | Sizes6.5", 6X9", 8" | Sizes6.5", 6X9", 8" |
| Magnet MaterialFerrite |
Magnet MaterialNeodymium
|
Magnet MaterialFerrite |
Magnet MaterialNeodymium
|
| Impedance4 Ohms, 8 Ohms | Impedance4 Ohms, 8 Ohms | Impedance4 Ohms, 8 Ohms | Impedance4 Ohms, 8 Ohms |
| Cone MaterialPaper | Cone MaterialPaper | Cone MaterialPaper | Cone MaterialPaper |
| Voice Coil Size1.75" | Voice Coil Size1.75" | Voice Coil Size1.75" | Voice Coil Size1.75" |
| Voice Coil Former MaterialKapton | Voice Coil Former MaterialKapton | Voice Coil Former MaterialKapton | Voice Coil Former MaterialKapton |
| Basket MaterialAluminum | Basket MaterialAluminum | Basket MaterialAluminum | Basket MaterialAluminum |
| Speaker TerminalsSpade | Speaker TerminalsSpade | Speaker TerminalsSpade | Speaker TerminalsSpade |
| Improved Heat DissipationNo | Improved Heat DissipationYes | Improved Heat DissipationYes | Improved Heat DissipationYes |
| Demodulating RingsYes | Demodulating RingsYes | Demodulating RingsYes | Demodulating RingsYes |

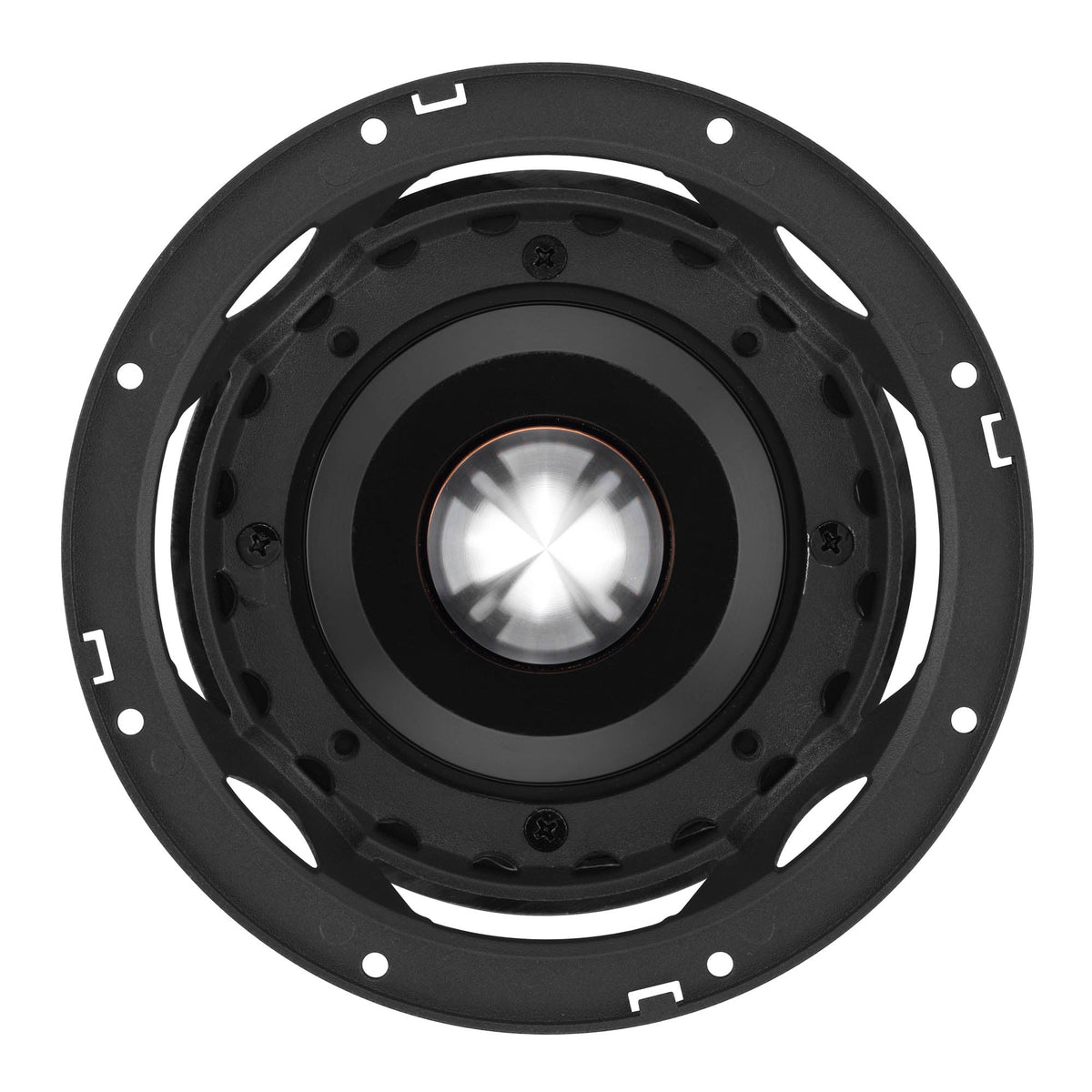

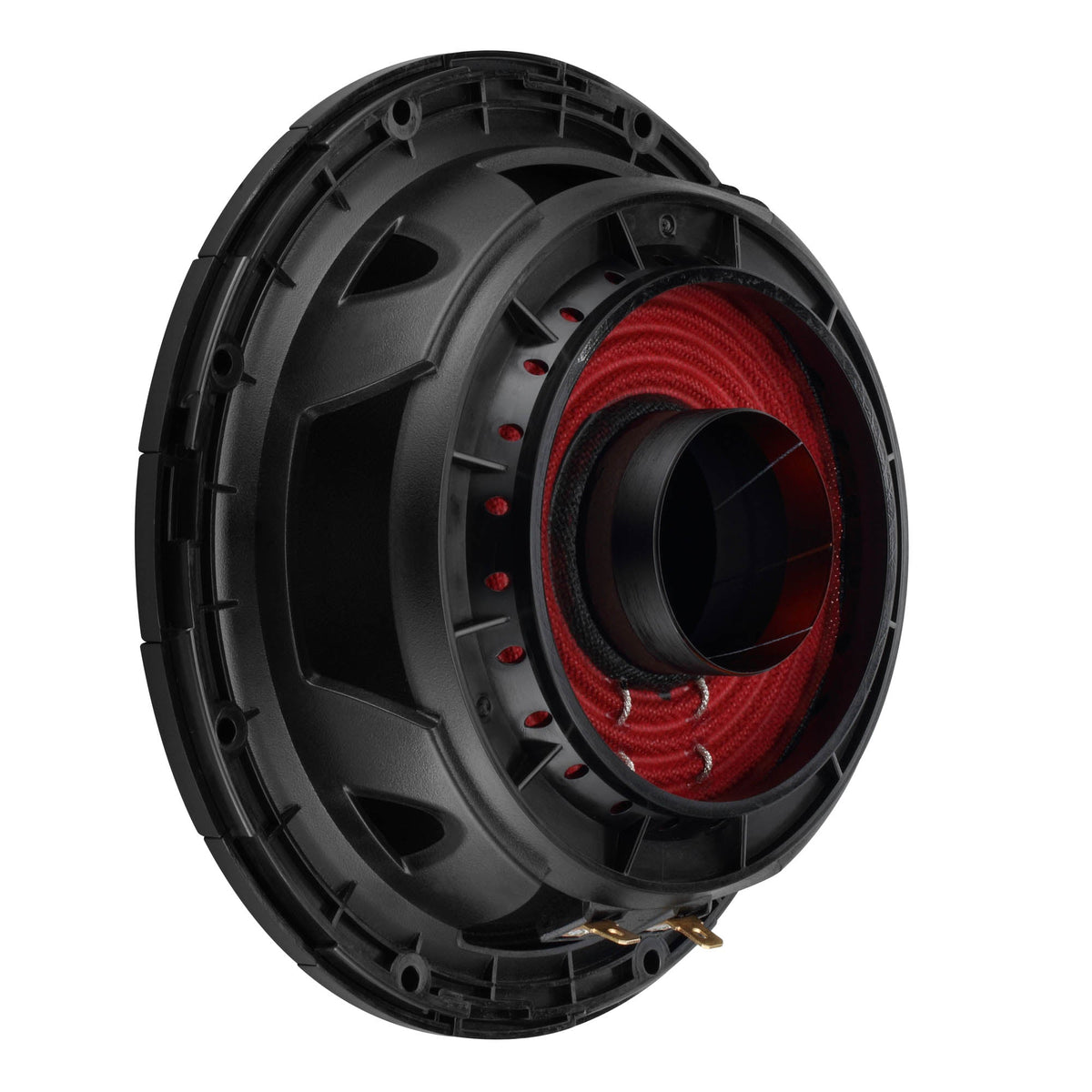

PROJECT360 6.5” Rotating Recone Replacement Kit for 4-Ohm Bullet Models Only
INNOVATIVE DESIGN, PREMIUM SOUND
The PROJECT360 Bullet Series
It isn't just louder, it's smarter with a focus on high output, clarity, and reliability. Designed for enthusiasts who demand powerful midrange and crisp highs, each bullet speaker delivers consistent sound quality whether you're building a daily system or pushing the limits in a high-performance setup.
Exclusive DS18 Technology

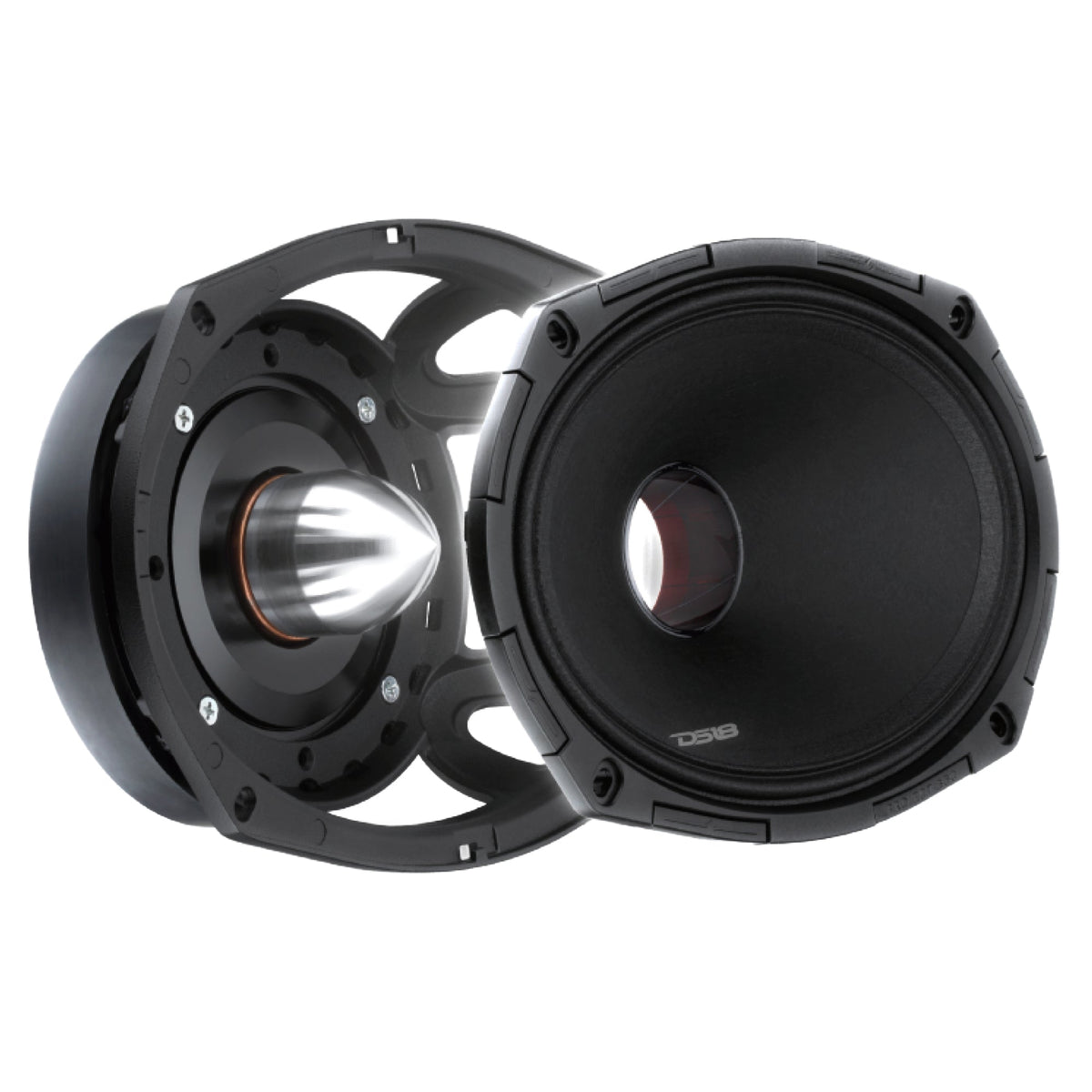

What sets PROJECT360 apart is its patent-pending Rotating Recone Design, an innovative, serviceable system that allows for quick and easy maintenance and repair. Built with durable materials and engineered for efficiency, you can spend more time enjoying your system and less time working on it.
KEY FEATURES

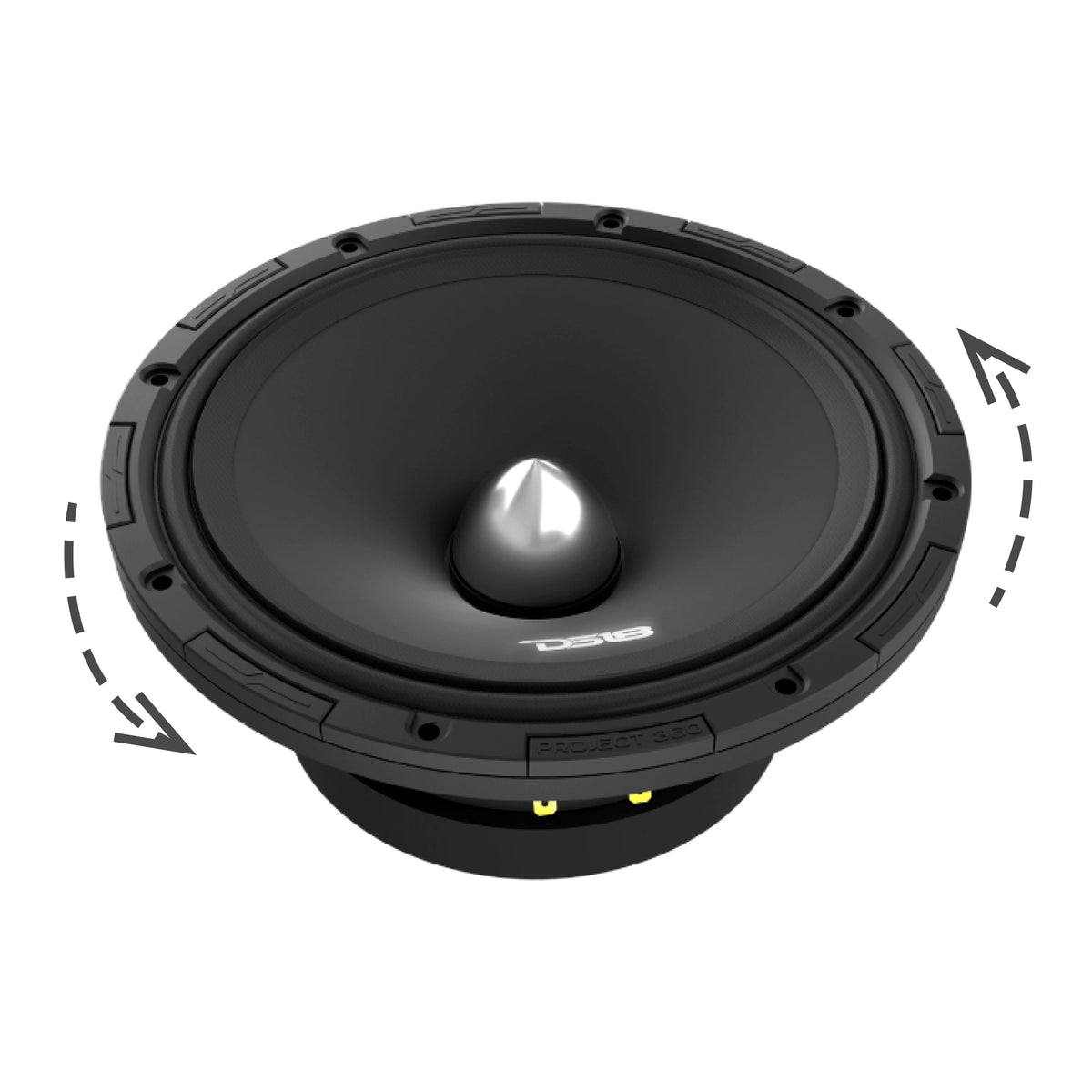

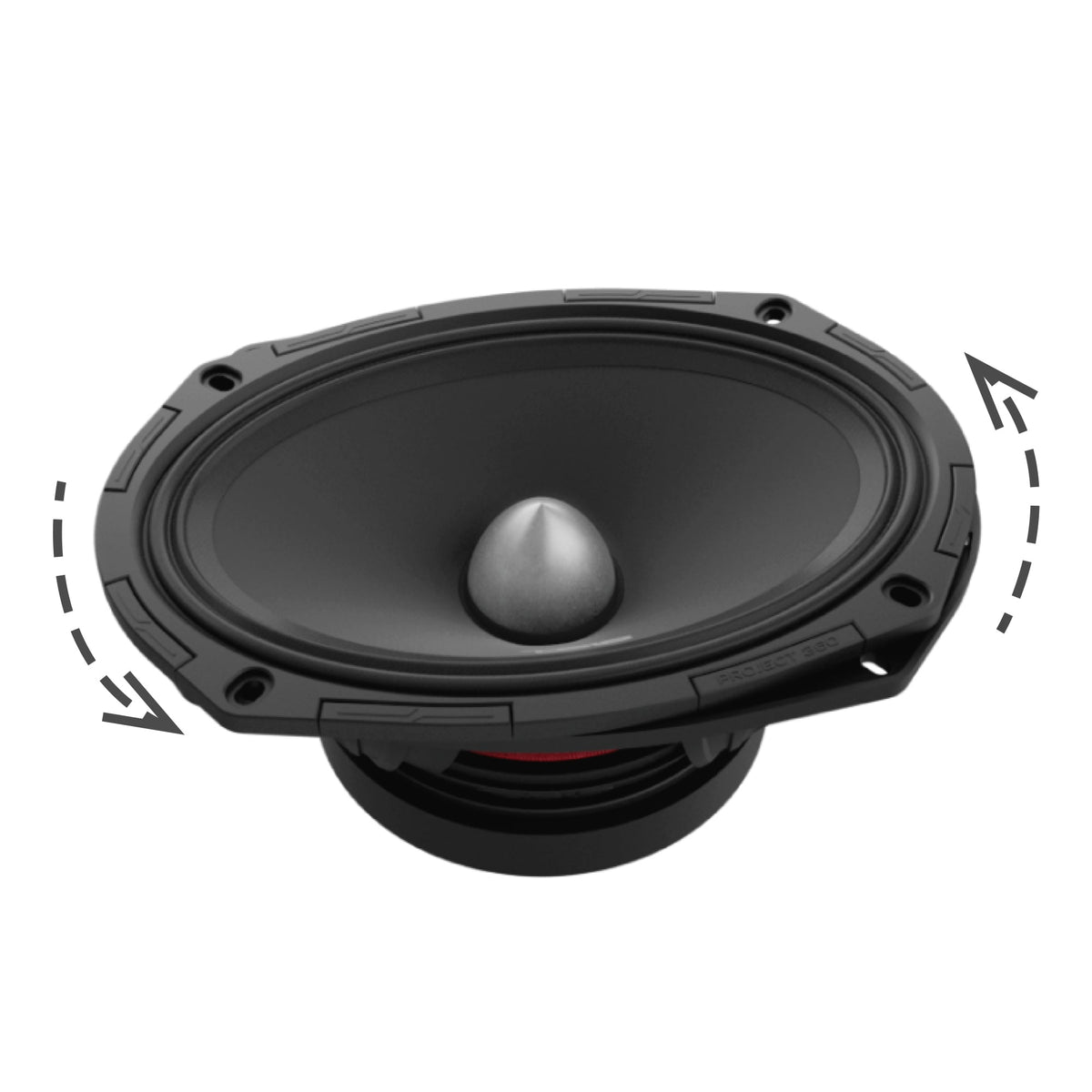

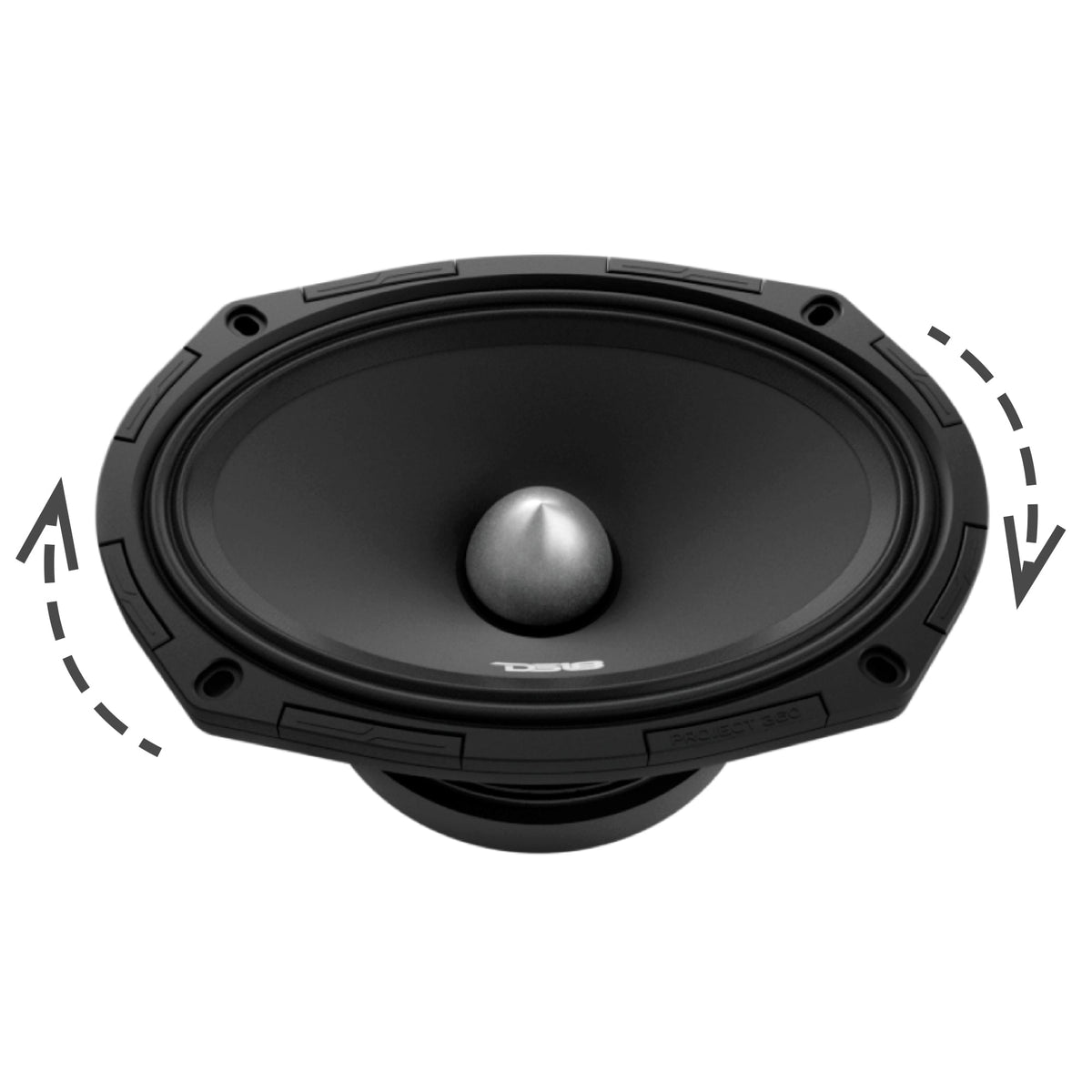

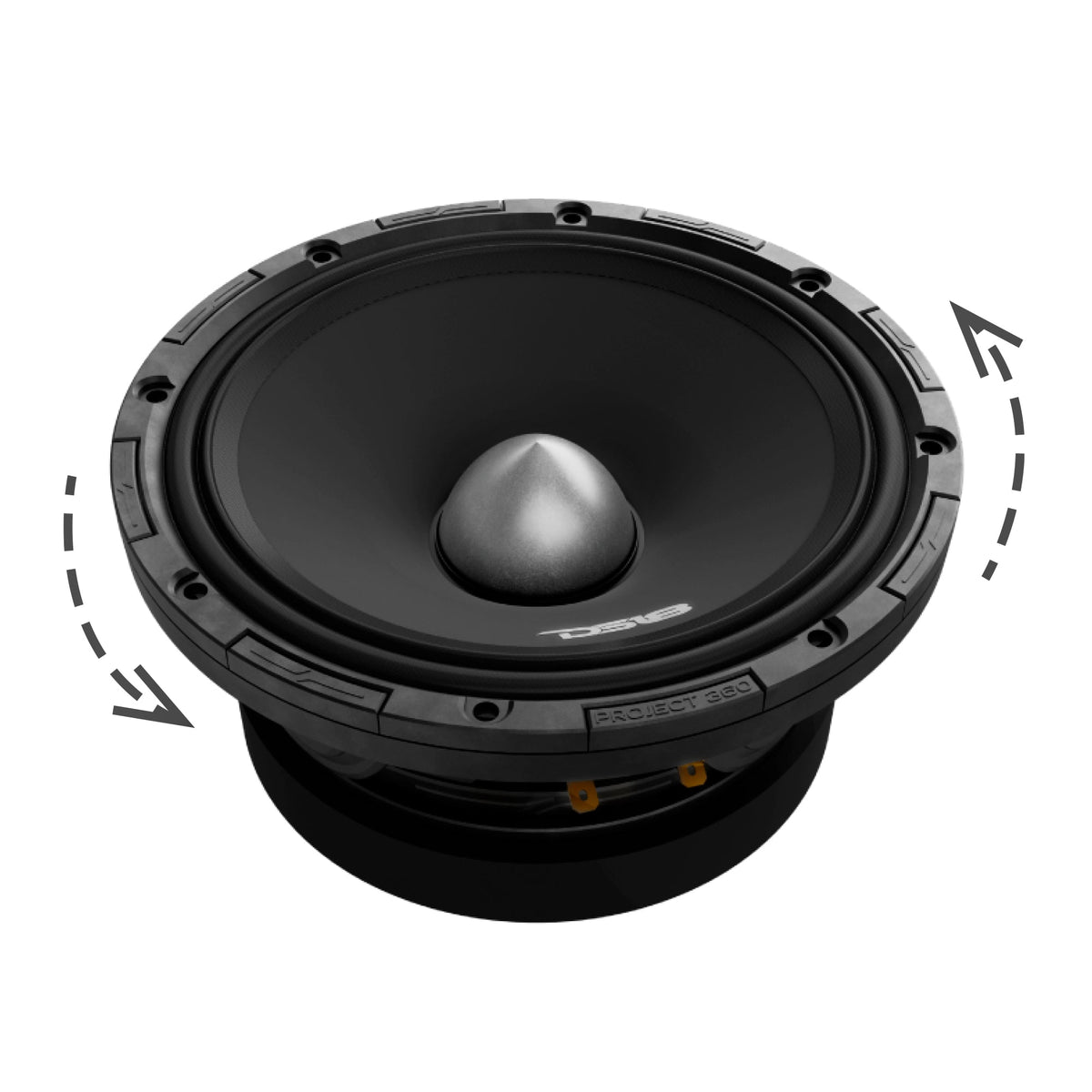

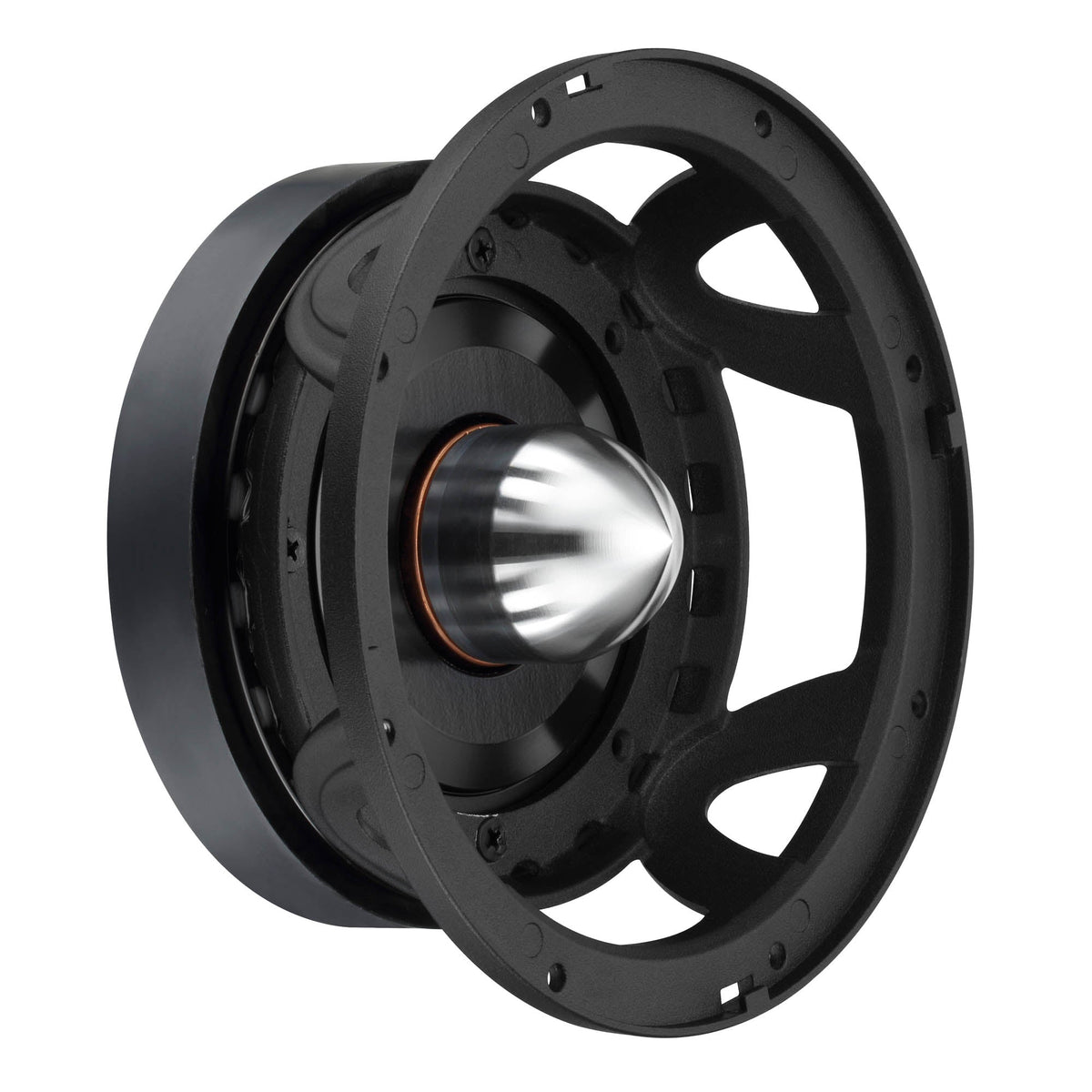

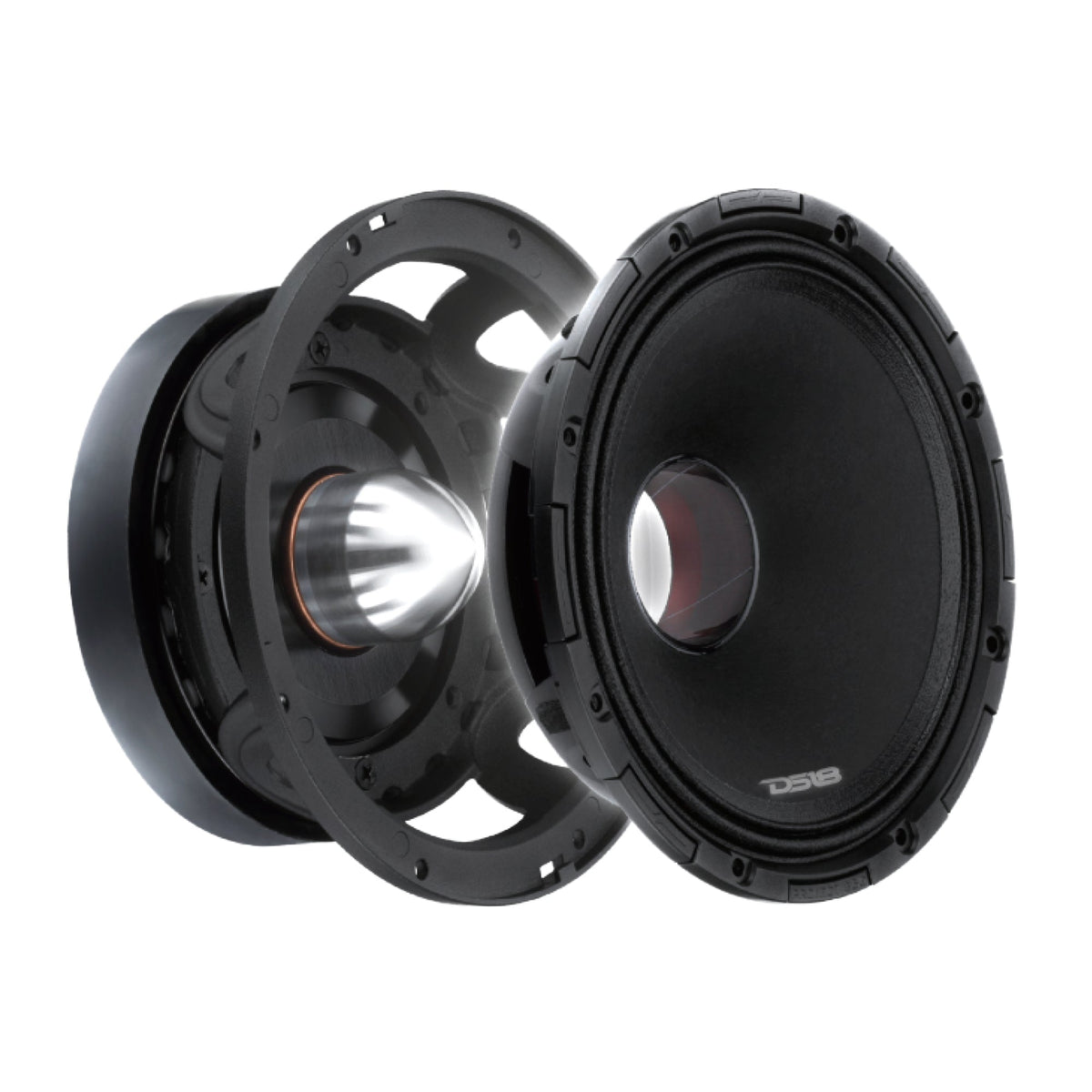

Patent-Pending Rotating Recone Design
Designed for quick and easy replacement of the speaker’s moving components.
Crystal-Clear Highs
Clean vocal projection and enhanced sound reproduction with minimal distortion.
Competition-Level Output
Impressive performance with minimal amplifier power.
No Glue. No Downtime.
The patent-pending rotating design eliminates the traditional glue curing process.
High Power Handling
1.75” voice coil and carefully selected materials increase power handling while enhancing thermal management.
Efficient Bullet Design
Aluminum basket and bullet design provide rigidity, improved heat dissipation, and clarity.
How PROJECT360 Is Changing the Game

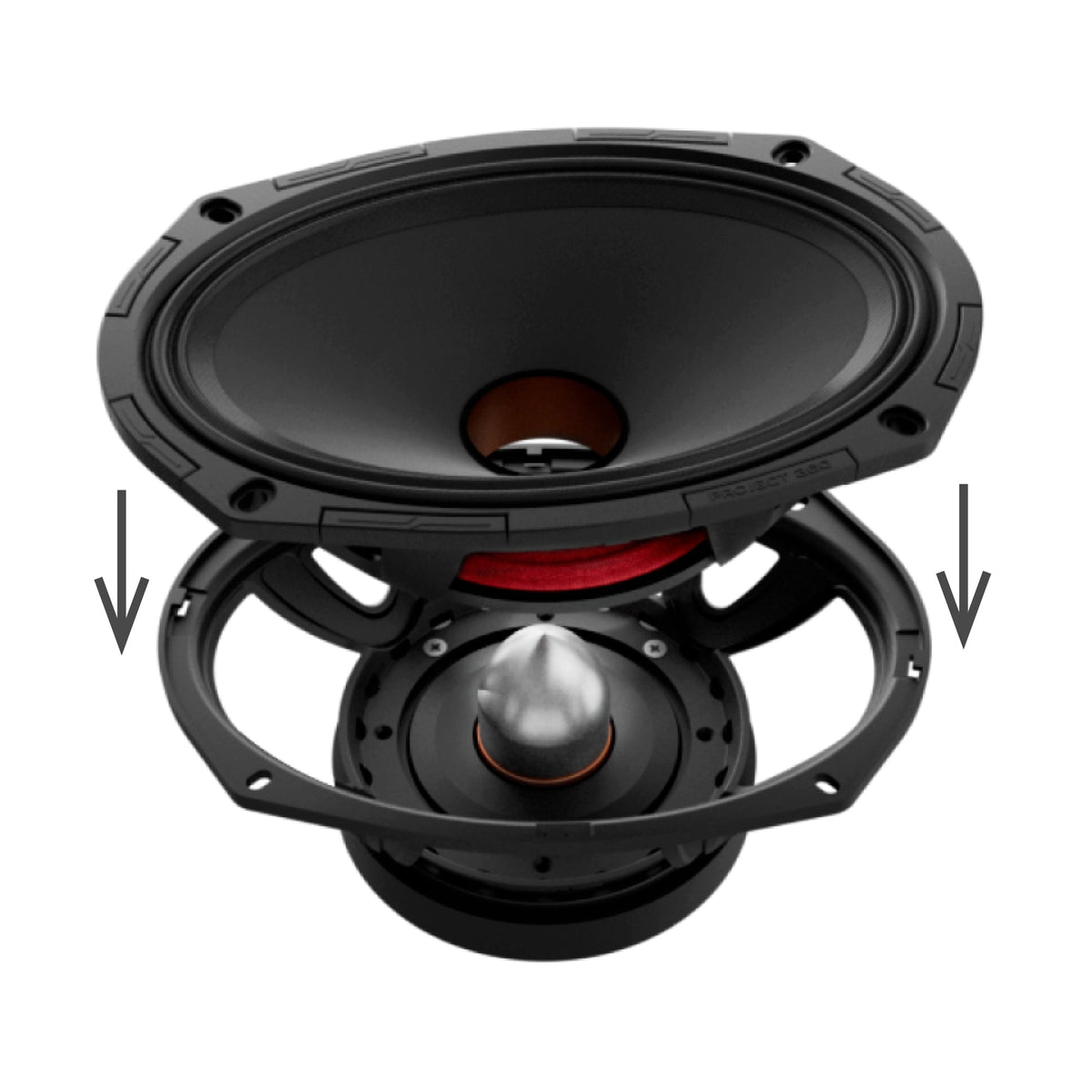

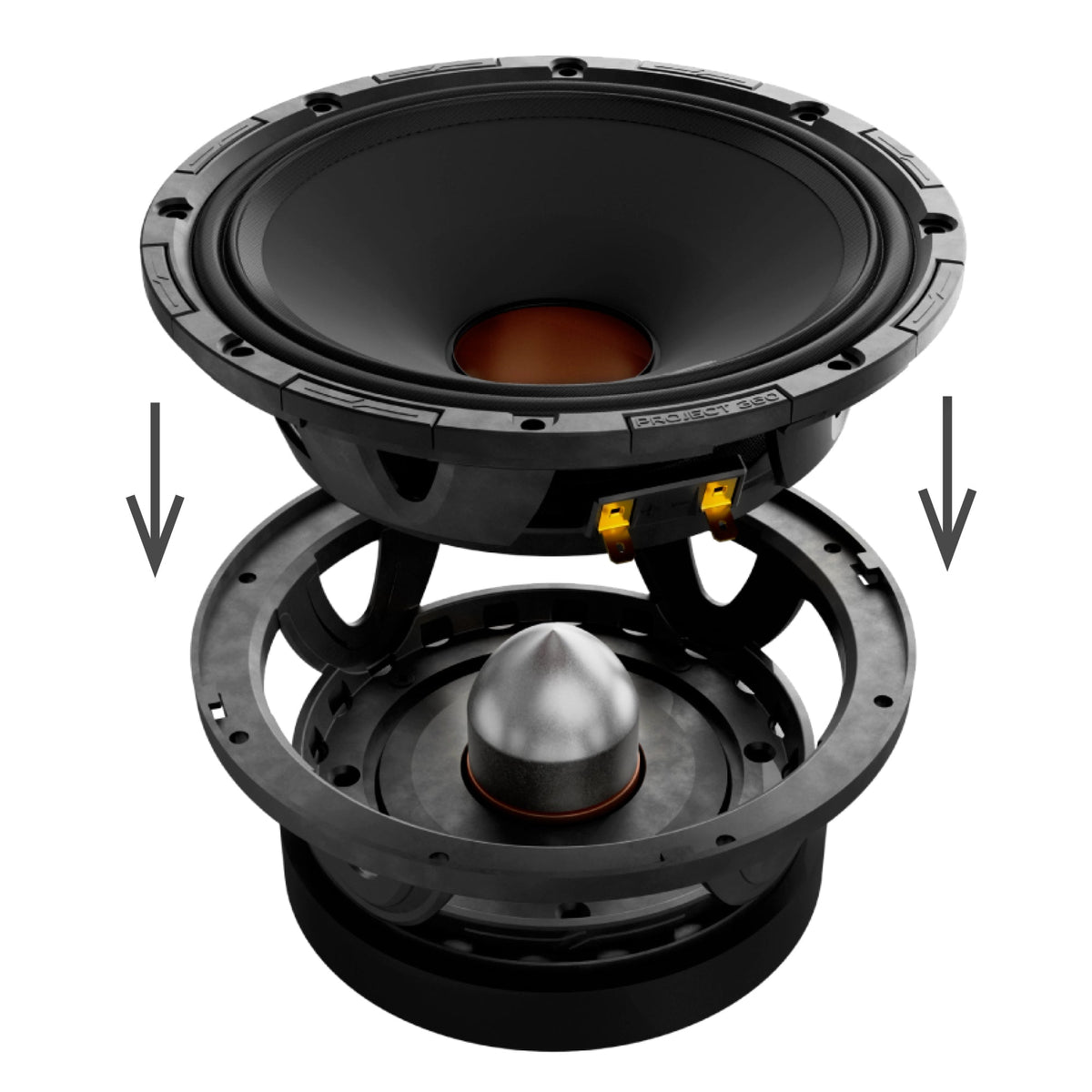

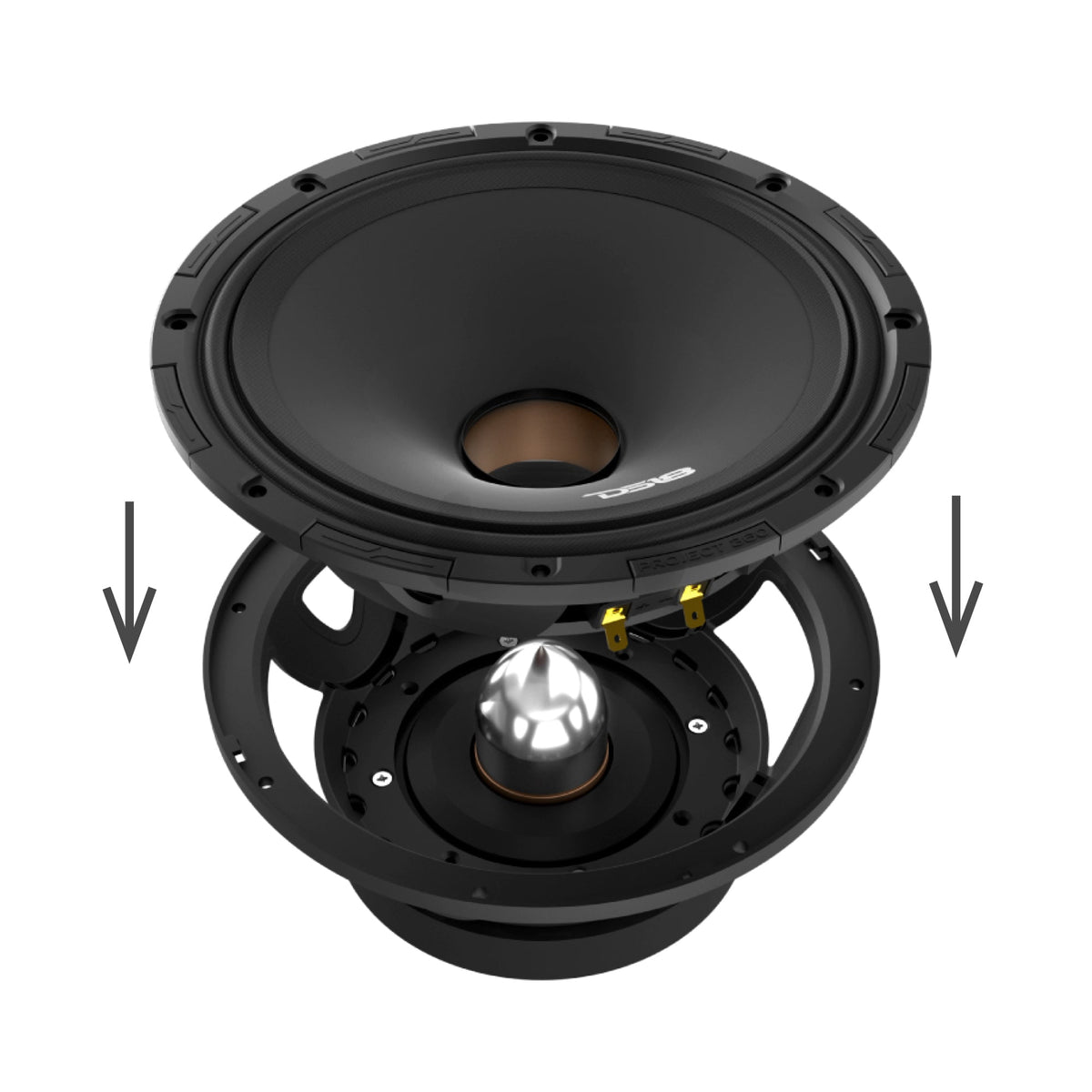

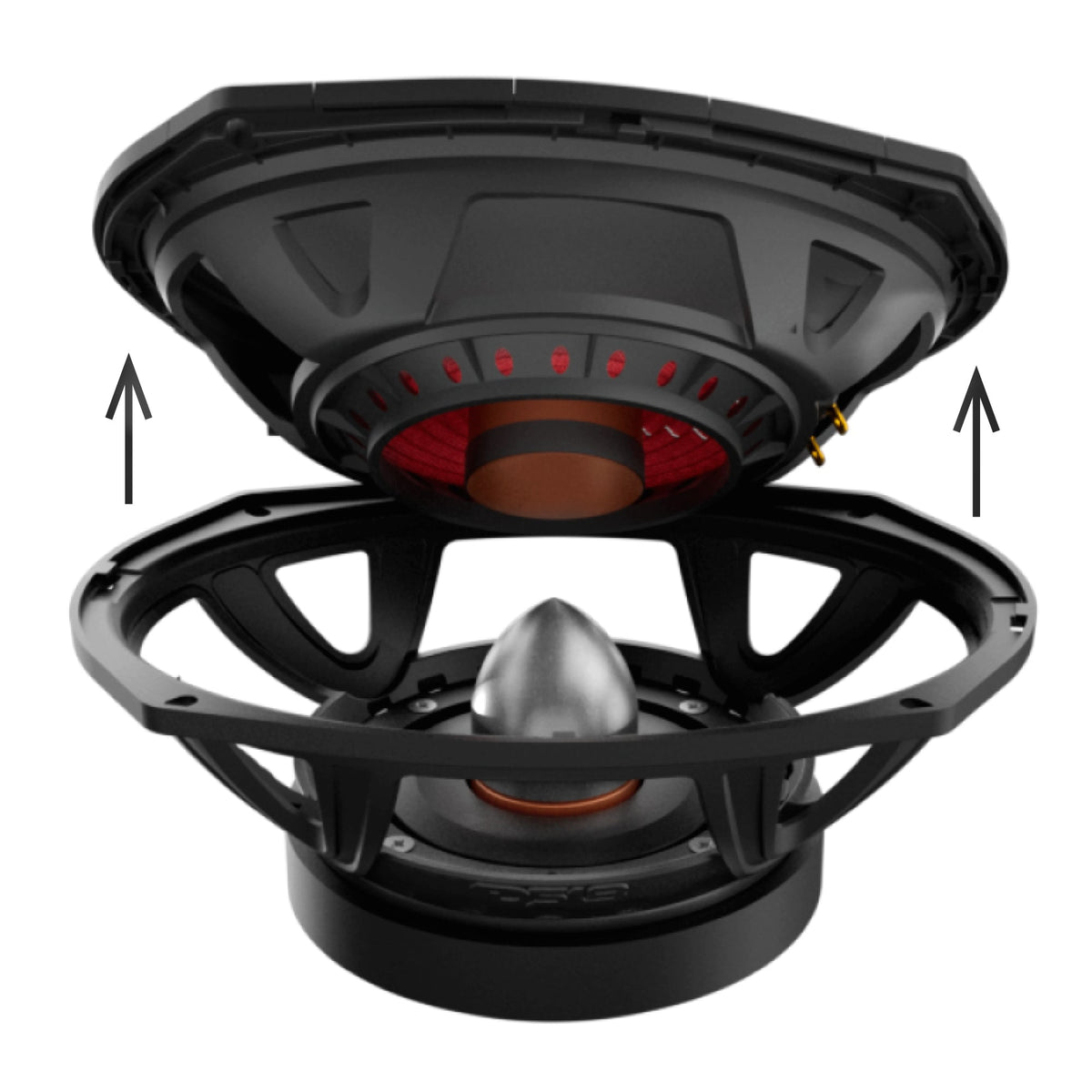

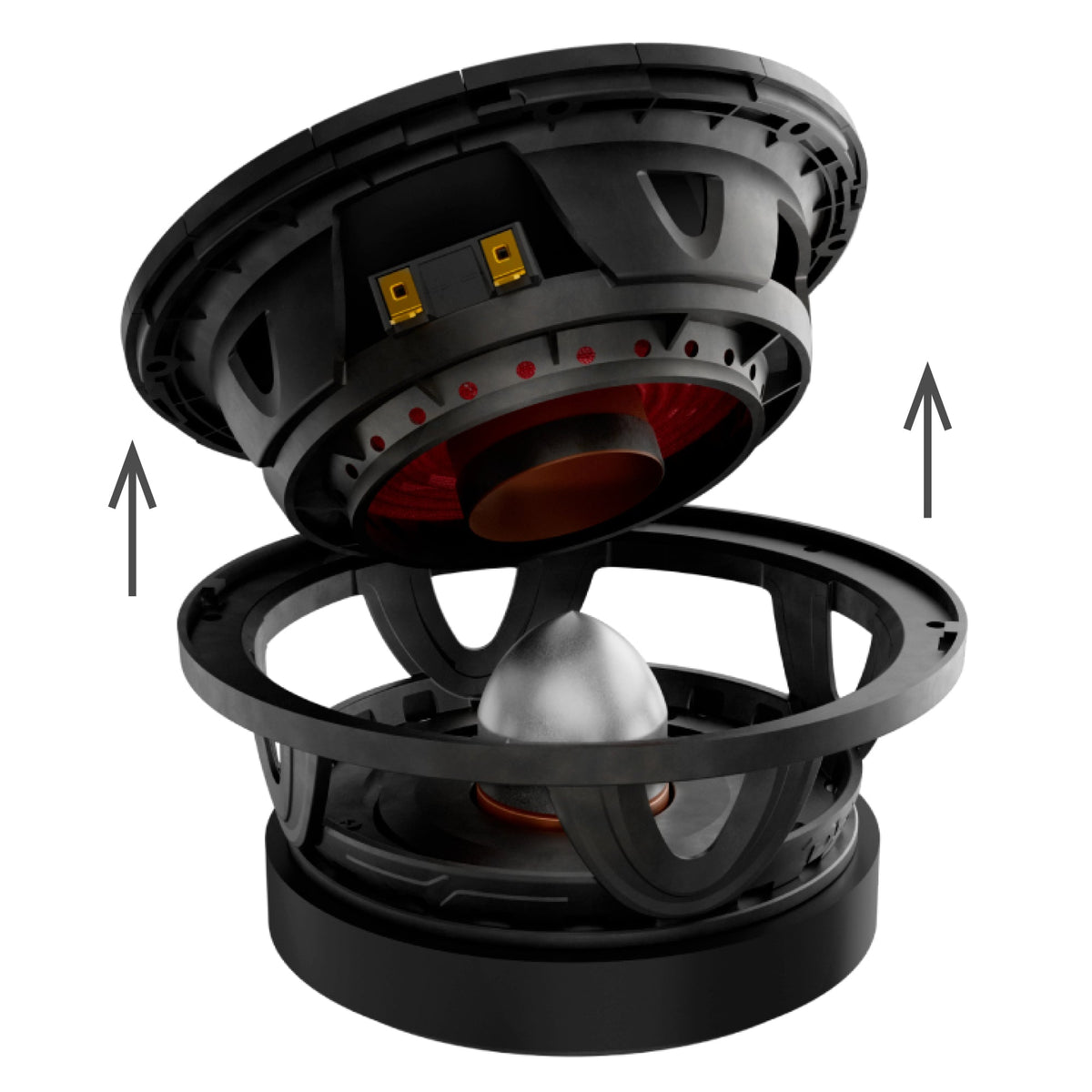

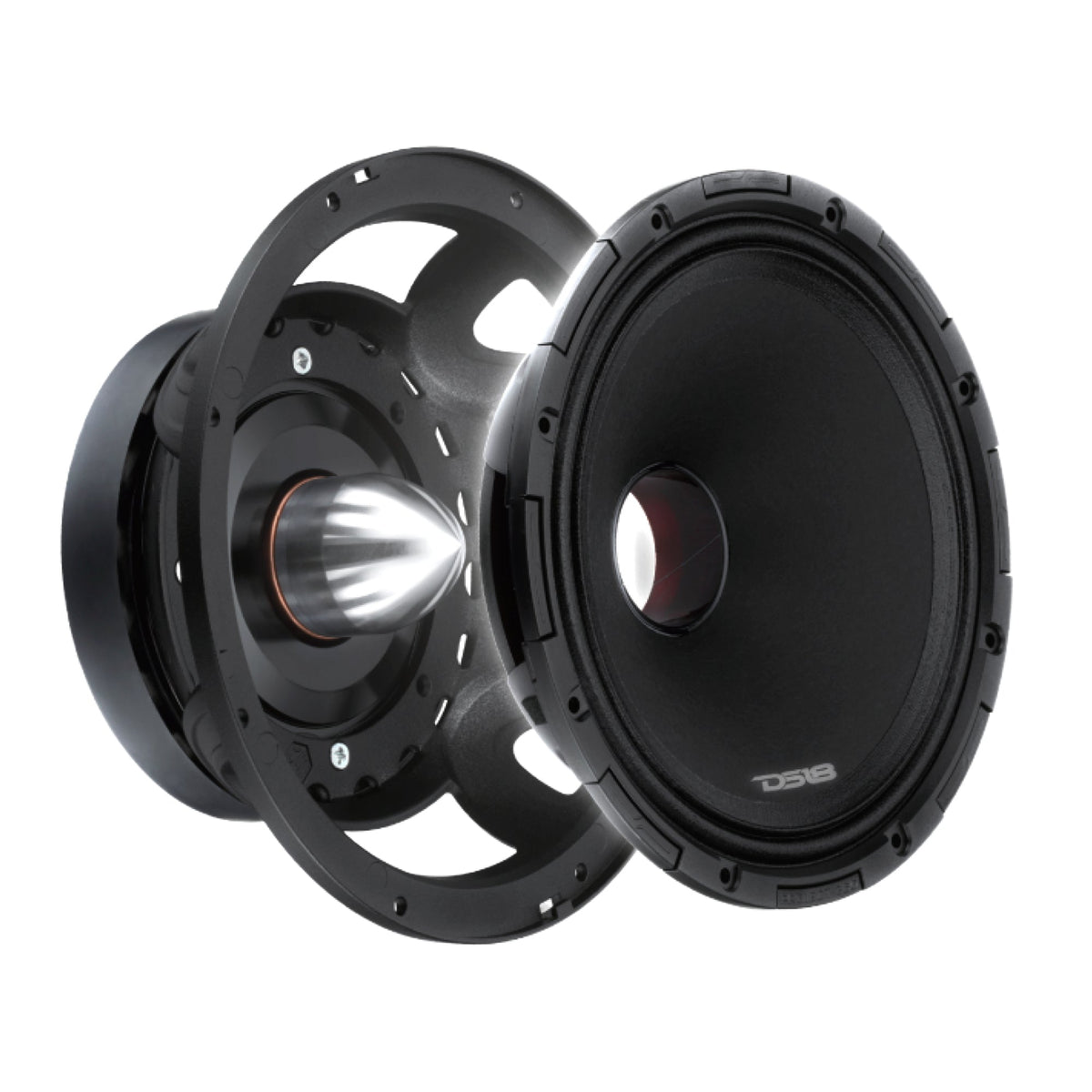

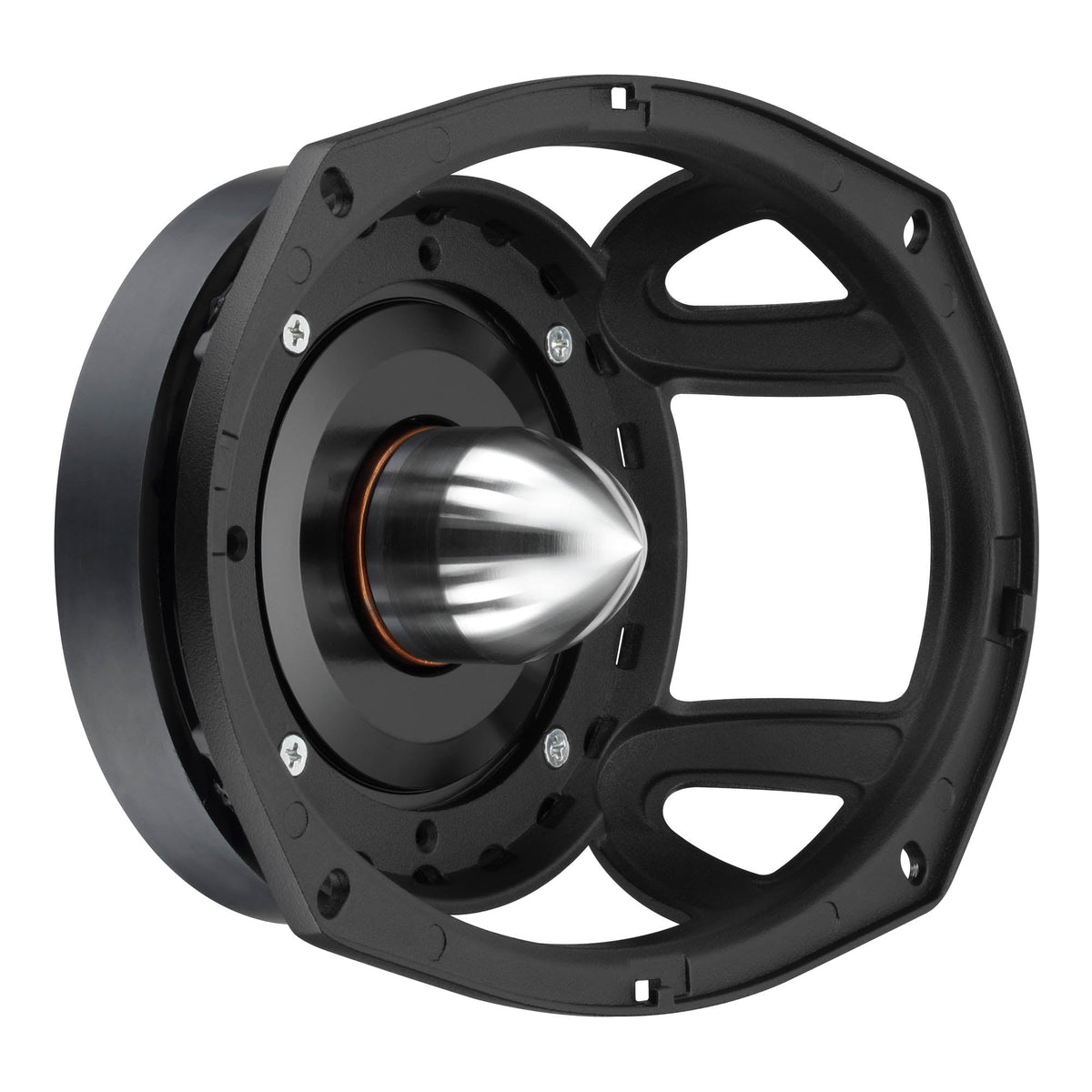

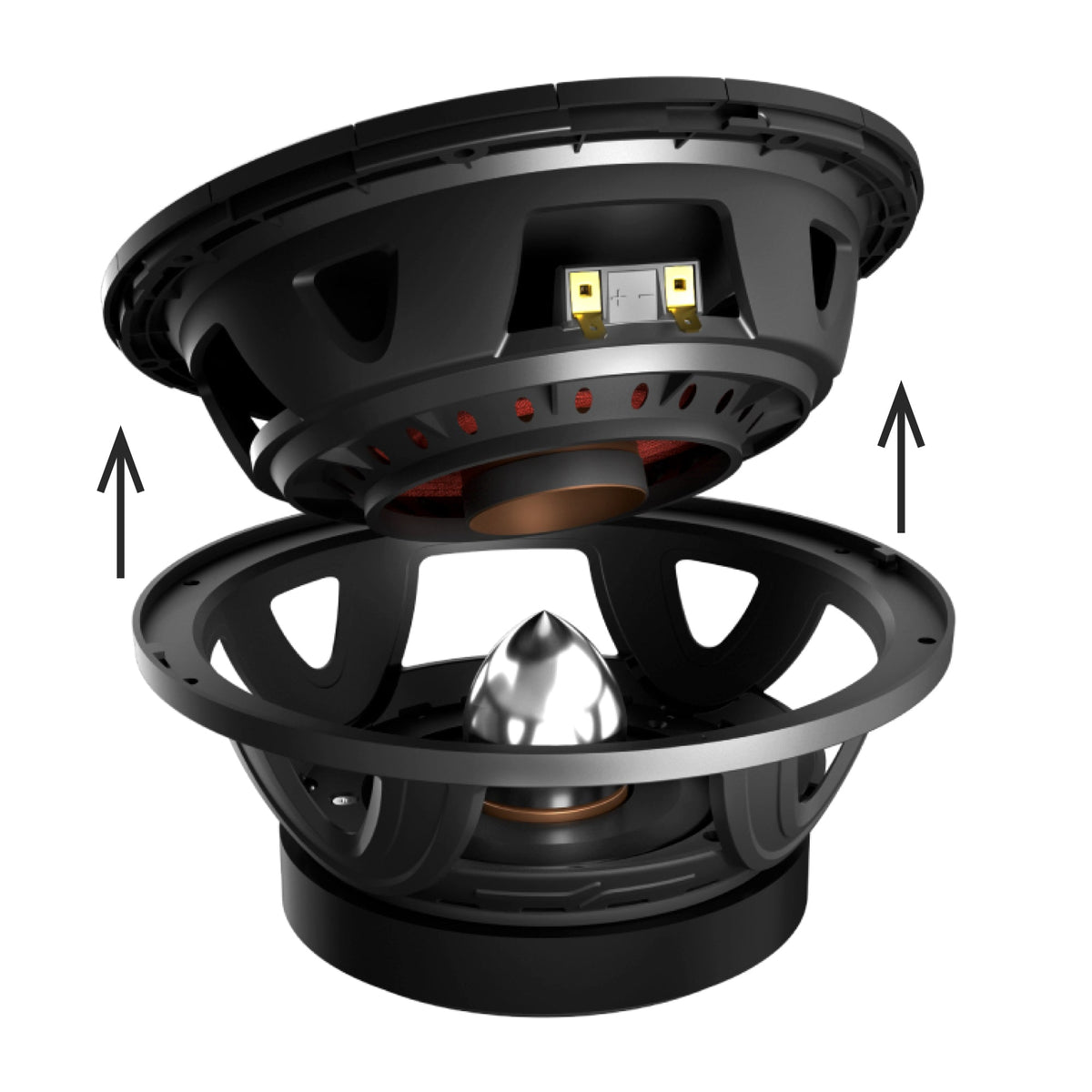

When you’re in the middle of an audio competition, every second counts. Traditionally, if you push your speaker past its limit, the repair process can take hours, even days. With PROJECT360, simply remove the damaged module, clean the basket, and install a new recone, quickly and efficiently, all on your own.
RECONE PROCESS COMPARISON
