SSV Works | SKU:
250-BR-PHZ+DS10K
2021-2026 Ford Bronco 4-Door Plug-&-Play Complete 10" Subwoofer Kit
Regular price
$999.99
Unit price
Shipping calculated at checkout.
Key features
Drivers and amplifier included
- Compatible woofer size: 10 inches
- Woofer mounting capacity: 1
- Enclosure mounting: Driver side using factory mounting locations

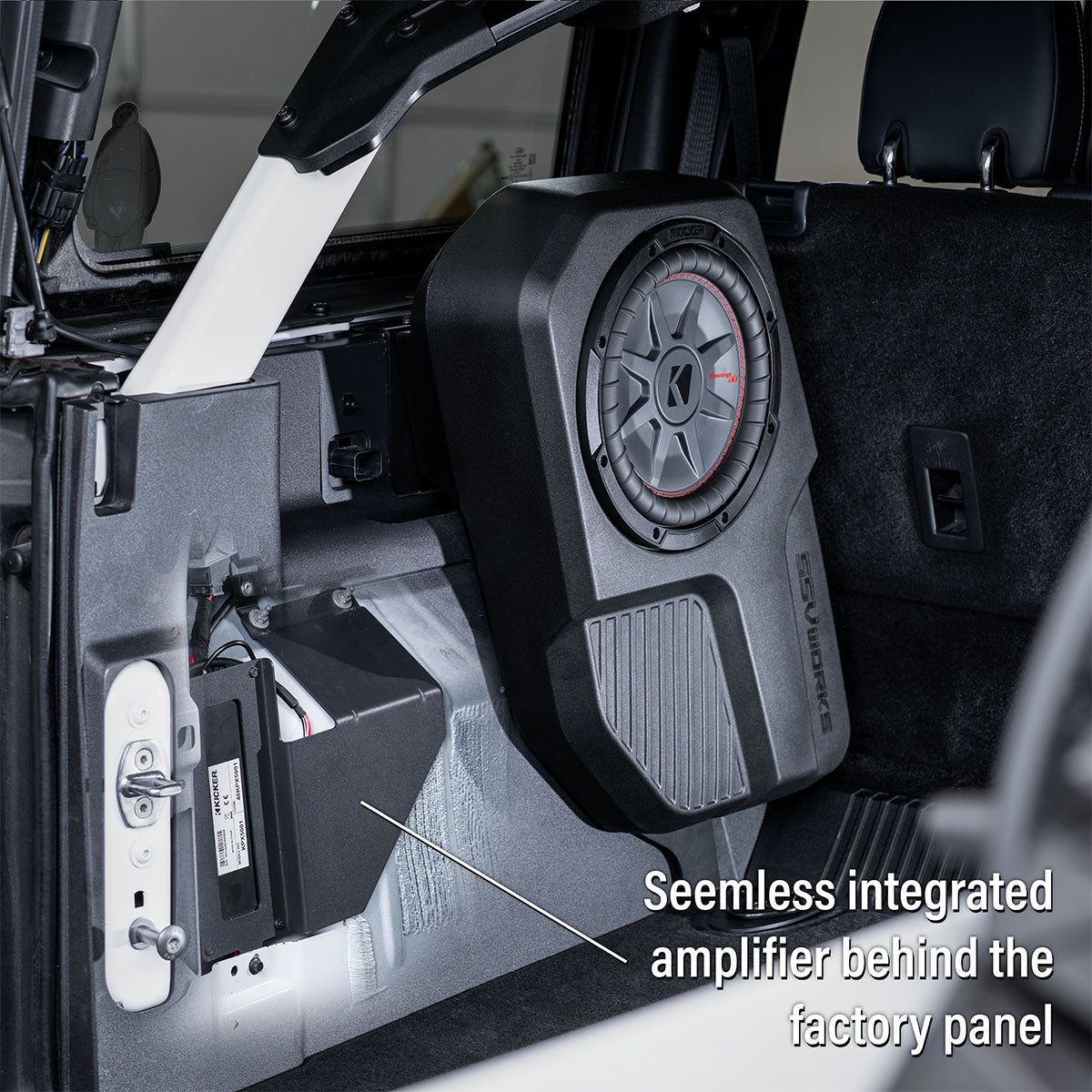

- Amplifier mounting: Amplifier and mounting plate fit under the driver-side panel
- Connection: Factory subwoofer output harness required; absent on 2021-2022 standard 6-speaker Non-Lux models
- FORScan: Required to enable the output on supported models with no factory subwoofer or a dummy subwoofer
2021-2026 Ford Bronco 4-Door Plug-&-Play Complete 10" Subwoofer Kit is backordered and will ship as soon as it is back in stock.
Description
Description

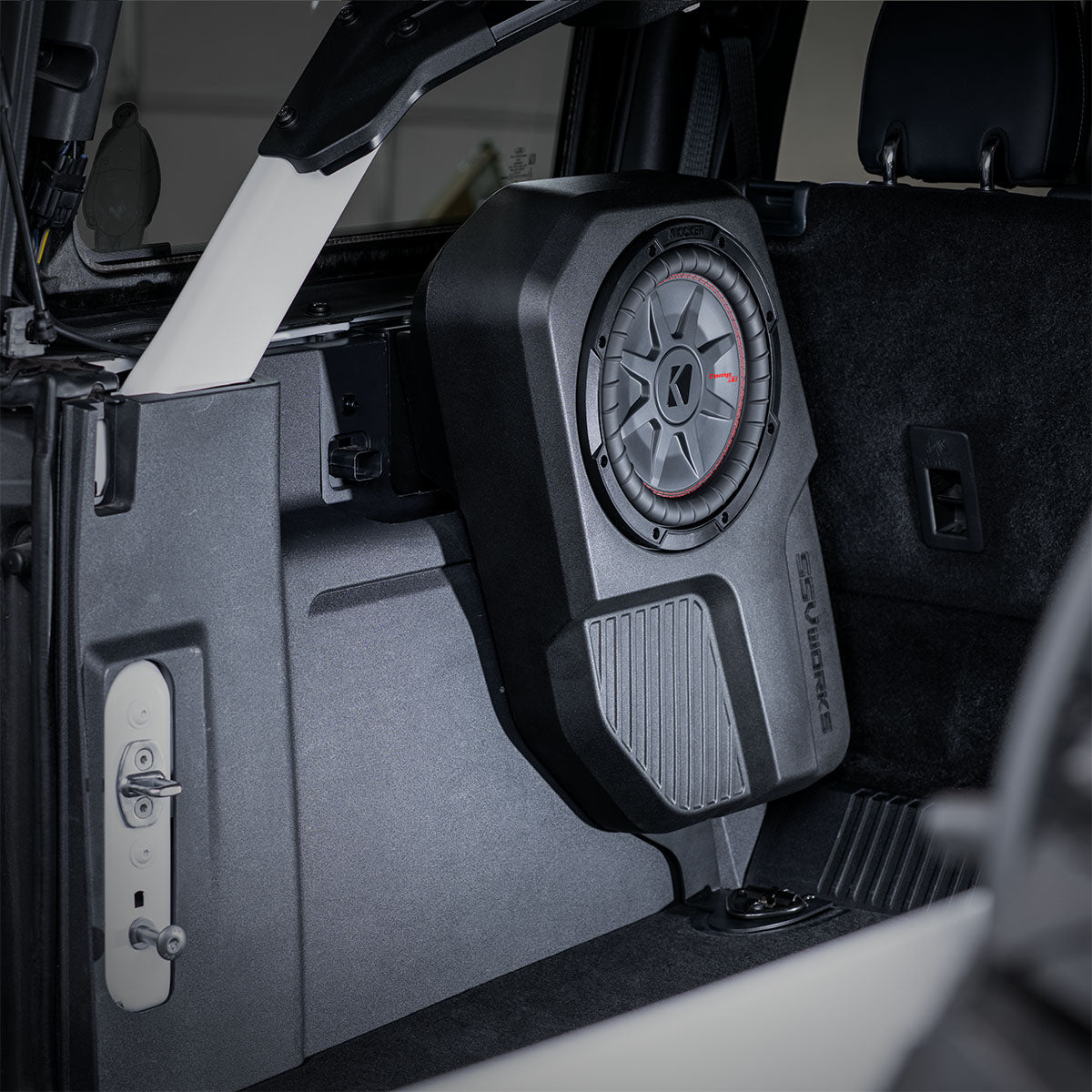

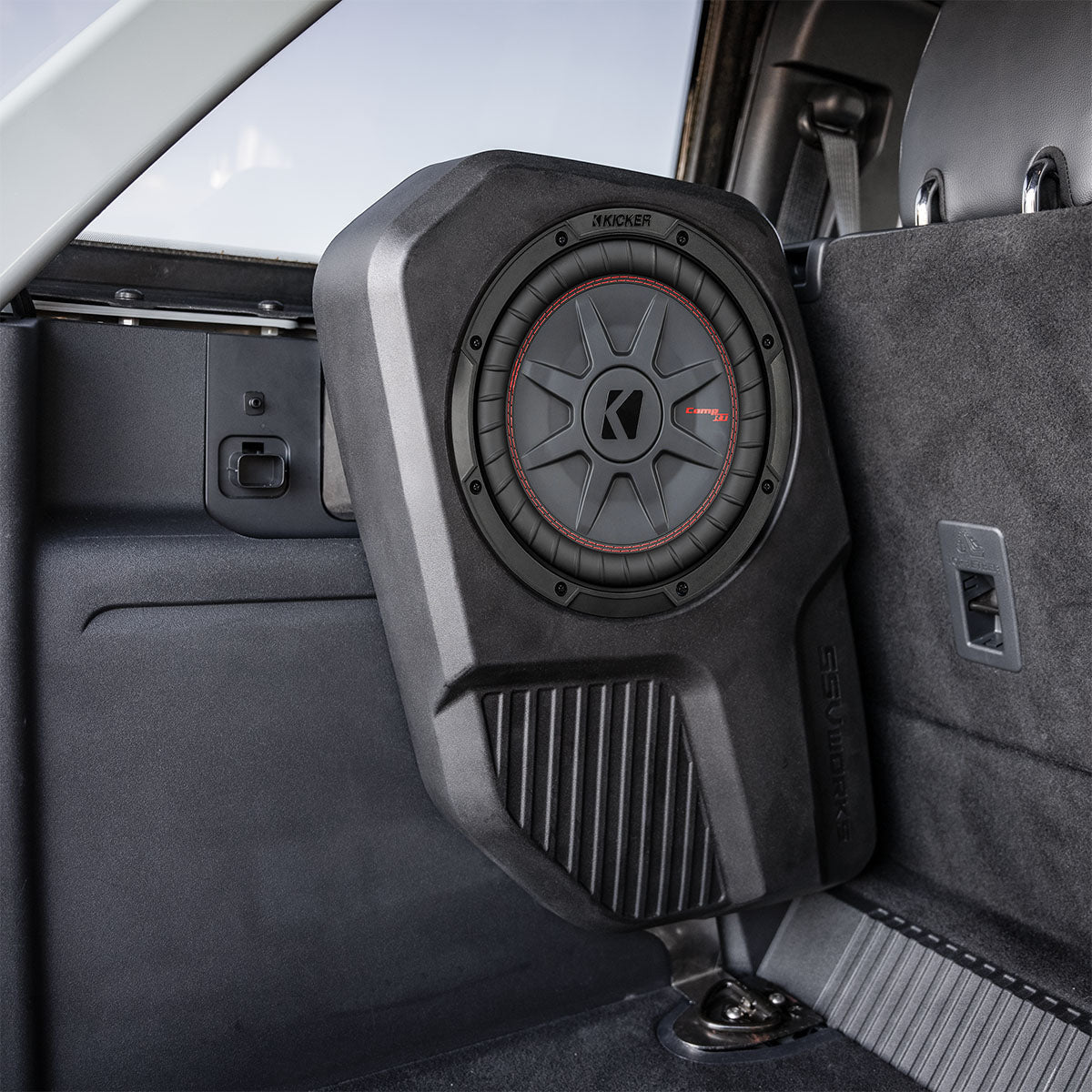

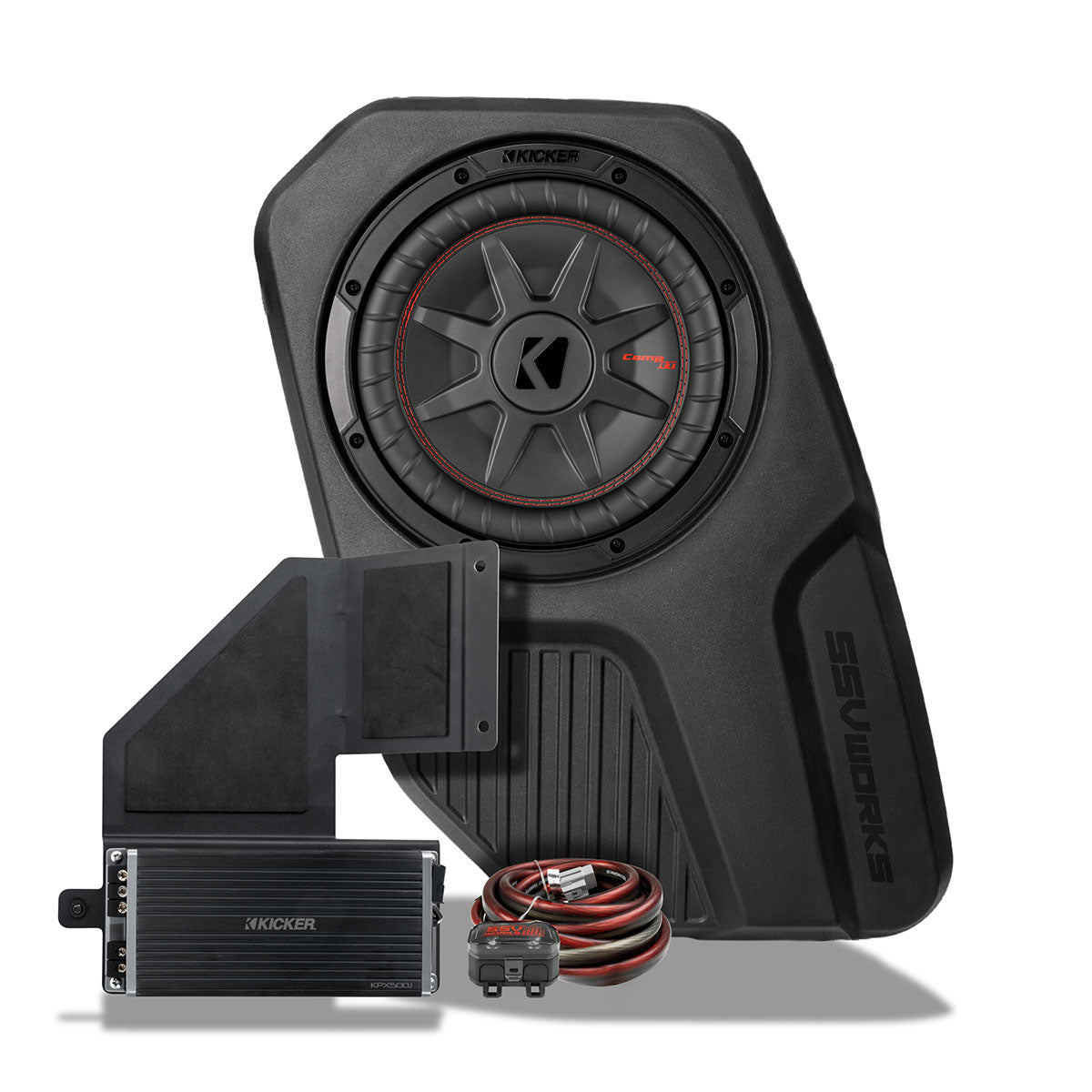

The SSV Works 250-BR-PHZ+DS10K adds a 10-inch Kicker CompRT subwoofer and KPX500.1 amplifier to compatible four-door Ford Broncos. Its enclosure mounts on the driver side, with the amplifier and mounting plate behind the driver-side panel. The kit connects to the vehicle's factory subwoofer output harness.
- Subwoofer rating: 400 watts RMS / 800 watts maximum; sensitivity: 84.8 dB.
- Amplifier: Kicker KPX500.1; published frequency response: 10–160 Hz.
Fitment and installation requirements
- 2023–2026 four-door models listed by SSV Works: Big Bend, Black Diamond, Outer Banks, Heritage Edition, Badlands, Everglades, Wildtrak, Heritage Limited and Raptor.
- 2021–2022: Outer Banks, Badlands and Wildtrak with B&O audio only; 2022 Raptor with B&O audio only.
- Not compatible with two-door Broncos or 2021–2022 standard six-speaker/non-Lux systems, which lack the required output harness.
- FORScan activation is required for vehicles with no factory subwoofer or a dummy subwoofer. Vehicles with an installed B&O or Visteon subwoofer do not require this activation.
