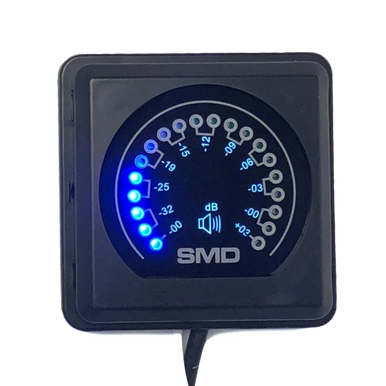

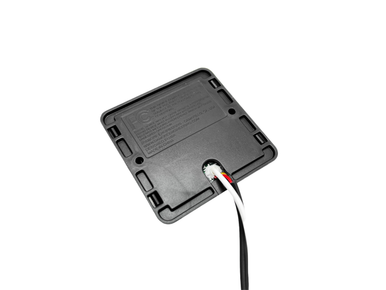

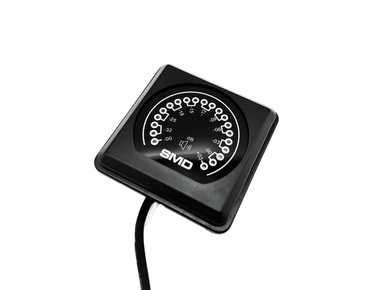

SMD OM-1 Output Meter

The SMD OM-1 monitors amplifier output. It can be calibrated with an SMD DD-1 to indicate when the system reaches clipping.

Features

• 20 surface-mount LEDs
• Regulated power supply
• Constant LED brightness independent of battery voltage

Specifications

• Operating battery voltage: 8–22 VDC
• Adjustable input sensitivity: 10–150 V AC RMS
• Maximum input: 200 V AC RMS
• Dimensions: 2.75 × 2.75 × 0.6 inches
