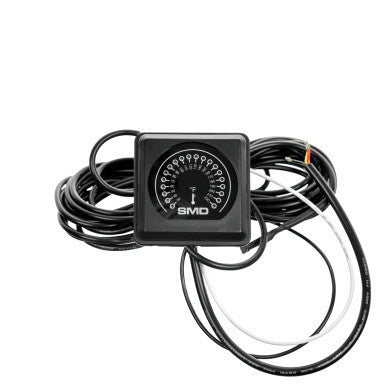

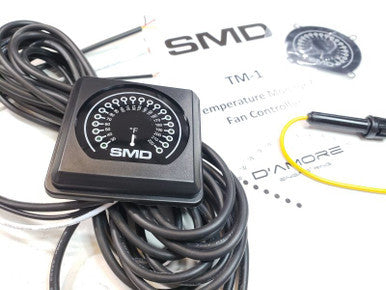

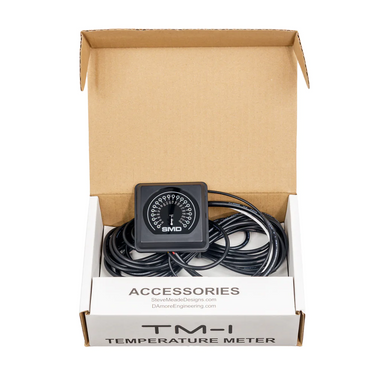

SMD Temperature Meter w/ Programable Fan Output (SMD TM-1)

The SMD TM-1 monitors temperature and controls fan speed against a selectable temperature set point.

Features

• Fahrenheit and Celsius temperature scales
• 20 surface-mount LEDs
• Variable PWM fan-speed control
• Remote wired sensor with 18 feet of cable

Specifications

• Operating voltage: 8–22 VDC
• Display range: 30–220 °F or 0–100 °C
• Fan set point: 40–200 °F or 5–90 °C
• Accuracy: ±5 °F or ±3 °C
• Maximum fan load: 5 A DC
• Dimensions: 2.75 × 2.75 × 0.6 inches
