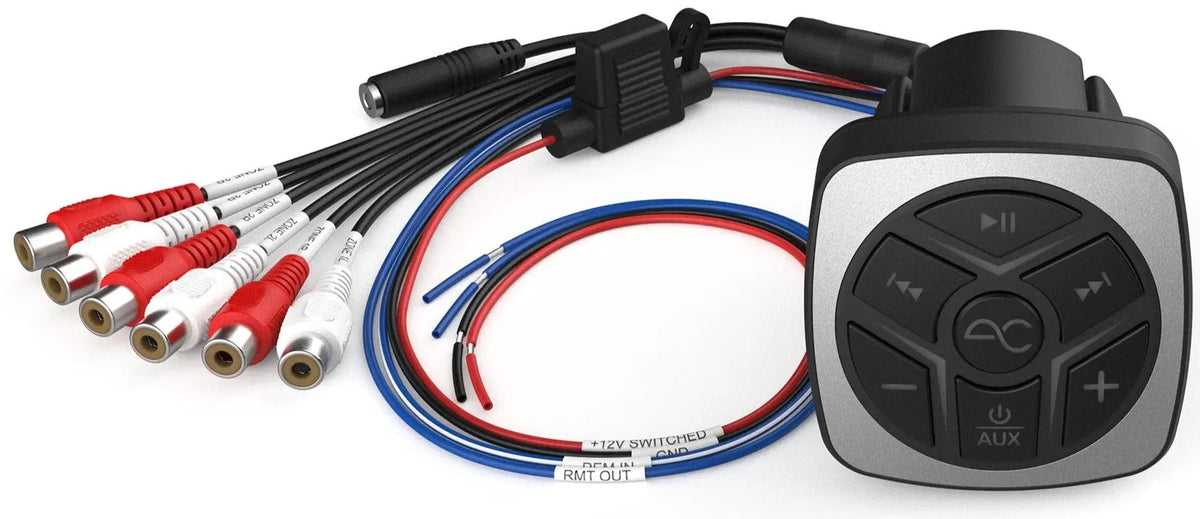

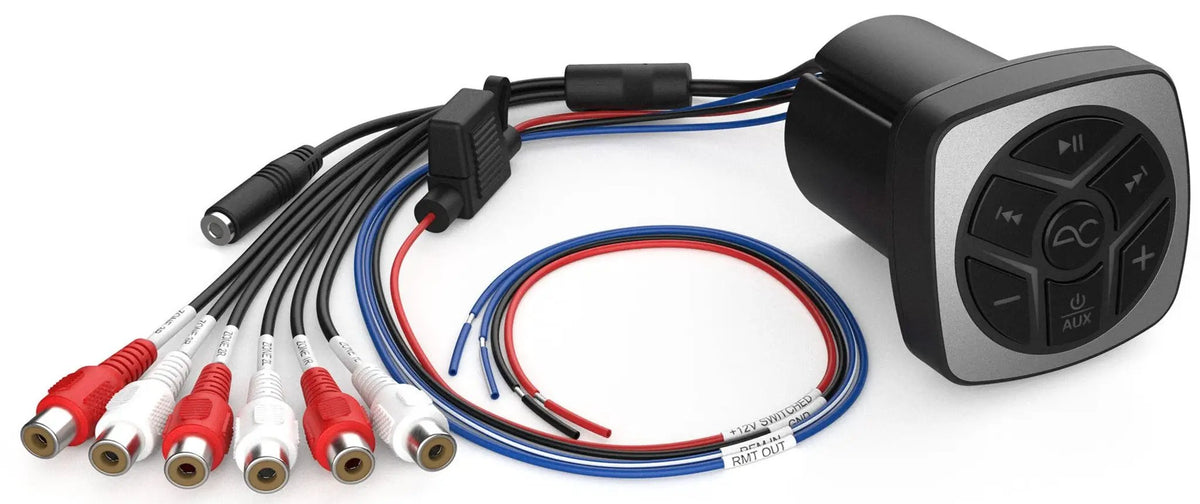

AudioControl ACX-BT3 3-Zone Bluetooth Receiver

The AudioControl ACX-BT3 is an all-weather Bluetooth receiver and 3-zone controller designed for marine and powersports installations, delivering independent zone-volume control and aptX HD streaming in a compact enclosure.

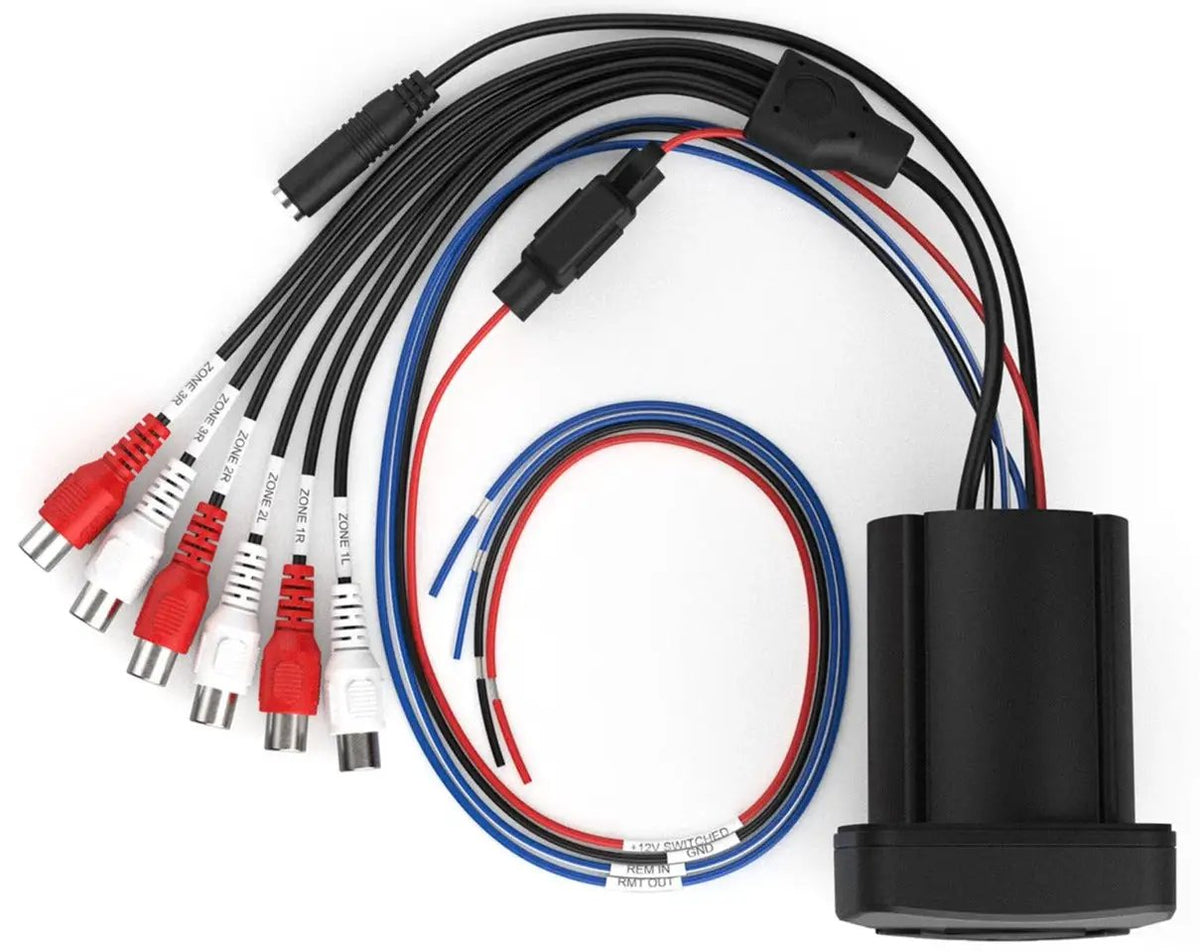

• Three-zone preamp outputs: 3 preamp outputs (6 channels) with up to 4 Vrms, enabling independent amplification for three listening zones and preserving dynamic range across each area.
• All-weather IPX6 enclosure: IPX6 rating shields the unit from splashes, wind and spray, keeping audio playback intact in harsh outdoor environments.
• aptX HD and 24‑bit/48 kHz streaming: Provides higher fidelity wireless audio from compatible devices, adding detail to each active zone.
• Bluetooth 5.1: Modern wireless spec offering improved range and reliability for mobile installations.
• Auxiliary input: Adds a secondary wired source to complement Bluetooth streaming for versatile source options.

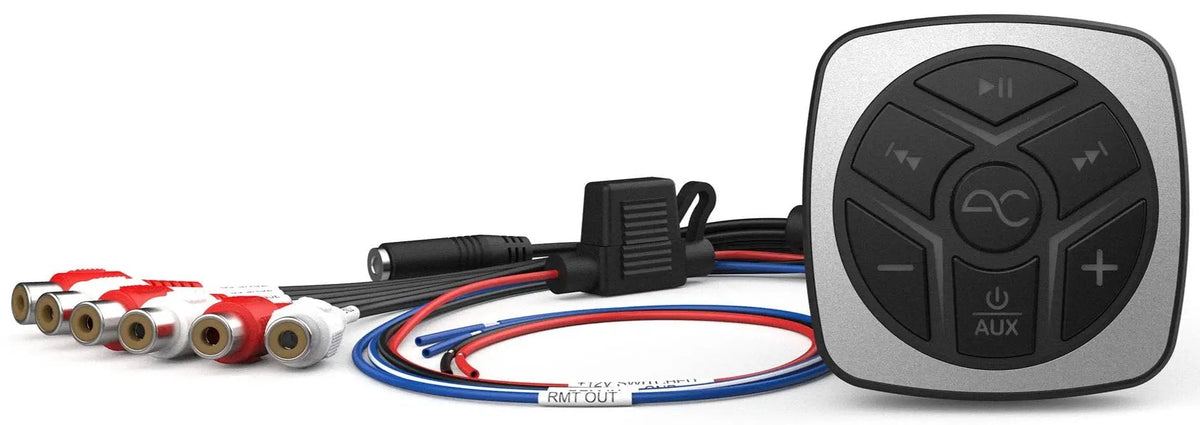

• LED zone indicators and quick-zone control: A touch of a button switches the active zone, with LEDs signaling which zone is being adjusted for quick, gloves-on operation.
• Integrated fuse and mounting options: Built-in 2 A fuse provides protection, while mounting holes support straightforward dashboard or panel installation.
• Specifications at a glance: Bluetooth 5.1, 3 preamp outputs, 4 Vrms maximum, 95 dB SNR, 3 Mbps max data rate, 10+ m operating range.

The ACX-BT3 is tailored for three independently controlled listening zones with a compact form factor, making it suitable as either a primary or secondary source in complex marine or powersports audio systems. Its all-weather design, robust 4 Vrms outputs, and flexible input options simplify wiring and improve reliability in challenging environments.
