DS18 AMPKIT0/SLV Advance 0-GA Installation Kit SILVER

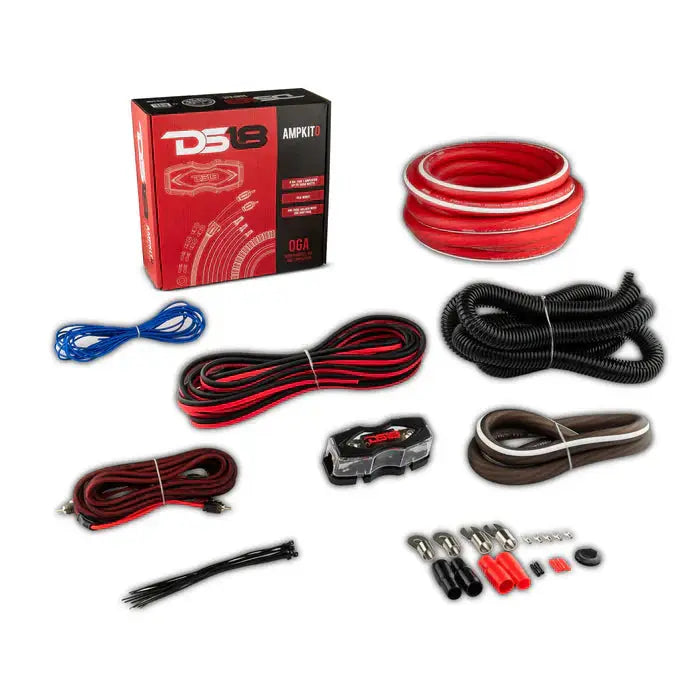

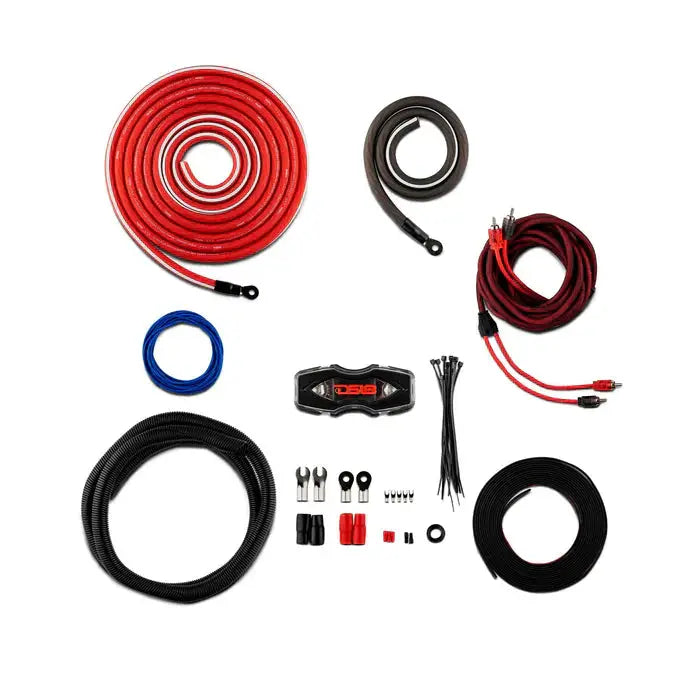

DS18 AMPKIT0/SLV Advance 0-GA Installation Kit SILVER is a complete 0-gauge wiring and signal bundle built for high-current car audio systems, delivering organized power delivery, protective hardware, and clean signal paths for demanding amplifiers.

• ANL Fuse Holder with 250A: Includes an ANL fuse rated at 250A to protect the main power run in high-current installations.
• 6 ft. 0GA Loom Tube: Six-foot loom tube to shield and organize large-diameter power and signal cables, helping route them neatly and protect from abrasion.
• Black Ground Cable, 3 ft: 3 ft ground run with 53 mm² cross-section and 15.8 mm outer diameter for a low-impedance return path.
• Red Power Cable, 17 ft: 17 ft red power cable, 53 mm² cross-section and 15.8 mm outer diameter, engineered for maximum current transfer from battery to amps.
• Twisted RCA Cable, 17 ft: 17 ft Red/Black twisted RCA cable designed to minimize signal interference and preserve audio quality.
• Turn-On Remote Cable, 17 ft: 17 ft turn-on remote cable to reliably trigger amplifiers with the head unit.
• Red/Black Speaker Cable, 17 ft: 17 ft two-conductor speaker cable, 3.31 mm² per conductor, OD 4.5 x 9.0 mm, for dependable speaker-level connections.
• Product Weight: 6 lbs.
• Product Dimensions: 10.3 x 9.8 x 3.875.
• Master Carton Weight: 25.5 lbs.
• Master Carton Dimensions: 20.5 x 10.75 x 8.5.
• Master Carton Quantity: 6.
• Sold In: Piece.

In a real-world install, AMPKIT0/SLV provides a complete, ready-to-run foundation for high-power amplifiers. The 0-GA power and ground cables minimize voltage drop and impedance, while the 53 mm² wires deliver robust current delivery. The included ANL fuse, rubber grommet, and loom tube keep the install neat and protected, reducing heat exposure and wiring wear. The 17 ft lengths for power, RCA, remote, and speaker cables accommodate typical dash-to-trunk layouts and multi-amp configurations, while the twisted RCA cable and two-conductor speaker cable preserve signal integrity and reduce noise for clearer audio.
