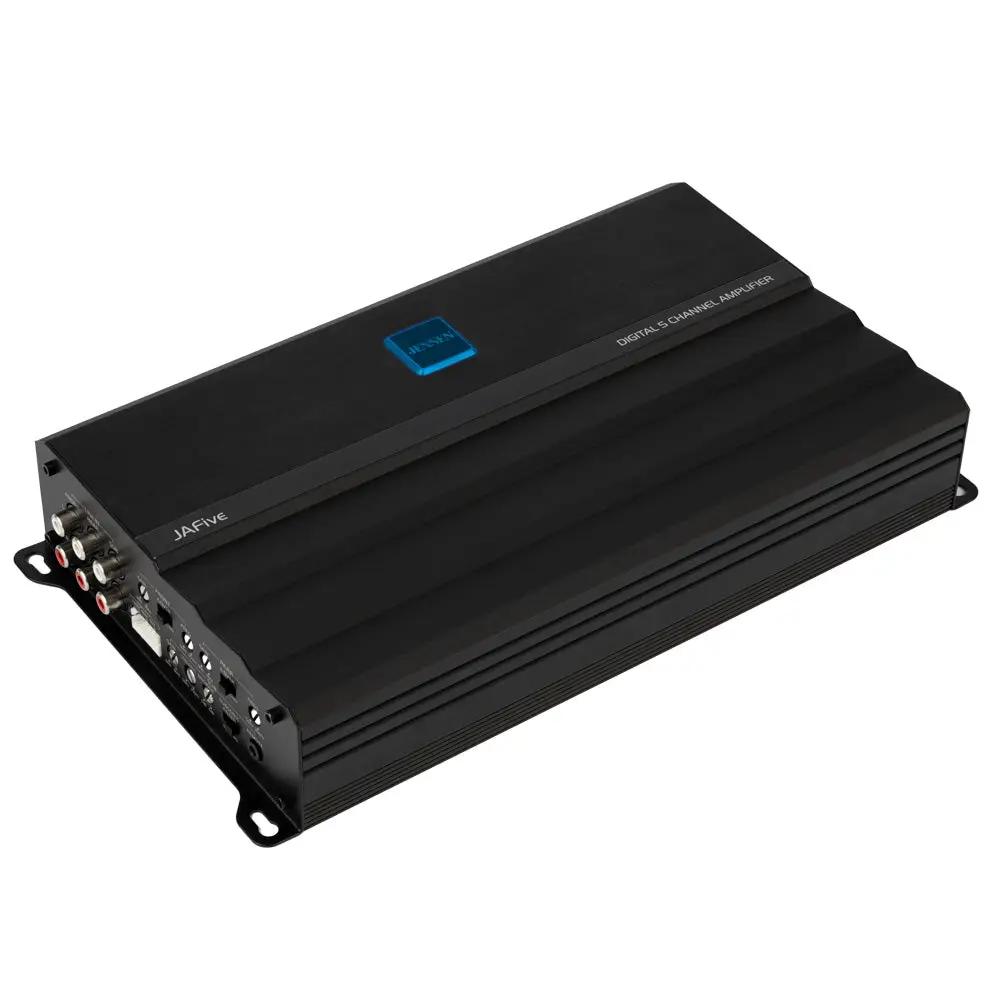

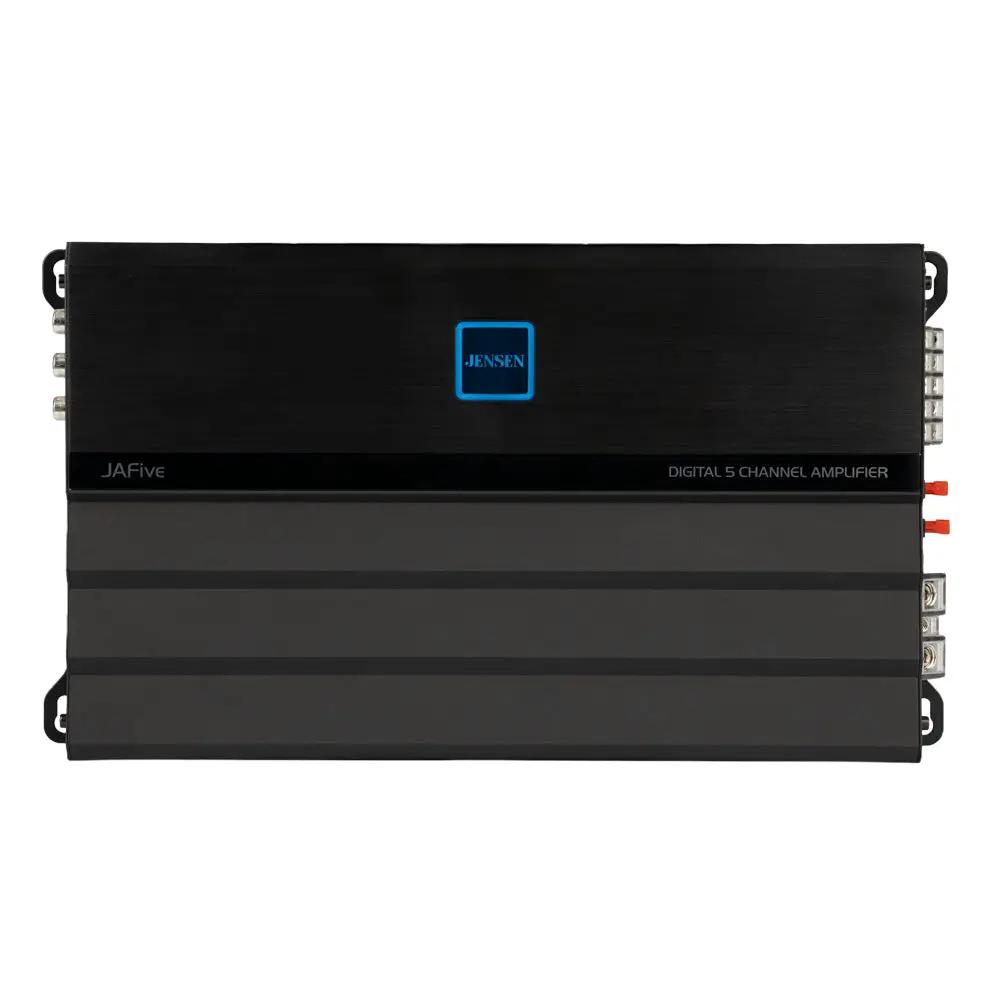

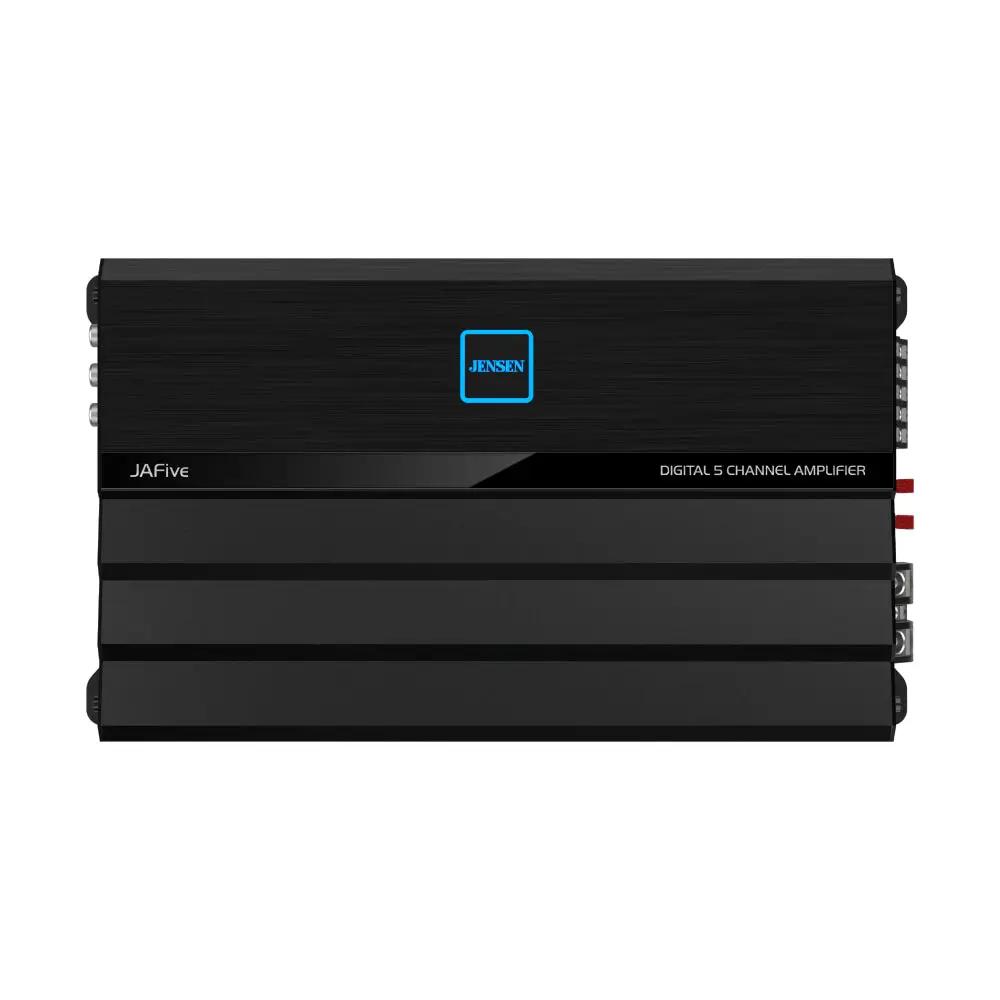

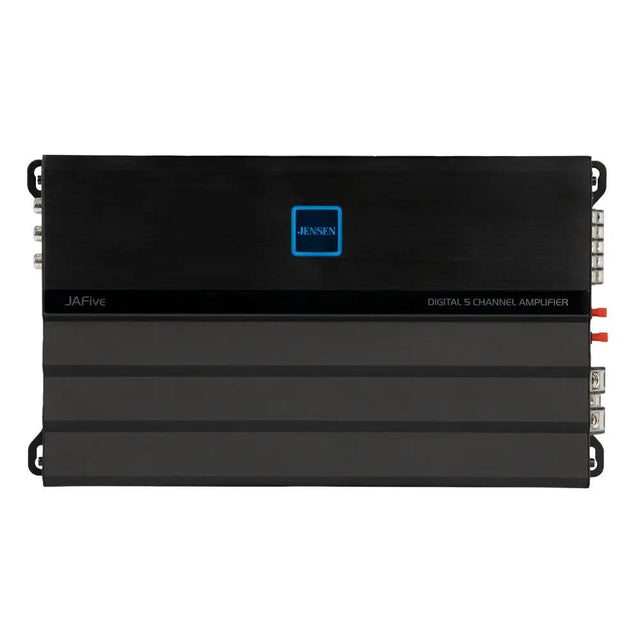

Jensen JAFive 5-Channel Class-D MOSFET Amplifier
Jensen JAFive 5-Channel Class-D MOSFET Amplifier is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Jensen JAFive 5-Channel Class-D MOSFET Amplifier
Jensen JAFive 5-Channel Class-D MOSFET Amplifier is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
The Jensen JAFive 5-Channel Class-D MOSFET Amplifier delivers high-efficiency, full-system audio performance in a single compact chassis. Engineered to drive four full-range speakers alongside a dedicated subwoofer channel, it supplies up to 1,175 Watts of dynamic power with minimal heat buildup.
Equipped with both high-level and low-level RCA inputs, this amplifier integrates seamlessly into factory and aftermarket car audio systems. Integrated high-pass and low-pass filters, variable bass boost, and selectable gain controls ensure precise audio tuning and exceptional sound clarity across all channels.
Key Features
| Brand | Jensen |
| Model | JAFive |
| Series | Apex Series |
| Amplifier Class | Class-D Digital |
| Number of Channels | 5 |
| Total Dynamic Power | 1,175 W |
| RMS Power Output (4 Ohms) | 85 W x 4 + 310 W x 1 |
| RMS Power Output (2 Ohms) | 135 W x 4 + 495 W x 1 |
| Speaker Impedance | 2 or 4 Ohm |

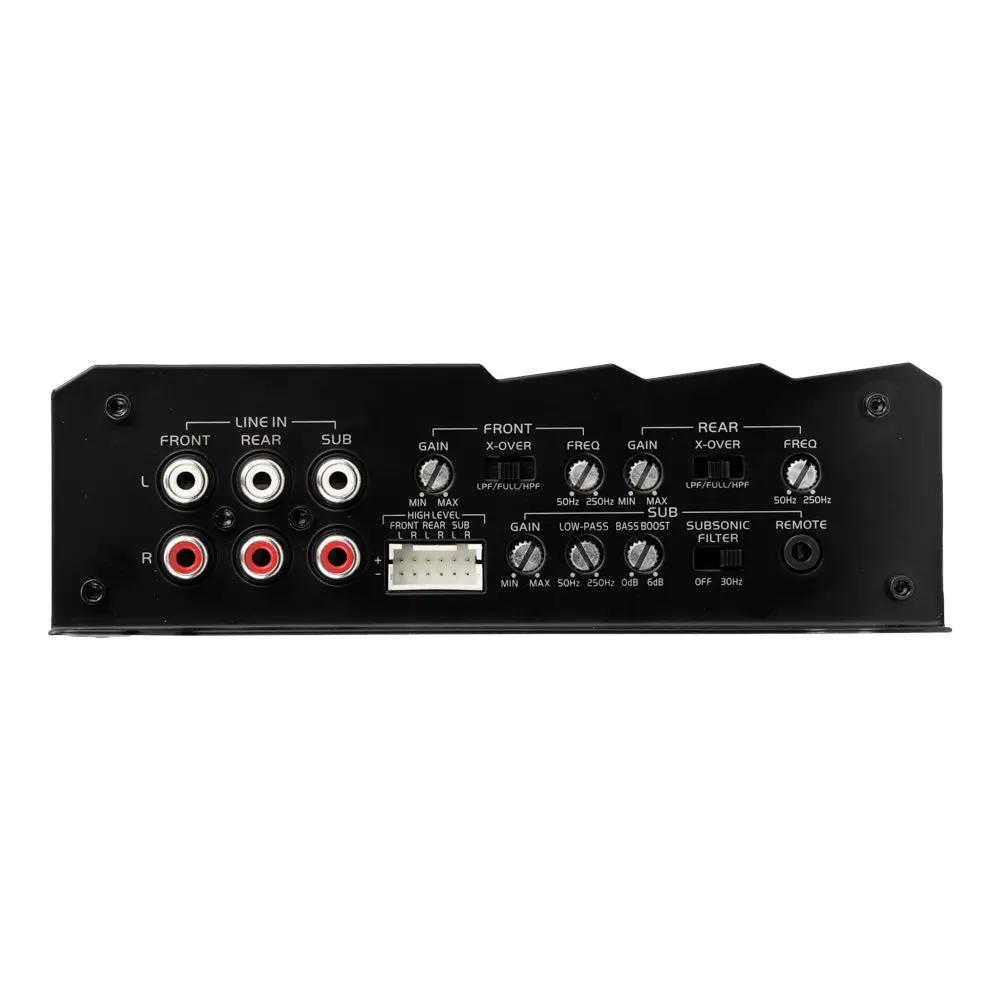

| Audio Inputs | High-Level (Speaker Wire), Low-Level (RCA) |
| Crossover Frequency | 50 Hz – 250 Hz (Adjustable HPF/LPF) |
| Subsonic Filter | 30 Hz / 24 dB |
| Bass Boost | Variable 0–6 dB @ 45 Hz |
| Signal-to-Noise Ratio | 86 dBA (CH 1–4) / 88 dBA (Sub) |
| Frequency Response | 20 Hz – 20 kHz (CH 1–4) / 20 Hz – 250 Hz (Sub) |
| Total Harmonic Distortion (THD+N) | <0.12% (CH 1–4) / <0.20% (Sub) @ 1 W RMS |
| Gain Adjustment | Variable 300 mV – 6 V |

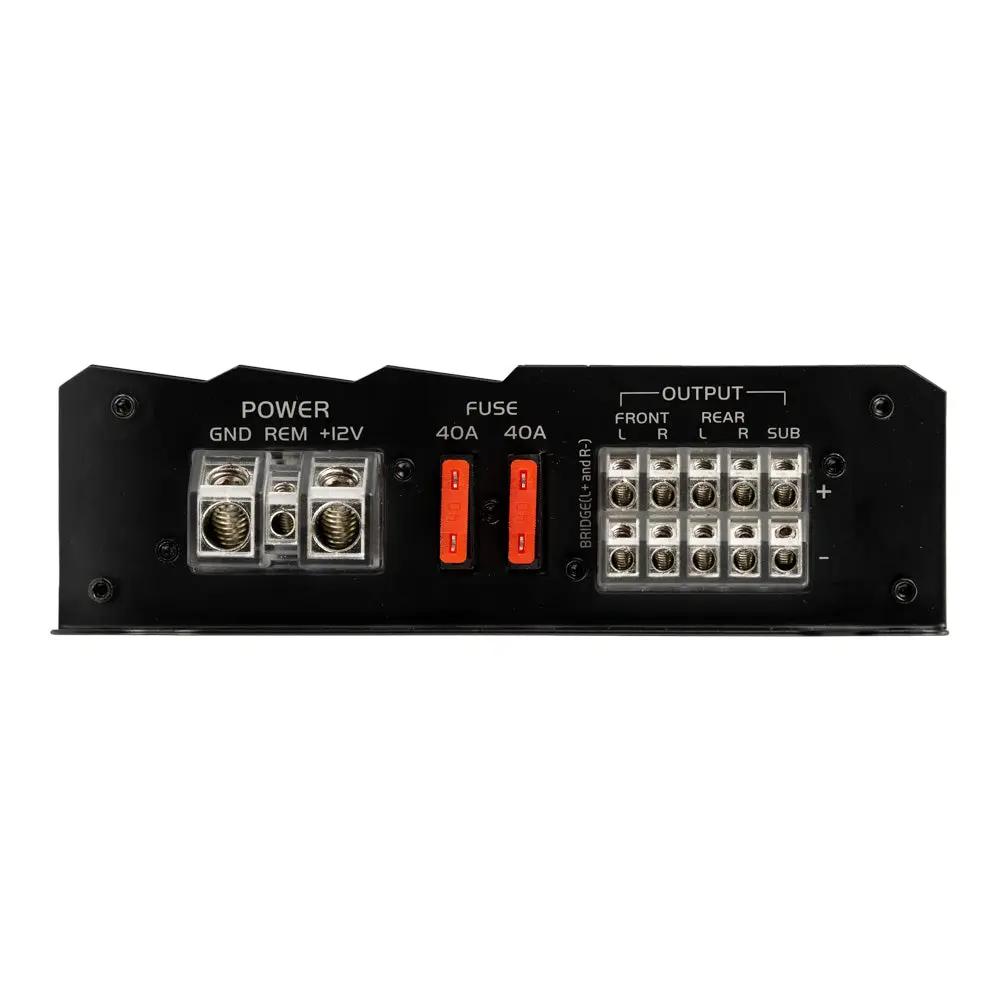

| Fuses | 2 x 40A |
| Recommended Power/Ground Wire | 4 AWG |
| Recommended Speaker Wire | 12 AWG |
| Dimensions (H x D x W) | 5.1 cm x 16.6 cm x 33.2 cm |
| Weight | 2.7 kg |
Highlights
- 5-channel Class-D digital design powers front, rear, and subwoofer channels from a single unit.
- Delivers up to 1,175 Watts of peak dynamic power.
- High-level and low-level RCA inputs allow easy integration with factory or aftermarket stereos.
- Precision audio tuning with adjustable 50–250 Hz crossovers, 30 Hz subsonic filter, and variable bass boost.
- Compact chassis measuring 5.1 cm x 16.6 cm x 33.2 cm for straightforward installation.
Compatibility
Compatible with both factory and aftermarket vehicle audio head units via high-level speaker wire connections or standard low-level RCA inputs. Supports 2-ohm and 4-ohm speaker setups.
Warranty
4-year limited warranty when registered within 60 days of purchase.
