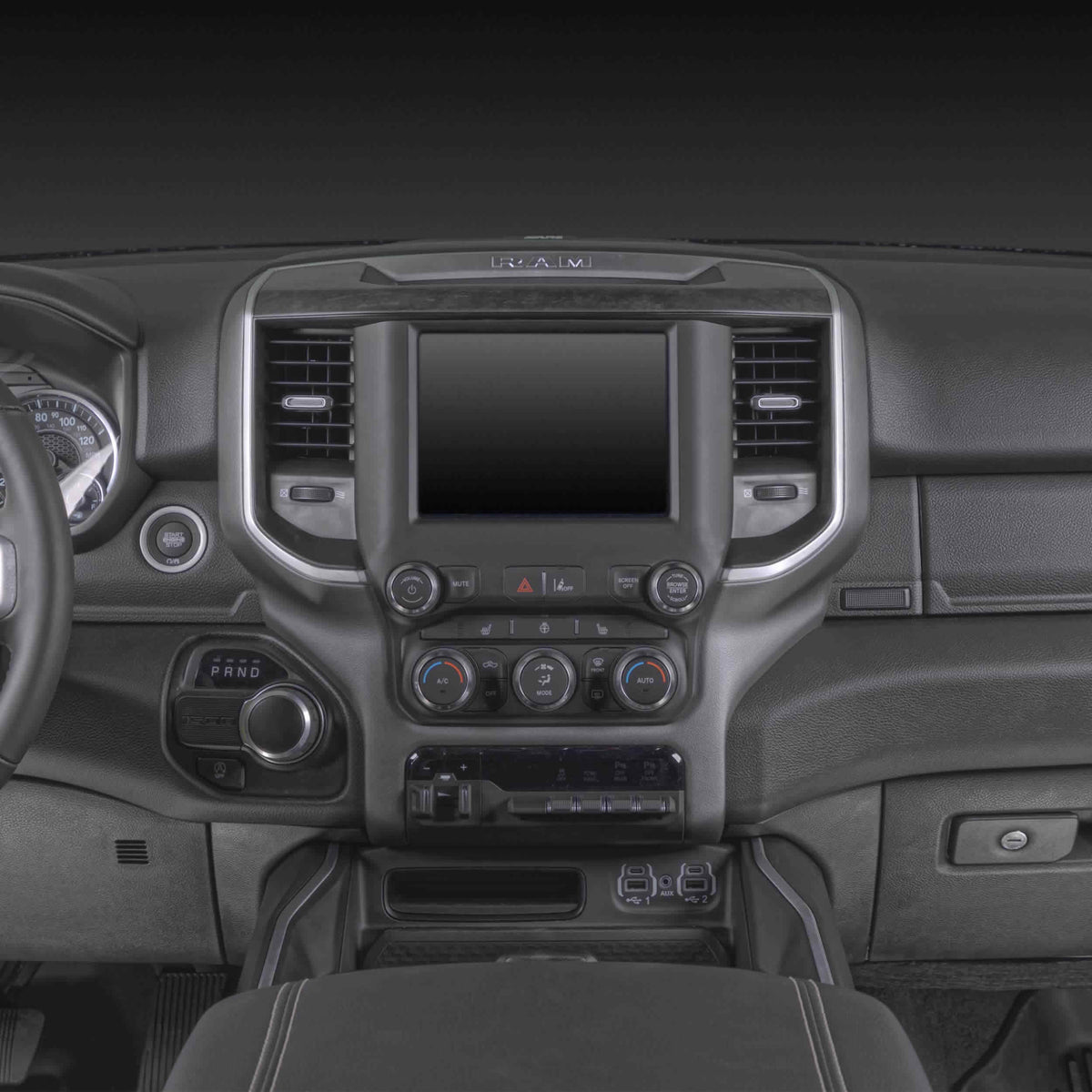

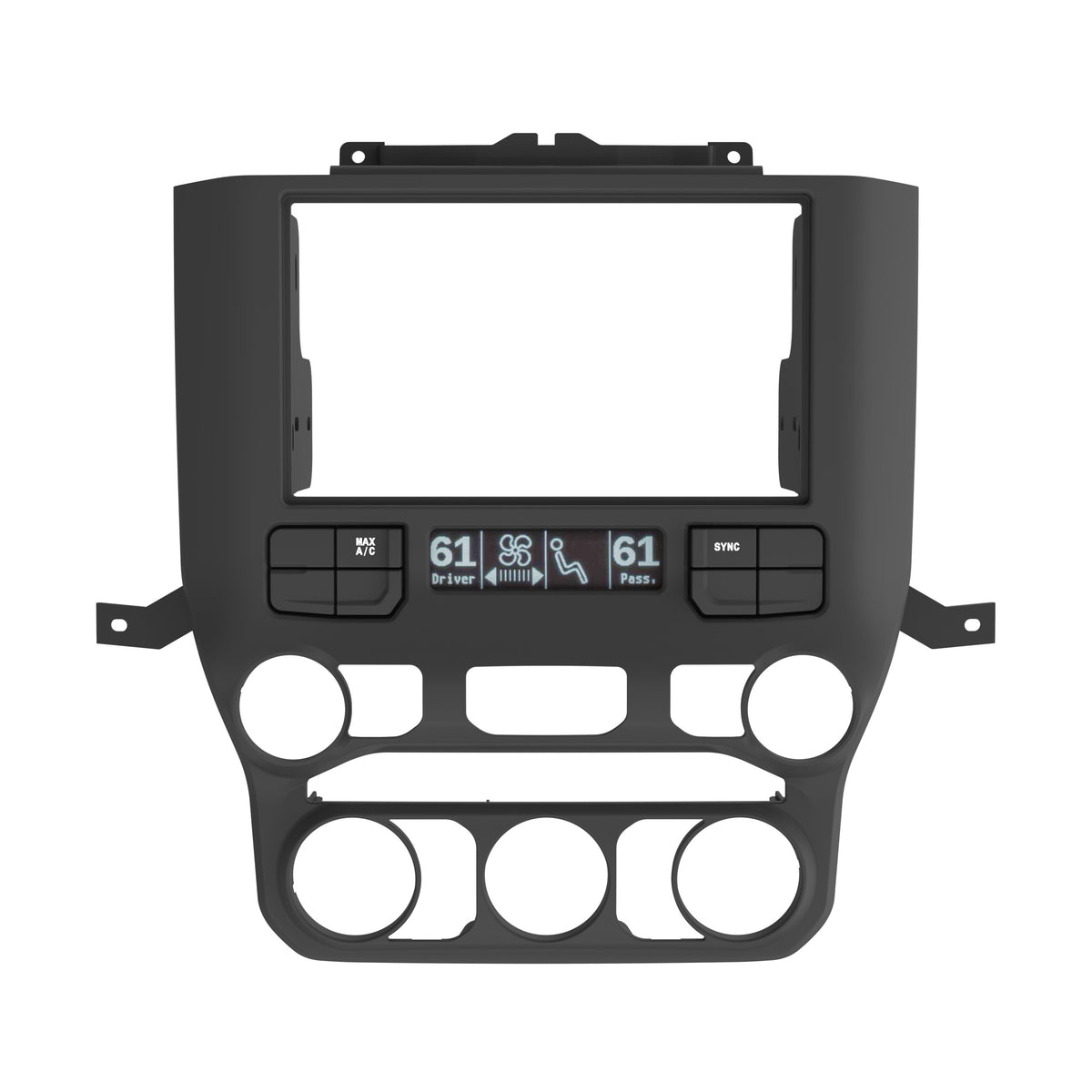

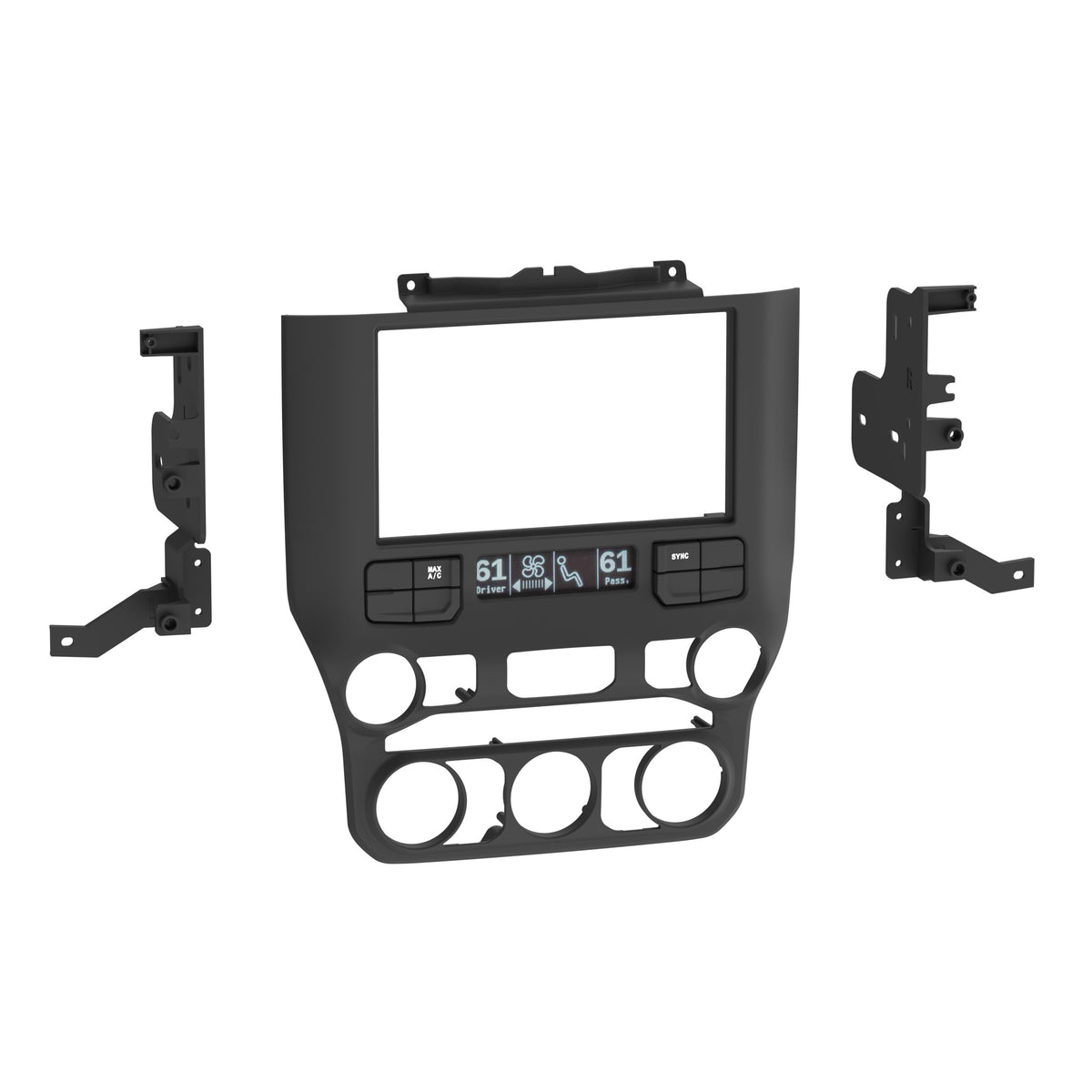

RAM 2019-2024 (with factory 8.4” screen & auto climate, excludes Classic models) — 107-CH6B

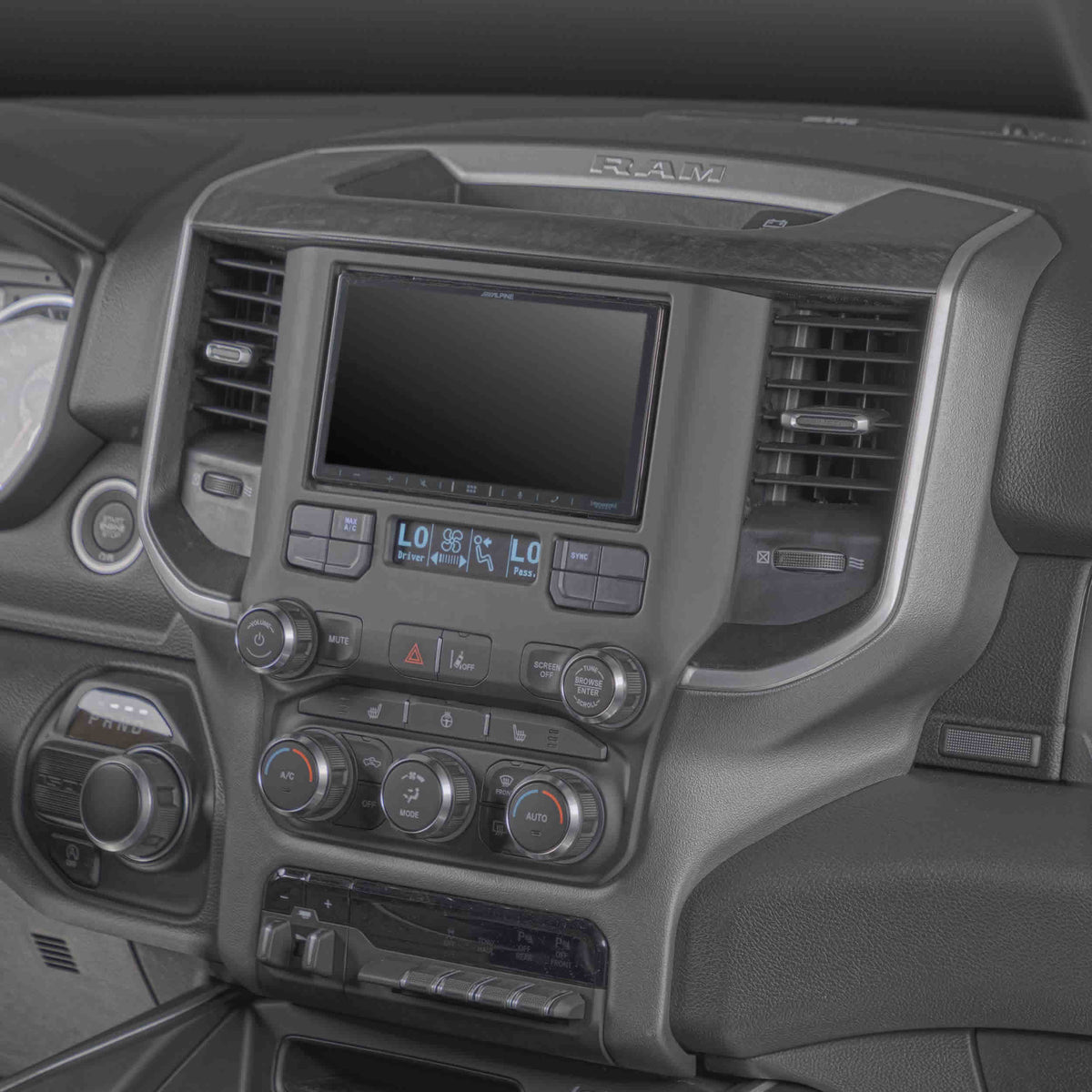

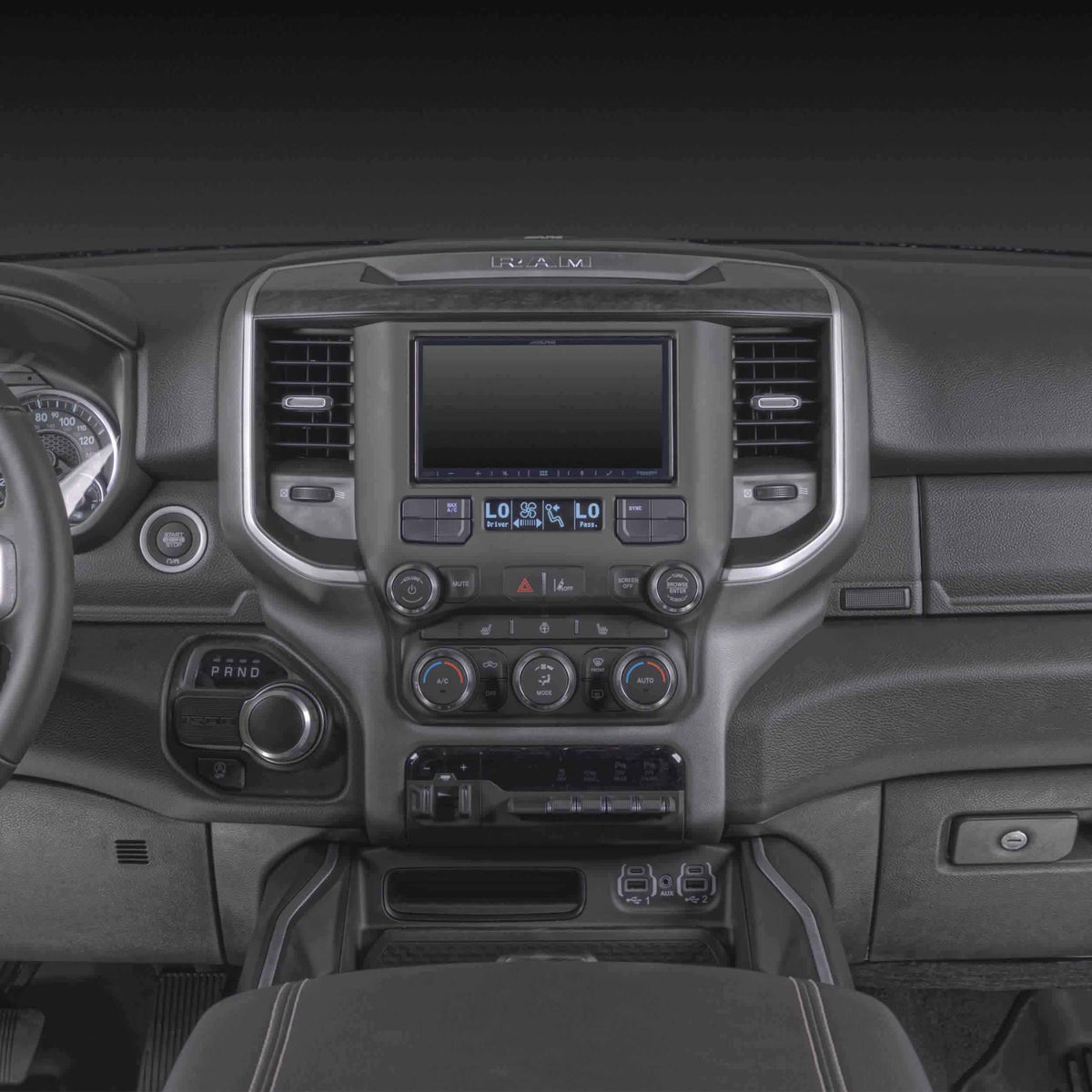

The 107-CH6B is designed to fit 2019-2024 RAM trucks. This dash kit is designed to install shallow-mount, modular, or L-shaped radios with the chassis at the bottom of the screen. A full-size Double-DIN installation will require extensive sub-dash modifications. The 107-CH6B is painted scratch-resistant matte black to complement the factory dash. Installing an aftermarket radio can improve sound quality and offer additional features the factory radio didn’t have, but a dash kit is required to ensure it fits.

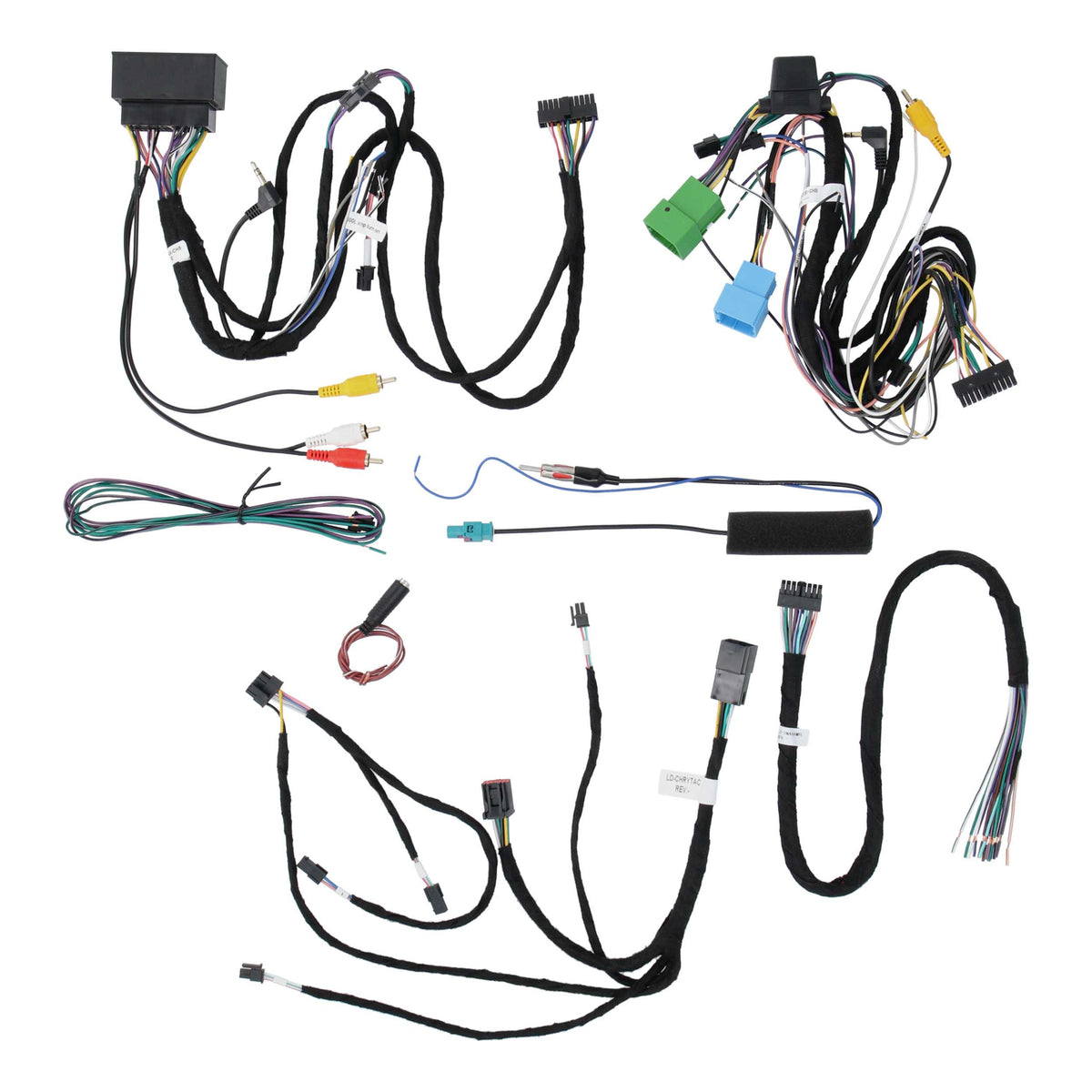

This dash kit simplifies radio replacement and includes a built-in Axxess® data interface, wiring harnesses, and an antenna adapter for a complete installation.

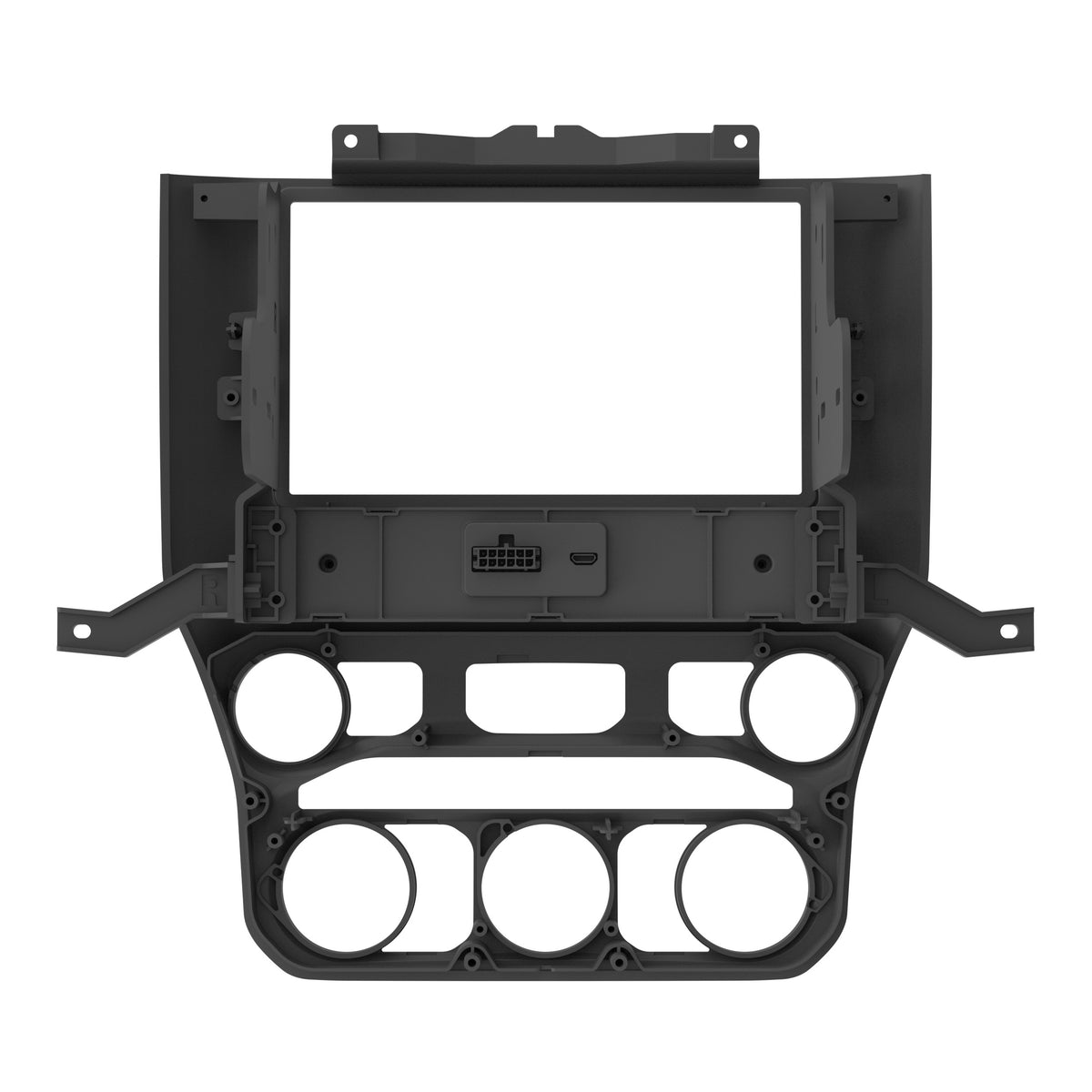

Stereo installation kit designed to fit aftermarket shallow-mount, modular, or “L” shaped radios with the chassis at the bottom of the screen
Painted scratch-resistant matte black to match the factory finish
Steering wheel audio controls and factory climate controls are retained
Factory-style hard buttons with laser-etched graphics are included to retain and control functions that are usually lost when removing the factory radio
Axxess® interface is built into the built-in OLED screen

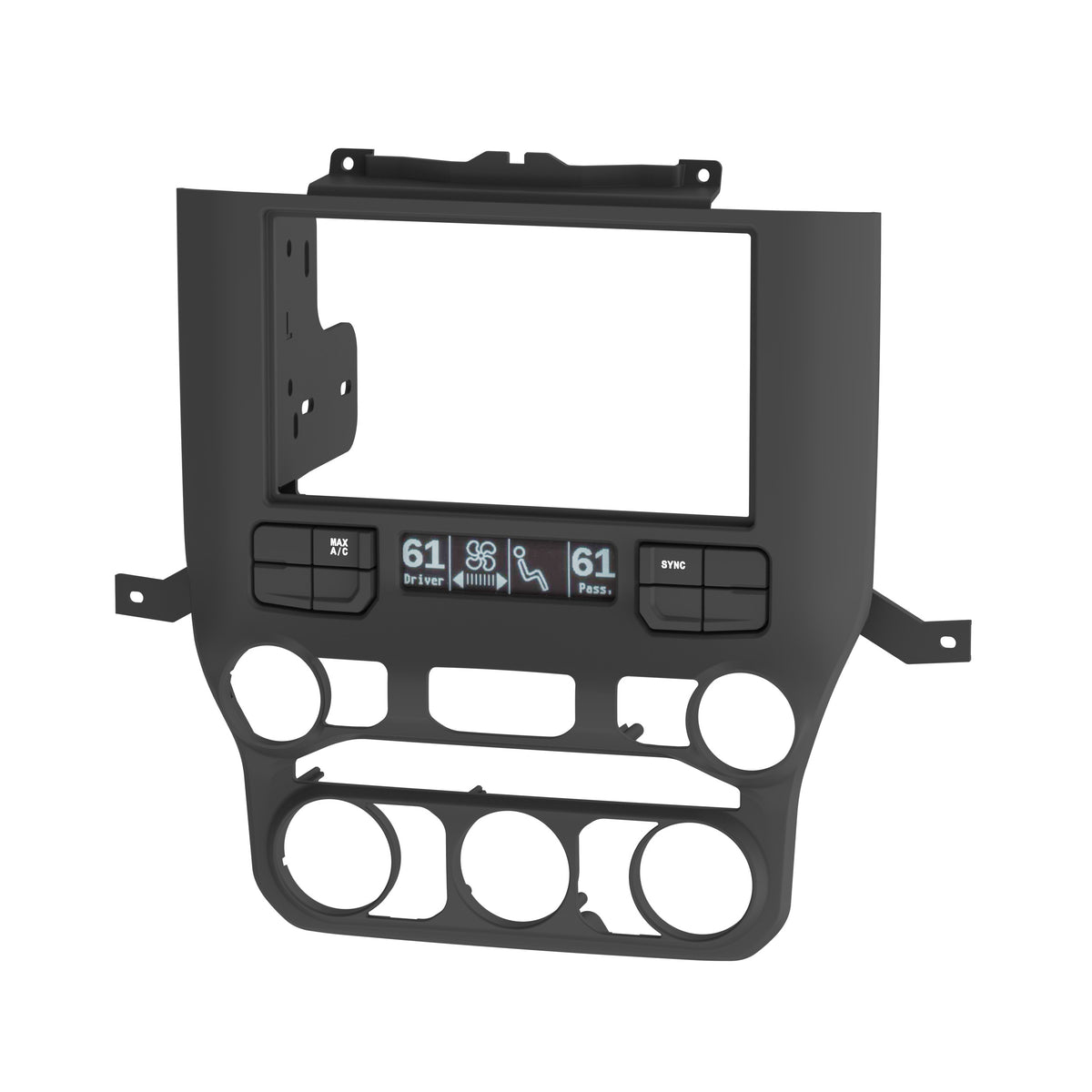

Built-in OLED screen displays the visual status of climate functions
Sub-dash modifications are required for the installation of a Double-DIN radio, and once the changes are made, the vehicle will no longer be able to be restored to the factory setup
Made from the highest quality ABS plastic for an original factory-like fit and finish

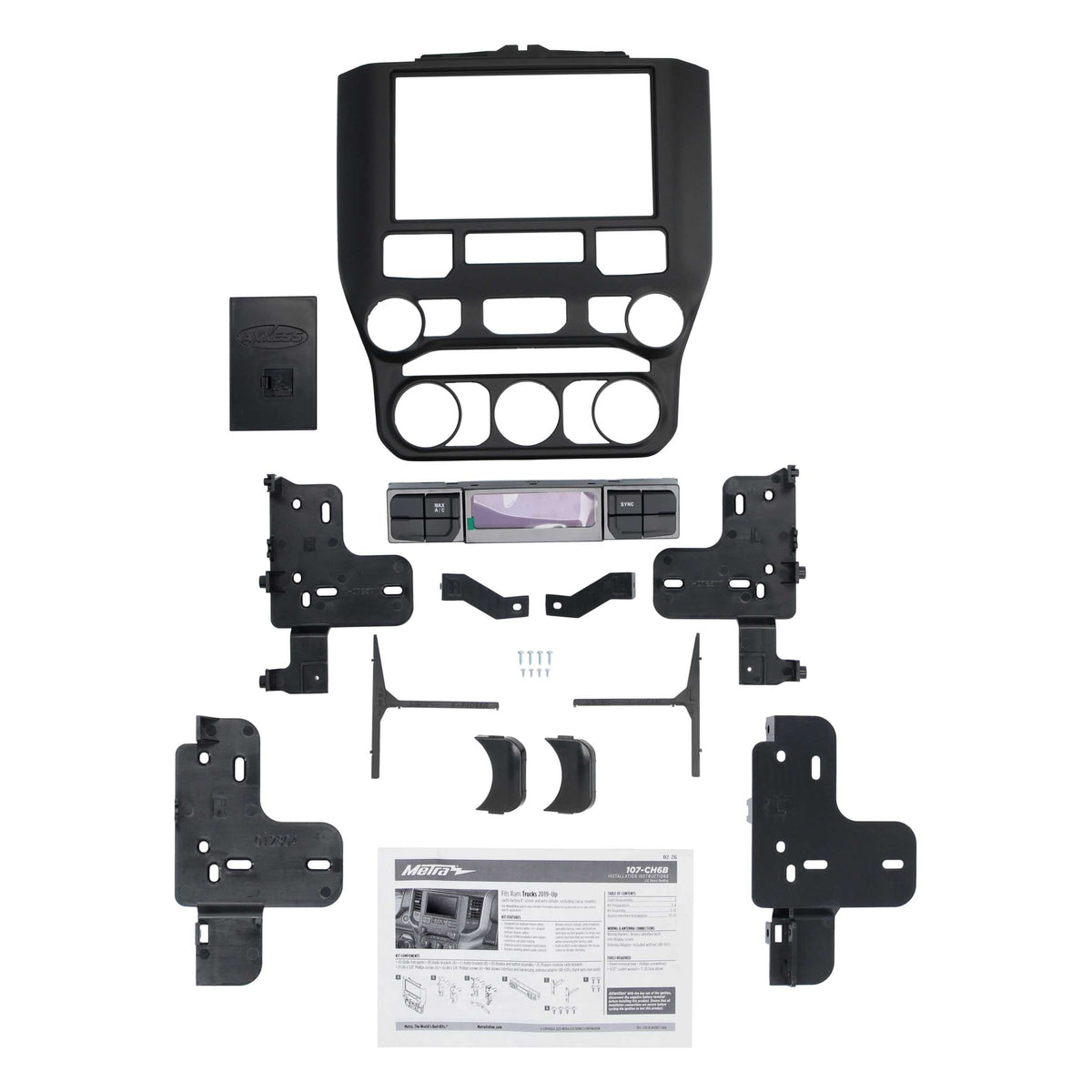

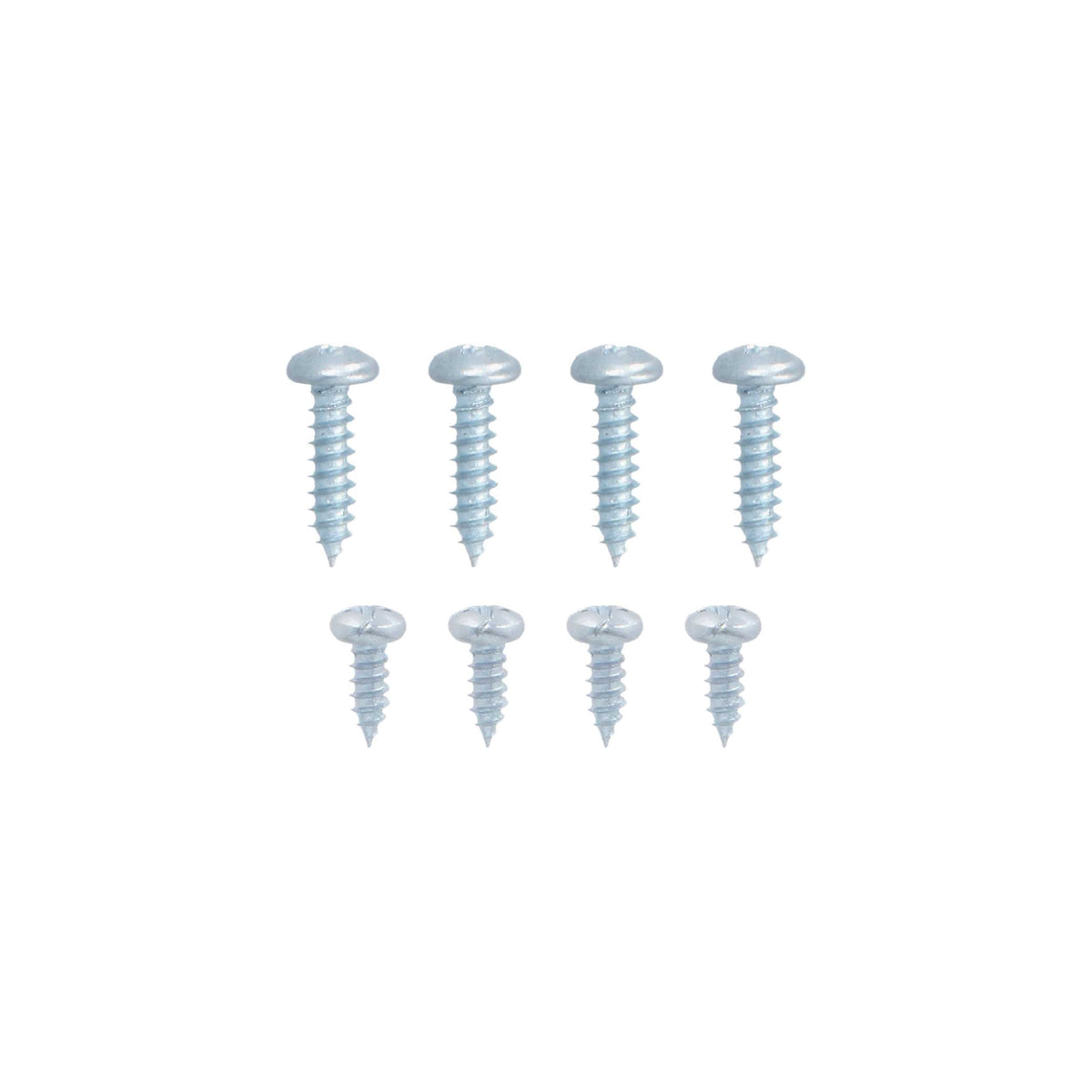

Includes antenna adapter and hardware parts needed, with detailed installation instructions
A tech support number is available for installation help, 7 days a week
1-year limited warranty
Axxess Interface:
Designed for amplified or non-amplified models
Provides accessory power (12-volt 10-amp)
Retains R.A.P. (retained accessory power)
Provides illumination, parking brake, reverse, and speed sense outputs
Retains audio controls on the steering wheel
Allows retention and adjustment of the personalization options
Retains safety chimes
Retains the factory AUX-IN jack (base models only)
Retains balance and fade*
Micro-B USB updatable
*Non-amplified models only
Note: Excludes the Classic model.
