Axxess DSP-X — AXDSP-X

The AXDSP-X offers installers a fast, cost-effective solution for improving vehicle sound systems. It features 10 individually assignable output channels, password-protected settings, an easy-to-use smartphone app, and onboard digital amplifier turn-on capability. Built-in Axxess data interface technology also retains many vehicle features commonly lost when installing a traditional DSP.
Flexible À La Carte Purchasing
For most applications, the AXDSP-X and vehicle-specific AXDSPH harness are now sold separately. Simply pair the AXDSP-X with the appropriate AXDSPH harness for the vehicle.
This flexible, à la carte system helps shops reduce inventory costs by stocking a small number of AXDSP-X units along with an assortment of AXDSPH harnesses. Installers can pull the components needed for each job directly from inventory instead of special-ordering a complete vehicle-specific package.
Applications in which the AXDSP is installed at the factory amplifier are the exception and will continue to be sold as complete packages.
Complete Tuning Control
Installers have full control over each of the 10 output channels using the free app for compatible smartphones and tablets. The app makes tuning easy with a 31-band graphic or parametric EQ, selectable crossovers, and up to 10ms of independent time delay on each channel.
Retain Features with a Built-in Interface
Using Axxess data interface technology, the AXDSP-X goes beyond the capabilities of a traditional DSP by retaining many features commonly lost when upgrading a sound system. Voice prompts, parking sensor alerts, and other factory chimes are retained, with adjustable volume control for supported applications.
It is a cost-effective solution for customers who want to keep their factory radio, improve sound quality, and retain integrated systems such as SYNC® or OnStar®.
One Solution, Many Applications
The AXDSP-X supports a wide range of vehicle applications and audio systems, including OE and aftermarket radios, fixed-level analog systems, digitally controlled amplified systems, and non-amplified vehicles without factory chimes.
For most applications, installation is completed behind the radio using the appropriate AXDSPH vehicle-specific harness, sold separately. Refer to the AXDSP-X application chart or Vehicle Fit Guide to identify the correct harness and confirm current vehicle compatibility.
Features:
31-band graphic or parametric EQ on each output channel
High-pass, low-pass, and bandpass filters
Selectable crossover slopes of 12, 24, 36, or 48dB per octave
Six inputs and 10 individually assignable outputs
Independent equalization on each of the 10 outputs
Up to 10ms of independent time delay on each channel
Chime control for supported GM and Chrysler vehicles
Clipping detection and limiting circuits

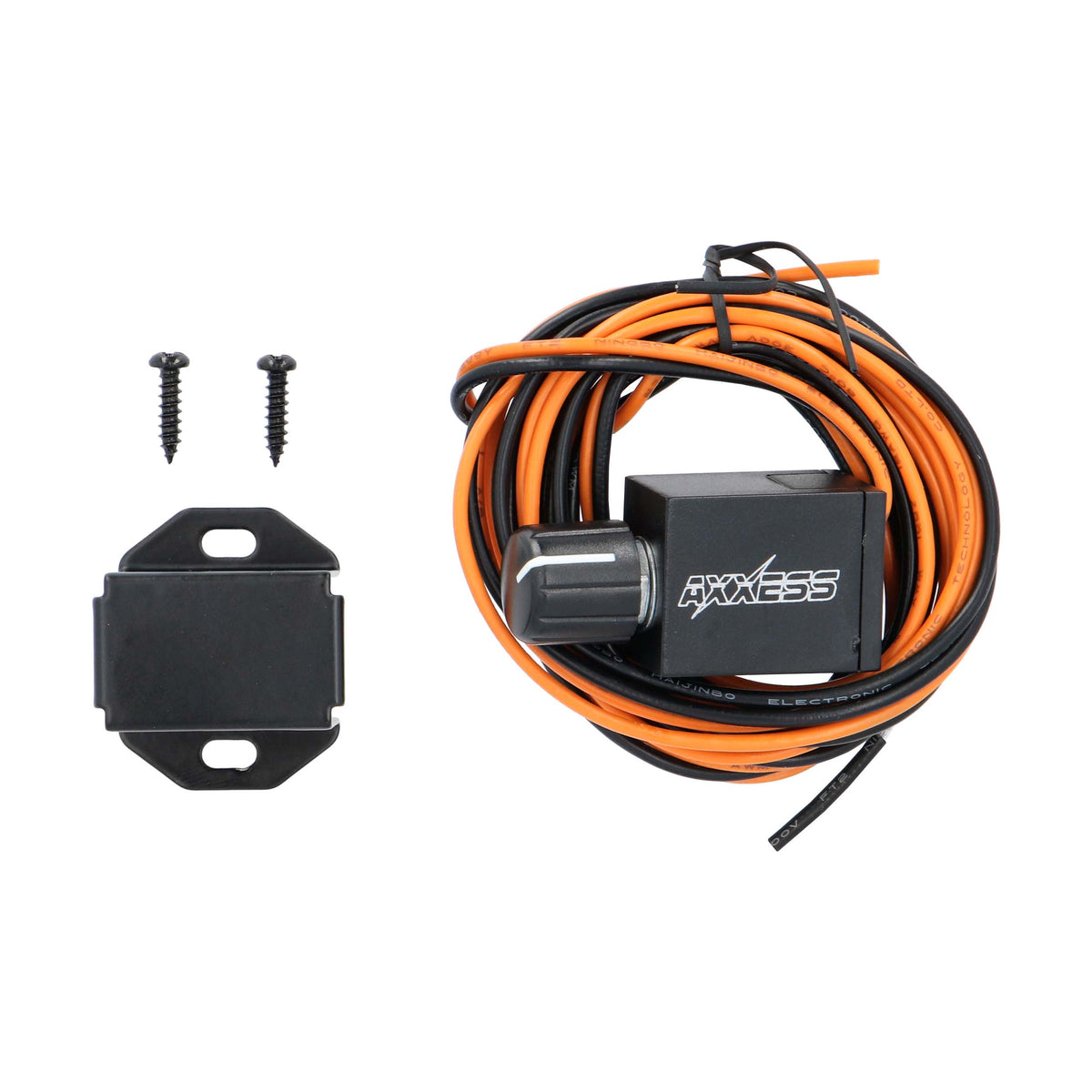

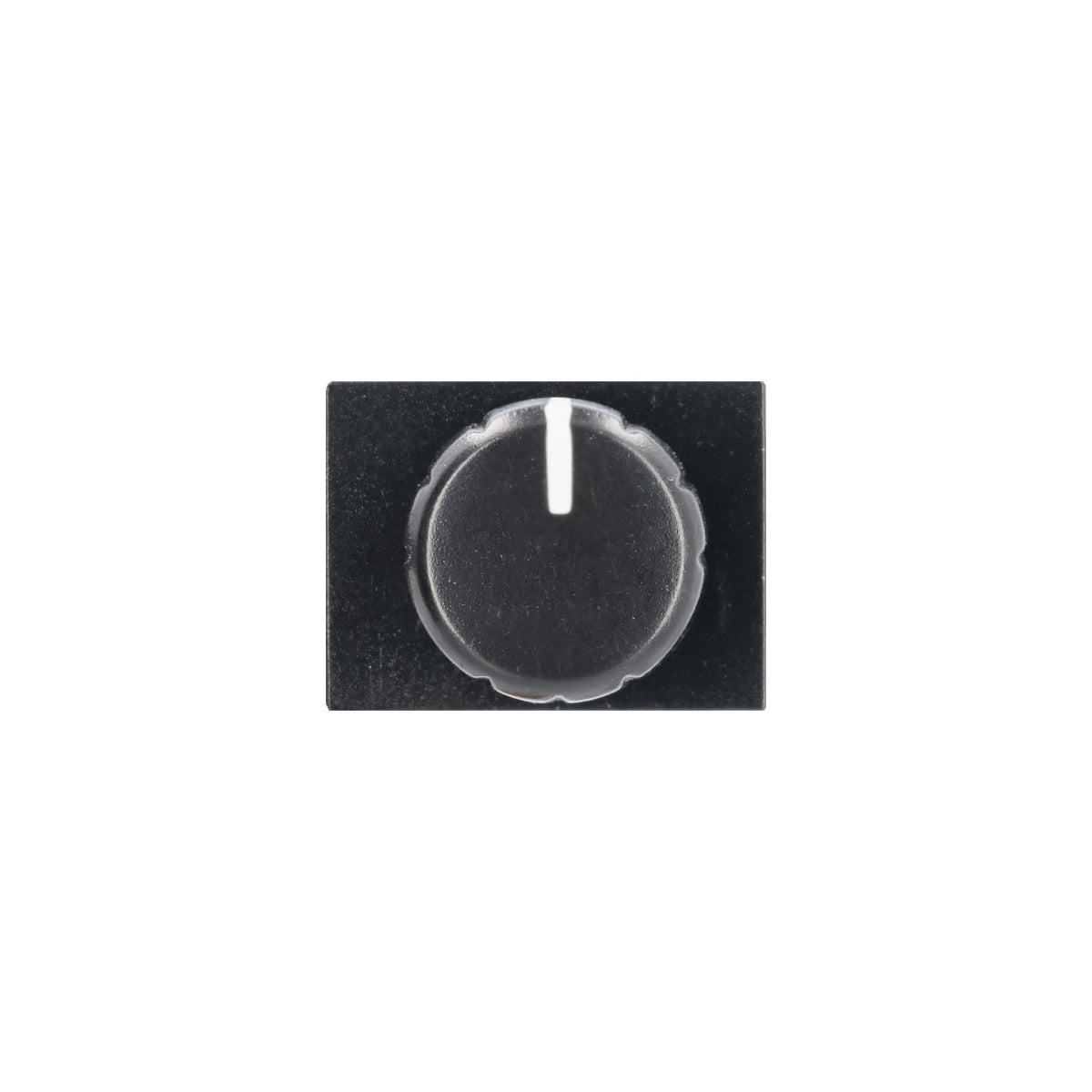

Bass knob included
Retains supported OE voice prompts, including SYNC® and OnStar®
Retains supported factory chimes, parking sensor alerts, and cross-path detection alerts
Adjustable factory chime level
Wireless configuration through a compatible smartphone or tablet
Easy behind-the-radio installation in most applications
Compatible with OE and aftermarket radios
Read, write, and store configurations for future recall
Password protection available through the mobile app

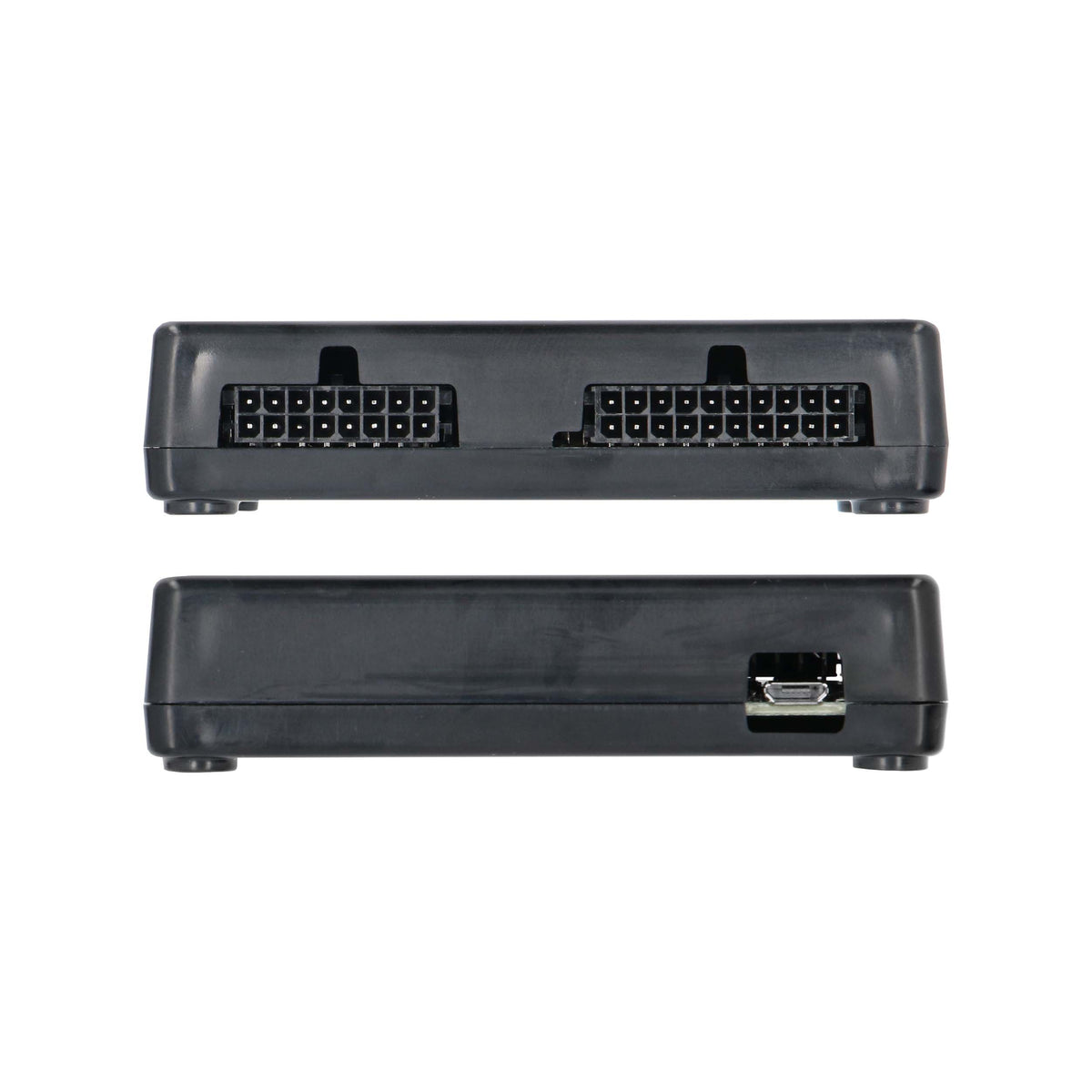

Micro-B USB updatable
One-year limited warranty
Important: For most applications, the AXDSP-X and the appropriate AXDSPH vehicle-specific harness must be purchased separately. Applications in which the AXDSP is installed at the factory amplifier will continue to be sold as complete packages.

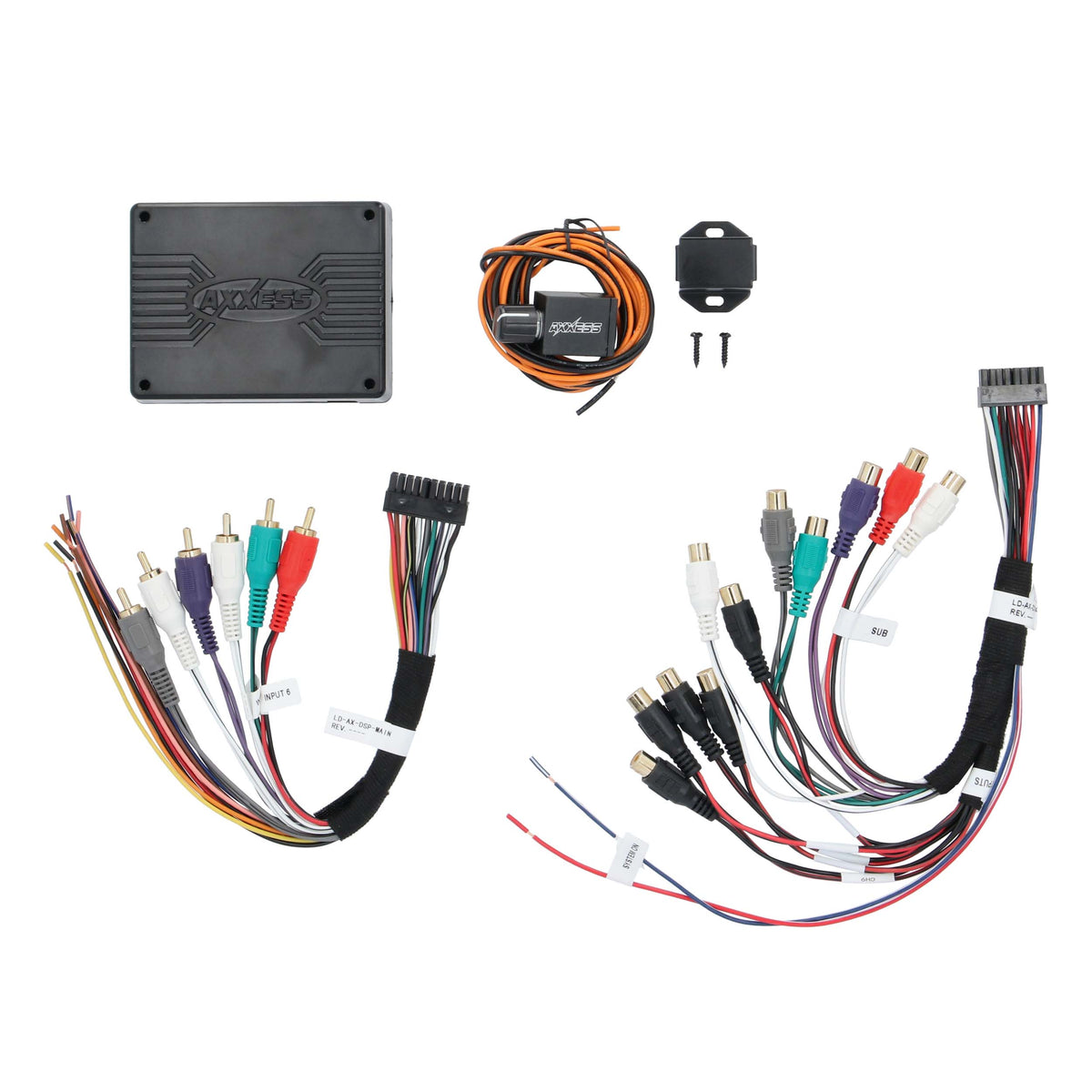

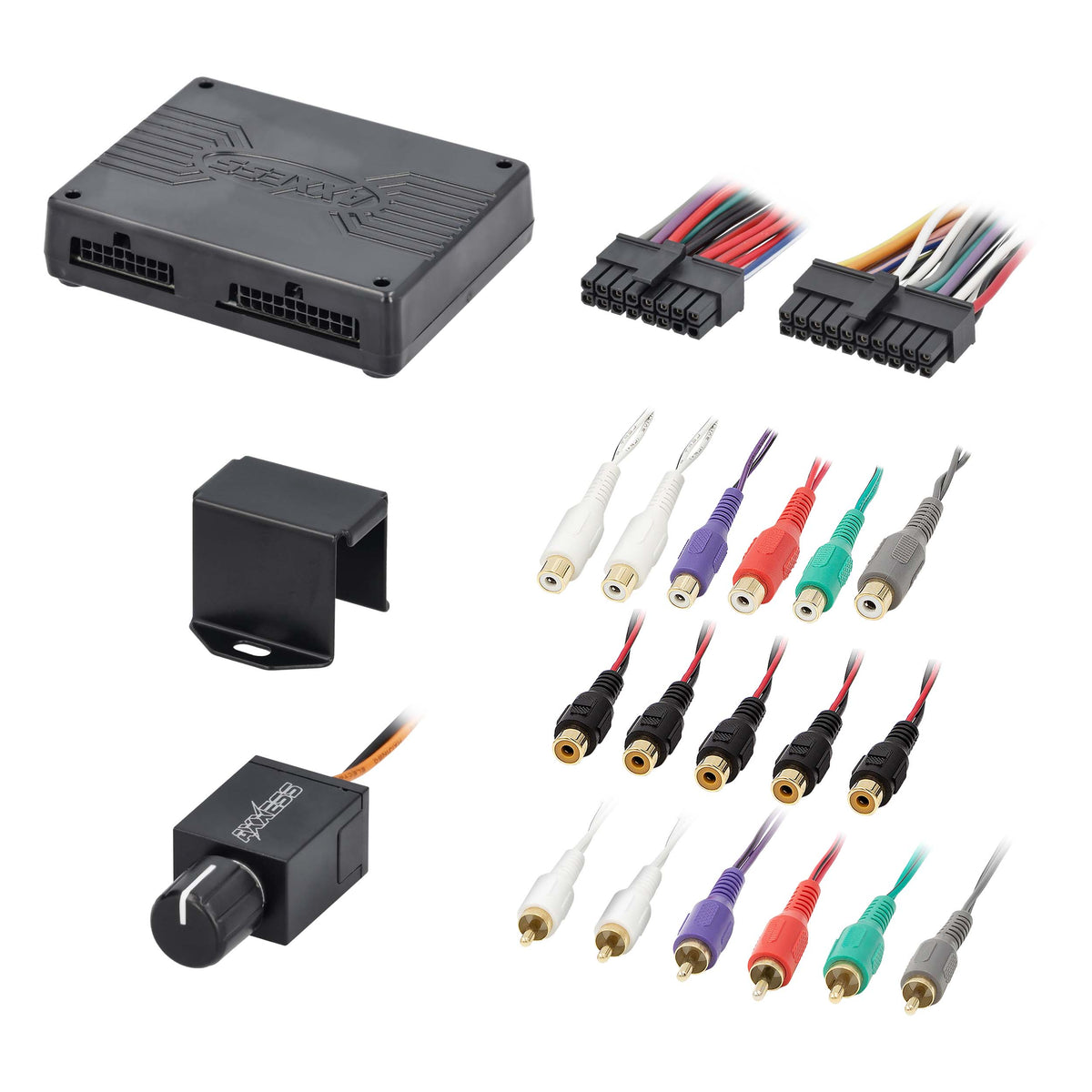

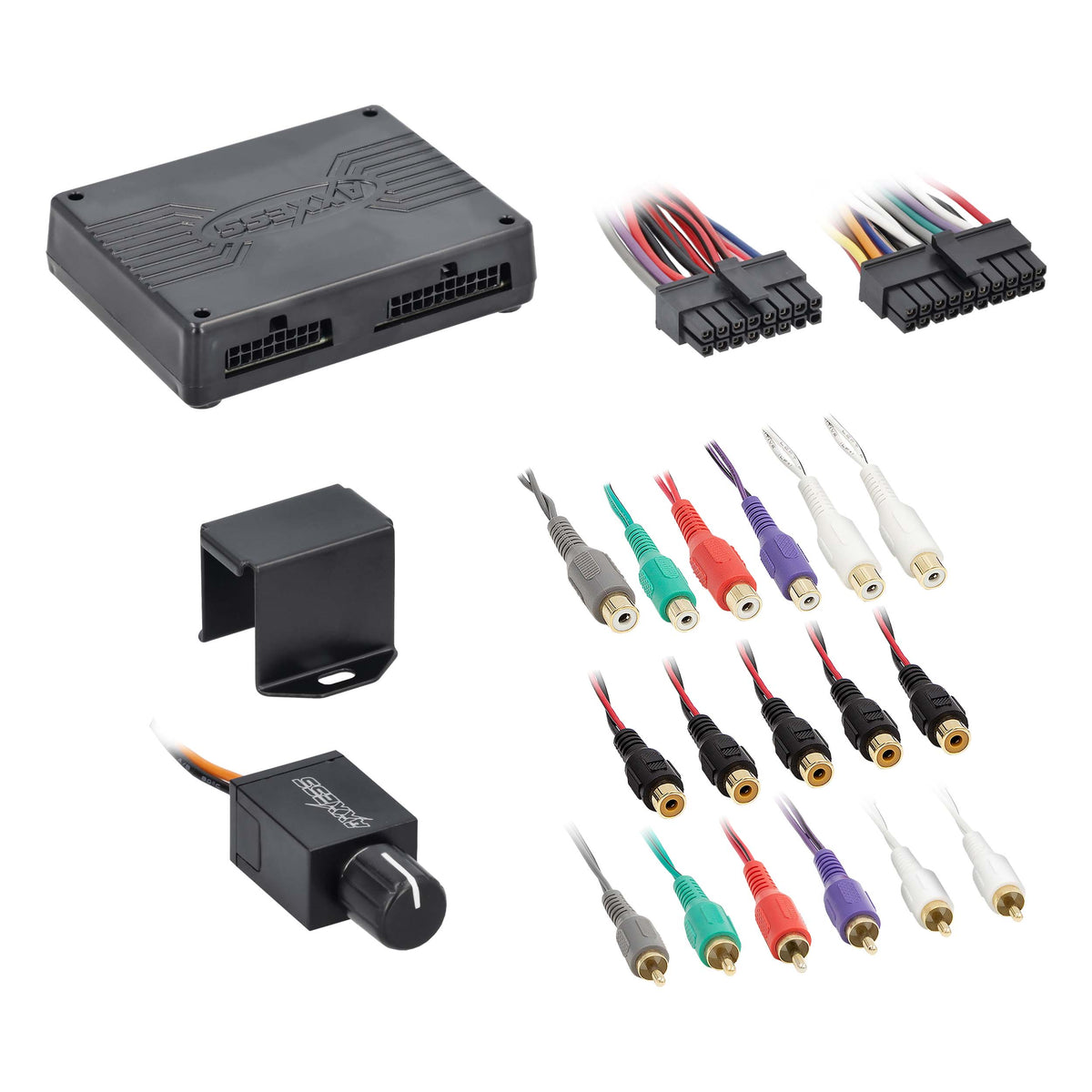

Includes:
Interface
Harness
U.S. Patent 9,875,078
