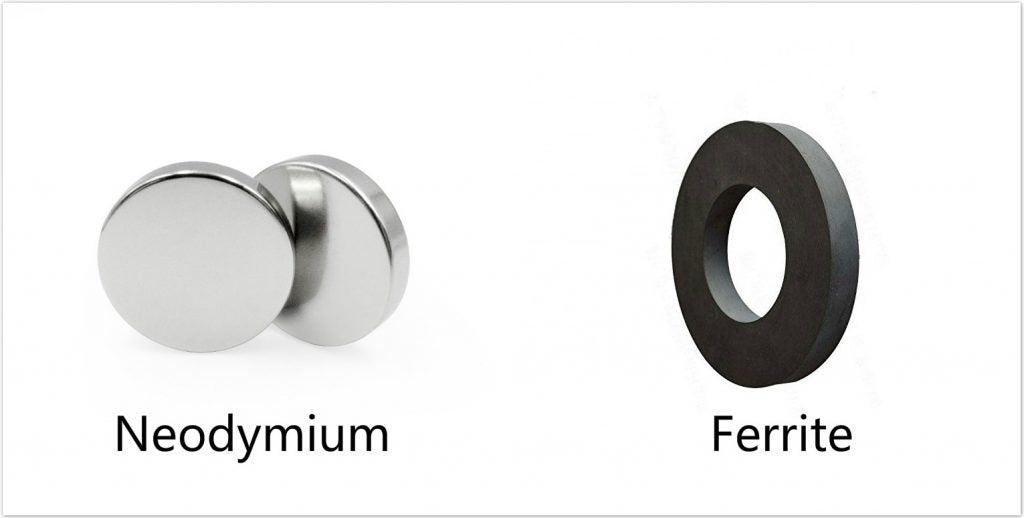

Subwoofer Magnet Technology: Ferrite vs. Neodymium and Y25, Y30 and Y35 Grades Explained
The magnet supplies energy to a magnetic circuit; it does not act alone. Steel geometry, gap dimensions, saturation, coil position and flux symmetry determine how effectively that material becomes useful motor force.
Strontium-ferrite motors
Ceramic ferrite is affordable, stable and resistant to demagnetization at normal loudspeaker temperatures. Its energy density is lower than neodymium, so large slugs are common. Weight can be acceptable in a trunk but significant in competition walls or mobile applications.
Neodymium motors
Neodymium offers far greater energy density, allowing compact, light motors with strong flux. It costs more and requires thermal design because some grades lose strength as temperature rises. Protective plating and corrosion control are important.
What Y grades describe
Y25, Y30 and Y35 are common ferrite material grade designations associated with magnetic properties such as remanence and maximum energy product. Higher designation generally permits more magnetic energy from a given volume, but supplier standards and exact suffixes matter.
Higher grade does not guarantee a better subwoofer
If steel parts saturate, the gap geometry is poor or the coil is mismatched, stronger material may add little usable BL. Conversely, an efficient magnetic circuit can outperform a larger but poorly utilized stack.
Magnet weight myths
A heavier motor may contain more ferrite, thicker steel or simply larger dimensions. It does not directly reveal gap flux, force factor, linearity or thermal performance. BL curves and system design are more informative.
Temperature behavior
Voice-coil heat raises resistance and reduces current. Magnet temperature can also change flux. Ferrite and neodymium respond differently, and neodymium grade selection determines safe temperature range. Cooling matters regardless of magnet type.
Practical selection
Choose neodymium when weight and packaging justify cost. Choose ferrite when cost, stability and mass are acceptable. Evaluate complete parameters, excursion behavior and thermal testing rather than buying the largest visible magnet.
Installation and testing checklist
| Checkpoint | What to verify |
|---|---|
| Compatibility | Source output type, receiving input type and allowable voltage range match. |
| Routing | Signal wiring is protected, secured and separated from likely interference sources. |
| Termination | Connectors fit firmly without excessive force; no cable weight hangs from a jack. |
| Signal | Every channel is identified, clean and unclipped at the intended source level. |
| Final test | Polarity, channel assignment, noise floor and operation are verified with the vehicle running. |
Frequently asked questions
Is neodymium stronger than ferrite?
Per unit volume, generally yes, but completed motor performance depends on the magnetic circuit.
Is Y35 automatically better than Y30?
It offers higher material capability, not guaranteed driver superiority.
Can heat permanently weaken magnets?
Excess temperature can cause irreversible loss, especially if magnet grade is inappropriate.
Why stack multiple ferrite slugs?
To supply more magnetic potential where the steel circuit and gap can use it.
Does magnet size determine watts?
No. Power handling is mainly thermal and mechanical, not a magnet-weight rating.
