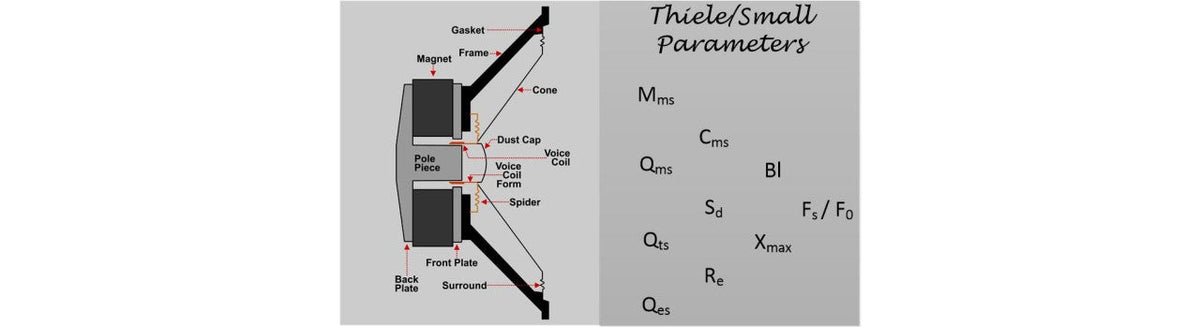

Thiele/Small Parameters Explained: How Subwoofer Specifications Predict Real Performance
Thiele/Small parameters are a compact mathematical description of a driver near small-signal operation. They allow enclosure behavior to be modeled, but they do not fully describe high-power heating, excursion compression, suspension asymmetry or subjective quality.
Fs: free-air resonance
Fs is the frequency where moving mass and suspension compliance resonate in free air. A low Fs can support deep extension, but it does not guarantee deep bass without suitable Q, Vas, excursion and enclosure.
Qes, Qms and Qts
Qes describes electrical damping from the motor, Qms mechanical damping from suspension and losses, and Qts their combined result. Because the damping mechanisms combine reciprocally, Qts is lower than either component. Qts strongly influences enclosure alignment.
Vas and Cms
Cms is suspension compliance: how readily it moves per unit force. Vas expresses that compliance as an equivalent volume of air having the same springiness relative to cone area. A large Vas often points toward a compliant suspension or large cone area—not automatically a required box size.
Re and Le
Re is DC voice-coil resistance and is normally below nominal impedance. Le is voice-coil inductance, which contributes to rising impedance and upper-frequency behavior. Shorting rings can reduce inductance and its variation.
BL and motor force
BL is magnetic flux density multiplied by conductor length in the gap and represents force factor. Force equals BL times current. A high BL can provide strong electrical control, but moving mass, resistance, geometry and BL linearity determine the final behavior.
Mms, Sd and displacement
Mms is moving mass including the air load used by the measurement convention. Sd is effective piston area. Linear volume displacement is commonly approximated as Sd × Xmax; doubling cone area or excursion doubles displacement before other limits.
Xmax and sensitivity
Xmax estimates one-way linear travel under a stated definition. Sensitivity is output for a stated voltage or power and distance. Voltage sensitivity can favor low-impedance drivers, so confirm the test basis. Deep extension, compact boxes and high efficiency cannot all be maximized simultaneously.
Real-life sealed example
Two drivers share the same diameter and Fs. Driver A has Qts 0.38 and moderate Vas; Driver B has Qts 0.70 and large Vas. In the same sealed box they will not produce the same Qtc, response or transient behavior. Modeling uses the complete set.
Real-life vented example
A driver with strong motor, adequate excursion and suitable Q may work efficiently in a vented alignment, but port area, tuning and box volume determine velocity and unloading. T/S data starts the design; large-signal simulation and construction finish it.
What T/S data cannot promise
Small-signal parameters do not guarantee low distortion at full stroke, quiet suspension, thermal endurance or manufacturing consistency. Use verified parameters, impedance measurements and high-power behavior where available.
