12 Volt Encyclopedia · Volume V · Article 8
Efficiency Bandwidth Product Explained: What EBP Can—and Cannot—Tell You
EBP is a quick ratio, not an enclosure-design verdict. It compares free-air resonance with electrical damping and can suggest tendencies, but it ignores most of the information needed to predict excursion, response, port behavior and output.
The formula
Efficiency Bandwidth Product is EBP = Fs ÷ Qes. A driver with Fs 30 Hz and Qes 0.40 has EBP 75. A driver with Fs 24 Hz and Qes 0.60 has EBP 40.

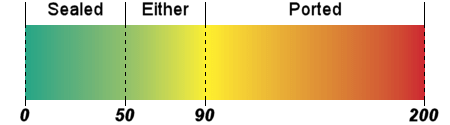

Traditional rules of thumb
Older guidance often treats low EBP values as sealed-friendly, high values as vented-friendly and the middle as usable either way. Common boundaries near 50 and 100 vary by source. These are screening suggestions, not physical prohibitions.
Why the ratio has meaning
Higher Fs or lower Qes raises EBP, indicating stronger electrical damping relative to resonance. That tendency can support efficient vented behavior. Lower EBP may align with drivers suited to sealed response, but the full parameter set decides.
What EBP ignores
It does not contain Vas, Sd, Xmax, Le, thermal limits, box size, desired tuning, port area, cabin gain or power. Two drivers with EBP 75 can require very different enclosures and produce very different output.
Example of a misleading shortcut
A high-EBP driver with limited excursion may model well around vent tuning yet exceed travel below it. Calling it “ported” without designing an infrasonic filter would be incomplete and potentially damaging.
Use EBP correctly
Use it to form an early hypothesis. Then model sealed and vented alignments using measured T/S data, apply real power, examine cone excursion and port velocity, and evaluate the vehicle’s intended bandwidth.
The final decision
Choose the alignment that satisfies size, extension, output, group delay, protection and construction goals. A successful enclosure is not validated by winning an EBP argument; it is validated by predictable performance.
Installation and testing checklist
| Checkpoint | What to verify |
|---|---|
| Compatibility | Source output type, receiving input type and allowable voltage range match. |
| Routing | Signal wiring is protected, secured and separated from likely interference sources. |
| Termination | Connectors fit firmly without excessive force; no cable weight hangs from a jack. |
| Signal | Every channel is identified, clean and unclipped at the intended source level. |
| Final test | Polarity, channel assignment, noise floor and operation are verified with the vehicle running. |
Frequently asked questions
What EBP means sealed?
Low values are traditionally associated with sealed alignments, but no hard boundary decides suitability.
Can EBP choose port tuning?
No. It provides no tuning frequency or port geometry.
Why use Qes instead of Qts?
EBP specifically compares resonance with electrical damping.
Is a middle EBP driver universal?
Not necessarily; other parameters may impose clear constraints.
Should I ignore EBP?
No. Treat it as one quick clue, then perform complete modeling.
