12 Volt Encyclopedia · Volume V · Article 5
Subwoofer Materials Explained: Paper vs. Carbon Fiber, Rubber vs. Foam and Nomex vs. Poly-Cotton
Material debates become misleading when one ingredient is treated as the entire recipe. Geometry, thickness, coating, resin, fiber orientation, bonding and total moving mass determine how a material behaves in the finished driver.
Paper and pulp cones
Treated paper offers excellent stiffness, low mass and internal damping at reasonable cost. Formulations vary widely. Moisture-resistant coatings improve durability, while excessive coating adds mass. “Paper” can describe anything from basic pulp to sophisticated fiber blends.

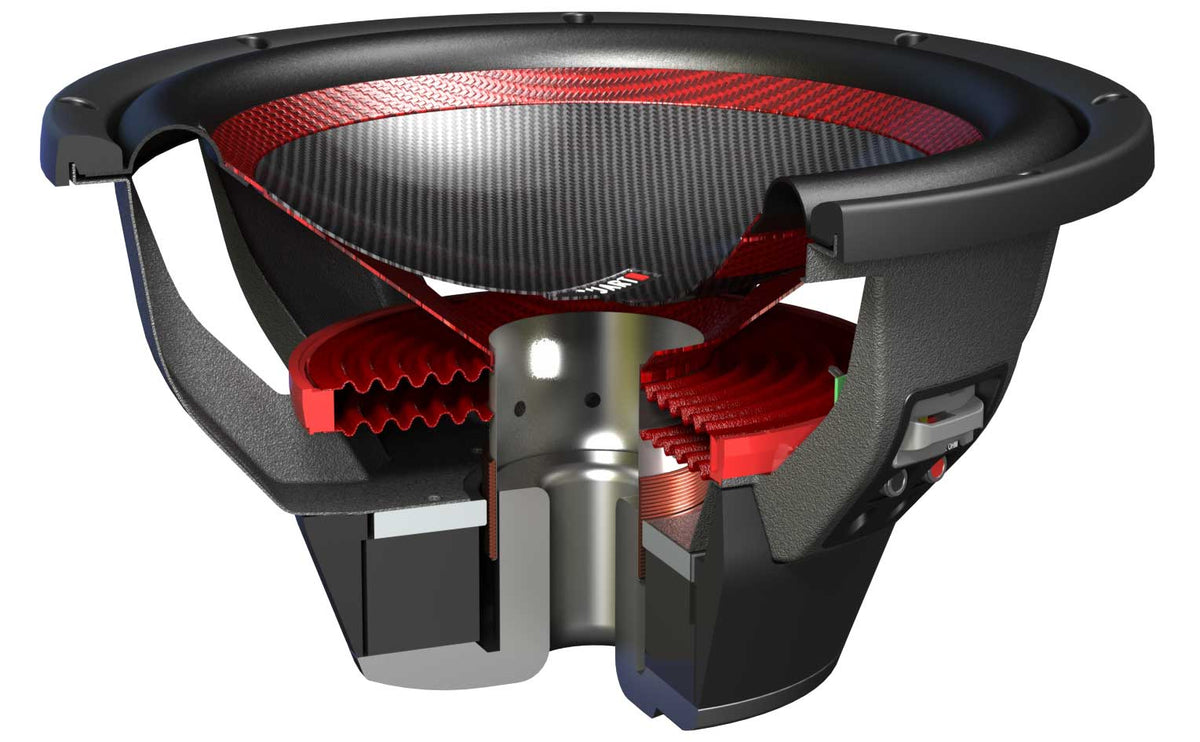

Carbon-fiber and composite cones
Carbon fiber can provide high stiffness-to-mass ratio, but layup and resin determine behavior. A cosmetic woven skin is not the same as a structural laminate. Very rigid cones move breakup higher but may require careful damping when breakup occurs.
Aluminum and molded polymers
Metal cones can be rigid and consistent but may exhibit pronounced resonances. Polypropylene and molded composites resist moisture and can be well damped. No family owns sound quality; each requires a complete matching design.
Rubber surrounds
Rubber offers environmental stability, damping and long fatigue life when properly formulated. It may be heavier than foam and its compliance changes with formulation and temperature. Large rolls must still remain stable laterally.
Foam surrounds
Foam can be light, compliant and efficient, with geometry tailored for excursion. Modern formulations vary greatly in UV, ozone and moisture durability. Old examples that deteriorated do not describe every current foam.
Nomex spiders
Nomex-based fabrics are valued for heat resistance, strength and consistency. Resin treatment and weave establish compliance. The name does not guarantee a particular stiffness or sound.
Poly-cotton spiders
Polyester/cotton blends can provide controlled compliance and damping across many designs. Quality varies with weave, resin and forming. Comparing spider materials requires actual compliance, symmetry, fatigue and temperature data.
Select by system behavior
Judge mass, stiffness, damping, environmental exposure, excursion, fatigue and bond quality together. A well-engineered paper-and-foam assembly can outperform a poorly executed exotic composite system.
Installation and testing checklist
| Checkpoint | What to verify |
|---|---|
| Compatibility | Source output type, receiving input type and allowable voltage range match. |
| Routing | Signal wiring is protected, secured and separated from likely interference sources. |
| Termination | Connectors fit firmly without excessive force; no cable weight hangs from a jack. |
| Signal | Every channel is identified, clean and unclipped at the intended source level. |
| Final test | Polarity, channel assignment, noise floor and operation are verified with the vehicle running. |
Frequently asked questions
Is carbon fiber always louder?
No. Output depends on displacement, efficiency, motor and enclosure.
Does paper mean cheap?
No. Advanced pulp formulations are used in excellent drivers.
Will foam always rot?
Not necessarily; modern chemistry and exposure conditions vary.
Is Nomex always stiffer?
No. Geometry and resin dominate final spider compliance.
Which surround is best for extreme excursion?
The one whose geometry and material remain stable through the required travel.
