Passive vs. Active Crossovers in Component Speaker Systems
Passive and active crossovers perform the same broad assignment—sending appropriate frequencies to each driver—but they operate at different points in the signal chain. That difference changes efficiency, control, amplifier-channel requirements and risk.
How passive networks operate

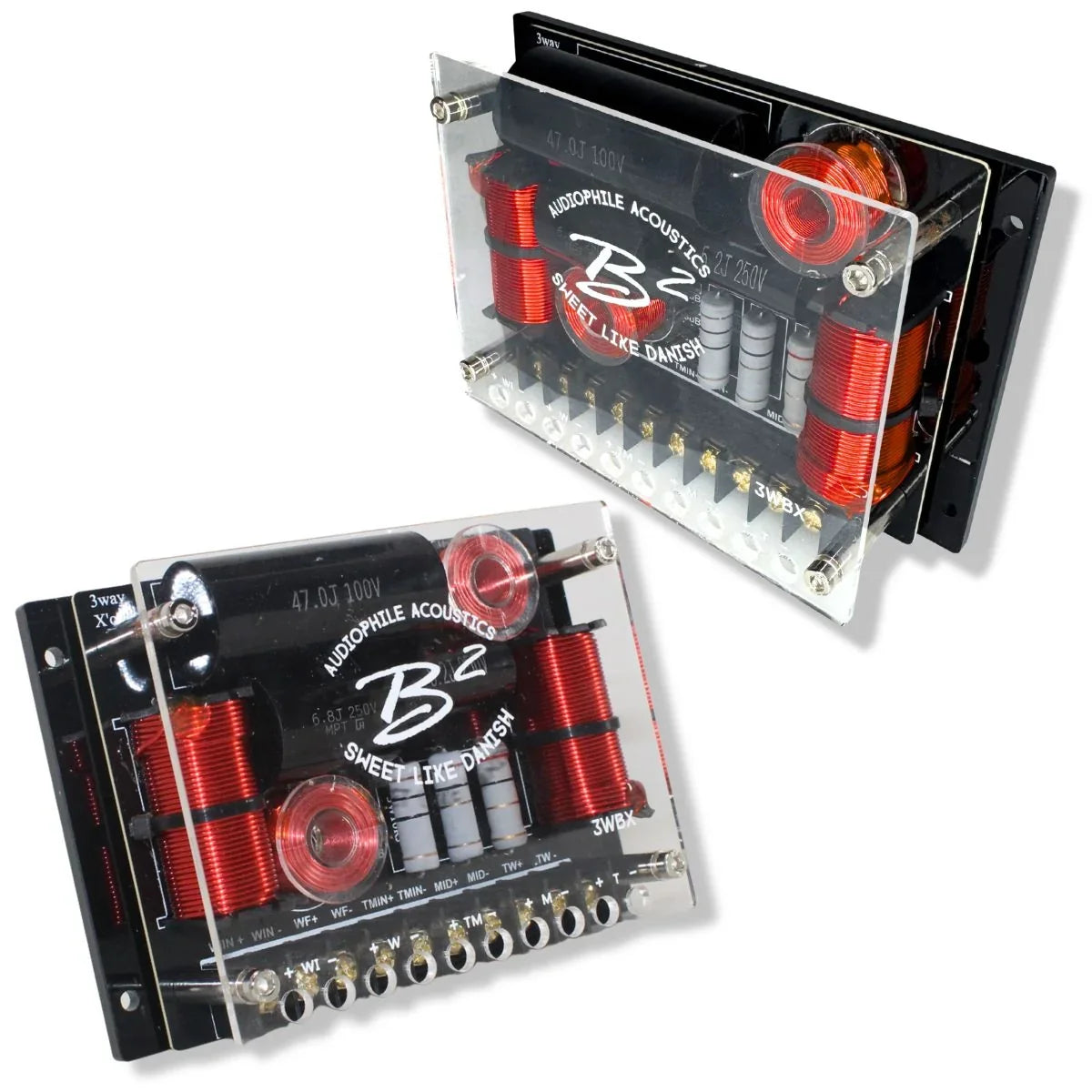

Installed after the amplifier, passive networks use capacitors, inductors and resistors at speaker level. Capacitors oppose low-frequency current, inductors oppose high-frequency current, and resistors shape level or impedance. Components must carry real current and dissipate heat.
Impedance changes the filter
A passive filter is calculated around driver impedance, which varies with frequency. Replacing the intended tweeter with another nominally four-ohm model can shift crossover behavior because its actual curve and sensitivity differ. The network and drivers form one engineered system.
More than frequency division
A quality network may equalize breakup, pad tweeter level, compensate baffle effects, protect against overload and align acoustic slopes. Judging it only by component count misses the purpose of those parts.
How active filtering works
The DSP divides low-level signal before amplification. Each driver receives a dedicated amplifier channel containing only its assigned band. No large passive inductor consumes woofer power, and settings can be changed without replacing components.
Active control and responsibility
Independent delay, level, EQ, slope and polarity allow precise integration. The same control removes passive protection. Turn-on pops, wrong routing or an accidental full-range signal can reach a tweeter directly.
Passive bi-amping
Some passive networks provide separate inputs for woofer and tweeter sections. Separate amplifier channels may improve level flexibility, but the passive filters still determine division. This is not the same as fully active operation.
Converting a set to active
Obtain driver limits, bypass the passive network completely, begin with conservative high-pass settings, disable unused processing and verify routing at very low level. Never assume the passive network’s printed frequency equals the required DSP setting because acoustic and electrical slopes differ.
Which approach fits whom
Passive systems offer engineered protection and efficient installation. Active systems offer maximum adjustability and vehicle-specific correction. The better choice is the one that can be installed, measured and maintained correctly.
