Tweeter Technology Explained: Silk, Mylar, Aluminum and Titanium Domes
Tweeter sound cannot be predicted from one material word. The diaphragm’s shape, thickness, coating, suspension, motor, rear chamber, waveguide and crossover determine where it remains pistonic, where it resonates and how energy reaches the listener.
What the diaphragm must do
A tweeter diaphragm accelerates thousands of times per second while remaining light, rigid enough to resist deformation and damped enough to control resonance. Those goals conflict: increasing stiffness can expose sharper breakup, while adding damping or mass can reduce efficiency and extension.
Silk and fabric domes
Fabric domes are often impregnated or coated to control stiffness and damping. They can produce smooth breakup behavior, which contributes to their reputation for forgiving sound. The coating and motor matter so much that two “silk” tweeters can behave very differently.
Mylar and polymer diaphragms
Polymer films can be light, consistent, moisture-resistant and inexpensive to form. They are common in compact factory and budget designs, but sophisticated polymer tweeters also exist. Material cost is not a direct sound-quality scale.
Aluminum domes
Aluminum provides high stiffness at low mass and can extend cleanly before a defined breakup region. If that resonance is not controlled mechanically or by crossover, it may become audible. Properly engineered aluminum is not inherently harsh.

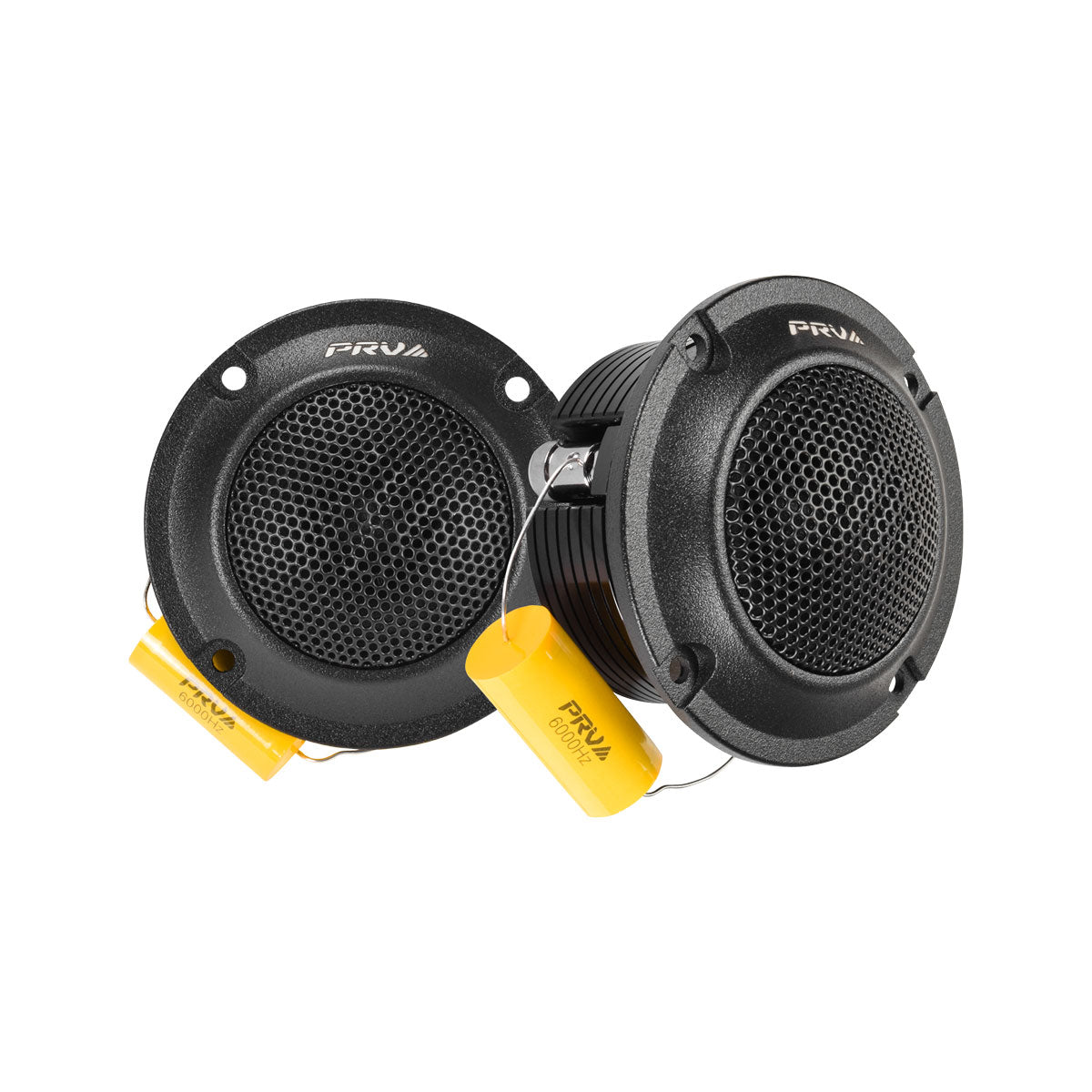

Titanium diaphragms
Titanium combines strength, heat tolerance and stiffness and is common in high-output domes and compression drivers. It can support strong dynamics, yet geometry and damping determine resonance. The word titanium does not guarantee aggression or accuracy.
Motor and rear chamber
Ferrofluid, venting, voice-coil geometry and rear-chamber volume influence resonance, cooling and compression. A well-controlled motor can matter more than the dome material shoppers can see.
Waveguides and faceplates
The surrounding shape controls loading and dispersion. A waveguide can raise efficiency near crossover, reduce directivity mismatch with the midrange and alter required EQ. Flush mounting versus factory grilles also changes response.
Select by measured behavior
Compare usable response, distortion, sensitivity, dispersion and safe crossover requirements. Then evaluate how the tweeter behaves at the intended listening angle. Choose the completed design, not a material stereotype.
Installation and testing checklist
| Checkpoint | What to verify |
|---|---|
| Compatibility | Source output type, receiving input type and allowable voltage range match. |
| Routing | Signal wiring is protected, secured and separated from likely interference sources. |
| Termination | Connectors fit firmly without excessive force; no cable weight hangs from a jack. |
| Signal | Every channel is identified, clean and unclipped at the intended source level. |
| Final test | Polarity, channel assignment, noise floor and operation are verified with the vehicle running. |
Frequently asked questions
Is silk always smoother?
No. It often has useful damping, but complete design controls response.
Is titanium always louder?
Not automatically; motor and loading determine sensitivity.
Can metal domes sound warm?
Yes, when breakup, response and installation are controlled.
What is tweeter breakup?
A region where the diaphragm stops moving as one shape and develops resonant modes.
Why does angle matter?
High-frequency dispersion narrows and vehicle reflections change with aiming.
