Super Tweeters and Compression Horn Drivers: How Pro-Audio High Frequencies Work
High-output treble is created by acoustic loading and controlled radiation, not merely by making a normal dome tweeter stronger. Super tweeters and compression horns solve projection problems that conventional component tweeters were never intended to solve.

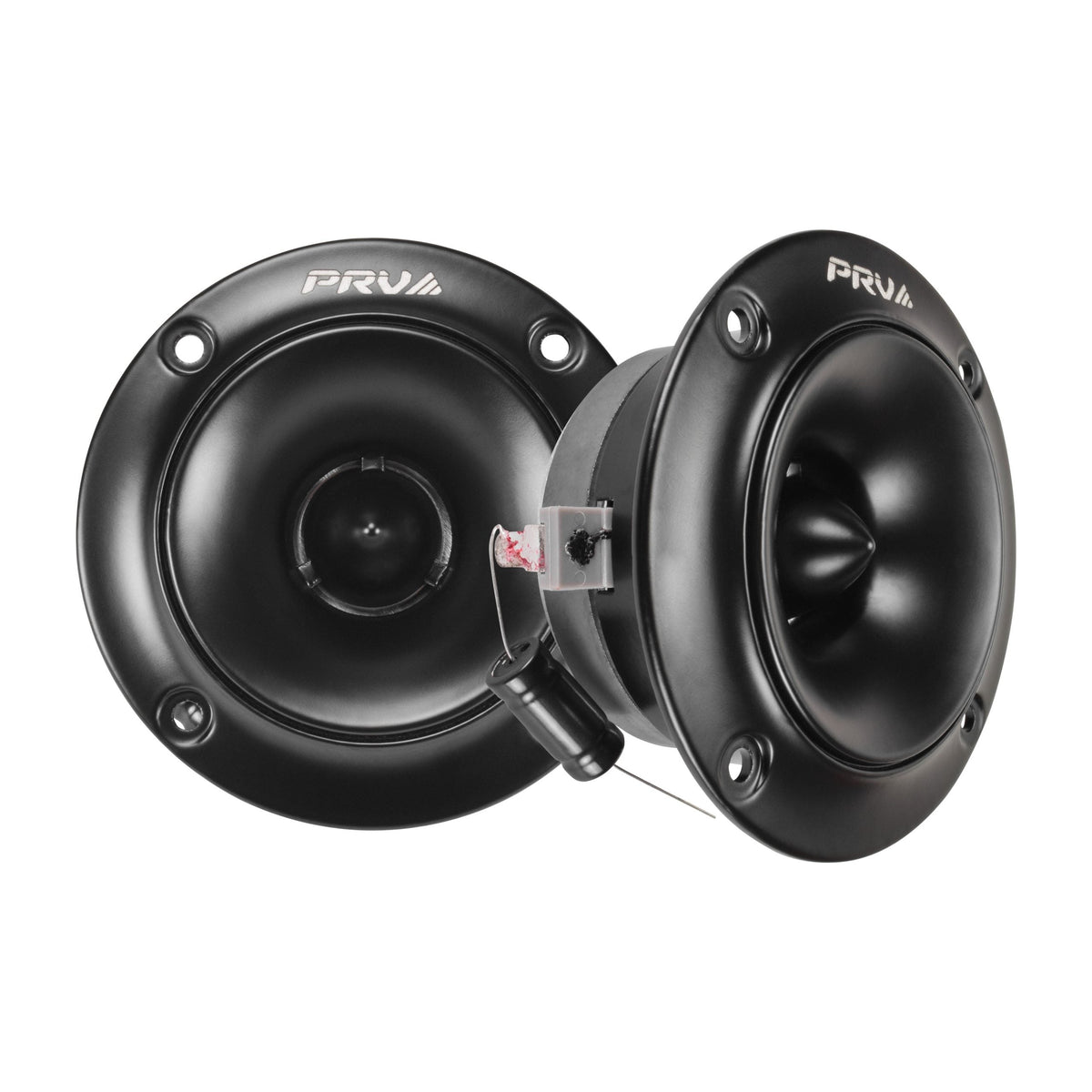

Super tweeters
Bullet and super tweeters use light diaphragms, compact radiators and often shallow horn loading to produce very high upper-frequency output. Many are intended to cross relatively high, leaving vocal-range work to a midrange.
Compression-driver architecture
A diaphragm operates in a small chamber and sends sound through shaped phase-plug passages into a narrow throat. The horn transforms that high-pressure, low-volume-velocity output into efficient radiation into the air.
The phase plug
Passages equalize path lengths from different parts of the diaphragm and prevent destructive interaction before the throat. This is not the same component as a visible phase plug on a cone midrange.
Horn and waveguide behavior
Flare rate, throat, mouth and coverage angle determine loading and directivity. A horn too small for its crossover loses pattern control and loading. In a vehicle, narrow patterns can be helpful or painfully uneven depending on aim.
Why sensitivity is high
Acoustic loading improves coupling, strong motors and light diaphragms require little movement, and bandwidth avoids low-frequency excursion. Ratings above conventional tweeters are therefore possible, but the comparison must use the same measurement conditions.
Crossover and protection
Compression drivers and super tweeters need appropriately high crossover frequencies and slopes. A capacitor may provide backup protection, but it does not replace complete filtering. Their sensitivity often requires attenuation to match midranges.
Integration in a reflective cabin
Glass produces strong early reflections, and high sensitivity magnifies small tuning errors. Aim, delay, level and EQ are essential. More treble output can make detail less intelligible if reflections dominate.
When to choose them
Use them for high-output systems, open vehicles or intentional pro-audio voicing. A conventional dome is often easier for near-field SQ systems where smooth wide dispersion and low listening fatigue matter more than projection.
Installation and testing checklist
| Checkpoint | What to verify |
|---|---|
| Compatibility | Source output type, receiving input type and allowable voltage range match. |
| Routing | Signal wiring is protected, secured and separated from likely interference sources. |
| Termination | Connectors fit firmly without excessive force; no cable weight hangs from a jack. |
| Signal | Every channel is identified, clean and unclipped at the intended source level. |
| Final test | Polarity, channel assignment, noise floor and operation are verified with the vehicle running. |
Frequently asked questions
Is a horn tweeter the same as a compression driver?
Not always. Some tweeters use shallow horn shapes without a true compression chamber.
Why are they so loud per watt?
Acoustic loading, low moving mass and restricted bandwidth increase efficiency.
Can a compression driver play midrange?
Some can, but horn size and driver design determine the safe lower limit.
Do super tweeters add detail?
Only when level and integration are correct; excess output creates glare.
Should they use passive protection?
A backup capacitor is often prudent in addition to active filtering.
