12 Volt Encyclopedia · Volume VI · Article 3
Component Speaker Systems Explained: 2-Way vs. 3-Way and Fully Active Systems
Component speakers separate drivers so each can be placed and filtered for its job. That freedom can create a higher soundstage and lower distortion, but it also creates more opportunities for path-length, phase and crossover errors.
The two-way component system

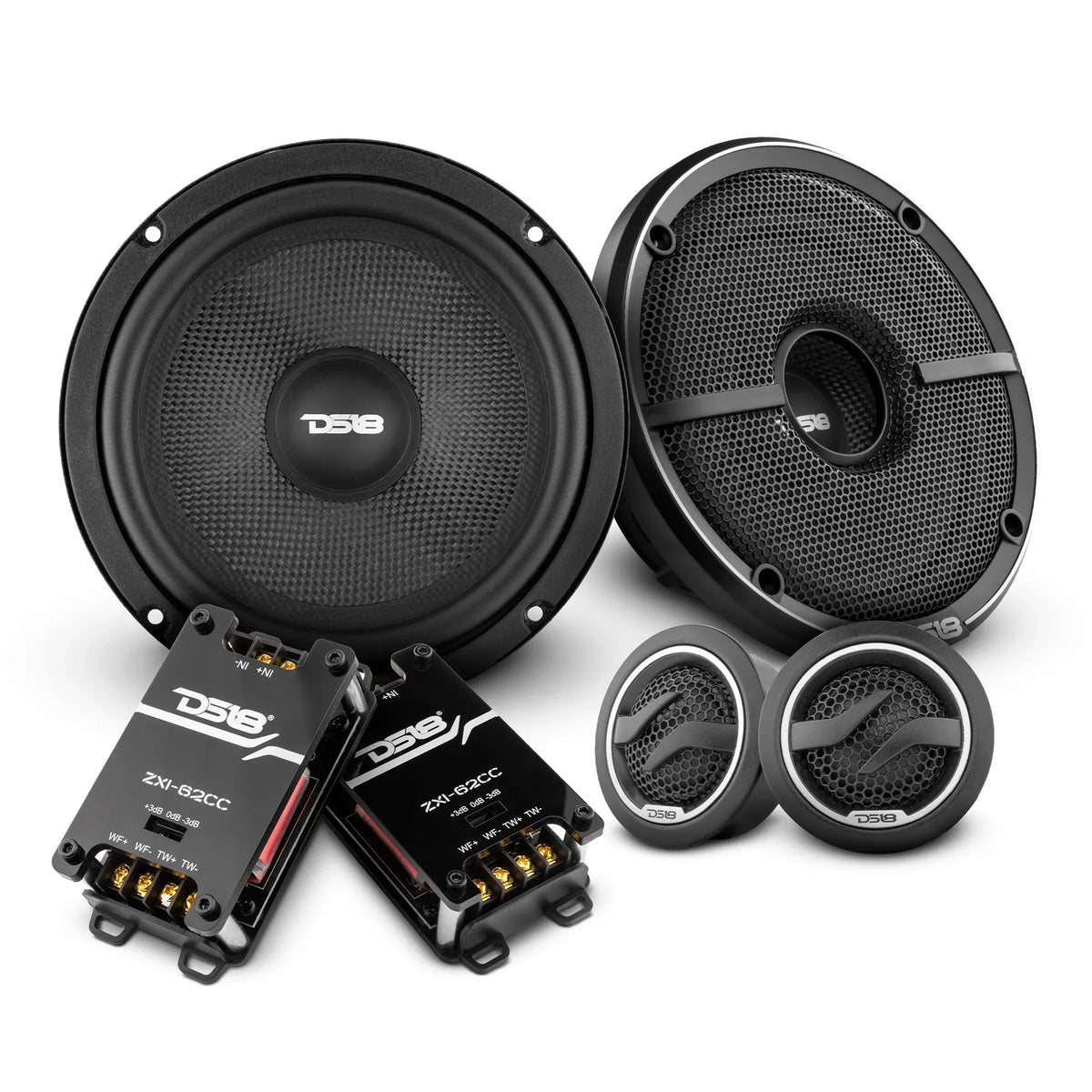

A typical set uses a 6.5-inch woofer and separate tweeter. The woofer must cover midbass and enough midrange to meet the tweeter. Simplicity, lower channel count and fewer crossover regions make a strong two-way difficult to beat when installed carefully.
The three-way advantage
Adding a dedicated midrange releases the door woofer from upper-midrange duties and lets the tweeter cross higher. The midrange can be positioned near the tweeter, improving vocal placement and reducing the need for a large woofer to reproduce short wavelengths off-axis.
The three-way cost
More drivers require more mounting, channels or a more complex passive network. There are two crossover regions to align instead of one. Poor choices can produce a disconnected stage even when every individual speaker is expensive.
Passive component sets
The supplied network is engineered around the included drivers and assumed mounting conditions. It protects the tweeter and shapes response without requiring a DSP channel for each driver. Its acoustic result still changes with vehicle placement and impedance.
Fully active systems
Each driver receives its own amplifier channel and DSP processing. The tuner controls frequency, slope, level, polarity, delay and EQ independently. That freedom can outperform a passive set, but one wrong high-pass setting can destroy a tweeter.
Physical placement
A-pillars and sail panels can raise the image, yet reflections and obstruction matter. Door woofers benefit from rigid sealed mounting. Keeping midrange and tweeter close often improves integration, though aiming and DSP can support other layouts.
Two-way versus three-way example
If a door woofer becomes directional before it can meet the tweeter, a 3-inch midrange may solve the transition. If the two-way drivers already overlap smoothly and the installation cannot house a midrange properly, adding one may only add cost and complexity.
Choosing by goal
Use two-way for elegant simplicity and strong value. Choose three-way when bandwidth, output, directivity and placement justify it. Choose active only when amplification, DSP knowledge and measurement are available to protect and integrate every driver.
Installation and testing checklist
| Checkpoint | What to verify |
|---|---|
| Compatibility | Source output type, receiving input type and allowable voltage range match. |
| Routing | Signal wiring is protected, secured and separated from likely interference sources. |
| Termination | Connectors fit firmly without excessive force; no cable weight hangs from a jack. |
| Signal | Every channel is identified, clean and unclipped at the intended source level. |
| Final test | Polarity, channel assignment, noise floor and operation are verified with the vehicle running. |
Frequently asked questions
Is three-way automatically more detailed?
No. It provides design options, not guaranteed execution.
How many amplifier channels does active three-way need?
Six for a stereo front stage unless channels are combined by another architecture.
Can passive crossovers be used with a DSP?
Yes; the DSP can process the pair while the passive network divides it.
Why place the midrange near the tweeter?
It reduces path and radiation differences through their crossover.
Can a two-way win an SQ build?
Absolutely. Fewer well-integrated sources can be a major advantage.
