12 Volt Encyclopedia · Volume VI · Article 2

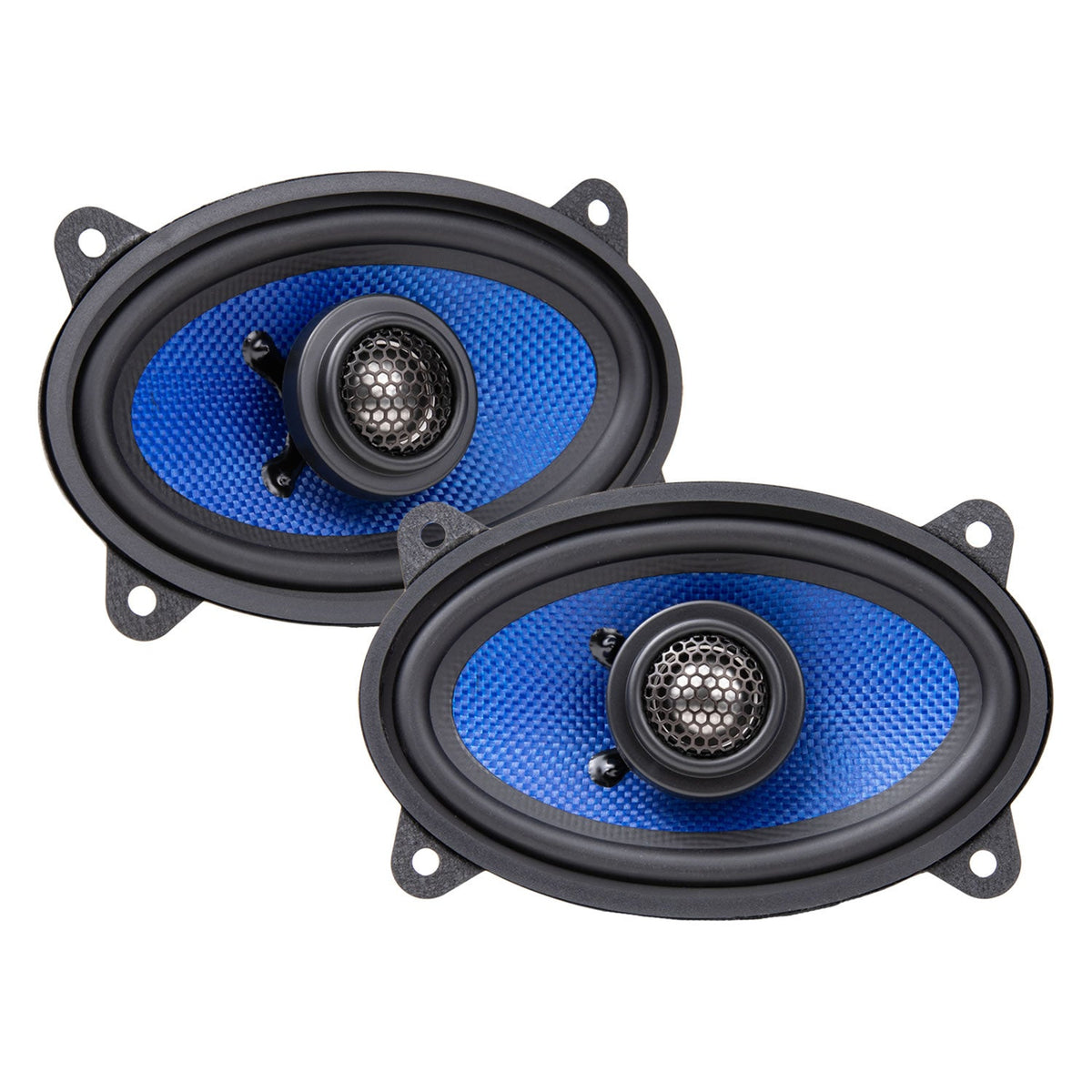

Coaxial Speakers Explained: 2-Way vs. 3-Way, 4-Way and Multi-Way Designs
A coaxial speaker places multiple radiators on one frame so a factory opening can reproduce most of the spectrum. That packaging is convenient, but every added radiator occupies space, needs filtering and changes what the listener actually receives through the factory grille.
The basic two-way coaxial
A woofer handles bass and midrange while a tweeter mounted near its center handles treble. A capacitor may provide simple tweeter protection, or a more complete network may shape both sections. Close physical spacing helps the outputs seem to originate from one location.
What a three-way adds
A three-way coaxial may add a small midrange or super tweeter. In some models it meaningfully divides bandwidth; in others the additional element contributes only a narrow upper region. Driver count printed on the box does not reveal crossover sophistication or acoustic benefit.
Four-way and higher counts
Additional miniature radiators can increase marketing appeal and sometimes broaden output, but crowding creates obstruction and complex interference. A well-engineered two-way can outperform a multi-way speaker whose extra elements overlap without controlled filtering.
Mechanical packaging
Bridge height and tweeter protrusion must clear the factory grille. The basket must clear windows, tracks and connectors. A speaker that fits the cutout can still strike the grille or glass. Measure top-mount depth as carefully as rear depth.
Dispersion and listening angle
Door coaxials often aim at occupants’ legs. High frequencies are directional, so a center-mounted tweeter may lose energy off-axis. Pivoting or angled tweeters can help, but reflections and left/right asymmetry remain.
Soundstage consequences
Treble originating low in the doors can pull the stage downward. Dash coaxials can stage higher but may reflect strongly from glass. Tuning can improve balance, yet location remains an acoustic fact.
Factory power versus amplifier power
High sensitivity can help on radio power, while a stronger motor and coil may support external amplification. RMS ratings do not indicate tonal quality. Verify impedance because some factory systems use two-ohm or unusual loads.
When coaxials are the right answer
They excel when the priority is simple installation, rear fill, limited channels or factory-location restoration. Components become attractive when tweeter placement, active control and staging justify the additional work.
Installation and testing checklist
| Checkpoint | What to verify |
|---|---|
| Compatibility | Source output type, receiving input type and allowable voltage range match. |
| Routing | Signal wiring is protected, secured and separated from likely interference sources. |
| Termination | Connectors fit firmly without excessive force; no cable weight hangs from a jack. |
| Signal | Every channel is identified, clean and unclipped at the intended source level. |
| Final test | Polarity, channel assignment, noise floor and operation are verified with the vehicle running. |
Frequently asked questions
Are 3-way coaxials always better?
No. Driver quality and crossover design matter more than count.
Can a coaxial be amplified?
Yes, within its thermal and mechanical limits.
Why does a replacement hit the grille?
Coaxial tweeters often protrude above the woofer frame.
Do coaxials need crossovers?
They contain some form of frequency division or tweeter protection.
Are coaxials good for sound quality?
Well-designed coaxials can sound excellent when location and tuning support them.
