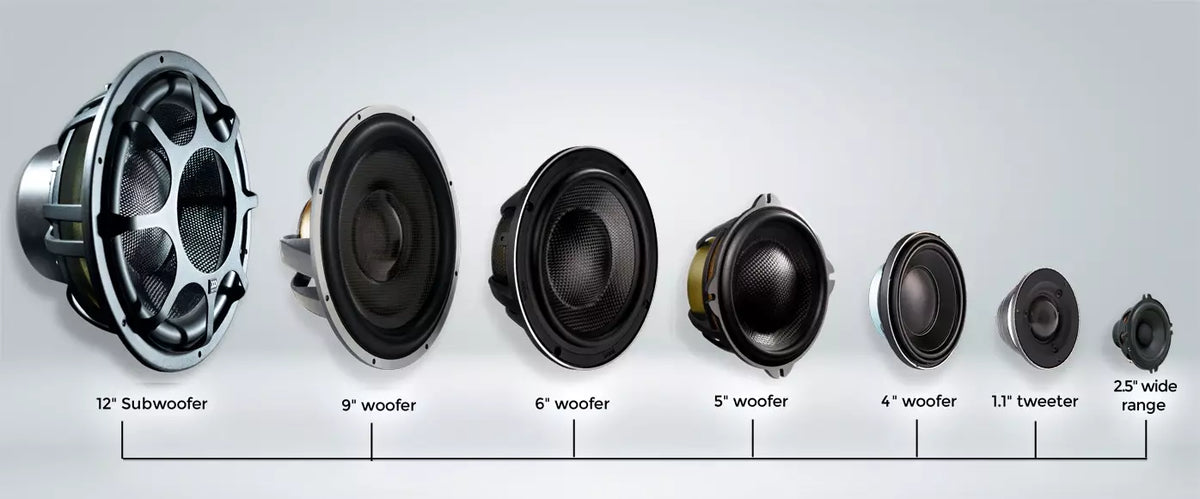

Car Audio Speaker Types Explained: Tweeters, Midranges, Midbass Drivers, Woofers and Wideband Speakers
Speaker labels describe intended jobs, but those jobs come from physics. Diameter, moving mass, resonance, excursion, motor strength and directivity determine whether a driver is comfortable producing deep punch, intelligible vocals or delicate high-frequency detail.
Why one driver cannot do everything well
Bass requires displacement: cone area moving through distance. High frequencies require low moving mass and controlled radiation as wavelength becomes short. A single driver can cover a wide range at moderate output, but demanding deep bass, high sensitivity and wide treble dispersion from one diaphragm creates conflicting requirements.
Woofers and midbass drivers
A door woofer may reproduce upper bass through lower midrange, while a purpose-built midbass emphasizes roughly the 60–300 Hz region with high output and controlled punch. Labels overlap. The useful difference is how low the driver can play at the required volume and how smoothly it hands off to the next driver.
Midrange drivers
Midranges concentrate on the region where voices and instrument identity live. By avoiding deep-bass excursion, they can use smaller, lighter moving systems that reproduce detail and remain controlled into several kilohertz. Their lower crossover still must protect them from frequencies that demand excessive travel.
Wideband or full-range drivers
Small wideband drivers can cover much of the vocal and treble spectrum from one acoustic location, reducing crossover complexity near the most sensitive hearing region. Their compromise is limited bass displacement and increasingly narrow dispersion at the top of their range.
Tweeters and super tweeters
Conventional dome tweeters prioritize smooth high-frequency reproduction and broad dispersion. Super tweeters prioritize output and extreme upper-frequency extension, often for high-efficiency systems. A super tweeter is not simply a “better tweeter”; it is a different solution with different sensitivity and integration demands.
Compression drivers and horns
A compression driver couples a small diaphragm to a horn or waveguide through a throat and phase plug. Acoustic loading produces high efficiency and controlled directivity. The result can project enormous output, but horn size, pattern and crossover behavior must suit the vehicle.
Resonance and usable bandwidth
A driver can produce sound below resonance, but excursion and distortion often rise. At the other end, cone breakup and narrowing dispersion may arrive before output disappears. Safe, useful bandwidth is therefore smaller than a broad published response range.
A real system example
A daily SQ three-way front stage might use a treated 6.5-inch woofer from 70–300 Hz, a 3-inch midrange from 300 Hz–4 kHz and a dome tweeter above 4 kHz. A high-output system may instead use a pro midbass, 6.5-inch midrange and compression horn. Neither layout is automatically superior; each matches a different goal.
Installation and testing checklist
| Checkpoint | What to verify |
|---|---|
| Compatibility | Source output type, receiving input type and allowable voltage range match. |
| Routing | Signal wiring is protected, secured and separated from likely interference sources. |
| Termination | Connectors fit firmly without excessive force; no cable weight hangs from a jack. |
| Signal | Every channel is identified, clean and unclipped at the intended source level. |
| Final test | Polarity, channel assignment, noise floor and operation are verified with the vehicle running. |
Frequently asked questions
Is a midbass just a woofer?
The terms overlap, but midbass usually emphasizes punch and efficiency above sub-bass.
Can a wideband replace a tweeter?
Sometimes, if its extension, dispersion and output satisfy the installation.
Are larger speakers always louder?
Cone area helps, but sensitivity, power, enclosure and bandwidth also matter.
What determines safe crossover frequency?
Resonance, excursion, distortion, power, slope and the target output.
Why use more than two speaker types?
Additional bands can improve bandwidth and directivity, but increase tuning complexity.
