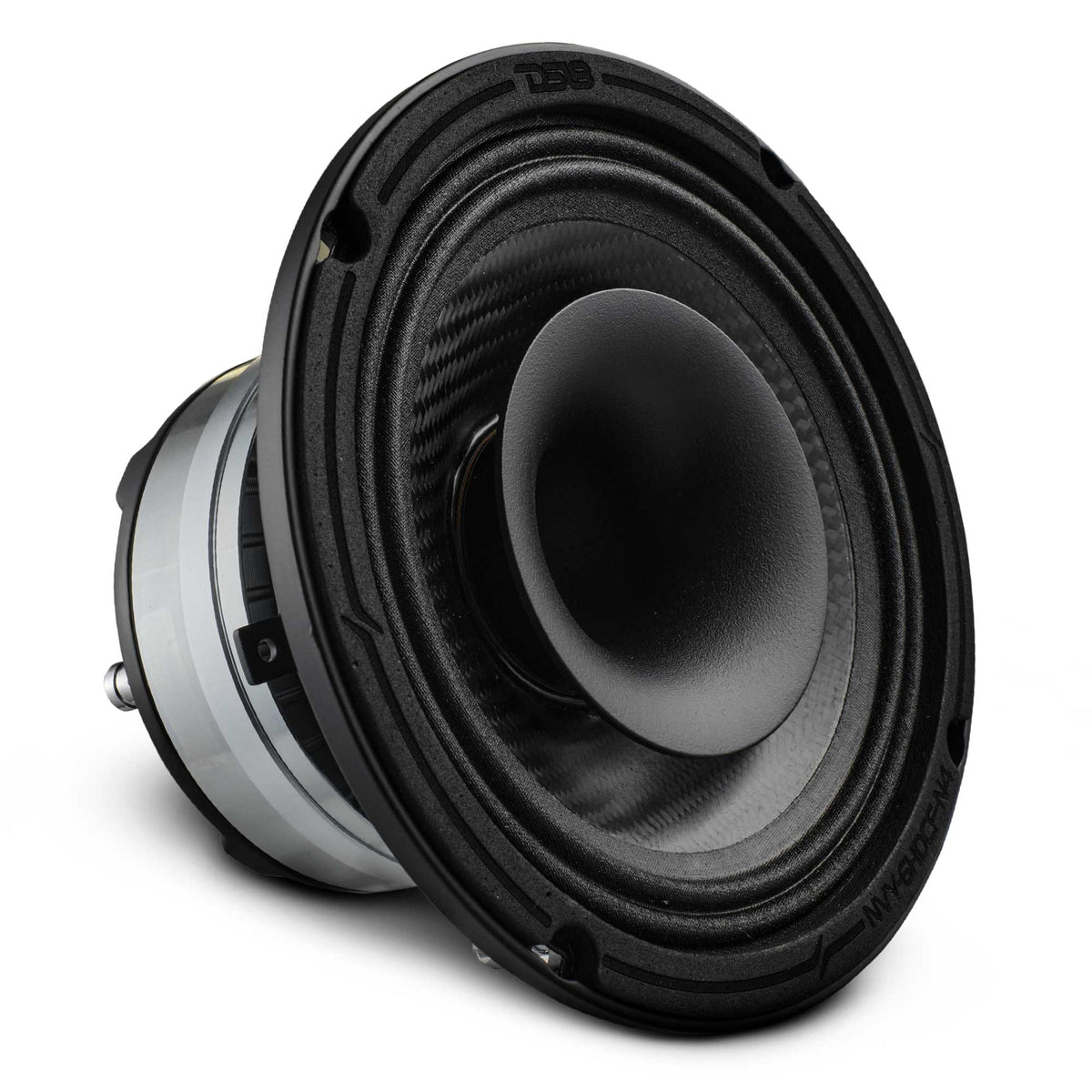

DS18  |  SKU: NVY-6HDCF-N4

6.5" Water Resistant Carbon Fiber Cone Hybrid Loudspeaker With 2" VC Compression Driver and Neodymium Magnet | 300W RMS 4-Ohm

$500.00
Shipping calculated at checkout.

Description

KEY FEATURES

  • Carbon Fiber Cone

    Carbon Fiber Cone

  • Hybrid <br> Loudspeaker

    Hybrid
    Loudspeaker

  • Compression Horn Driver

    Compression Horn Driver

  • Detachable Horn Driver

    Detachable Horn Driver

  • Water-Resistant IP65

    Water-Resistant IP65

  • Neodymium Magnet

    Neodymium Magnet

Rise About It

Take your sound to the next level with the NVY-6HDCF-N4—a high-SPL 6.5-inch hybrid loudspeaker that brings high-impact audio everywhere!

Tuned For Power And Precision

With a 6.5" carbon fiber cone, 2" compression driver, and handling an RMS power of 300W, it delivers high-output volume and clarity at all speeds.

Imagen 1 Imagen 2 Imagen 3 Imagen 4 Imagen 5 Imagen 6 Imagen 7 Imagen 8 Imagen 9 Imagen 10 Imagen 11 Imagen 12 Imagen 13 Imagen 14 Imagen 15 Imagen 16 Imagen 17 Imagen 18 Imagen 19 Imagen 20 Imagen 21 Imagen 22 Imagen 23 Imagen 24 Imagen 25 Imagen 26 Imagen 27 Imagen 28 Imagen 29 Imagen 30 Imagen 31 Imagen 32 Imagen 33 Imagen 34
Made to Move

At its core is a 4-ohm woofer and an 8-ohm neodymium compression driver featuring a Japanese titanium diaphragm, and die-cast aluminum horn for high-frequency projection and clarity.

Built For Extremes

The IP65-rated carbon fiber cone shrugs off the harshest conditions, while the die-cast aluminum basket provides a powerful foundation for long-lasting performance.

  • General Specifications
  • Nominal Diameter: 6.5” / 165mm
  • Nominal Impedance: 4 Ohms (Woofer) / 8 Ohms (Driver)
  • RMS Power Handling (Combined): 300W
  • MAX Power Handling (Combined): 600W
  • Sensitivity (1w/1m) (Combined): 105dB
  • Frequency Response (Combined): 70Hz-20KHz
  • Number of Ways: 2
  • Single
  • Water Resistant Rating: IP65

  • Woofer Specifications
  • RMS Power Handling: 200W
  • MAX Power Handling: 400W
  • Nominal Impedance: 4 Ohms
  • Sensitivity (1w/1m): 96dB
  • Frequency Response: 70Hz-10KHz
  • Recommended Band-Pass Crossover: 120Hz-2000Hz
  • Voice Coil Diameter: 2" / 50.8mm
  • Voice Coil Former Material: KAPTON
  • Winding Material: CCAW
  • Cone Material: Carbon Fiber
  • Surround Material: Treated Cloth
  • Basket Material: Die Cast Aluminum
  • Basket Color/Finish: Black Sandblasted
  • Magnet Material: Neodymium
  • Magnet Size: 110x10mm
  • Magnet Weight: 17.63 Oz

  • Driver Specifications
  • AES Power Handling: 100W
  • Program Power Handling: 200W
  • Nominal Impedance: 8 Ohms
  • Sensitivity (1w/1m): 100dB
  • Frequency Response: 600Hz-20KHz
  • Recommended Hi Pass Crossover: 2000Hz
  • Voice Coil Diameter: 2" / 50.8mm
  • Voice Coil Former Material: KAPTON
  • Winding Material: CCA
  • Diaphragm Material: Titanium from Japan
  • Magnet Material: Neodymium
  • Horn Diameter: 3.2" / 81.9mm
  • Horn Material: Die Cast Aluminum

  • Thiele & Small Parameters
  • Equivalent Volume Vas: 3.97L / 0.14ft3
  • Excursion (one way) Xmax: 3mm
  • Free Air Resonance Fs: 125Hz
  • Mechanical Factor Qms: 7.757
  • Electrical Factor Qes: 0.424
  • Total Factor Qts: 0.402
  • Mechanical Mass Mms: 10.862g
  • Mechanical Compliance Cms: 0.154mm/N
  • BL Factor BL: 8.448
  • Voice Coil Inductance Le: 0.07mH
  • Cone Area Sd: 143.7 cm2
  • DC Resistance Re: 3.6 Ohms

  • Speaker Measurement
  • Overall Diameter: 6.7" / 170mm
  • Overall Depth: 4.15" / 105.5mm
  • Front Mount Baffle Cutout: 5.7" / 145mm
  • Mounting Depth: 3.8" / 97.3mm
  • Motor Diameter: 4.3" / 110mm
