DS18  |  SKU: NVY-6HD-N4

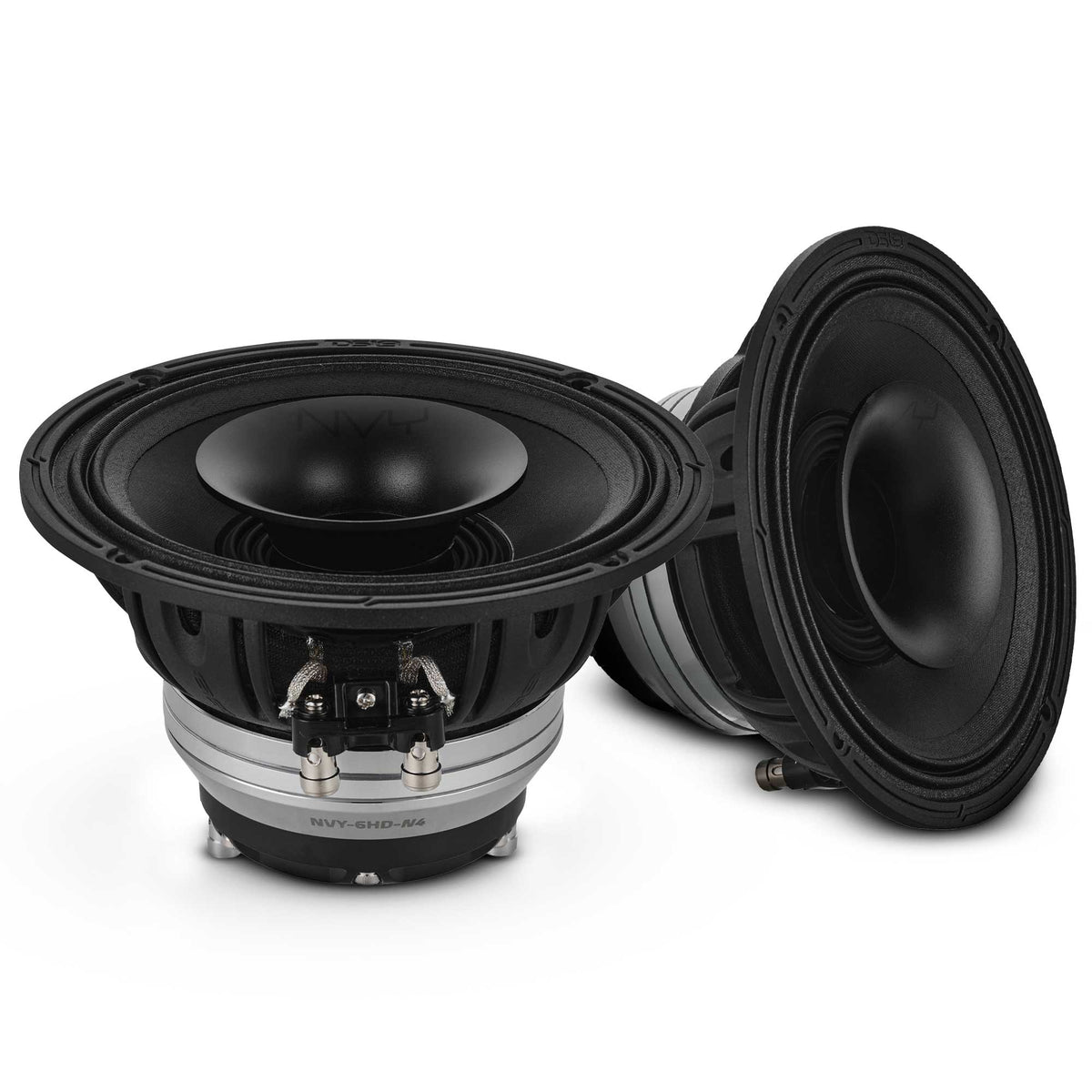

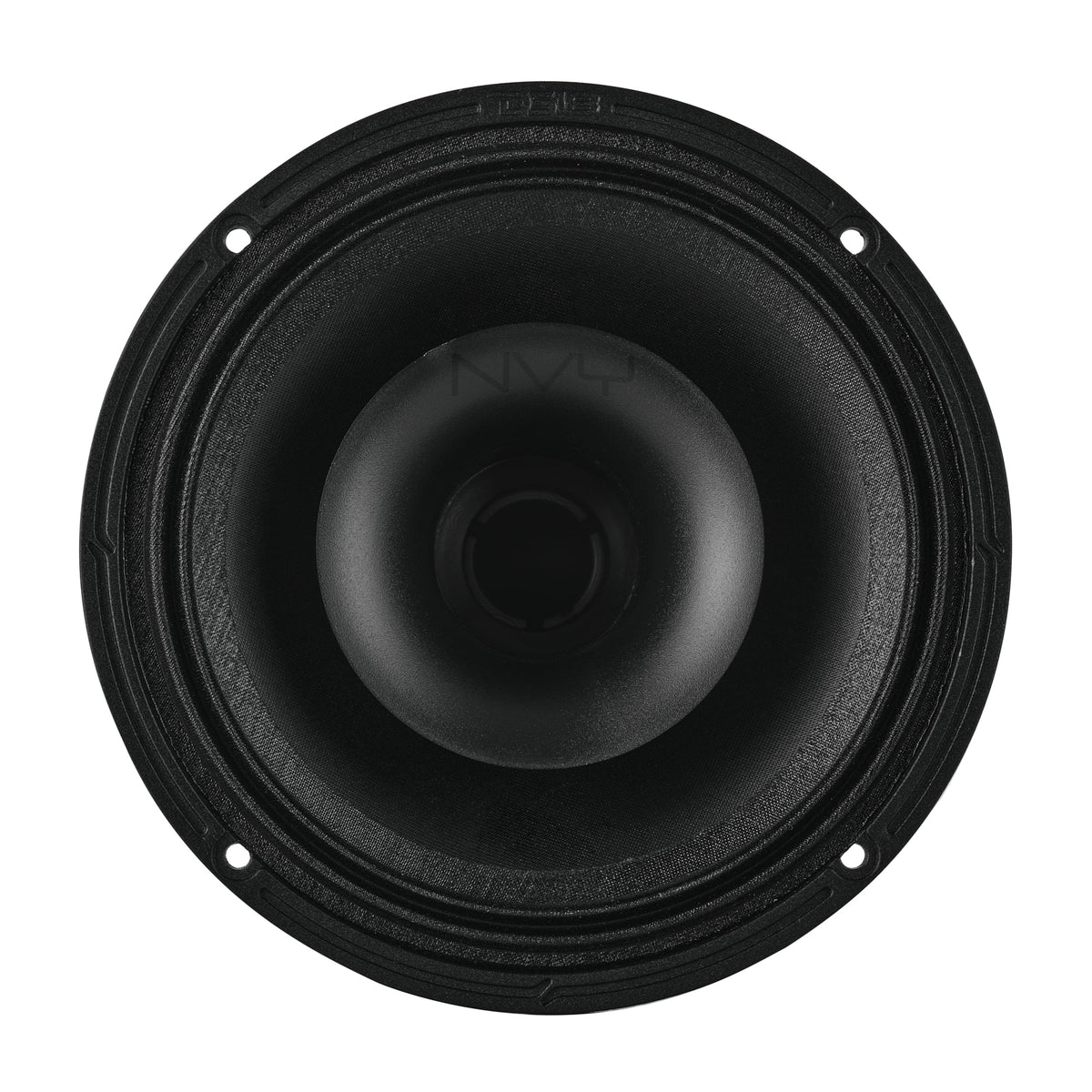

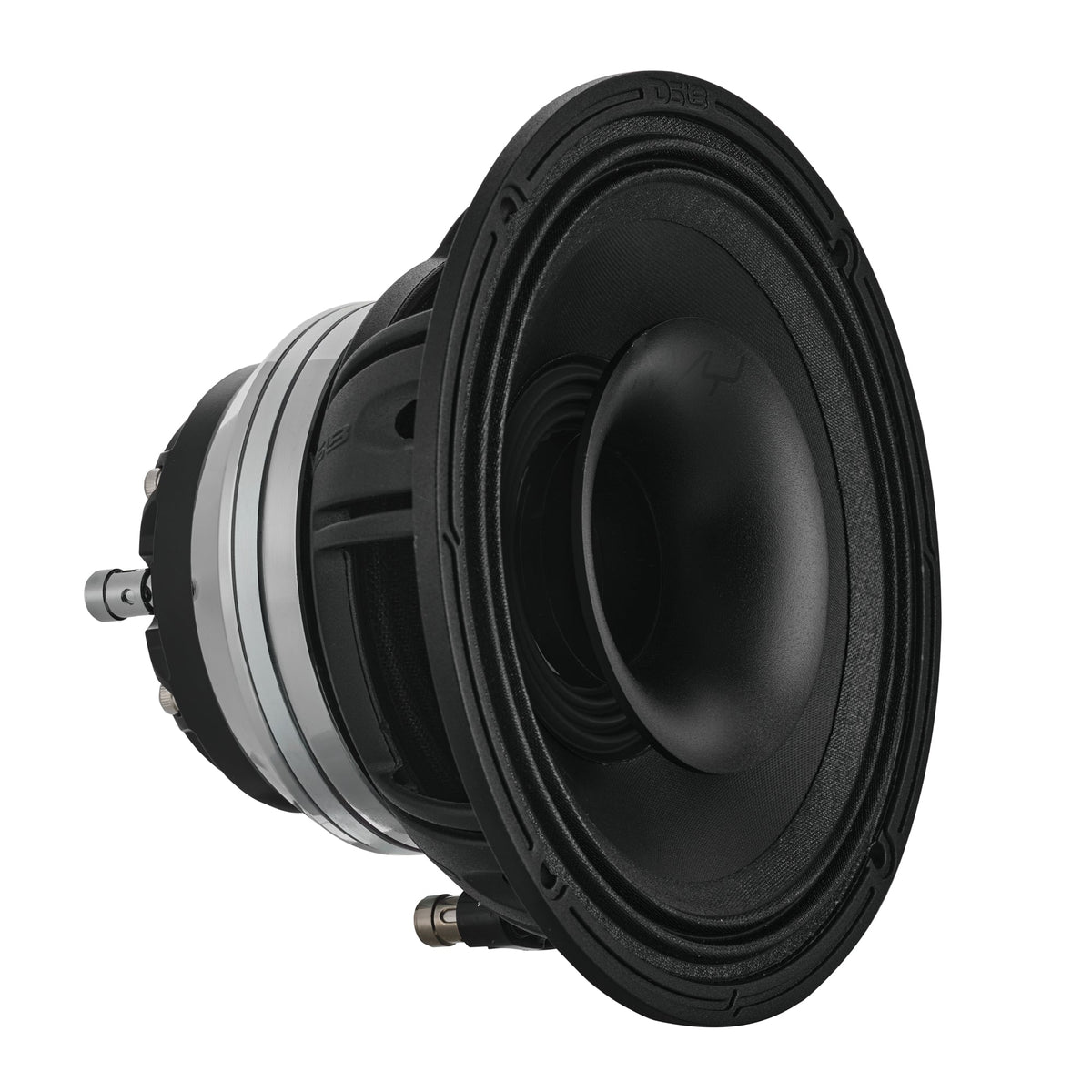

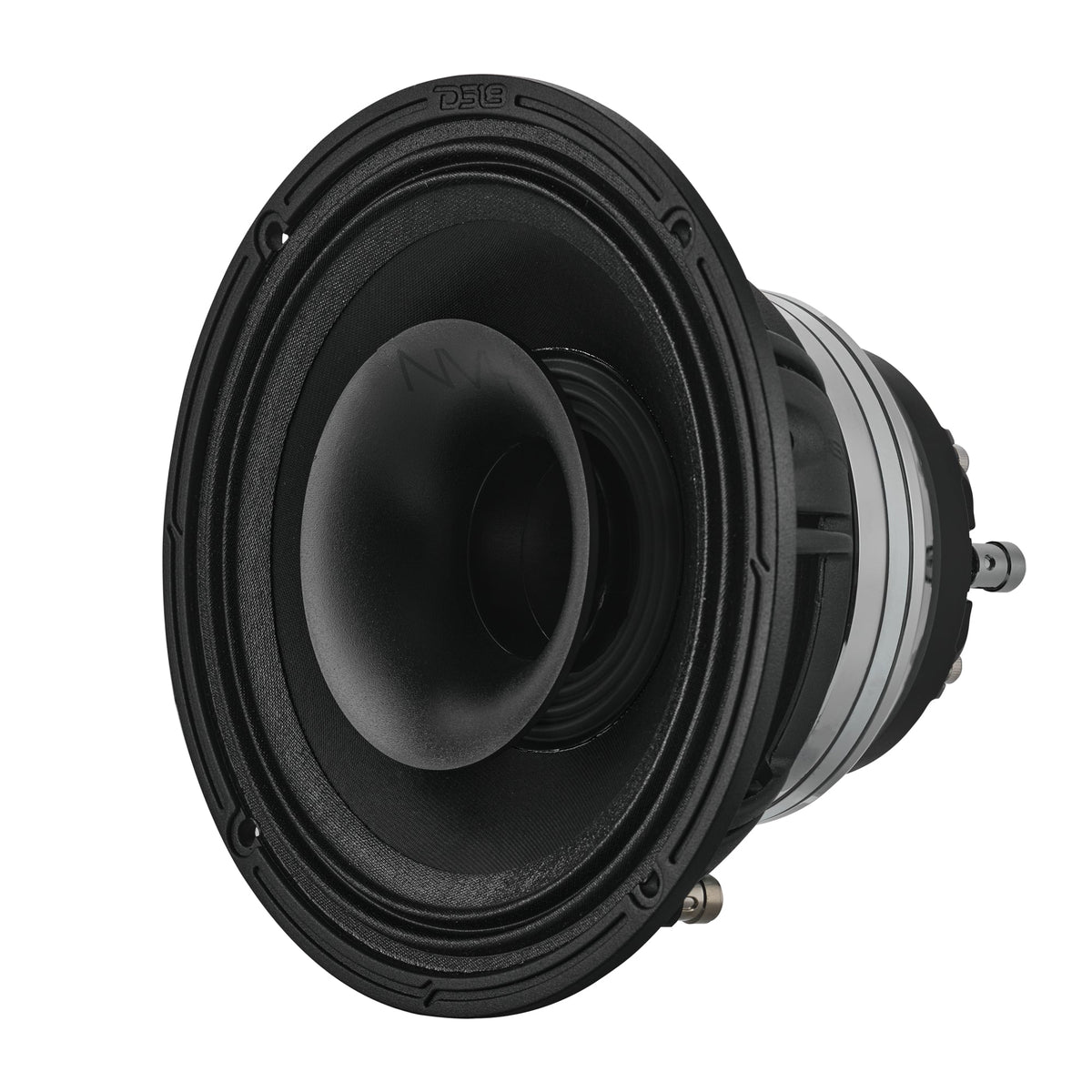

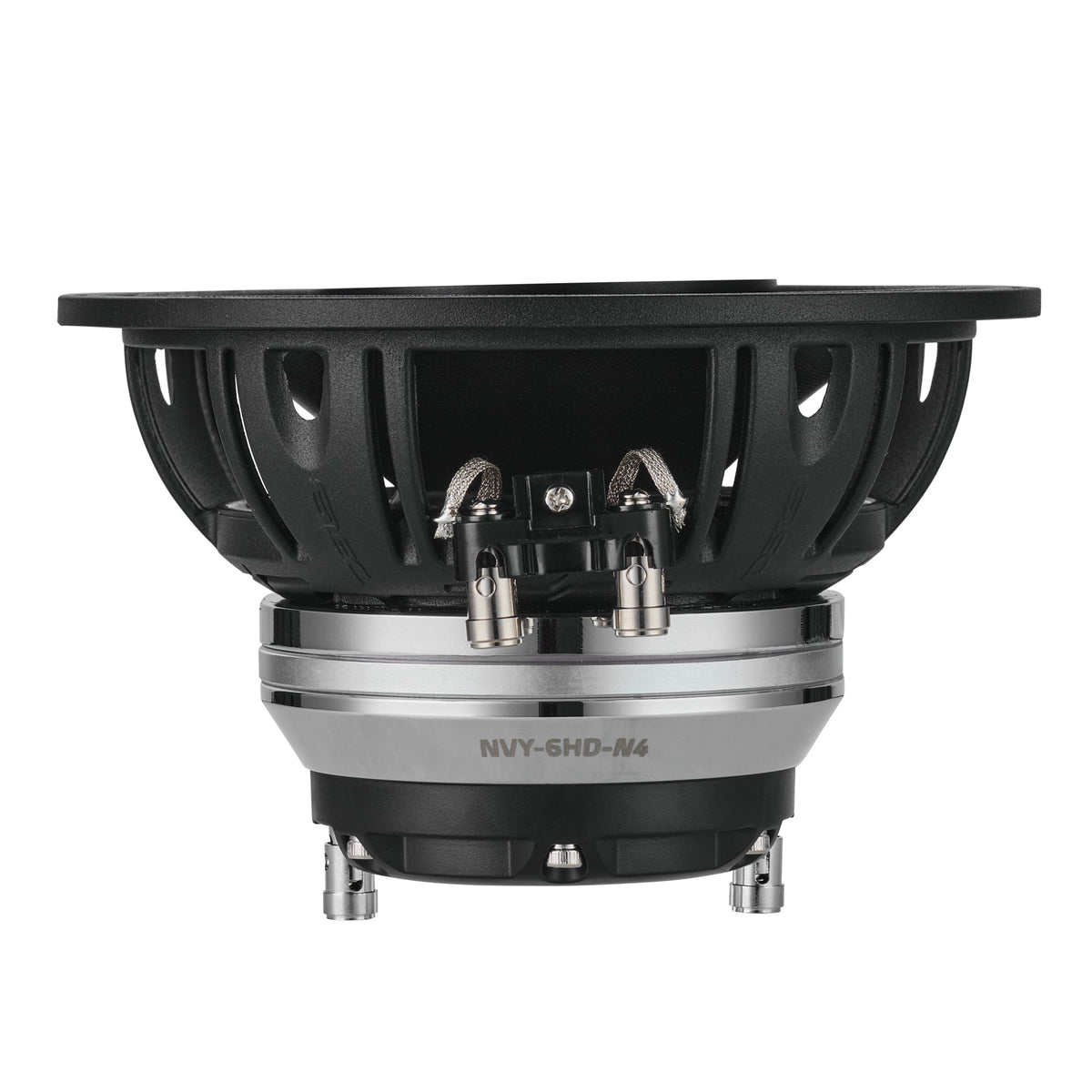

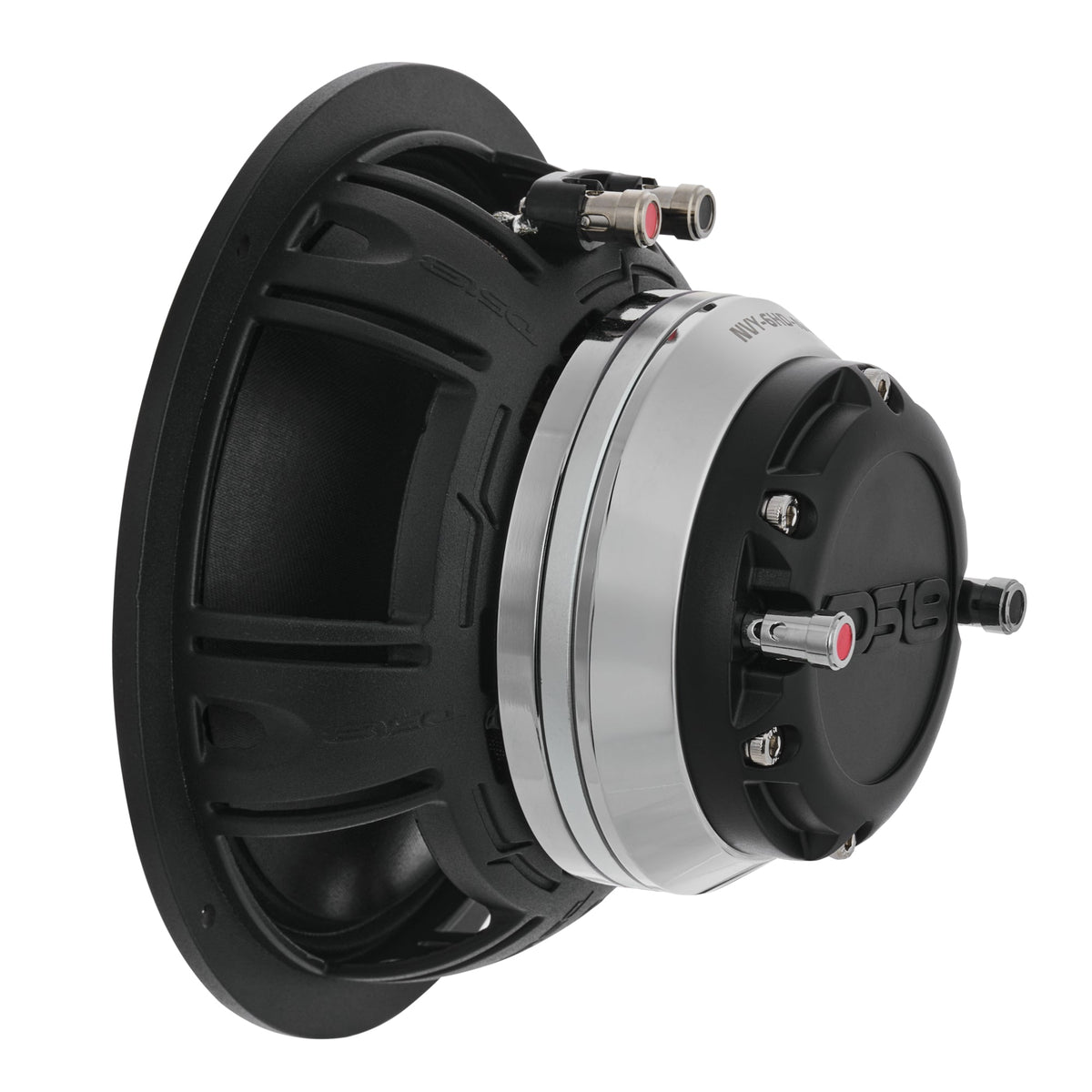

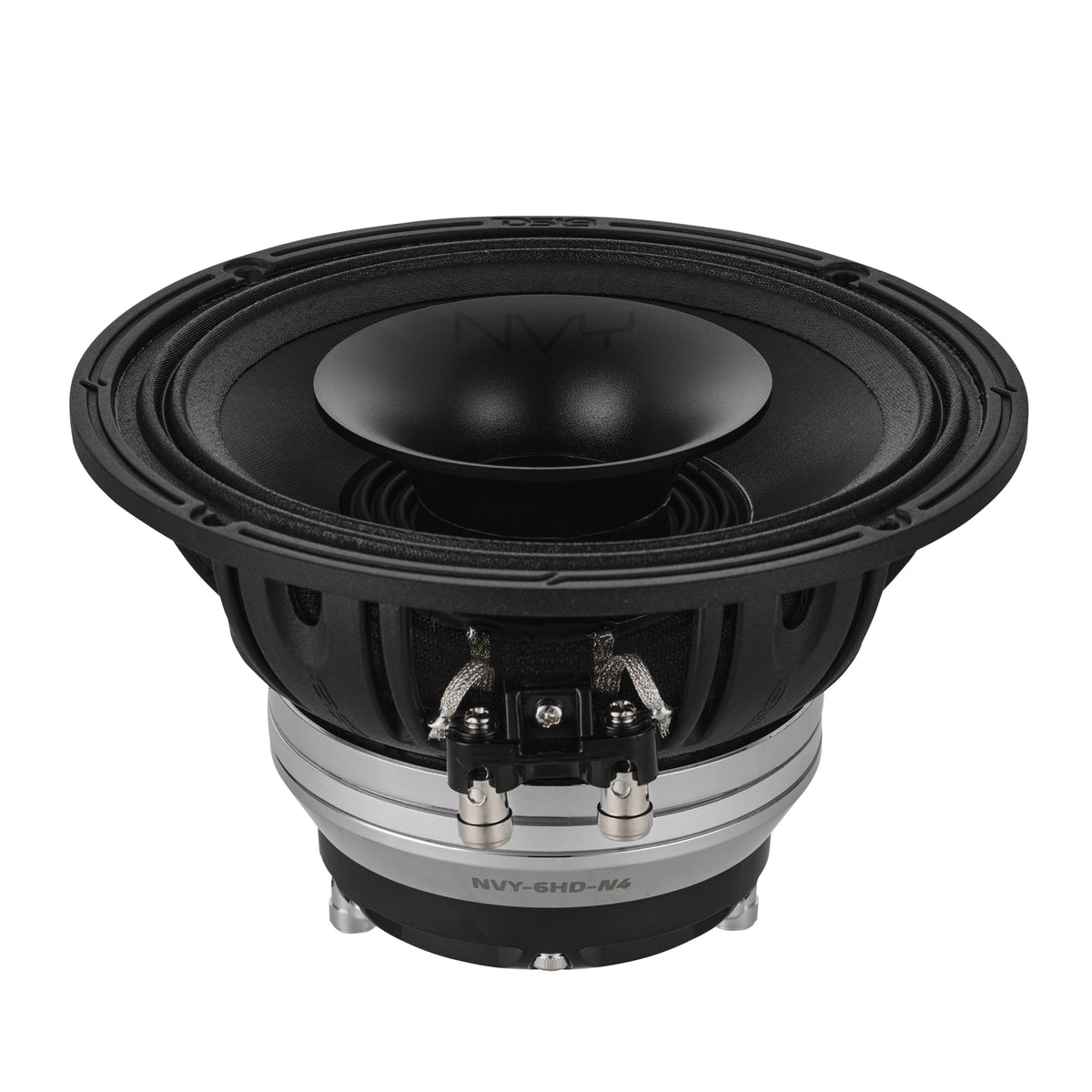

6.5” Water-Resistant Hybrid Loudspeaker With Titanium Compression Driver and Neodymium Magnet | 250W RMS 4-Ohm

$750.00
Shipping calculated at checkout.

Description

KEY FEATURES

  • Glass Fiber + Foam Composite with Resin Cone

    Glass Fiber + Foam Composite with Resin Cone

  • Hybrid <br> Loudspeaker

    Hybrid
    Loudspeaker

  • Compression Horn Driver

    Compression Horn Driver

  • Detachable Horn Driver

    Detachable Horn Driver

  • Water-Resistant IP65

    Water-Resistant IP65

  • Neodymium Magnet

    Neodymium Magnet

Audio For All Environments

The NVY-6HD-N4 brings together high-output performance and real-world resilience:
utilizing a neodymium motor, titanium compression driver, and IP65-rated construction.







Behind the Build

A water-resistant composite cone, aluminum basket, and reinforced suspension system work together to deliver clean, distortion-free output—even at high volume.

Imagen 1 Imagen 2 Imagen 3 Imagen 4 Imagen 5 Imagen 6 Imagen 7 Imagen 8 Imagen 9 Imagen 10 Imagen 11 Imagen 12 Imagen 13 Imagen 14 Imagen 15 Imagen 16 Imagen 17 Imagen 18 Imagen 19 Imagen 20 Imagen 21 Imagen 22 Imagen 23 Imagen 24 Imagen 25 Imagen 26 Imagen 27 Imagen 28 Imagen 29 Imagen 30 Imagen 31 Imagen 32 Imagen 33 Imagen 34 Imagen 35 Imagen 36
Strength in Every Detail

With spider-crossed leads, demodulating rings, and a dual-magnet motor, the NVY-6HD-N4 maintains performance over long hours and loud sessions.

Easy To Install

14ga push terminals and a universal cutout make install simple, secure, and system-ready.

  • General Specifications
  • Nominal Diameter 6.5" / 167mm
  • RMS Power Handling (Combined) 250W
  • MAX Power Handling (Combined) 500W
  • Sensitivity (1w/1m) (Combined) 99dB
  • Frequency Response (Combined) 80Hz-20Khz
  • Number of Ways 2-Ways
  • Sold in Pairs

  • Body / Features
  • Demodulating Rings Yes
  • Improved Heat Dissipation Yes
  • Cone Shape Curvilinear
  • Speaker Terminals Push 14ga
  • Waterproof Rating IP65

  • Woofer Specifications
  • Nominal Impedance 4 Ohms
  • RMS Power Handling 200W
  • MAX Power Handling 400W
  • Sensitivity (1w/1m) 92dB
  • Frequency Response 80Hz-12KHz
  • Recommended Band-Pass Crossover 120Hz-2KHz
  • Voice Coil Diameter 2" / 50.8mm
  • Voice Coil Former Material TIL
  • Winding Material Copper Ribbon
  • Cone Material Water Resistant Glass Fiber + Foam Composite with Resin Finish
  • Surround Material Treated Cloth
  • Basket Material Aluminum
  • Basket Color/Finish Black
  • Magnet Material Neodymium
  • Magnet Weight 5.33 Oz

  • Thiele & Small Parameters
  • Equivalent Volume 2.49L / 0.0879ft3
  • Excursion (one way) 2mm
  • Free Air Resonance 140Hz
  • Mechanical Factor 18.239
  • Electrical Factor 0.766
  • Total Factor 0.736
  • Mechanical Mass 15.272g
  • Mechanical Compliance 0.083mm/N
  • BL Factor 8.143
  • Voice Coil Inductance 0.140mH
  • Cone Area 145.27cm2
  • DC Resistance 3.76 Ohms
  • Mechanical Mass w/o air 13.293g

  • Driver Specifications
  • Nominal Impedance 4 Ohms
  • RMS Power Handling 50W
  • MAX Power Handling 100W
  • Sensitivity (1w/1m) 100dB
  • Frequency Response 830Hz -20KHz
  • Recommended High-Pass Crossover 2KHz
  • Voice Coil Diameter 1" / 25.4mm
  • Voice Coil Former Material KSV
  • Winding Material CCAW
  • Diaphragm Material Titanium
  • Magnet Material Neodymium
  • Horn Diameter 3.15" / 80mm

  • Speaker Measurements
  • Overall Diameter 6.5" / 167mm
  • Overall Depth 4" / 103mm
  • Front Mount Baffle Cutout 5.7" / 145mm
  • Mounting Depth 3.7" / 94mm
  • Motor Diameter 3.94" / 100mm
