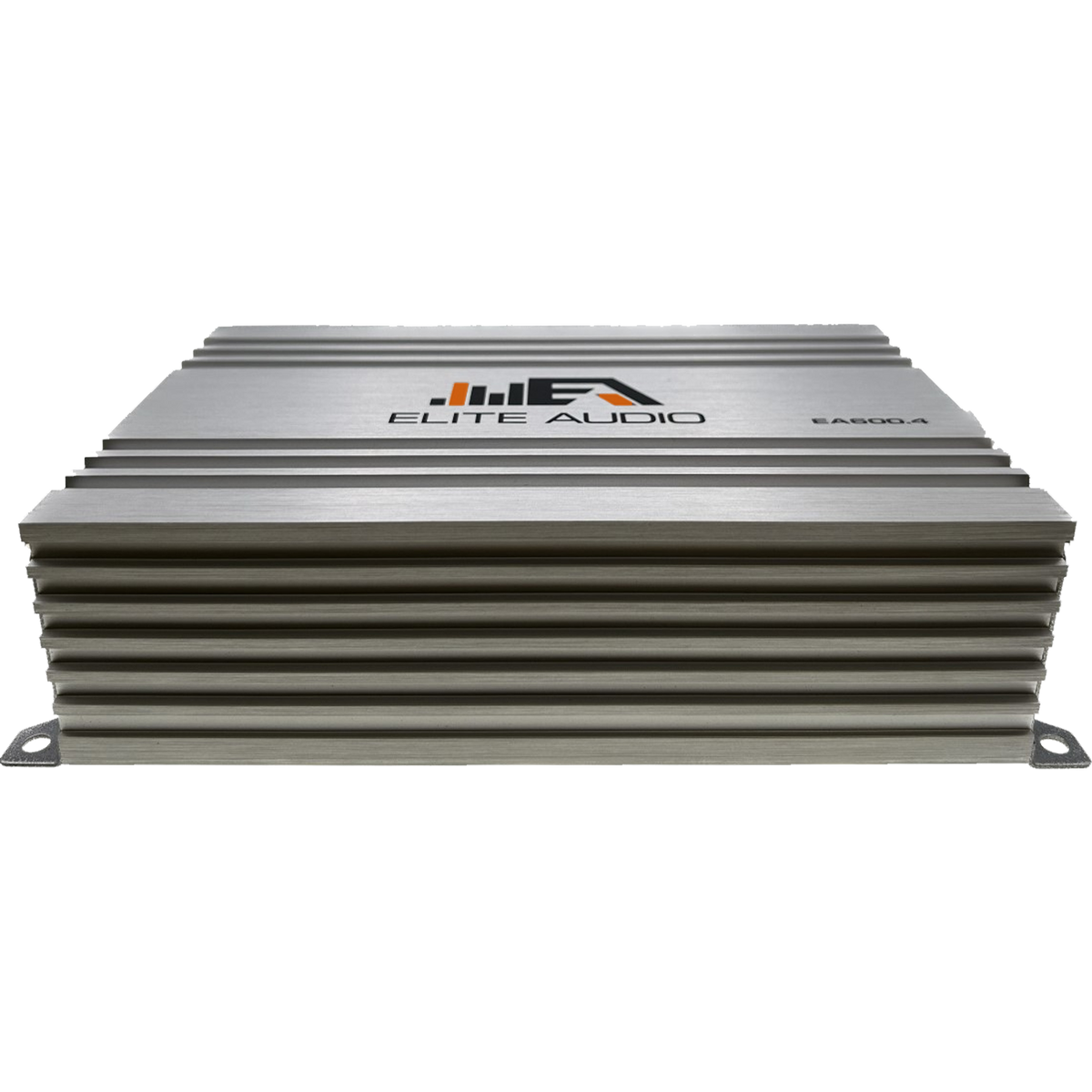

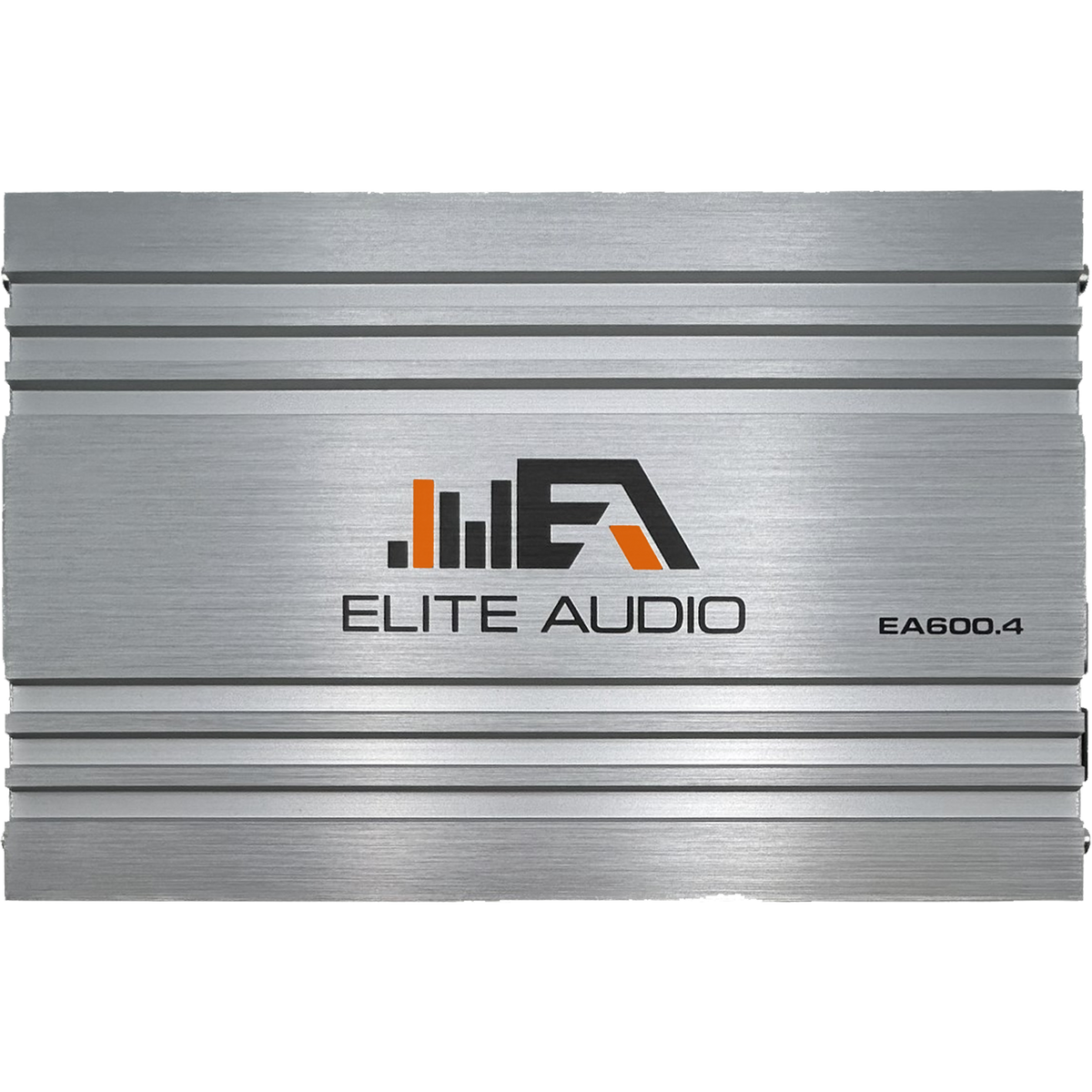

Elite Audio EA600.4 4-Chanel Amplifier
Elite Audio EA600.4 4-Chanel Amplifier is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Elite Audio EA600.4 4-Chanel Amplifier
Elite Audio EA600.4 4-Chanel Amplifier is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
Features
2 Ohm Stability per channel on 4-Channel Models
1 Ohm Stability on Monoblock Models
High Speed MOSFET Power Supplies
Variable Crossovers
Remote Bass Knob for Monoblock Models
On-Board Clipping Indication
4-Way Protection Circuitry
High Purity Copper Printed Boards
4 Gauge Power & Ground Terminals
Specifications Monoblock
| EA1000M | EA2000M | EA3000M | EA4000M | |
| Power @ 4 Ohm | 200x1 | 500x1 | 650x1 | 1000x1 |
| Power @ 2 Ohm | 400x1 | 800x1 | 1100x1 | 1500x1 |
| Power @ 1 Ohm | 500x1 | 1000x1 | 1500x1 | 2000x1 |
| Frequency Response | 10-252HZ | 10-252HZ | 10-245HZ | 10-240HZ |
| Signal to Noise Ratio | 96db | 96db | 96db | 90db |
| Damping Factor | 160< | 160< | 160< | 150< |
| Input Sensitivity | 6V-.2V | 6V-.2V | 6V-.2V | 6V-.2V |
| Low Pass Filter | 35-250Hz | 35-250Hz | 35-250Hz | 35-250Hz |
| Subsonic Filter | 10-50Hz | 10-50Hz | 10-50Hz | 10-50Hz |
| Remote Gain Control | Yes | Yes | Yes | Yes |
| Power & Ground Terminals | 4 Gauge | 4 Gauge | 4 Gauge | 4 Gauge |
| Operating Voltage Range | 9V-16V | 9V-16V | 9V-16V | 9V-16V |
| External Fuse Needed | 50A | 100A | 150A | 200A |
| Dimensions (mm) (LxWxH) | 160x120x50 | 210x120x50 | 240x120x50 | 330x120x50 |
Specifications Multi-Channel
| EA400X4 | EA600X4 | |
| Power @ 4 Ohm | 50W x 4 | 90W x 4 |
| Power @ 2 Ohm | 75W x 4 | 135W x 4 |
| Power @ 4 Ohm Bridged | 160W x 2 | 270W x 2 |
| Frequency Response | 10HZ - 30Khz | 10Hz - 33Khz |
| Signal to Noise Ratio | 105db | 105db |
| Damping Factor | 100< | 100< |
| Input Sensitivity | 6V-.2V | 6V-.2V |
| CH1/2 Crossover | 50-500Hz | 50-500Hz |
| Crossover Selector CH1/2 | HP/FULL/LP | HP/FULL/LP |
| CH3/4 Crossover | 50-500Hz | 50-500Hz |
| Crossover Selector CH3/4 | HP/FULL/LP | HP/FULL/LP |
| Power & Ground Terminals | 4 Gauge | 4 Gauge |
| Operating Voltage Range | 9V-16V | 9V-16V |
| External Fuse Needed | 30A | 40A |
| Dimensions (mm) (LxWxH) | 160x120x50 | 180x120x50 |
