Stage-3 Aftermarket Audio Kit for 2024+ Harley-Davidson
Stage-3 Aftermarket Audio Kit for 2024+ Harley-Davidson is backordered and will ship as soon as it is back in stock.
Stage-3 Aftermarket Audio Kit for 2024+ Harley-Davidson is backordered and will ship as soon as it is back in stock.
Description
Description
Performance Engineered: Each component of the Stage-3 kit is meticulously engineered for peak performance. The 6.5” and 6x9 speakers feature a heat-resistant motor structure and radiator ring that efficiently dissipate heat, ensuring consistent, powerful sound even under the most demanding conditions. Complementing the speakers, the 1000-watt digital amplifier delivers robust performance and is future-ready for expanding your system with additional speakers.
Plug and Play Design: Stage-3 delivers a complete plug-and-play solution in a single box, featuring direct-fit, model-specific 6.5” and 6x9” speakers, amplifier mounting plates, a saddlebag installation kit, and grilles. Engineered for seamless integration with the Skyline™ OS Harley-Davidson® infotainment system — it requires no radio flashing — making installation straightforward and hassle-free.
Precision-Tuned: Featuring long-throw woofers for high output and deep, extended low-end response, these speakers deliver powerful yet balanced sound. The large voice coil and extended frequency range enhance bass output, ensuring louder, more dynamic, and long-lasting performance.
Total Control: With the RF Connect app, tuning your system is as easy as tapping your screen. Connect to the amplifier via Bluetooth® to instantly load a DSP tune matched to your exact Rockford Fosgate® motorcycle audio kit. You can also fine-tune your ride by adjusting gain and crossover settings digitally, customizing your sound, your way, all from your smartphone.
Element Ready™: Purpose-built for the harsh motorcycle environment, this kit includes watertight, grommeted installation harnesses with OEM-style and Deutsch™ DT connectors. Designed to withstand water, dirt, UV exposure, and constant vibration, it ensures long-lasting, reliable audio performance.
Compatibility: Review compatibility tab for fitment before purchase.
2024+ Stage-3 | Launch
2024+ Stage-3 | Overview
2024+ Stage-3 | Installation
2024+ Stage-3 | Tuning Guide
Download RF CONNECT™ to setup amplifier:
Loud. Clear. Relentless.

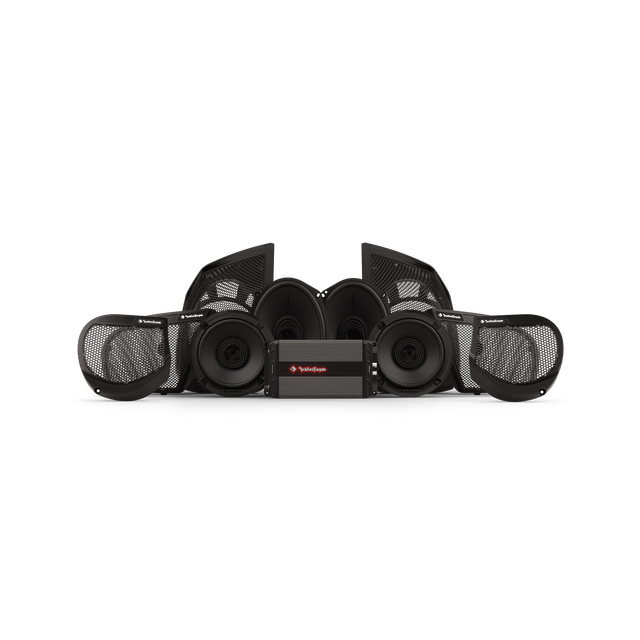

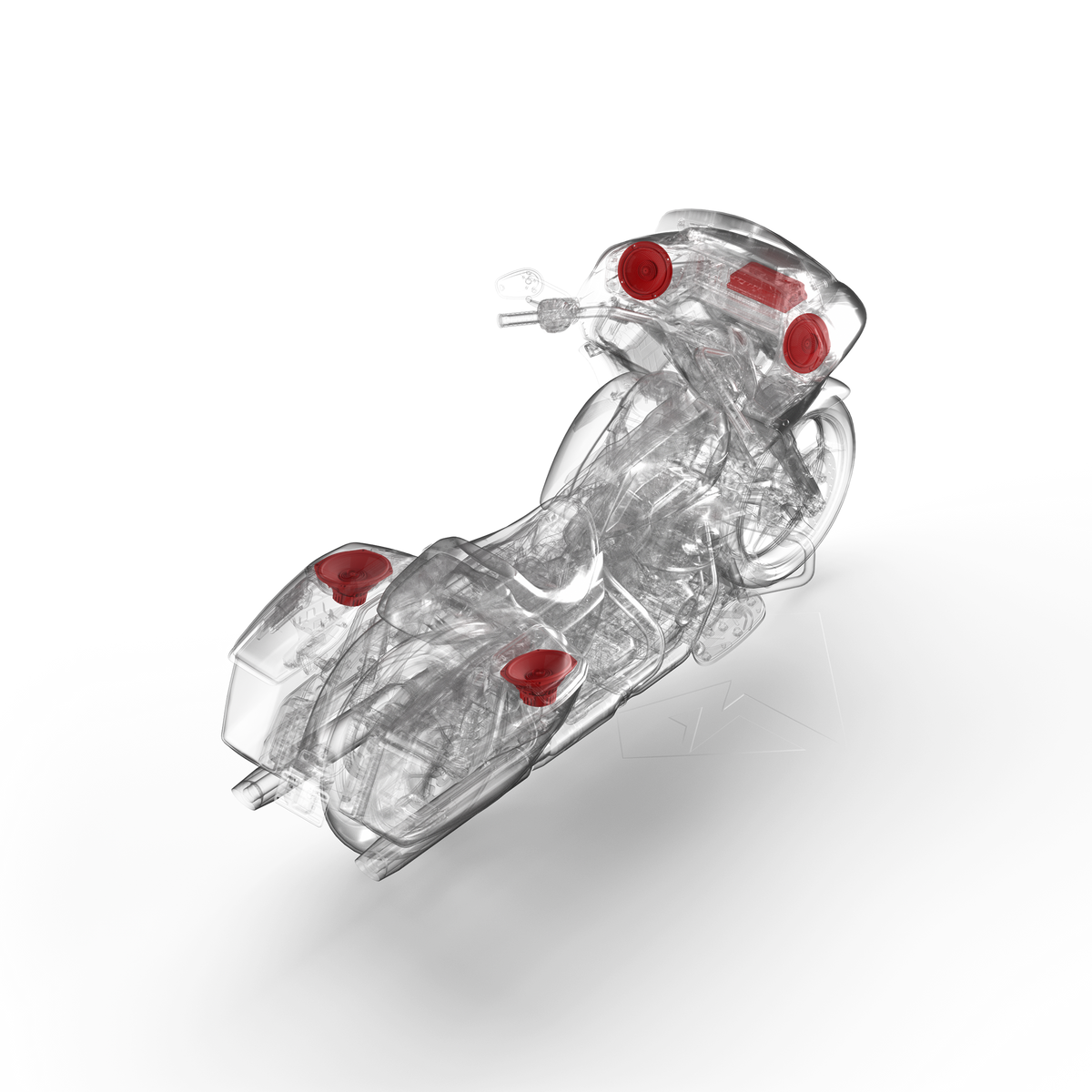

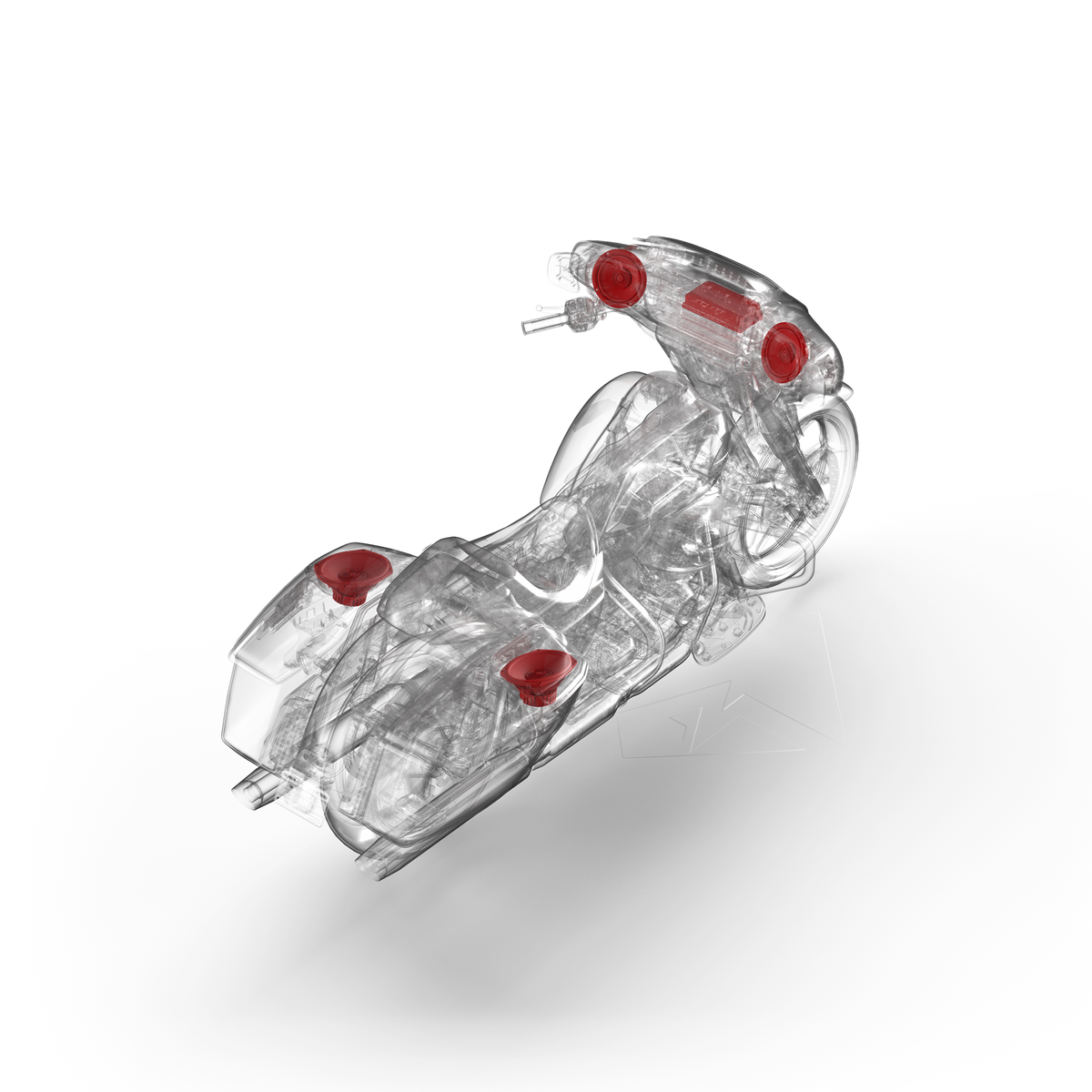

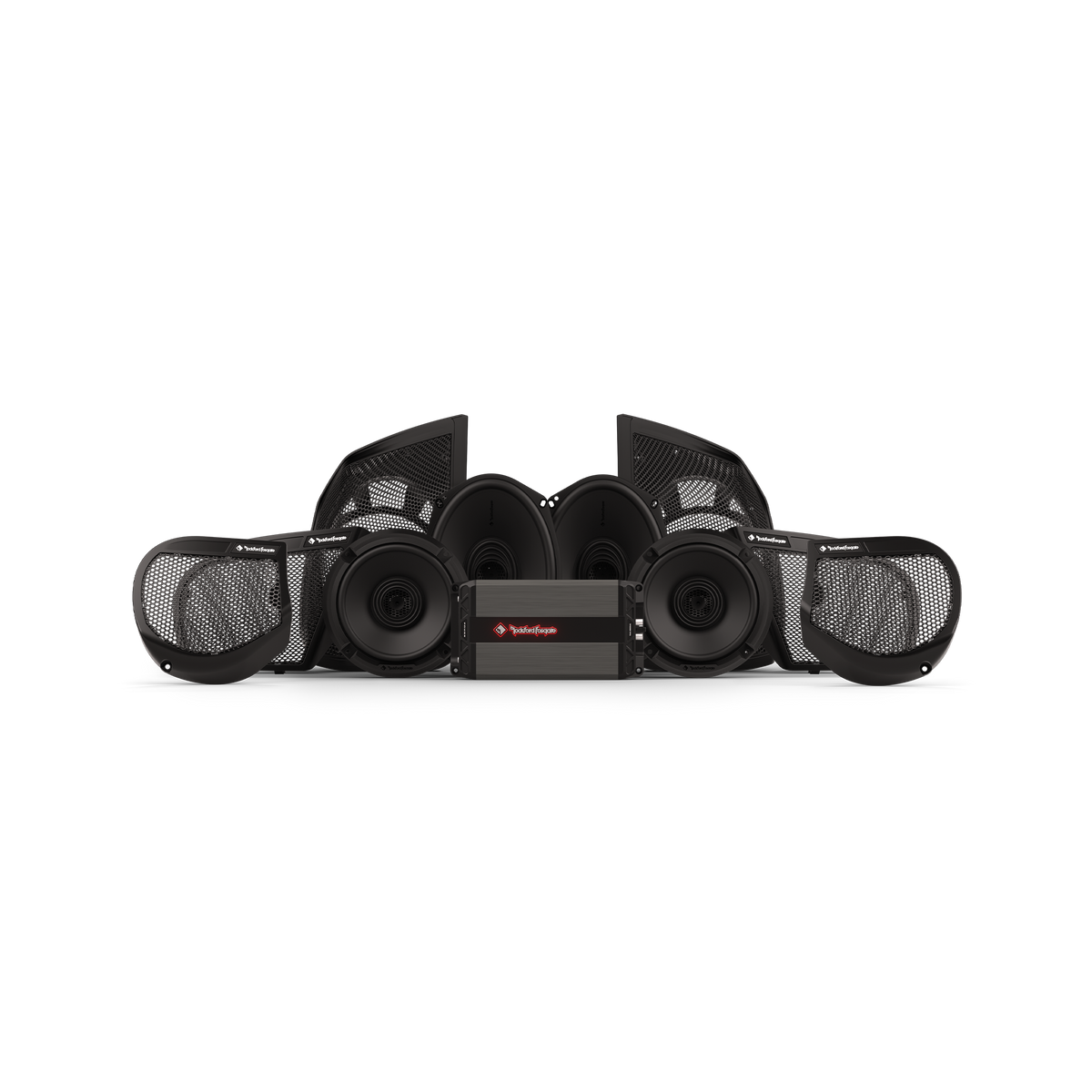

The HD24-STG3 is a high-performance aftermarket, 4-speaker, 1,000-watt amplified upper fairing & saddlebag audio system.
Components:
• (2) 6.5” TMS 2.0 Speakers
• (2) 6x9" TMS 2.0 Speakers
• (2) 2024+ Road Glide Grilles
• (2) 2024+ Street Glide Grilles
• (2) Saddlebag Speaker Grilles
• (1) 1,000-watt amplifier
• (1) Amp install kit
• (1) Saddlebag cut-in kit
Installation:
• (5) Hours Typical
FEATURES AT A GLANCE
- Purpose-Built for 2024+ Harley-Davidson® touring motorcycles
- Element Ready™ to withstand the harsh outdoor environment like dust, water, and UV rays

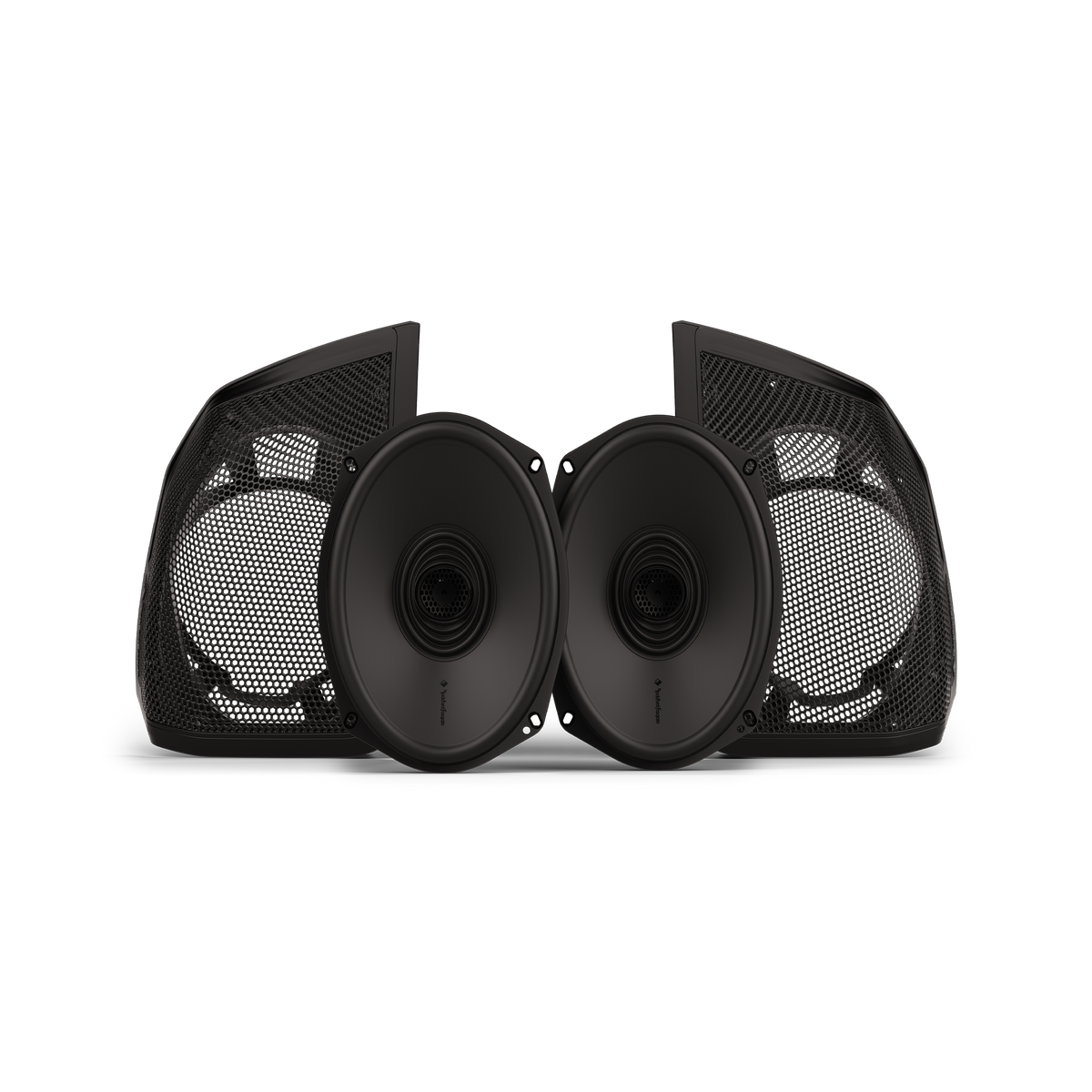

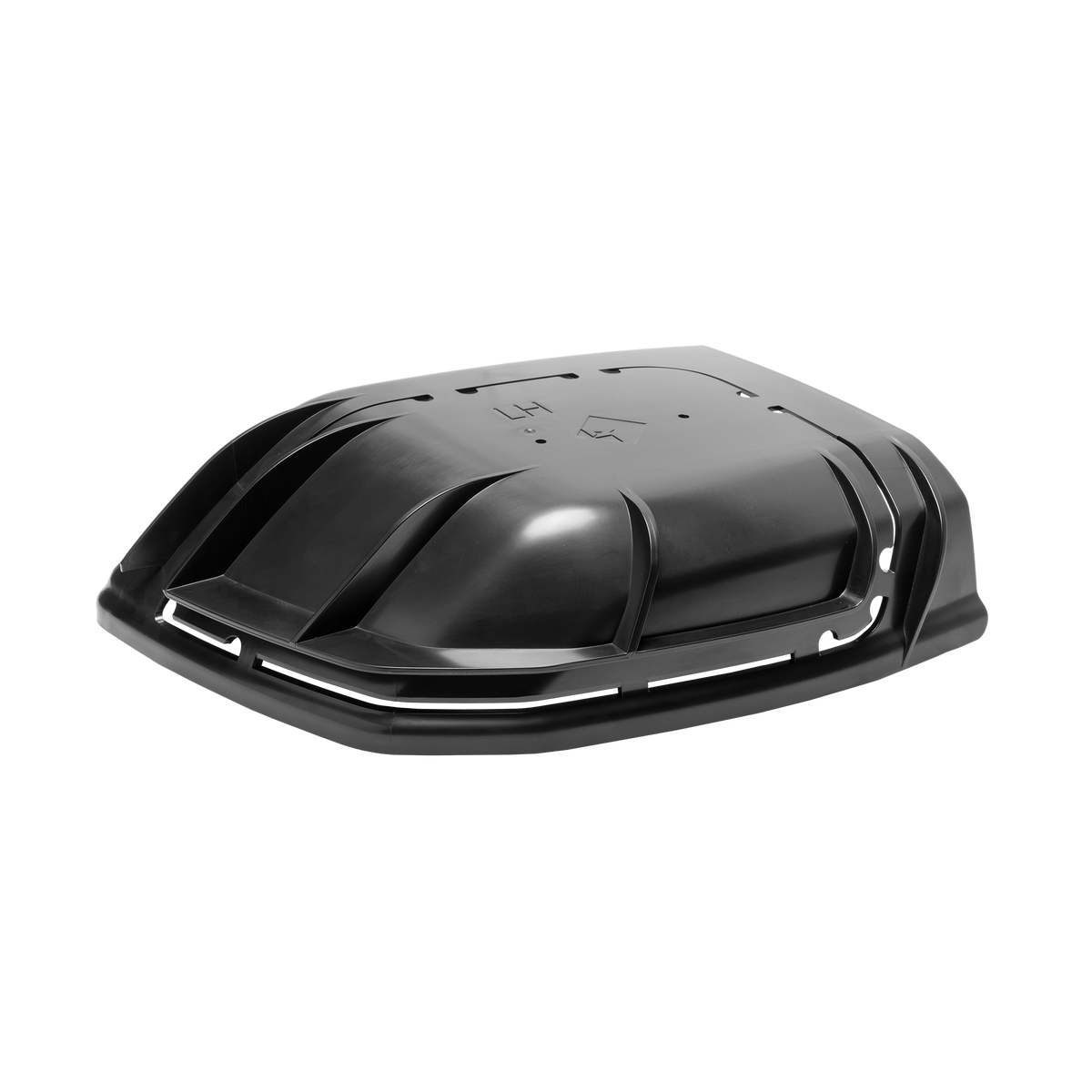

- HD24BL69: 6x9” Element Ready™ baglid cut-in kit for factory H-D® bags

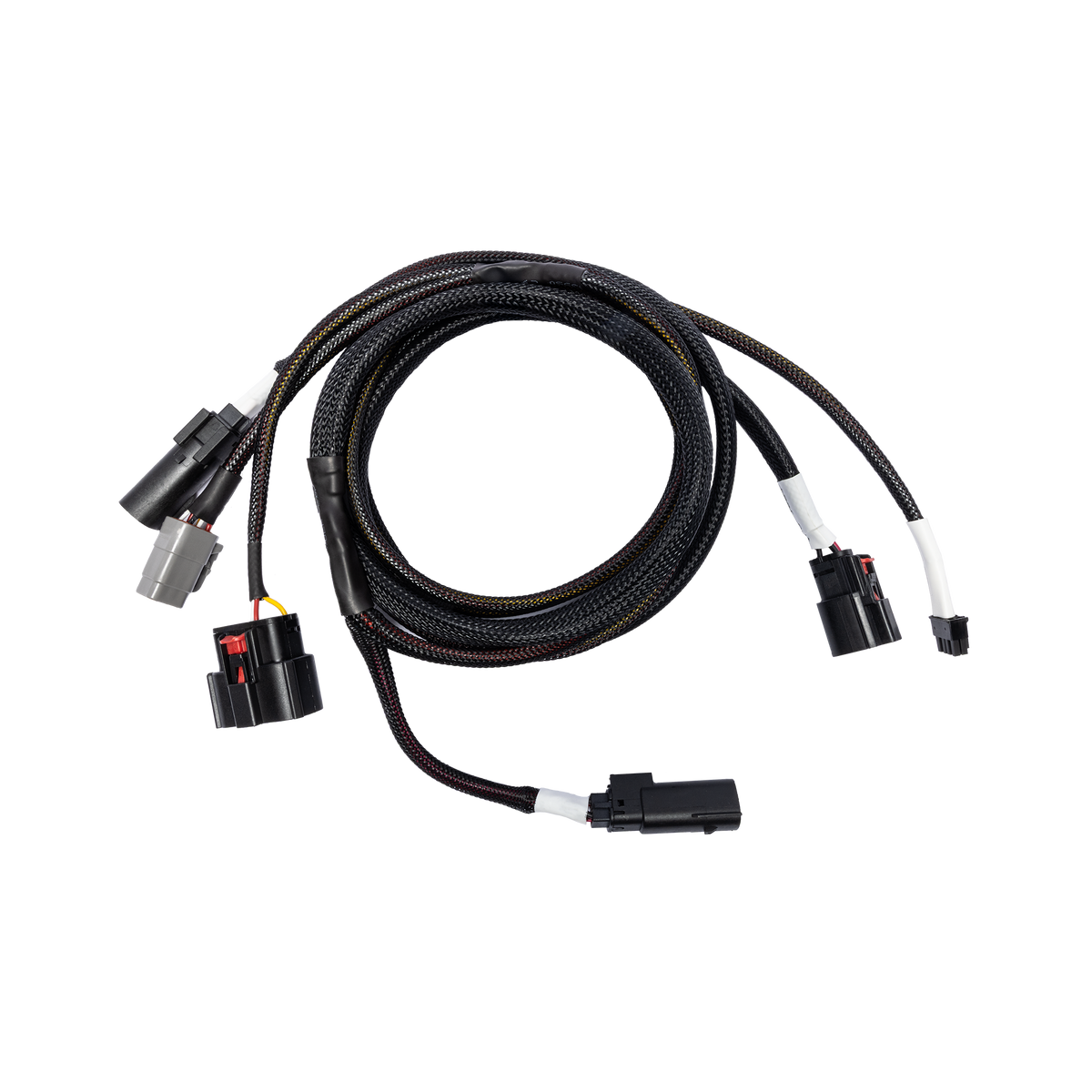

- RFK-HD24: Amplifier installation kit for 2024+ Harley-Davidson®

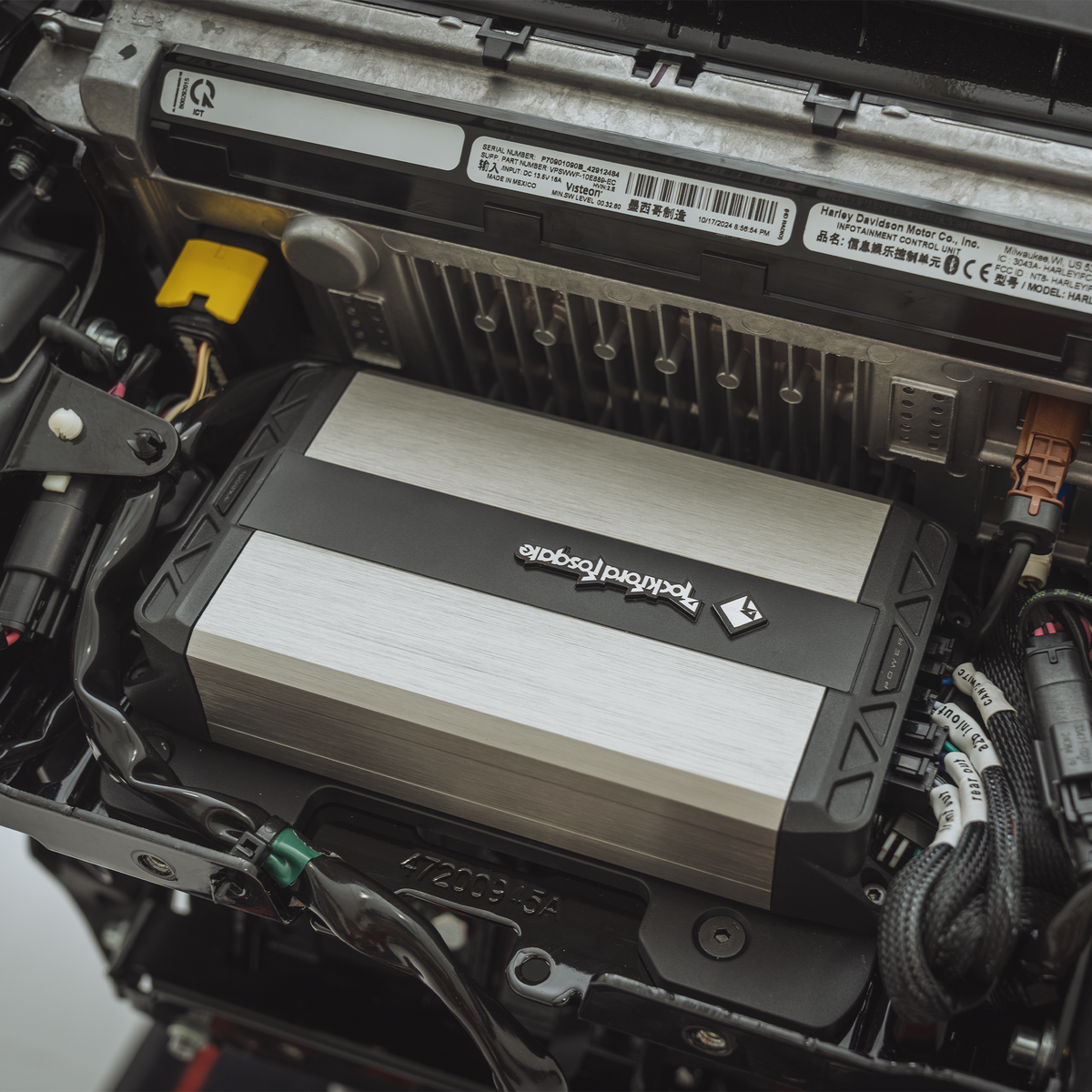

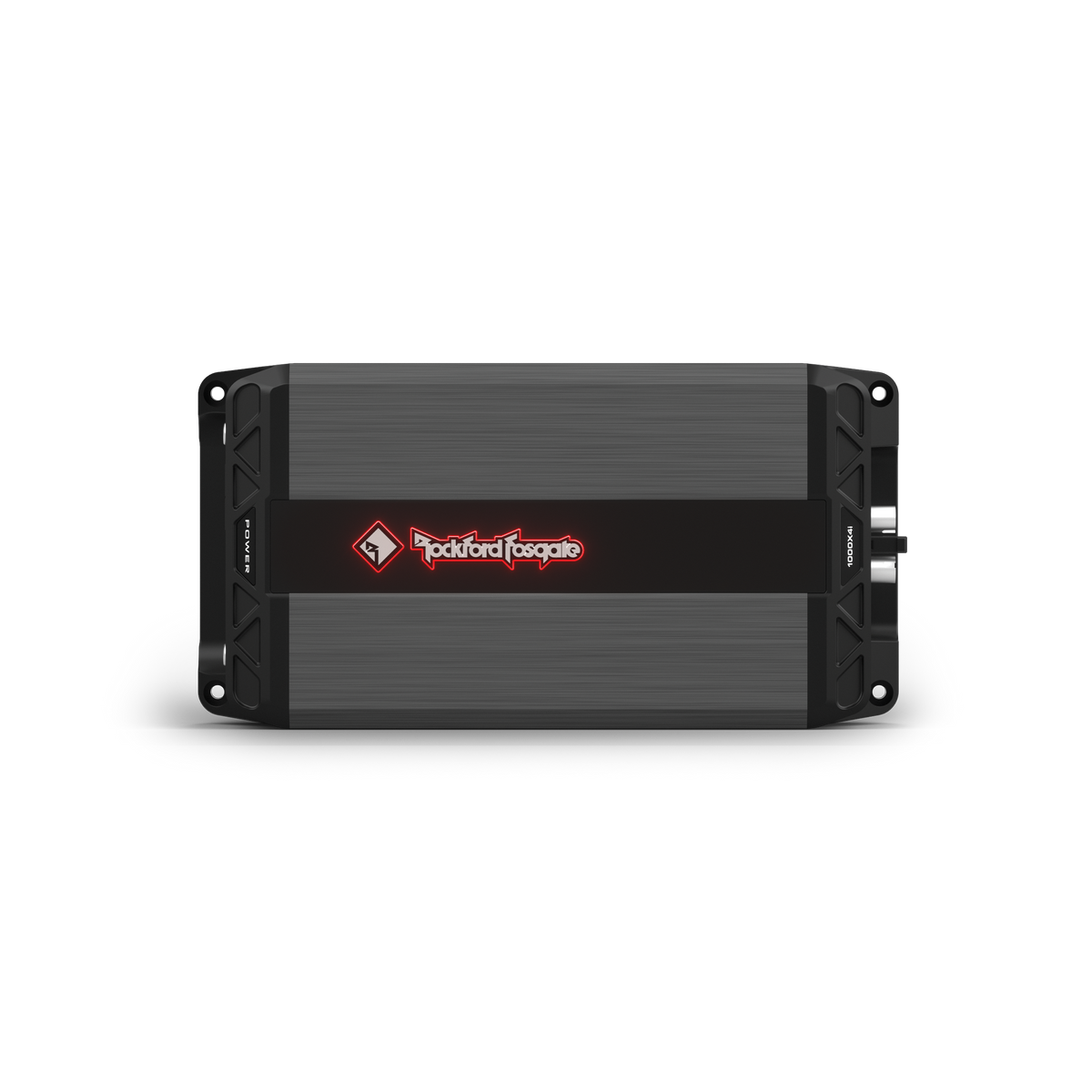

- TMA-1000X4I: Digital 1,000 watt 4-channel A2B amplifier for Harley-Davidson®

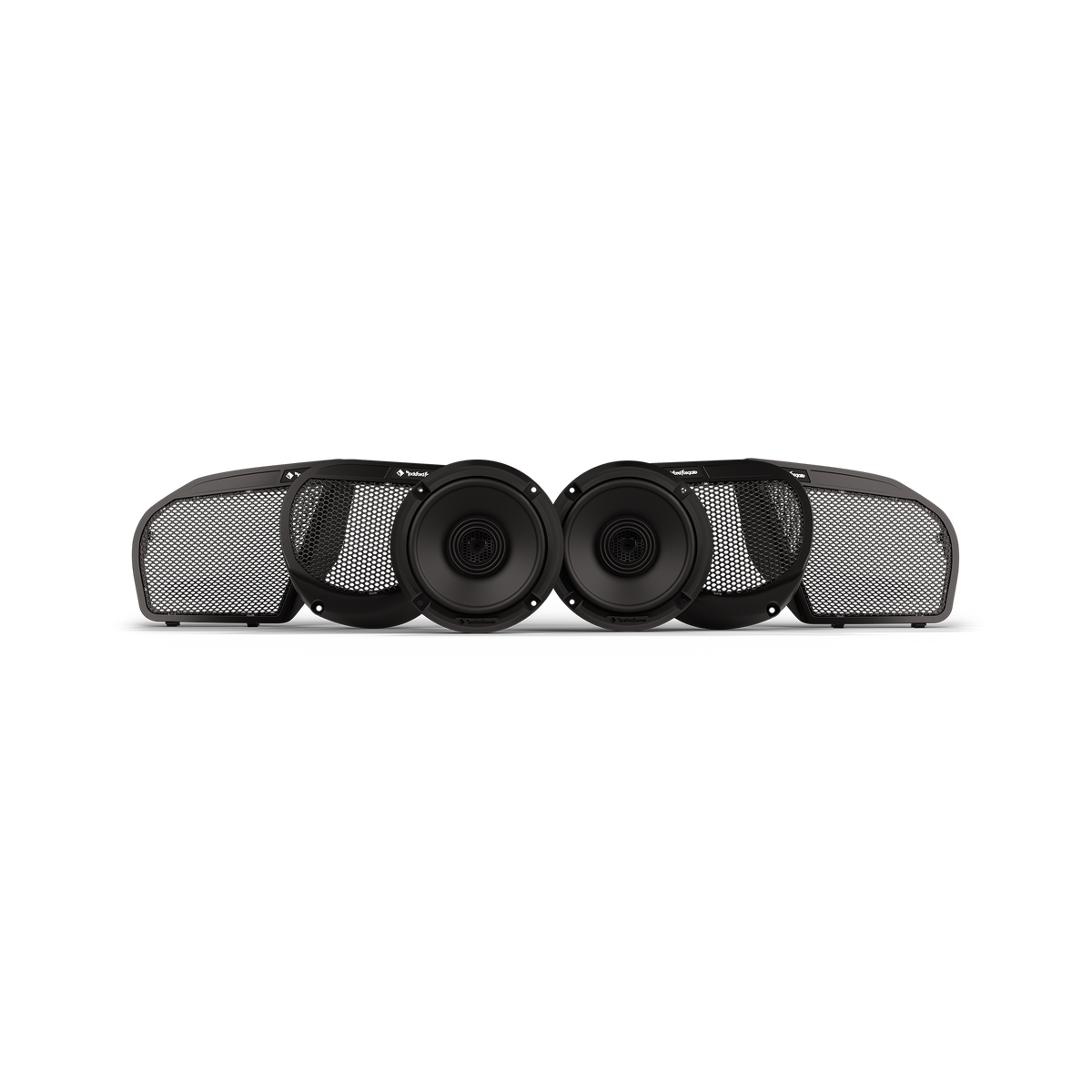

- TMS24-65: 6.5" Full-range speaker and grilles for 2024+ Harley-Davidson®
- Supports up to 8-speaker audio systems
- True plug-and-play design with OEM connectors for easy installation
- Direct Fitment for seamless upgrades in factory mounting locations
- Bluetooth® connectivity for easy wireless setup
- Eliminates the need to "flash" your radio
- Premium audio integration with Skyline OS® without external black-boxes
- Includes grilles for 2024+ Road Glide and Street Glide fairings
- Interactive tuning via RF Connect app for iOS and Android
- Signature DSP Tunes deliver Rockford’s signature sound in every stage kit
- Quick connection to factory wiring with Molex MX150 connectors
- Harness includes expansion for lower fairing, Tour-Pak® and saddlebags
- Full Spec Cable meets or exceeds AWG (American Wire Gauge) requirements
- One-time removal of gas tank and fairing streamlines future upgrades
- Video installation tutorial with easy-to-follow instructions
- High-performance & high-output audio upgrade that’s simple to install
- Manufacturer warranty: 2 years
Specifications
| Speaker Qty | 4 |
|---|---|
| Amplifier Type | External |
| Total Power | 1000 Watts |
| Grille/Trim Ring Included | Yes |
| Mounting Hardware | Yes |
| Fuse Type | MAXI |
| In The Box | • (1 pr) TMS24-65 6.5” Speakers • (1 ea) TMA-1000X4i Amplifier • (1 ea) RFK-HD24 Wiring Kit • (1 ea) HD24BL69 6x9” Cut-In Kit |
| Fuse Size | 60 A |
| Shipping Weight | 35.0 Lbs (15.876 Kg) |
Compatibility
REQUIRED4125D or 5057D |
REQUIRED |
YES |
NO |
NO |
NO |
NO |
|---|
YES |
NO |
NOT AVAILABLE |
|---|
|
|
|
|
|
|
|---|---|---|---|---|
|
|
FLTRX | X | ✅ | ✅ |
|
|
FLTRXST | X | — | — |
|
|
FLTRXS | X | — | — |
|
|
FLTRXSANV | X | — | — |
|
|
FLHX | X | ✅ | ✅ |
|
|
FLHXST | X | — | — |
|
|
FLHXS | X | — | — |
|
|
FLHXSANV | X | — | — |
|
|
|
|
|
|
|---|---|---|---|---|
|
|
FLHFB | X | — | — |
|
|
FLHRXS | X | X | X |
|
|
|
|
|
|
|---|---|---|---|---|
|
|
FLTRK | X | X | — |
|
|
FLHXU | — | — | ✅ |
|
|
FLHTK | X | X | — |
|
|
FLHTKANV | X | — | — |
|
|
FLHTK | X | — | — |
|
|
|
|
|
|
|---|---|---|---|---|
|
|
FLTRXSE | XSKY2 | XSKY2 | XSKY2 |
|
|
FLTRXRRSE | — | — | ✅ |
|
|
FLTRSXTSE | — | ✅SKY2 | ✅SKY2 |
|
|
FLTRKSEANV | XRF1 | — | — |
|
|
FLHXSE | XSKY2 | XSKY2 | XSKY2 |
|
|
|
|
|
|
|---|---|---|---|---|
|
|
FLRT | XNR | XNR | XNR |
|
|
FLTRT | X | X | X |
|
|
FLHTCUTG | X | X | X |
|
|
FLHTCUTGANV | X | — | — |
GRAY TEXT
indicates nomenclature used on some early models and later inherited.
2
H-D® Power Lock on factory Harley-Davidson bags are compatible.
3
Saddlebags must be factory Harley-Davidson® ABS plastic to insure proper fitment with bag-lid and subwoofer kits.
Fiberglass saddlebags and lids are not compatible. Color matched speaker lids are not compatible.
4
Stretched Saddlebags not optimized for kits with subwoofers. Contact technical support for suggested harness brace.
5
Tour-Pak® must be detached in order to install and remove subwoofer enclosures.
NR
No Radio equipped from factory.
RF1
RF Stage I: Not upgradable. Factory equipped with "Harley-Davidson Audio Powered by Rockford Fosgate" 2-way speakers and saddlebag amplifier.
RF2
RF Stage II: Not upgradable. Factory equipped with "Harley-Davidson Audio Powered by Rockford Fosgate" 3-way speakers and saddlebag amplifier.
SKY0
Skyline Base Audio: Factory equipped with Skyline OS, Harley-Davidson 2-way base speakers and 200W amplifier.
This system replaces and is not designed to be used with factory equipped audio.
SKY1
Skyline RF Stage I: Factory equipped with Skyline OS, "Harley-Davidson Audio Powered by Rockford Fosgate" 2-way speakers and 500W primary amplifier.
This system replaces and is not designed to be used with factory equipped audio.
Models with factory Harley-Davidson® Saddlebag Speaker Lids will also require TMS24-69 speakers.
SKY2
Skyline RF Stage II: Factory equipped with Skyline OS, "Harley-Davidson Audio Powered by Rockford Fosgate" 3-way speakers and 500W primary amplifier.
This system replaces and is not designed to be used with factory equipped audio.
Models with factory Harley-Davidson® Saddlebag Speaker Lids will also require TMS24-69 speakers.
SKY3
Skyline RF Stage III: Factory equipped with Skyline OS, "Harley-Davidson Audio Powered by Rockford Fosgate" 3-way high-output speakers and 500W primary amplifier.
This system replaces and is not designed to be used with factory equipped audio.
Models with factory Harley-Davidson® Saddlebag Speaker Lids will also require TMS24-69 speakers.
