6x9" Aftermarket Saddlebag Cut-In Speaker Kit for 2024+ Harley-Davidson
6x9" Aftermarket Saddlebag Cut-In Speaker Kit for 2024+ Harley-Davidson is backordered and will ship as soon as it is back in stock.
6x9" Aftermarket Saddlebag Cut-In Speaker Kit for 2024+ Harley-Davidson is backordered and will ship as soon as it is back in stock.
Description
Description
Precision-Tuned: Featuring long-throw woofers for high output and deep, extended low-end response, these speakers deliver powerful yet balanced sound. The large voice coil and extended frequency range enhance bass output, ensuring louder, more dynamic, and long-lasting performance.
Performance Engineered: Each element of these 6X9 speakers is meticulously engineered for peak performance. Now handling 40% more power than before, these speakers feature a heat-resistant motor structure and radiator ring to efficiently dissipate heat, ensuring consistent, powerful sound even under the most demanding conditions.
Direct Fitment: The patented top-loading bucket and backer design helps to ensure smooth, precise cutting over the bag lid surface, we developed a newly designed precision-cut template with parallel ribbing. Our robust, injection-molded, tube-style gasketed saddlebag speaker mount inserts from the outside of the lid, making it possible to accommodate larger 6x9 speakers for unmatched audio performance.
Element Ready™: Purpose-built for the harsh motorcycle environment, this kit includes watertight, grommeted installation harnesses with OEM-style and Deutsch™ DT connectors. Designed to withstand water, dirt, UV exposure, and constant vibration, it ensures long-lasting, reliable audio performance.
Compatibility: Please review compatibility tab for fitment before purchase.
2024+ Saddlebag Kit | Launch
2024+ Saddlebag Kit | Overview
2024+ Saddlebag Kit | Installation (jumps to 18:03)
2024+ Saddlebag Kit | Tuning Guide
Download RF CONNECT™ to setup the amplifier:
Loud. Clear. Relentless.

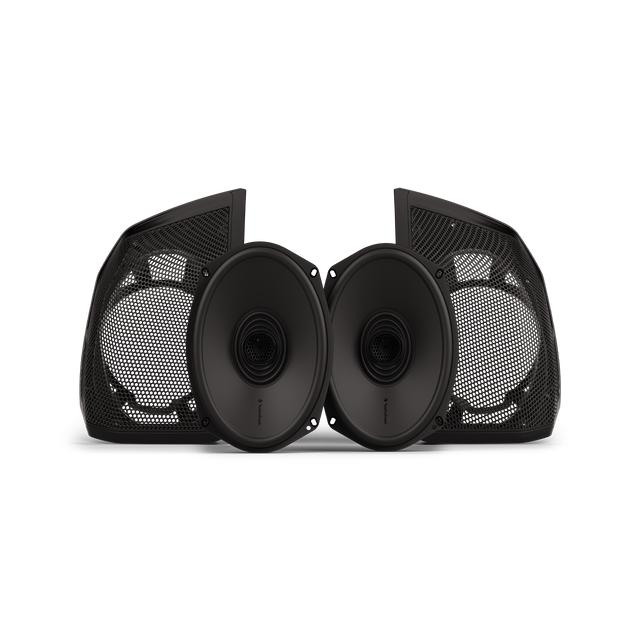

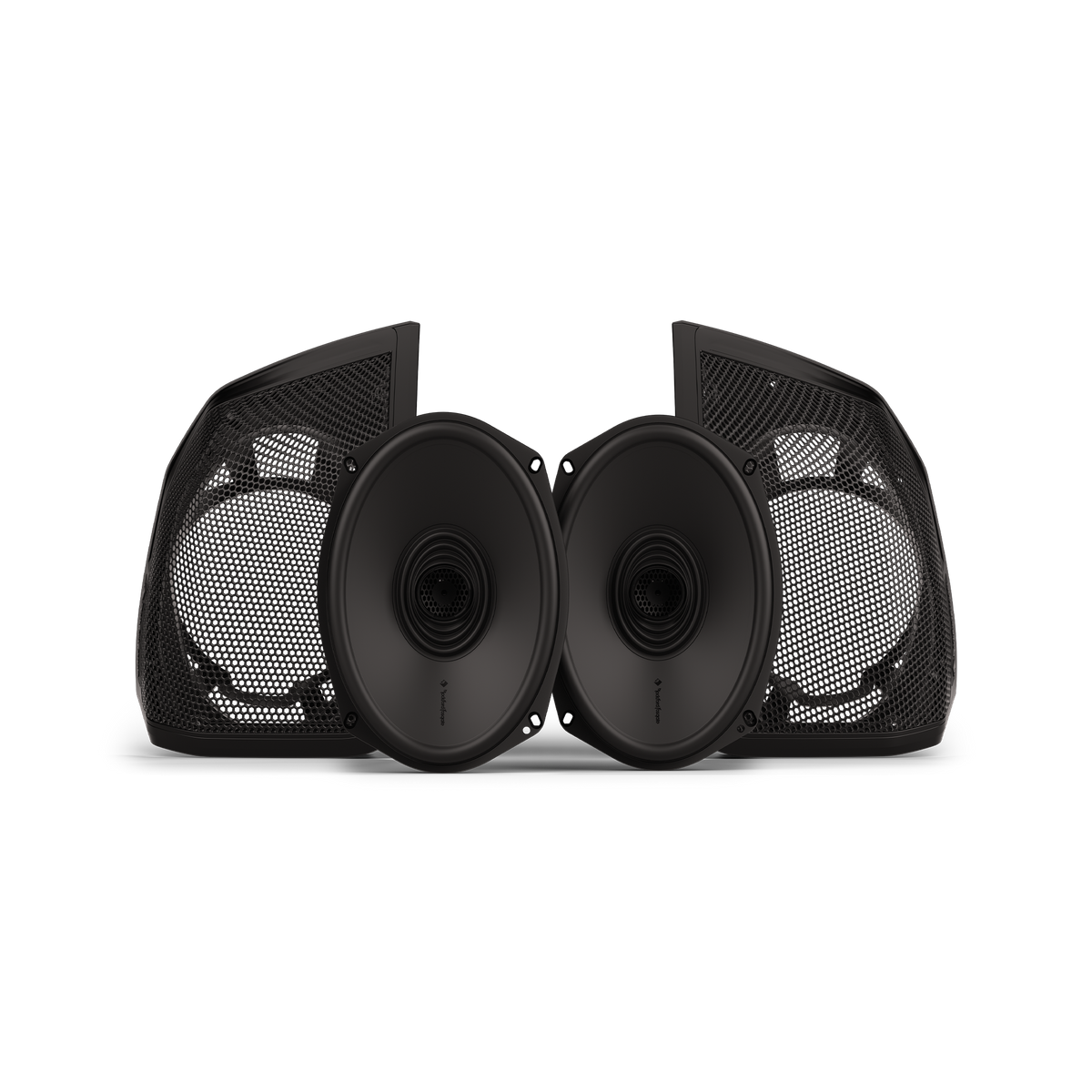

The HD24BL69 is a high-performance, 2-speaker, cut-in kit for factory Harley-Davidson™ saddlebag lids.
Kit Includes:
• (2) 6x9” TMS 2.0 speakers
• (2) Cutting templates
• (2) Speaker bucket systems
• (2) Baglid grilles
• (1) Installation harness
• Mounting hardware
FEATURES AT A GLANCE

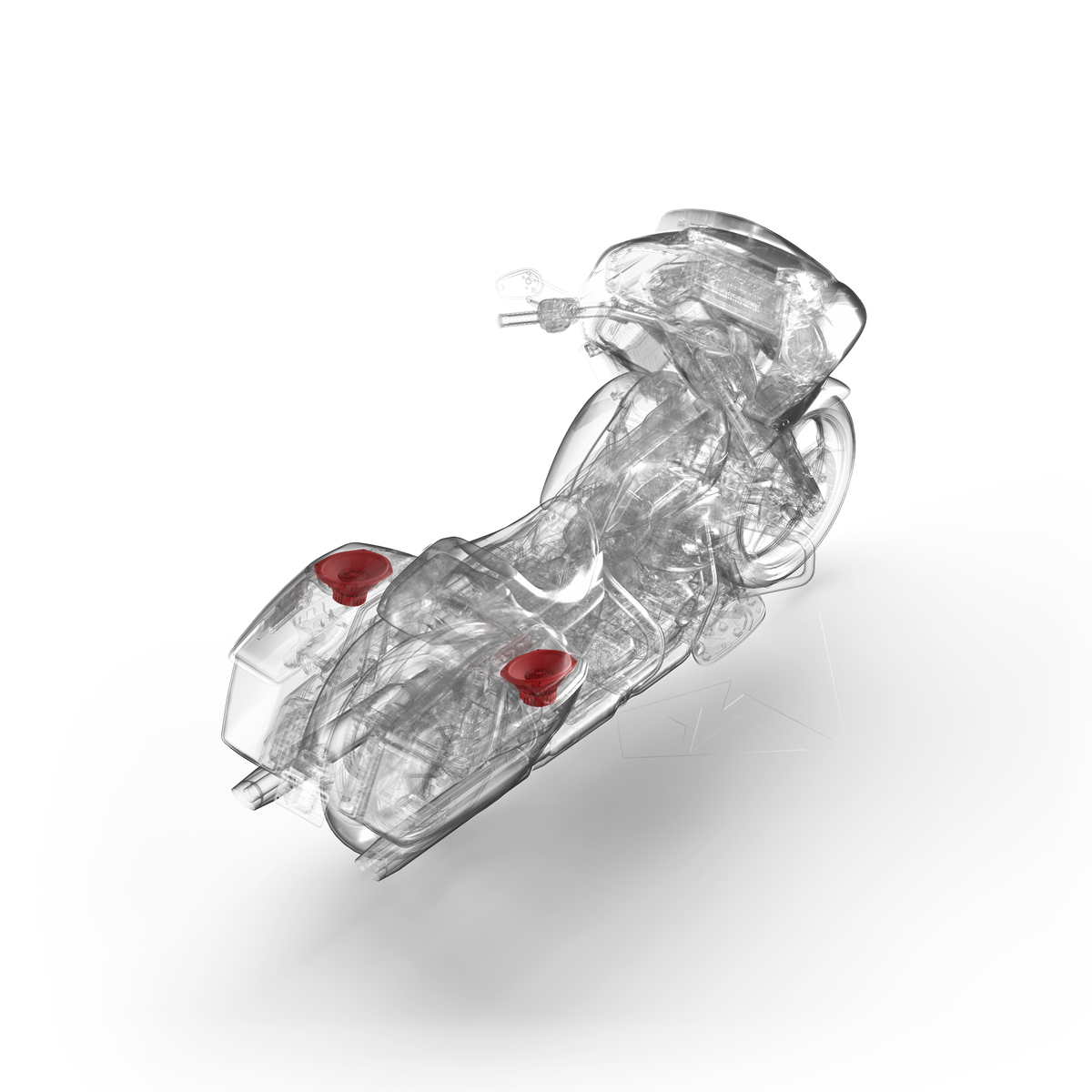

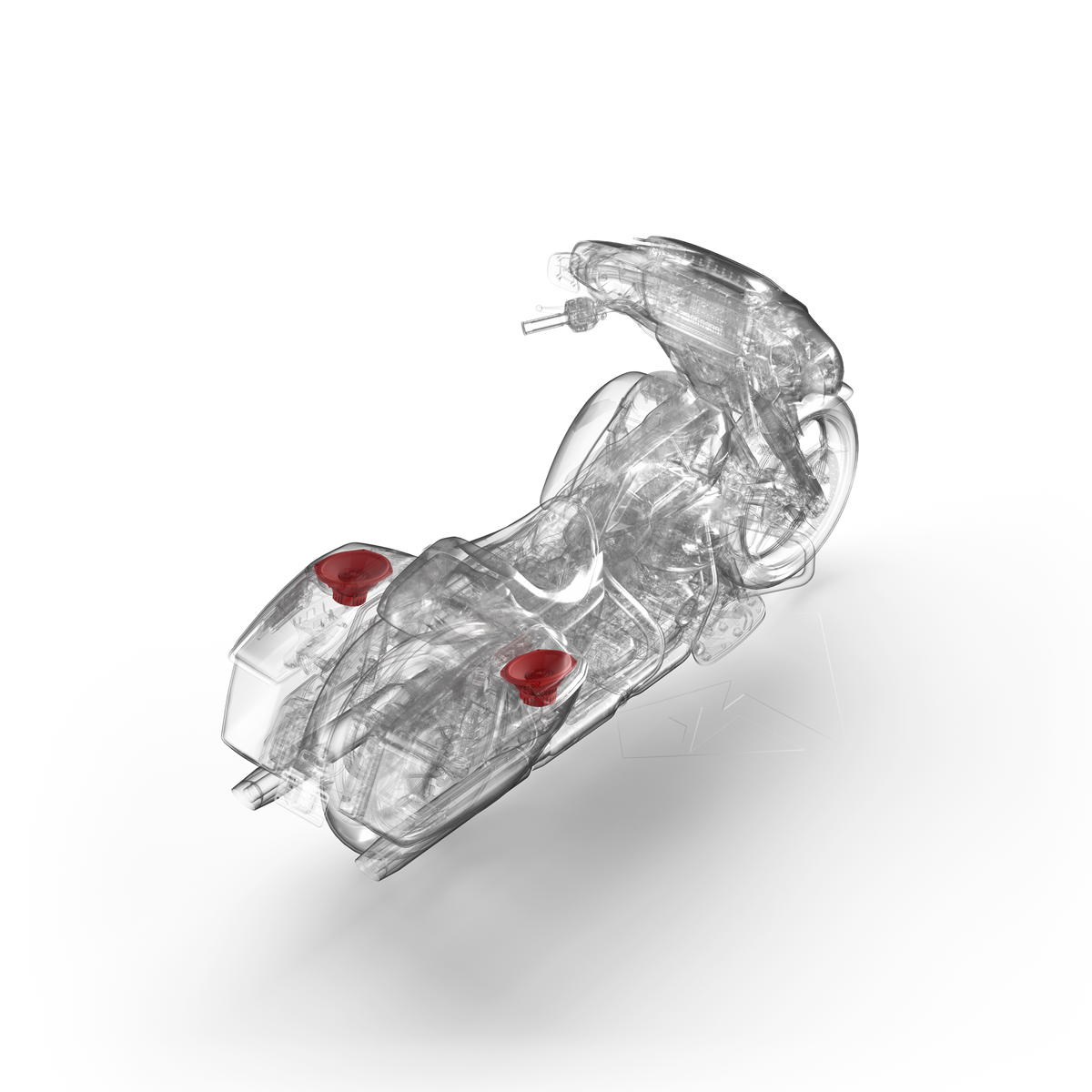

- Purpose-Built for 2024+ Harley-Davidson® touring motorcycles
- Compatible with Harley-Davidson® Power Lock kit
- Integrated motor cover prevents valuables in saddle bag from heat damage
- Extended frequency range for increased low-end response
- Precision-tuned, long throw, high output design
- TMS24-69 6x9” Element Ready™ saddlebag speaker for Harley-Davidson®
- Direct saddlebag fitment for seamless upgrades in factory H-D® saddlebags
- Precision template with external ribs promote accurate cuts with jig or air saws
- U-channel formed by mating top bucket and backer ring fight water intrusion
- Molding ribs create a stable foundation to reduce loss of acoustic energy
- Higher speaker mounting preserves saddlebag space

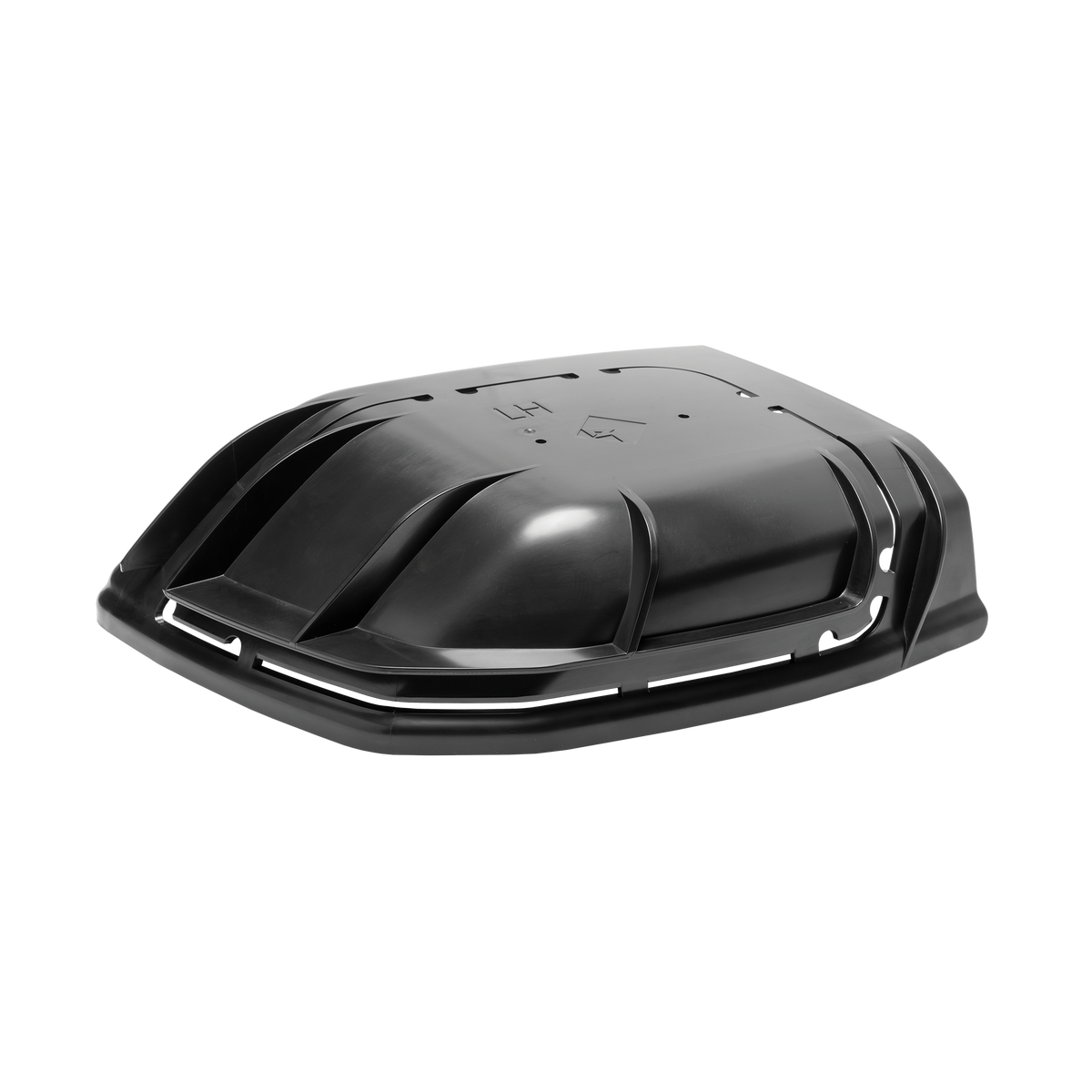

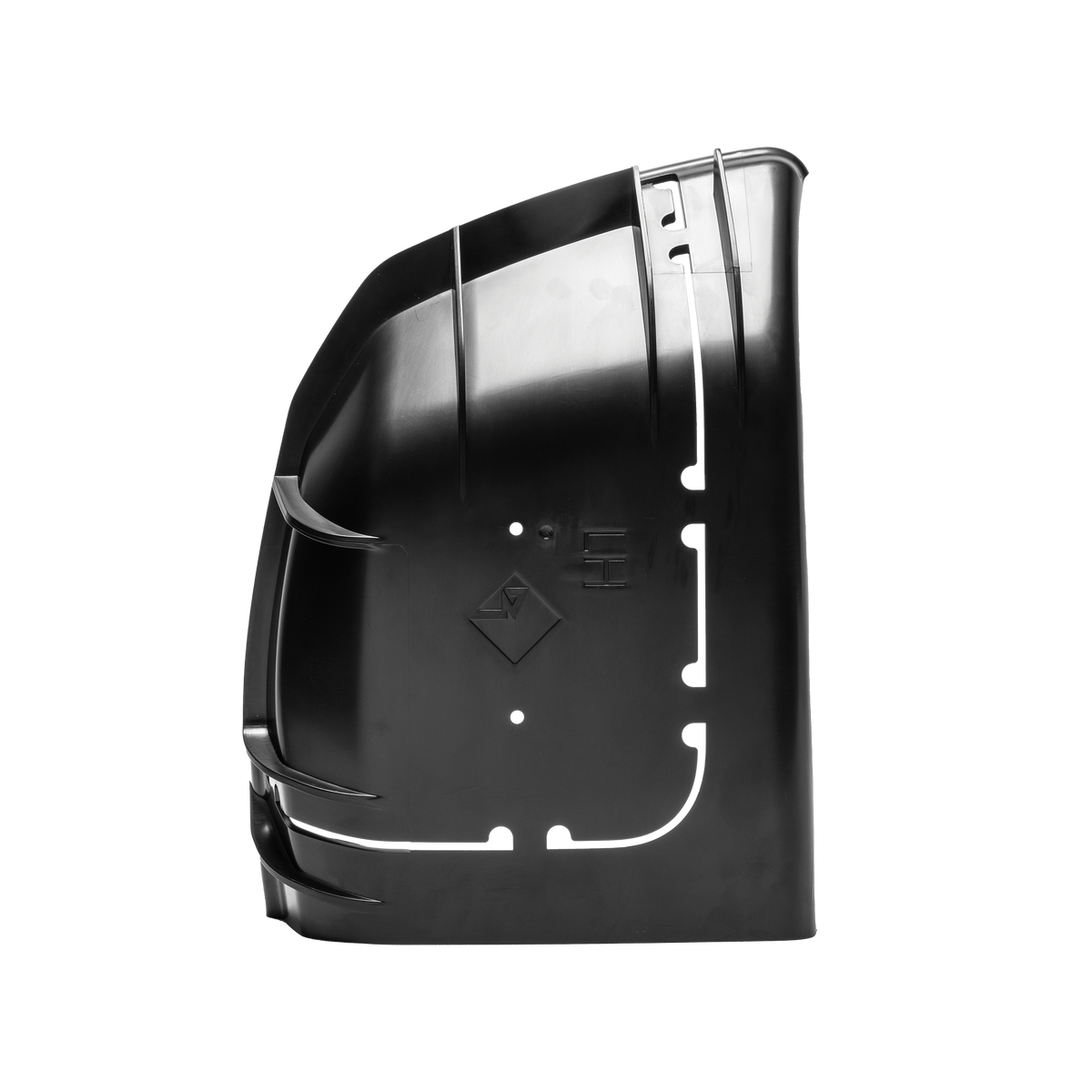

- Top-loading bucket design with self-centering backer ring
- Gasketed screws thread into brass inserts for increased seal and rigidity
- Speaker grille secures to bucket using four rubber O-rings for better sealing

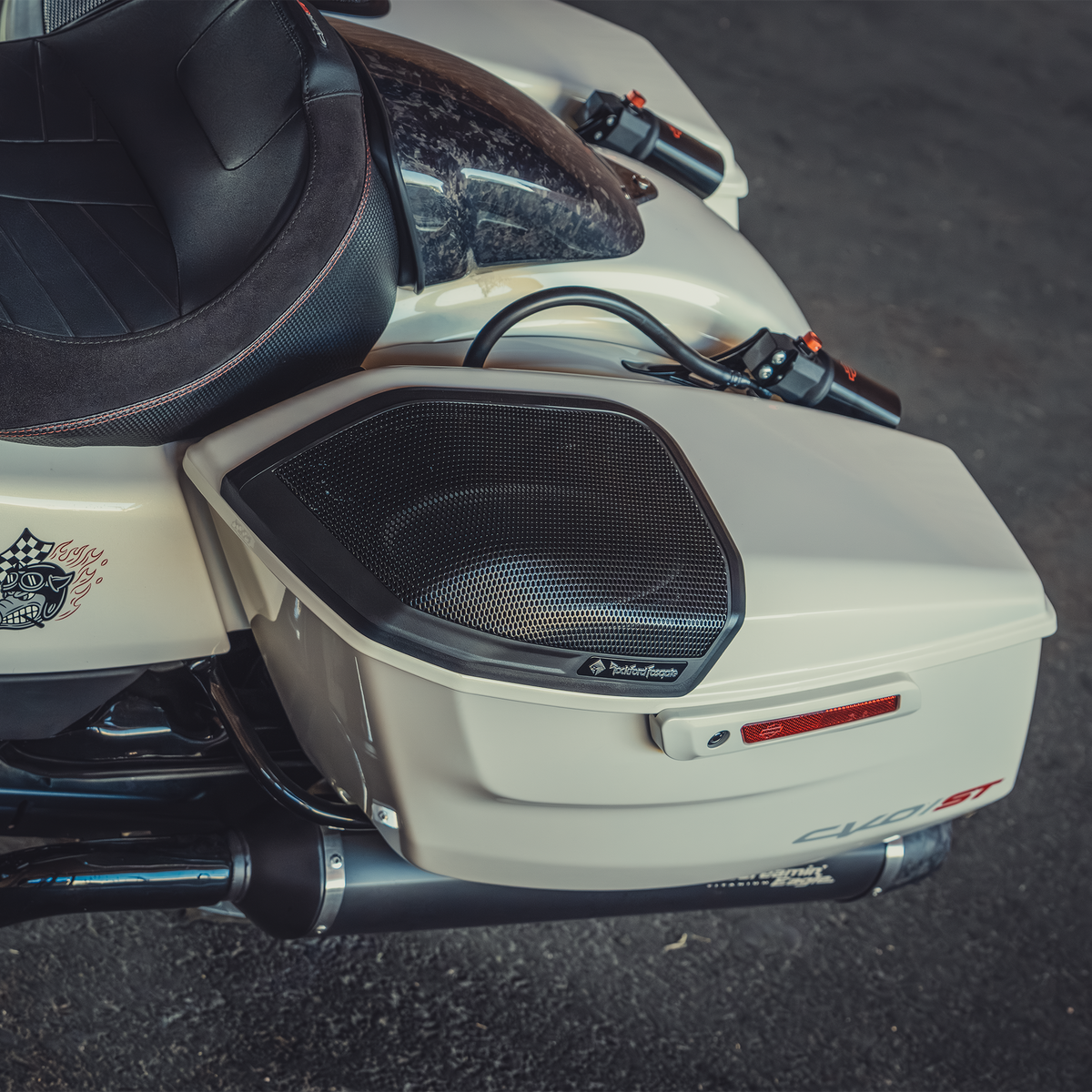

- Grille with custom side badge finish follows compound bag-lid lines
- Element Ready™ to withstand the harsh outdoor environment like dust, water, and UV rays
- Watertight harness protection using Molex MX150 & Deutsch DT connections
- Manufacturer warranty: 2 years
Specifications
| Speaker Qty | 2 |
|---|---|
| Amplifier Type | N/A |
| Total Power | N/A |
| Grille/Trim Ring Included | Yes |
| Mounting Hardware | Yes |
| Shipping Weight | 15 Lbs. (6.8 Kg) |
| In The Box | (2) TMS24-69 Speakers (1) Baglid Cutting Template – left (1) Baglid Cutting Template – right (1) Mechanical Bucket – left (1) Mechanical Bucket – right (1) Mechanical Backer – left (1) Mechanical Backer – right (1) Baglid Grille – left (1) Baglid Grille – right (1) Wiring Harness – external (1) Wiring Harness – Internal 1130-80758-01 AP Pack: • (8) Grille Washer 4.3mm ID/9.1mm OD/3.1mm • (16) Grille Screw, self-tapping, MX4.2 L=19mm • (12) Bucket Washer 4mm ID/8mm OD/2mm • (12) Bucket Screw M4x0.7 • (4) Template Screw, self-tap, M4x1.4, L=15.5mm • (16) Nylon Cable Tie 0.17 x 8 in • (10) Nylon Tie Holder, adhesive, 19mm sq, 5mm |
Compatibility
REQUIRED4125D or 5057D |
REQUIRED |
YES |
NO |
NO |
NO |
NO |
|---|
|
|
|
|
|
|
|---|---|---|---|---|
|
|
FLTRX | X | ✅ | ✅ |
|
|
FLTRXST | X | — | — |
|
|
FLTRXS | X | — | — |
|
|
FLTRXSANV | X | — | — |
|
|
FLHX | X | ✅ | ✅ |
|
|
FLHXST | X | — | — |
|
|
FLHXS | X | — | — |
|
|
FLHXSANV | X | — | — |
YES |
NO |
NOT AVAILABLE |
|---|
|
|
|
|
|
|
|---|---|---|---|---|
|
|
FLHFB | X | — | — |
|
|
FLHRXS | X | X | X |
|
|
|
|
|
|
|---|---|---|---|---|
|
|
FLTRK | X | X | — |
|
|
FLHXU | — | — | ✅ |
|
|
FLHTK | X | X | — |
|
|
FLHTKANV | X | — | — |
|
|
FLHTK | X | — | — |
|
|
|
|
|
|
|---|---|---|---|---|
|
|
FLTRXSE | XSKY2 | XSKY2 | XSKY2 |
|
|
FLTRXRRSE | — | — | ✅ |
|
|
FLTRSXTSE | — | ✅SKY2 | ✅SKY2 |
|
|
FLTRKSEANV | XRF1 | — | — |
|
|
FLHXSE | XSKY2 | XSKY2 | XSKY2 |
|
|
|
|
|
|
|---|---|---|---|---|
|
|
FLRT | XNR | XNR | XNR |
|
|
FLTRT | X | X | X |
|
|
FLHTCUTG | X | X | X |
|
|
FLHTCUTGANV | X | — | — |
GRAY TEXT
indicates nomenclature used on some early models and later inherited.
2
H-D® Power Lock on factory Harley-Davidson bags are compatible.
3
Saddlebags must be factory Harley-Davidson® ABS plastic to insure proper fitment with bag-lid and subwoofer kits.
Fiberglass saddlebags and lids are not compatible. Color matched speaker lids are not compatible.
4
Stretched Saddlebags not optimized for kits with subwoofers. Contact technical support for suggested harness brace.
5
Tour-Pak® must be detached in order to install and remove subwoofer enclosures.
NR
No Radio equipped from factory.
RF1
RF Stage I: Not upgradable. Factory equipped with "Harley-Davidson Audio Powered by Rockford Fosgate" 2-way speakers and saddlebag amplifier.
RF2
RF Stage II: Not upgradable. Factory equipped with "Harley-Davidson Audio Powered by Rockford Fosgate" 3-way speakers and saddlebag amplifier.
SKY0
Skyline Base Audio: Factory equipped with Skyline OS, Harley-Davidson 2-way base speakers and 200W amplifier.
This system replaces and is not designed to be used with factory equipped audio.
SKY1
Skyline RF Stage I: Factory equipped with Skyline OS, "Harley-Davidson Audio Powered by Rockford Fosgate" 2-way speakers and 500W primary amplifier.
This system replaces and is not designed to be used with factory equipped audio.
Models with factory Harley-Davidson® Saddlebag Speaker Lids will also require TMS24-69 speakers.
SKY2
Skyline RF Stage II: Factory equipped with Skyline OS, "Harley-Davidson Audio Powered by Rockford Fosgate" 3-way speakers and 500W primary amplifier.
This system replaces and is not designed to be used with factory equipped audio.
Models with factory Harley-Davidson® Saddlebag Speaker Lids will also require TMS24-69 speakers.
SKY3
Skyline RF Stage III: Factory equipped with Skyline OS, "Harley-Davidson Audio Powered by Rockford Fosgate" 3-way high-output speakers and 500W primary amplifier.
This system replaces and is not designed to be used with factory equipped audio.
Models with factory Harley-Davidson® Saddlebag Speaker Lids will also require TMS24-69 speakers.
