Infotainment Source Unit for Select 2014-2023 Harley-Davidson Models
Infotainment Source Unit for Select 2014-2023 Harley-Davidson Models is backordered and will ship as soon as it is back in stock.
Infotainment Source Unit for Select 2014-2023 Harley-Davidson Models is backordered and will ship as soon as it is back in stock.
Description
Description
The PMX-HD14 source unit was purpose built to deliver iconic performance. With class leading features like Apple Car Play®, plug-and-play installation, CB wireless headset connectivity as well as Street Party Mode™ which allows you to pair and stream the same music across to multiple radios simultaneously.

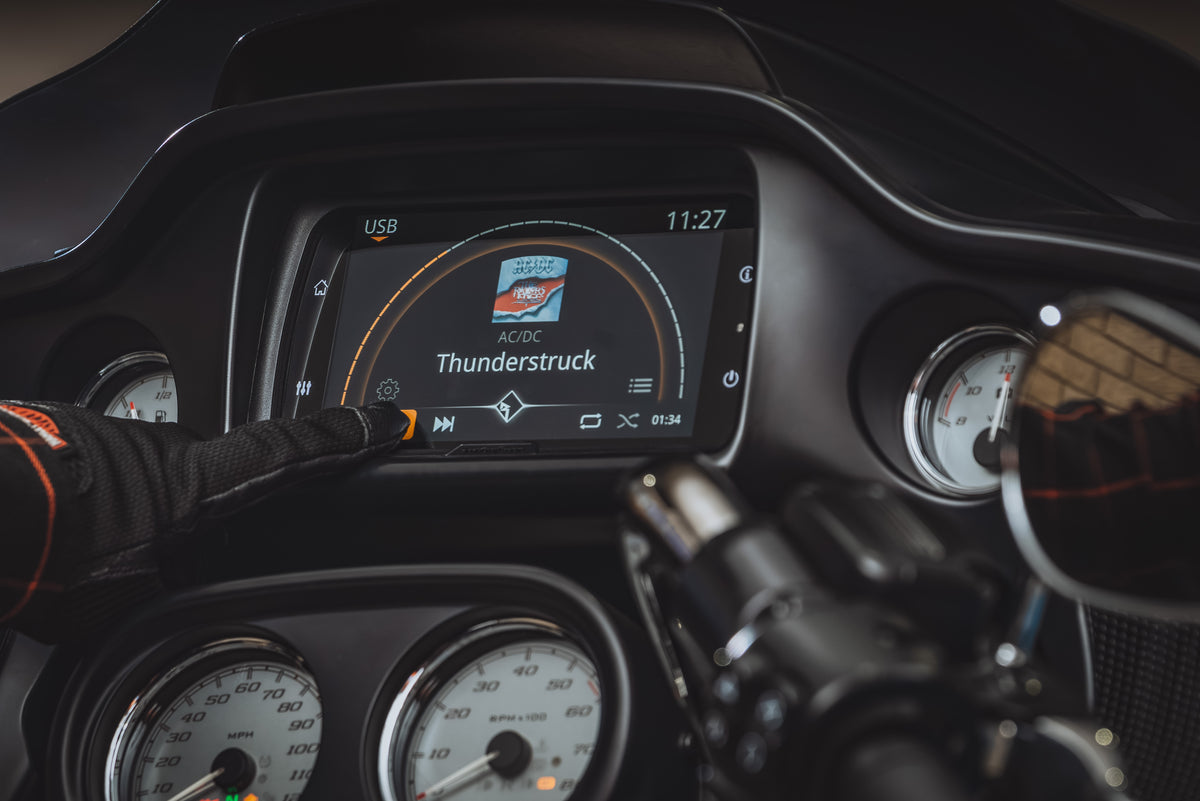

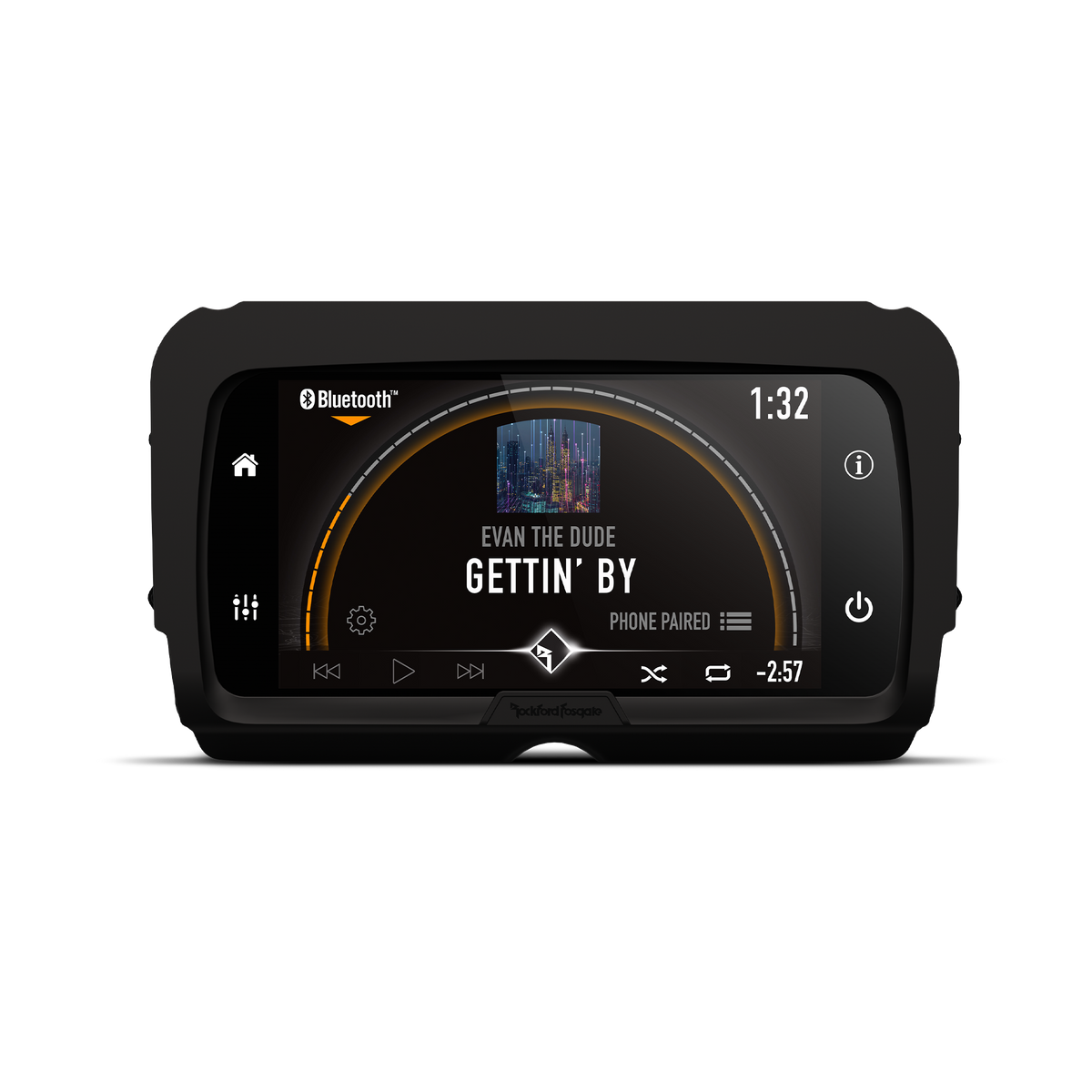

Full Color Display: Equipped with a 7” TFT display, this ultra-crisp infotainment center not only looks amazing, but features full touchscreen functionality that even works with riding gloves.

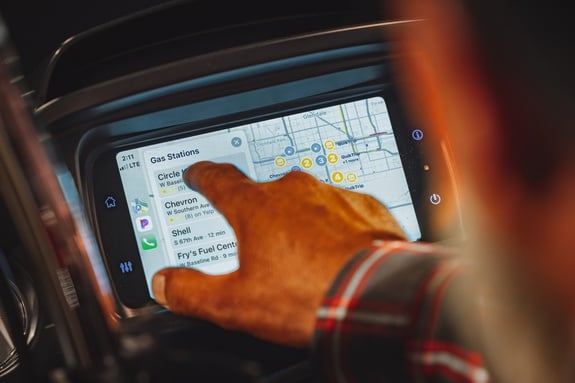

Complete Control: Control however you want it. This source unit keeps all factory handlebar controls as well as CB and wireless headset connectivity, and with built in Apple Car Play®, controlling your playlists and apps has never been easier (diagnostic functions not included at this time).
Optimized Tunes: Designed specifically for your current Rockford Fosgate motorcycle audio system, we have optimized speaker specific location tunes, so no matter your current audio system you will get class leading sound.
Street Party Mode™: Bring the party to the streets. Street Party Mode allows up to 8 radios to pair and stream the same song from one broadcasting PMX-HD14.
Compatibility Chart: Please review below tab for fitment before purchasing.

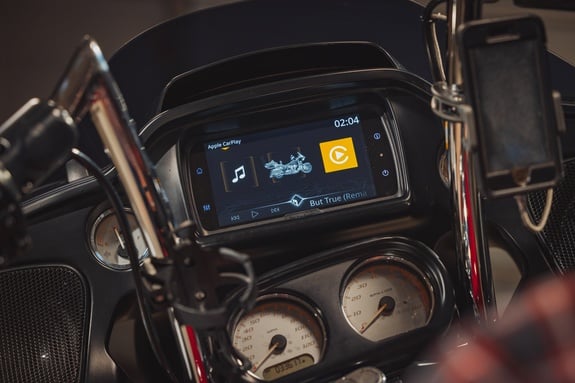

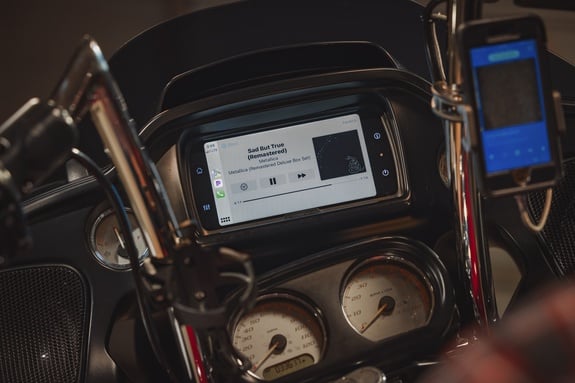

PMX-HD14 | Lifestyle
PMX-HD14 | Overview
PMX-HD14 | Quick Start Guide
PMX-HD14 | 2014+ Street Glide Install PMX-HD14 | 2015+ Road Glide Install
PMX-HD14 | Software Updates
ICONIC PERFORMANCE
The PMX-HD14 source unit was purpose built to deliver iconic performance. With class leading features like Apple Car Play®, plug-and-play installation, CB wireless headset connectivity as well as Street Party Mode™ which allows you to pair and stream the same music across multiple radios simultaneously.
The PMX-HD14 includes these accessory trim bezels:
• (1) Batwing Trim Bezel (Street Glide)
• (1) Sharknose Trim Bezel (Road Glide)
Refer to our COMPATIBILITY chart to verify fitment before purchasing.
FEATURES AT A GLANCE
- Works with wired intercom headsets on Ultra models (requires "push to talk" interface)
- 14 band graphic EQ
- Apple CarPlay® built in
- Glove friendly touch controls
- Retains factory thumb control functionality
- Optimized DSP presets for all 2014+ Rockford Fosgate H-D stage kits
- Eliminates the need to "flash" your radio
- 2014+ Harley-Davidson® direct replacement digital media receiver
- Street Party Mode™ can broadcast audio up to 100 feet to 8 additional PMX-HD14
- USB Input with 1.5A USB Charging
- SiriusXM-Ready® satellite radio (requires SXV300 tuner)
- Digital AM/FM/WB tuner with presets

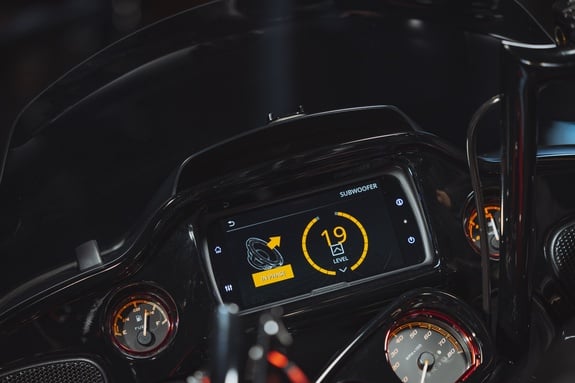

- Built in DSP with Subwoofer control
- AUX Input
- Multi-region radio frequencies
- Plug and Play Installation with OEM electrical connectors
- Software updatable via USB
- *Antenna not included
- Manufacturer warranty: 2 years
- Bluetooth® connectivity with A2DP wireless audio streaming
- 7" full color, glove friendly, capacitive multi-touch screen
- Works with wireless headsets and OEM CB (WHIM & CB modules required)
Specifications
| Output Power |
 CEA-2006 Power Rating25W x 4 @ 4Ω RMS 50W x 4 @ 2Ω MAX ≤1.0% THD+N |
|---|---|
| Display Size | 7" |
| Frequency Response | 20 Hz - 20 kHz |
| Display Type | Color TFT |
| EQ Bands | 14 |
| EQ Type | Graphic |
| Source Zones | 1.0 |
| Audio Zones | 1.0 |
| Output Impedance | < 500Ω |
| Pre-Amp Output Voltage | 4.0 VRMS Front 4.0 VRMS Rear |
| Android via USB | Charge Only |
| iPhone via USB | Yes |
| Pre-Amp Outputs | 6 (Left/Right) |
| USB Max Capacity | 32 GB |
| USB Max Folders/Files | 999 |
| USB Charging Current | 1.5 A |
| USB Type | Type A |
| AUX Inputs | 1 (left/right) |
| Bluetooth | 5.0 |
| AUX Input Sensitivity | 800 mV - 4 V |
| Apple CarPlay | Yes |
| Made for iPhone | Yes |
| SiriusXM® | Yes (SXV300) |
| AM/FM Tuner | Yes |
| Android Auto | No |
| Street Party Mode | Broadcast: 100 ft. max Receiving: 8 radios max |
| SD Card Input | No |
| Playback: FLAC | Yes |
| Playback: MP3 | Yes |
| Clock | Yes |
| Playback: WMA | Yes |
| Playback: AAC | No |
| Playback: LC3 | No |
| Playback: USB | Yes |
| Operating Voltage | 9 - 16 VDC |
| Playback: DRM | Yes |

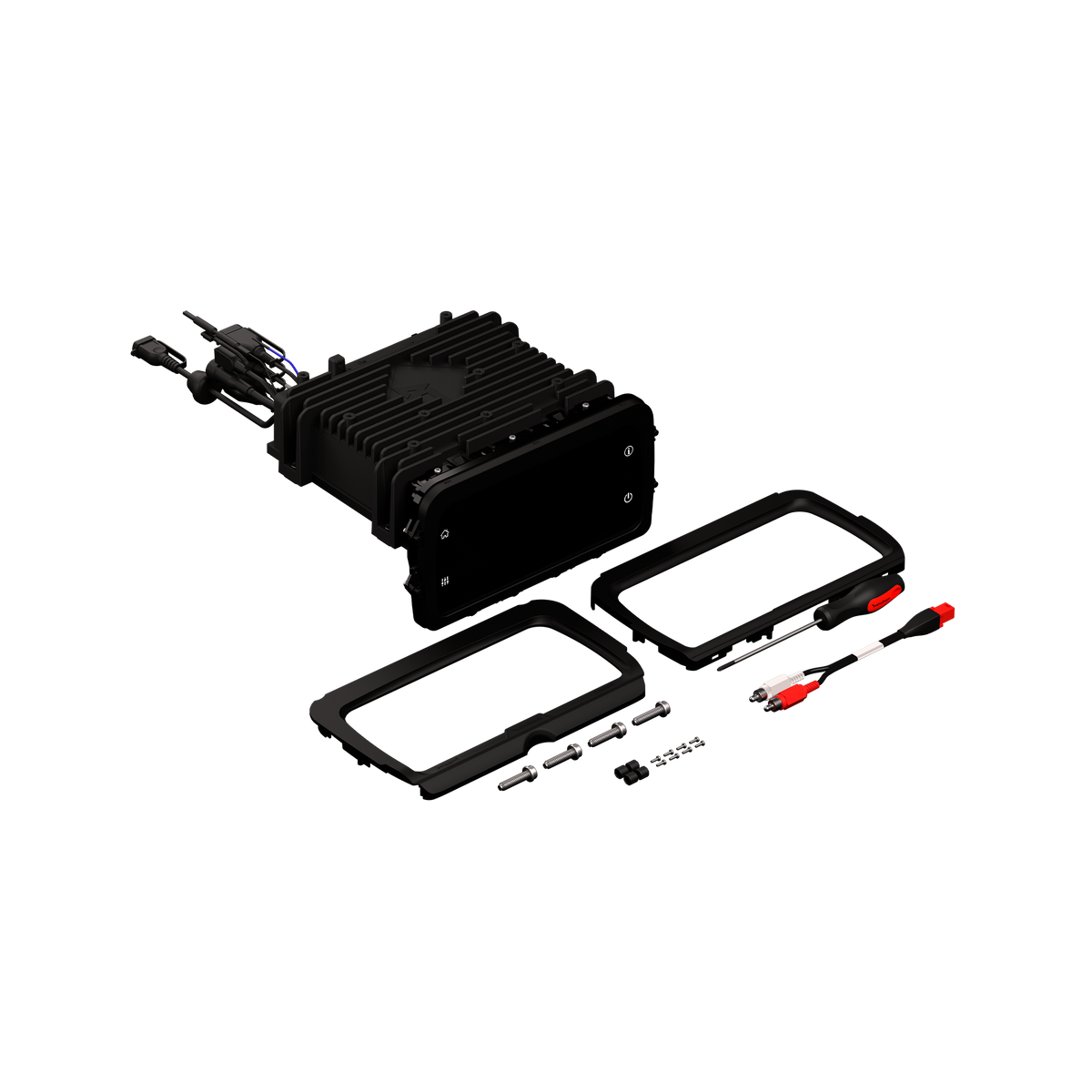

| Included In The Box | (1) Road Glide trim bezel (1) Street Glide trim bezel (8) Trim Panel Screws (1) Mini Phillips screwdriver for trim bezel (4) Radio Chassis Mount screws (8) Rubber sleeves for radio chassis screws |
Compatibility
YESModel IS compatible |
NOModel NOT compatible |
NOT AVAILABLEModel not produced this year |
|---|
YESH-D® CB |
YESSiriusXM™ SXV300 |
NOH-D® SiriusXM™ |
COMPATIBLEBoom!™ Audio1 |
NOBoom!™ AudioStage I2 |
NOBoom!™ AudioStage II2 |
COMPATIBLEH-D® Audio Powered by Rockford Fosgate®Stage IRF1 |
COMPATIBLEH-D® Audio Powered by Rockford Fosgate®Stage IIRF2 |
|---|
| MODEL | CHASSIS | 2014 | 2015 | 2016 | 2017 | 2018 | 2019 | 2020 | 2021 | 2022 | 2023 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Electra Glide® Revival | FLH | — | — | — | — | — | — | — | ✔ | — | ✔ |
| Electra Glide® Standard NR | FLHT | — | — | — | — | — | XNR | XNR | XNR | XNR | — |
| Road Glide® | FLTRX | — | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Road Glide® ST | FLTRXST | — | — | — | — | — | — | — | — | ✔ | ✔ |
| Road Glide® Special | FLTRXS | — | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Road Glide® Special 120th Anniversary | FLTRXSANV | — | — | — | — | — | — | — | — | — | ✔ |
| Street Glide® | FLHX | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Street Glide® ST | FLHXST | — | — | — | — | — | — | — | — | ✔ | ✔ |
| Street Glide® 115th Anniversary | FLHXANV | — | — | — | — | ✔ | — | — | — | — | — |
| Street Glide® Special | FLHXS | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Street Glide® Special 115th Anniversary | FLHXSANV | — | — | — | — | ✔ | — | — | — | — | — |
| Street Glide® Special 120th Anniversary | FLHXSANV | — | — | — | — | — | — | — | — | — | ✔ |
| MODEL | CHASSIS | 2014 | 2015 | 2016 | 2017 | 2018 | 2019 | 2020 | 2021 | 2022 | 2023 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CVO Road King® | FLHRSE | X | — | — | — | — | — | — | — | — | — |
| CVO Softail Deluxe | FLSTNSE | X | X | — | — | — | — | — | — | — | — |
| Electra Glide Highway King | FLHFB | — | — | — | — | — | — | — | — | — | X |
| Road King® | FLHR | — | X | X | X | X | X | X | X | X | — |
| Road King® Classic | FLHRC | X | X | X | X | X | X | — | — | — | — |
| Road King® Special | FLHRXS | — | — | — | X | X | X | X | X | X | X |
| MODEL | CHASSIS | 2014 | 2015 | 2016 | 2017 | 2018 | 2019 | 2020 | 2021 | 2022 | 2023 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Road Glide® LimitedPTT | FLTRK | — | — | — | — | — | — | ✔ | ✔ | ✔ | ✔ |
| Road Glide® UltraPTT | FLTRU | — | — | ✔ | ✔ | ✔ | ✔ | — | — | — | — |
| Electra Glide® Ultra Classic®PTT | FLHTCU | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | — | — | — | — |
| Electra Glide® Ultra Classic® Twin-CooledPTT | FLHTCU | ✔ | ✔ | ✔ | — | — | — | — | — | — | — |
| Electra Glide® Ultra Classic® LowPTT | FLHTCUL | — | ✔ | ✔ | — | — | — | — | — | — | — |
| Electra Glide® Ultra Classic® Low Twin-CooledPTT | FLHTCUL | — | ✔ | ✔ | — | — | — | — | — | — | — |
| Ultra LimitedPTT | FLHTK | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Ultra Limited 115th AnniversaryPTT | FLHTKANV | — | — | — | — | ✔ | — | — | — | — | — |
| Ultra Limited 120th AnniversaryPTT | FLHTKANV | — | — | — | — | — | — | — | — | — | ✔ |
| Ultra Limited LowPTT | FLHTKL | — | ✔ | ✔ | ✔ | ✔ | ✔ | — | — | — | — |
| Ultra Limited Shrine EditionPTT | FLHTK | — | — | — | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| MODEL | CHASSIS | 2014 | 2015 | 2016 | 2017 | 2018 | 2019 | 2020 | 2021 | 2022 | 2023 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CVO Ultra Limited | FLHTKSE | X | X | X | X | X | X | X | X | — | — |
| CVO Limited 115th Anniversary | FLHTKSEANV | — | — | — | — | X | — | — | — | — | — |
| CVO Pro Street Breakout | FXSE | — | — | X | X | — | — | — | — | — | — |
| CVO Road Glide® | FLTRXSE | — | — | — | — | X | X | X | ✔RF2 | ✔RF2 | XRF2G2 |
| CVO Road Glide® Limited | FLTRKSE | — | — | — | — | — | — | — | — | ✔RF1 | — |
| CVO Road Glide® Limited 120th Anniversary | FLTRKSEANV | — | — | — | — | — | — | — | — | — | ✔RF1 |
| CVO Road Glide® Ultra | FLTRUSE | — | X | X | — | — | — | — | — | — | — |
| CVO Softail Breakout | FXSBSE | X | — | — | — | — | — | — | — | — | — |
| CVO Street Glide® | FLHXSE | — | X | X | X | X | X | X | ✔RF2 | ✔RF2 | XRF2G2 |
| MODEL | CHASSIS | 2014 | 2015 | 2016 | 2017 | 2018 | 2019 | 2020 | 2021 | 2022 | 2023 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Freewheeler®NR | FLRT | — | X | X | X | X | X | X | X | X | X |
| Road Glide 3 | FLTRT | — | — | — | — | — | — | — | — | — | ✔ |
| Tri Glide® Ultra Classic®PTT | FLHTCUTG | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Tri Glide® Ultra 115th AnniversaryPTT | FLHTCUTGANV | — | — | — | — | ✔ | — | — | — | — | — |
| Tri Glide® Ultra 120th AnniversaryPTT | FLHTCUTGANV | — | — | — | — | — | — | — | — | — | ✔ |
| CVO Tri Glide® | FLHTCUTGSE | — | — | — | — | — | — | X2 | X2 | ✔RF1,RF2 | — |
GRAY TEXT
indicates nomenclature used on some early models and later inherited.
1
Boom! Audio un-amplified systems are compatible.
2
Boom! Audio Stage I & Stage II systems with external amplifier(s) are not compatible. The PMX-HD14 radio cannot turn-on Boom! ampifiers.
NR
No Radio equipped from factory. Make compatible with (2) Harley-Davidson #69200247 Fairing Speaker Harnesses, PMX-HD14 source unit, and TMS65 speakers.
PTT
PTT Button required on Ultra and Trike to use wired headsets. Make compatible with (1) Harley-Davidson #71500130C Right Switchpack Assembly.
RF1
RF Stage I: Can upgrade radio only with PMX-HD14. Factory equipped with "Harley-Davidson Audio Powered by Rockford Fosgate" 2-way speakers and saddlebag amplifier.
RF2
RF Stage II: Can upgrade radio only with PMX-HD14. Factory equipped with "Harley-Davidson Audio Powered by Rockford Fosgate" 3-way speakers and saddlebag amplifier.
RF1G2
RF Stage I Gen-2: Not upgradable. Factory equipped with "Harley-Davidson Audio Powered by Rockford Fosgate" 2-way speakers and saddlebag amplifier.
RF2G2
RF Stage II Gen-2: Not upgradable. Factory equipped with "Harley-Davidson Audio Powered by Rockford Fosgate" 3-way speakers and saddlebag amplifier.
