Amp Installation Kit for 2024+ Harley-Davidson
Amp Installation Kit for 2024+ Harley-Davidson is backordered and will ship as soon as it is back in stock.
Amp Installation Kit for 2024+ Harley-Davidson is backordered and will ship as soon as it is back in stock.
Description
Description
The RFK-HD24 is an aftermarket amplifier installation kit designed specifically for the Rockford Fosgate TMA-1000X4i amplifier. The system features an Skyline™ OS interface connector, amp mounting plate for Road Glide and Street Glide, and a complete plug-and-play wiring harness for uncompromising precision with a true plug-and-play system. This installation kit is only sold with the HD24-STG2 & HD24-STG3 kit.
Plug and Play Design: A true plug-and-play solution in a single box, complete with direct fit model-specific amplifier mounting plate. Designed to seamlessly integrate with the Harley-Davidson® Skyline™ OS — eliminating the need to flash the radio — making installation truly effortless.
Element Ready™: Purpose-built for the harsh motorcycle environment, this kit includes watertight, grommeted installation harnesses with OEM-style and Deutsch™ DT connectors. Designed to withstand water, dirt, UV exposure, and constant vibration, it ensures long-lasting, reliable audio performance.
Compatibility Chart: Please review compatibility tab for fitment before purchase.
2024+ STG2 & STG3 | Launch
2024+ STG2 & STG3 | Overview
2024+ STG2 & STG3 | Installation (jumps to 6:33)
2024+ STG2 & STG3 | Tuning Guide
Download RF CONNECT™ to setup the amplifier:
Loud. Clear. Relentless.
The RFK-HD24 is an aftermarket amplifier installation kit designed specifically for the Rockford Fosgate TMA-1000X4i amplifier. The system features an amp mounting plate for Road Glide and Street Glide, and a complete plug-and-play wiring harness for uncompromising precision with a true plug-and-play system.

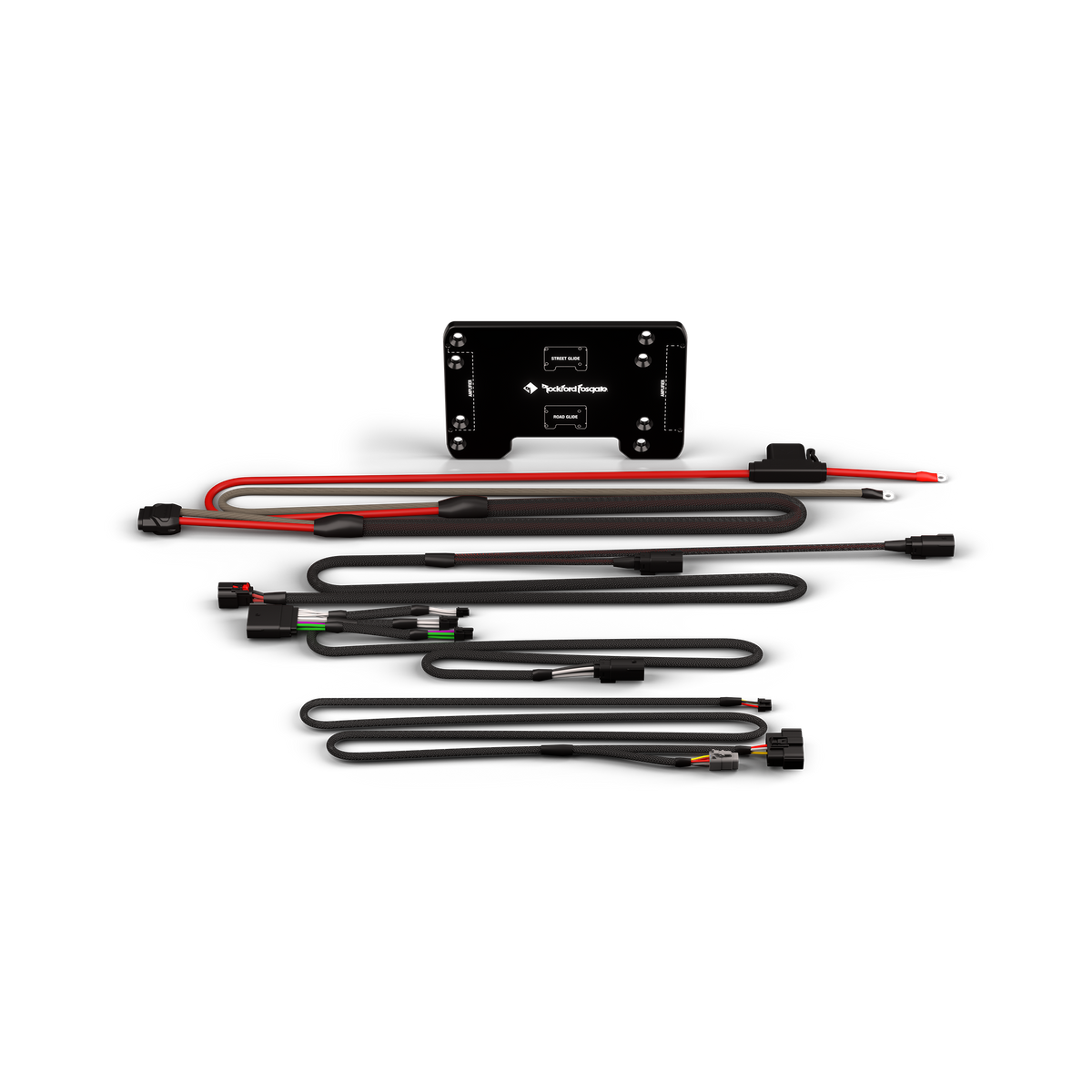

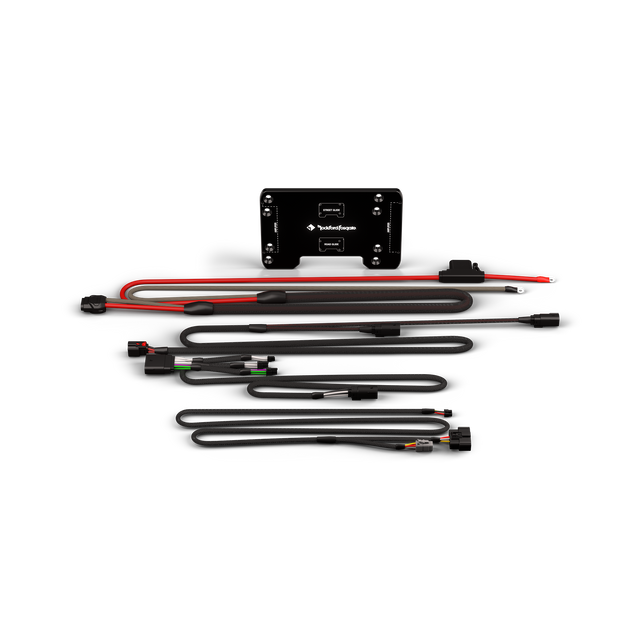

Components:

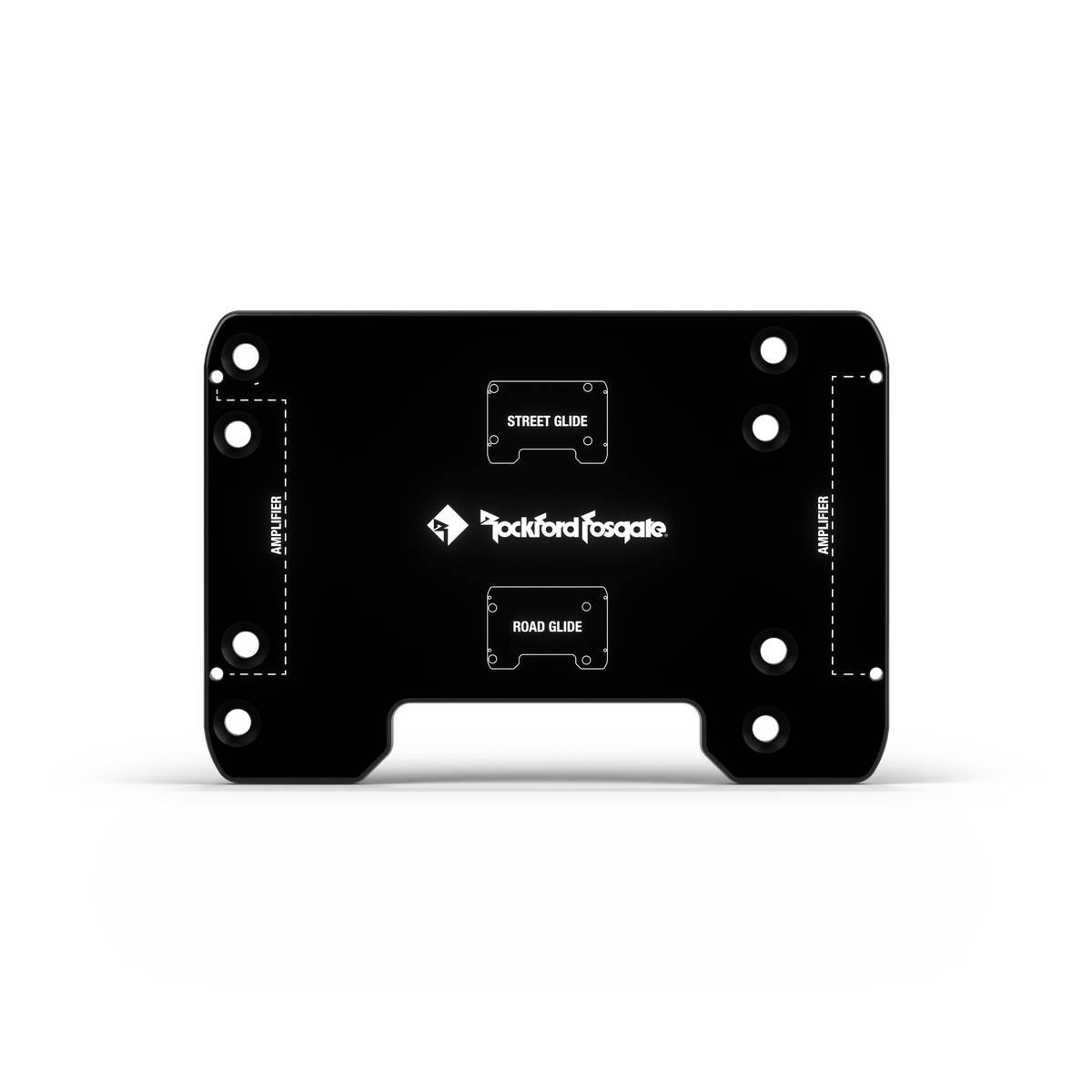

• (1) Amp mounting plate
• (1) Skyline™ OS connector

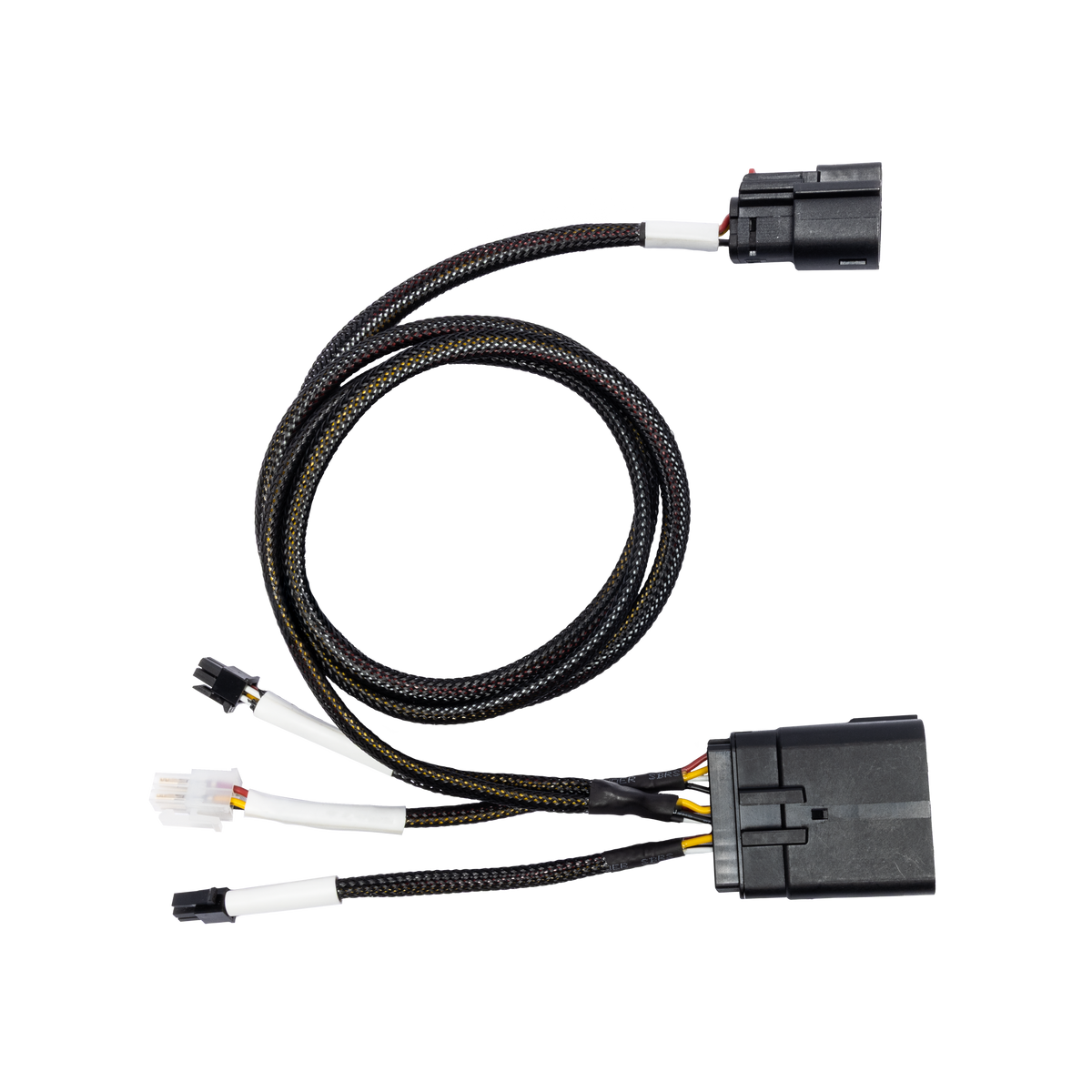

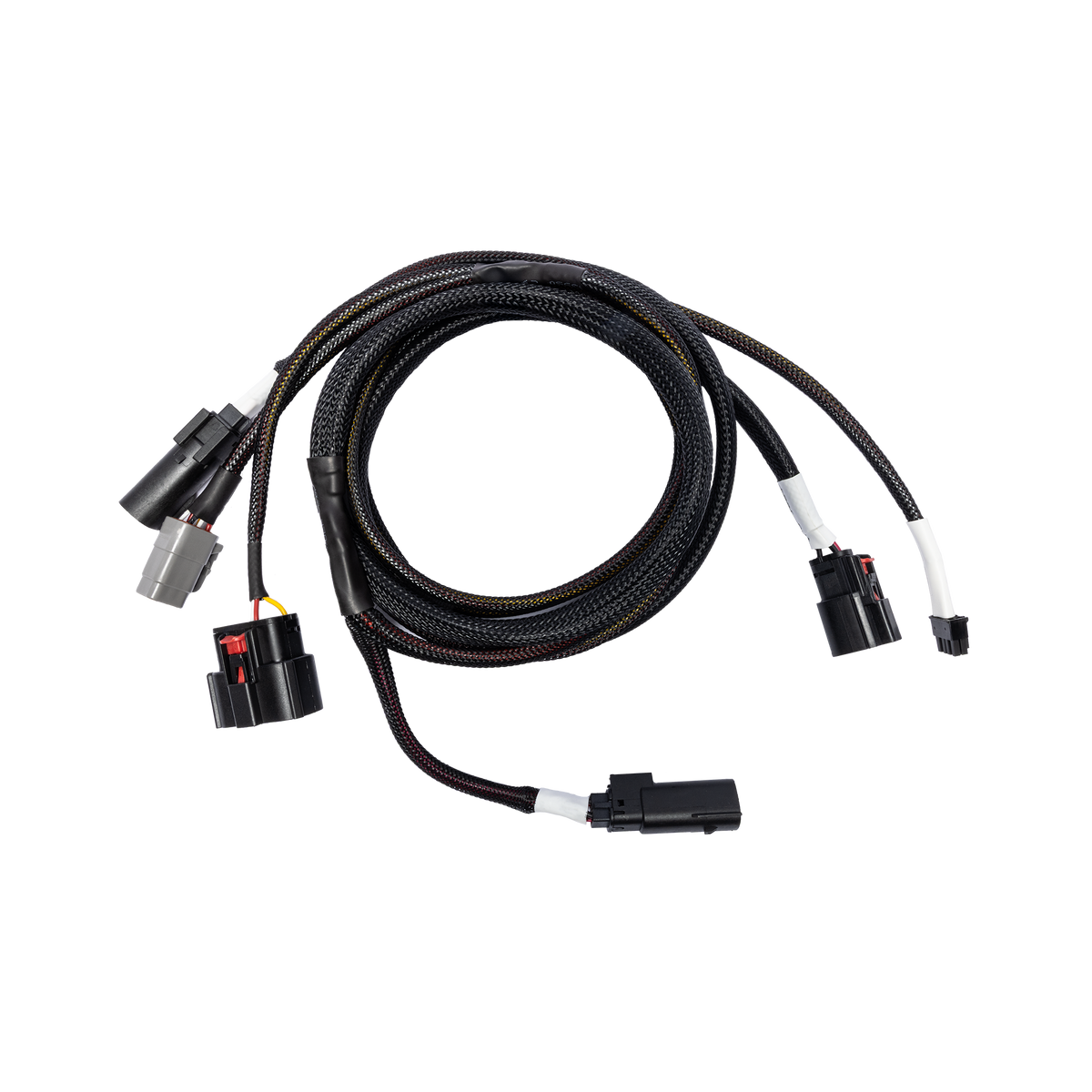

• (1) Complete wiring harness
• (1) Power/ground harness
• Mounting hardware
FEATURES AT A GLANCE
- Purpose-Built for 2024+ Harley-Davidson® touring motorcycles
- Connects amplifier output directly to existing factory speaker wiring
- Plugs directly into factory A2B connector to facilitate quick amp upgrade

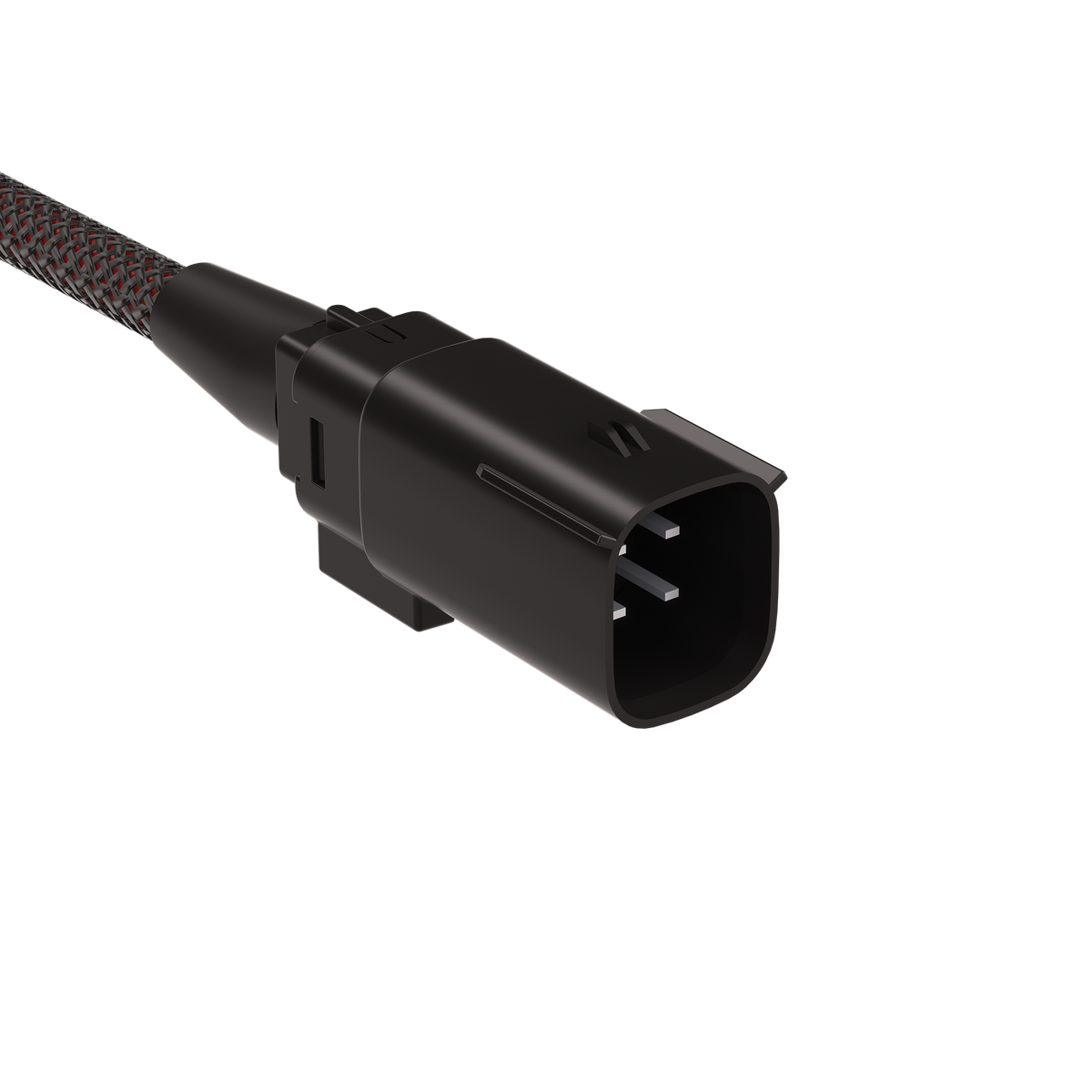

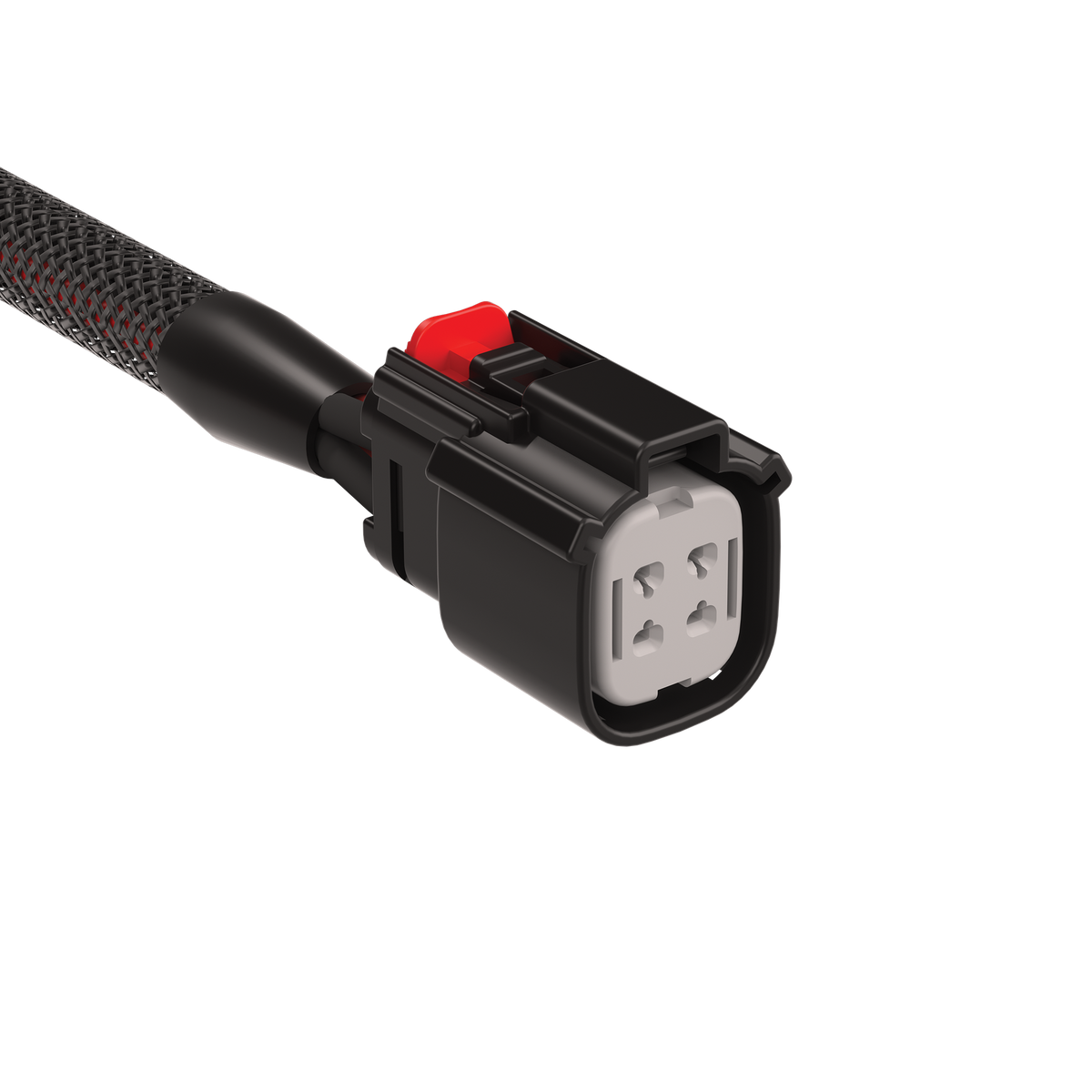

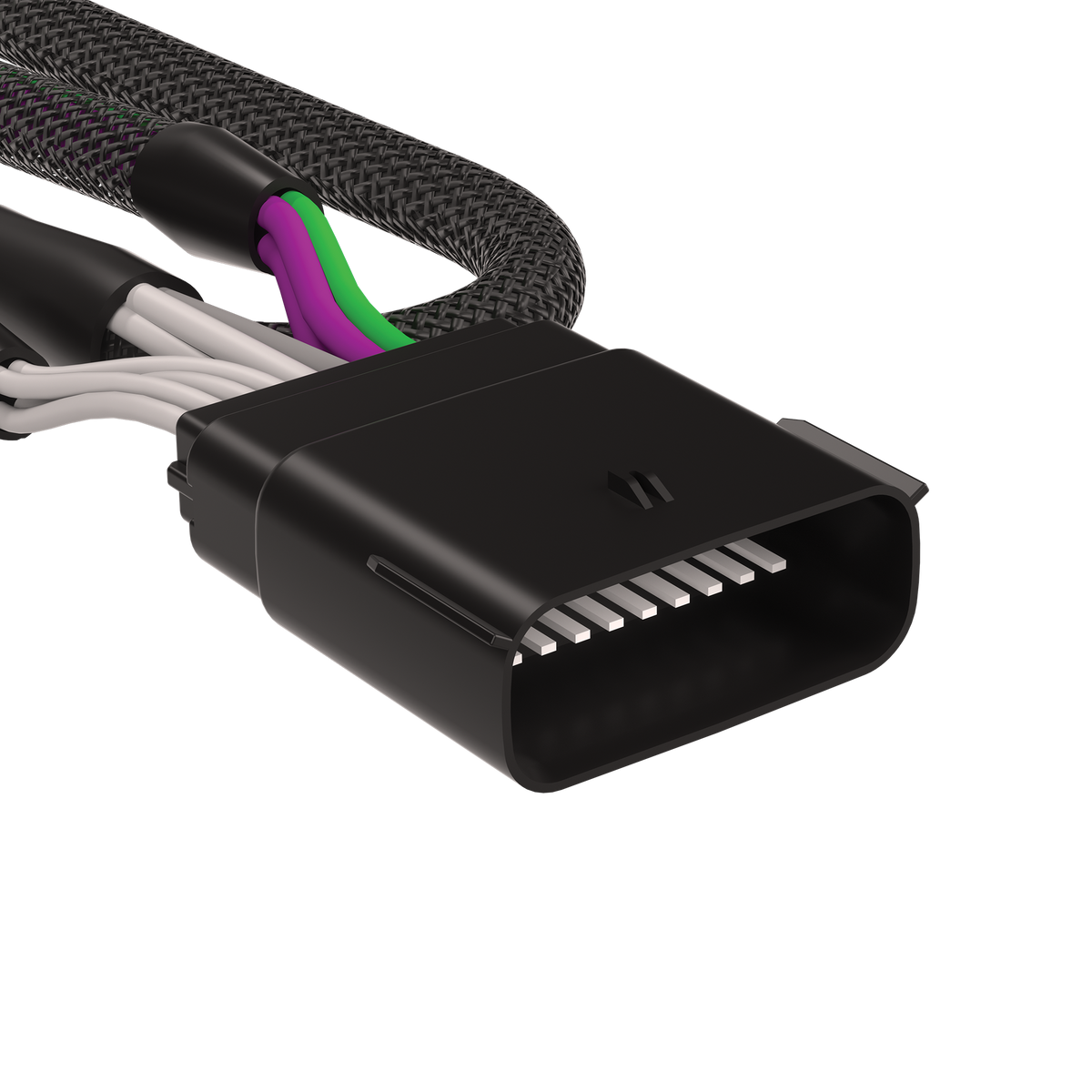

- Quick connection to factory wiring with Molex MX150 connectors
- Element Ready™ to withstand the harsh outdoor environment like dust, water, and UV rays
- Cast aluminum amp bracket has provisions for Street Glide and Road Glide
- Designed for use with TMA-1000X4i amplifier
- Supports up to 8-speaker audio systems
- Harness includes expansion for lower fairing, Tour-Pak® and saddlebags
- Full Spec Cable meets or exceeds AWG (American Wire Gauge) requirements
- Cables use 100% pure crystal-oxygen free copper (PC-OFC)

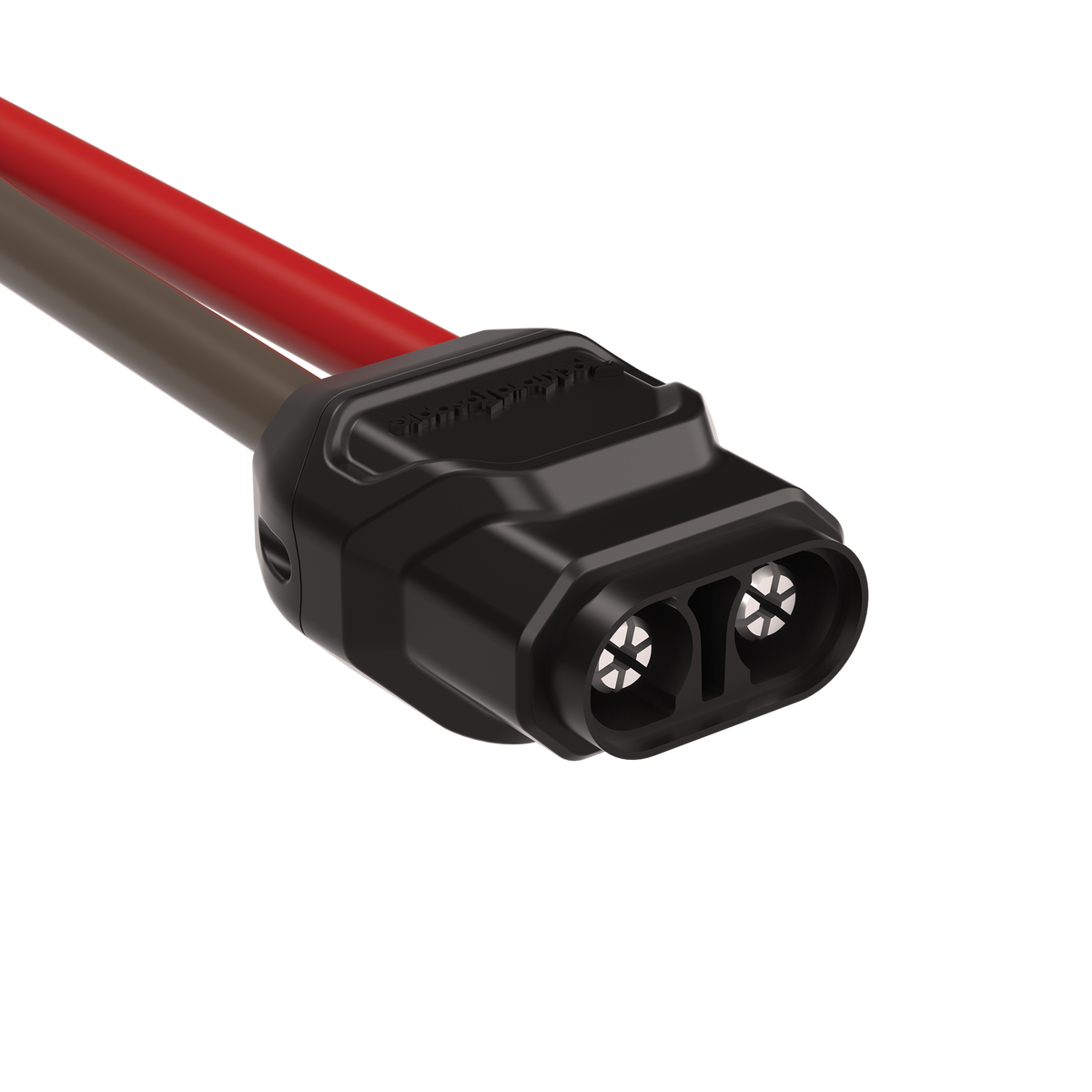

- ER5N power connector increases contact area for improved current transfer
- One-time removal of gas tank and fairing streamlines future upgrades
- Plug-and-Play design for easy installation
- Manufacturer warranty: 2 years
Specifications
| Battery PWR/GND Gauge | 8 AWG |
|---|---|
| Amplifier PWR/GND Gauge | 8 AWG |
| Fuse Size | 60 Amp |
| Fuse Type | MAXI |
| Dual Amp Installation Kit | No |
| In The Box | (1 ea) 1415-80570-01 Amp Mounting Plate (1 ea) 1560-80703-01 Rear Output Harness (1 ea) 1560-80704-01 Power Harness (1 ea) 1560-80705-01 A2B & Speaker Harness 1130-80764-01 AP Pack • (4) Hex Bolt, 1/4-20 x .75, countersink • (4) Steel Bolt, M4 x 14mm • (10) Cable Tie, 4.8mm x 200mm |
| Shipping Weight | 3.5 Lbs. (1.59 Kg) |
Compatibility
YES |
NO |
NOT AVAILABLE |
|---|
|
|
|
|
|
|
|---|---|---|---|---|
|
|
FLTRX | X | ✅ | ✅ |
|
|
FLTRXST | X | — | — |
|
|
FLTRXS | X | — | — |
|
|
FLTRXSANV | X | — | — |
|
|
FLHX | X | ✅ | ✅ |
|
|
FLHXST | X | — | — |
|
|
FLHXS | X | — | — |
|
|
FLHXSANV | X | — | — |
REQUIRED |
NO |
NO |
NO |
|---|
|
|
|
|
|
|
|---|---|---|---|---|
|
|
FLHFB | X | — | — |
|
|
FLHRXS | X | X | X |
|
|
|
|
|
|
|---|---|---|---|---|
|
|
FLTRK | X | X | — |
|
|
FLHXU | — | — | ✅ |
|
|
FLHTK | X | X | — |
|
|
FLHTKANV | X | — | — |
|
|
FLHTK | X | — | — |
|
|
|
|
|
|
|---|---|---|---|---|
|
|
FLTRXSE | ✅SKY2 | ✅SKY2 | ✅SKY2 |
|
|
FLTRXRRSE | — | — | ✅ |
|
|
FLTRSXTSE | — | ✅SKY2 | ✅SKY2 |
|
|
FLTRKSEANV | XRF1 | — | — |
|
|
FLHXSE | ✅SKY2 | ✅SKY2 | ✅SKY2 |
|
|
|
|
|
|
|---|---|---|---|---|
|
|
FLRT | XNR | XNR | XNR |
|
|
FLTRT | X | X | X |
|
|
FLHTCUTG | X | X | X |
|
|
FLHTCUTGANV | X | — | — |
GRAY TEXT
indicates nomenclature used on some early models and later inherited.
2
H-D® Power Lock on factory Harley-Davidson bags are compatible.
3
Saddlebags must be factory Harley-Davidson® ABS plastic to insure proper fitment with bag-lid and subwoofer kits.
Fiberglass saddlebags and lids are not compatible. Color matched speaker lids are not compatible.
4
Stretched Saddlebags not optimized for kits with subwoofers. Contact technical support for suggested harness brace.
5
Tour-Pak® must be detached in order to install and remove subwoofer enclosures.
NR
No Radio equipped from factory.
RF1
RF Stage I: Not upgradable. Factory equipped with "Harley-Davidson Audio Powered by Rockford Fosgate" 2-way speakers and saddlebag amplifier.
RF2
RF Stage II: Not upgradable. Factory equipped with "Harley-Davidson Audio Powered by Rockford Fosgate" 3-way speakers and saddlebag amplifier.
SKY0
Skyline Base Audio: Factory equipped with Skyline OS, Harley-Davidson 2-way base speakers and 200W amplifier.
This system replaces and is not designed to be used with factory equipped audio.
SKY1
Skyline RF Stage I: Factory equipped with Skyline OS, "Harley-Davidson Audio Powered by Rockford Fosgate" 2-way speakers and 500W primary amplifier.
This system replaces and is not designed to be used with factory equipped audio.
Models with factory Harley-Davidson® Saddlebag Speaker Lids will also require TMS24-69 speakers.
SKY2
Skyline RF Stage II: Factory equipped with Skyline OS, "Harley-Davidson Audio Powered by Rockford Fosgate" 3-way speakers and 500W primary amplifier.
This system replaces and is not designed to be used with factory equipped audio.
Models with factory Harley-Davidson® Saddlebag Speaker Lids will also require TMS24-69 speakers.
SKY3
Skyline RF Stage III: Factory equipped with Skyline OS, "Harley-Davidson Audio Powered by Rockford Fosgate" 3-way high-output speakers and 500W primary amplifier.
This system replaces and is not designed to be used with factory equipped audio.
Models with factory Harley-Davidson® Saddlebag Speaker Lids will also require TMS24-69 speakers.
